Description
The Sennheiser EW-DX MKE 2-835-S SET Digital Wireless System with Omni Lavalier and Handheld Mic (S4-10) sits in our Wireless Systems range.
Highlights include for two presenters or performers, MKE 2 omni lav Mic/Bodypack transmitter, MMD 835 cardioid Mic/Transmitter, 2-Channel diversity receiver and 134 dB of dynamic range.
Key specifications: polar pattern Cardioid; frequency range 20 Hz to 20 kHz; frequency response 20 Hz to 20 kHz ±3 dB; length meters 1.6 m; length feet 5.2 ft.
The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: Sennheiser EW-DX EM 2 two-channel Digital rackmount receiver (S4-10), Sennheiser EW-DX SKM-S Digital wireless handheld transmitter with MMD 835 capsule & mute switch (S4-10), Sennheiser MZQ 1 clip for SKM wireless handheld Microphones, Sennheiser EW-DX SK Digital wireless bodypack transmitter with locking 3.5mm connector ((S4-10), Sennheiser MKE 2 gold series subminiature omnidirectional lavalier microphone with locking 3.5mm connector & accessories (Black) and lavalier mic clip and 5 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| System | |
|---|---|
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 3200 |
| Included Transmitters | 2 x Handheld |
| Diversity | Intelligent Switching Diversity |
| RF Frequency Band | S4-10: 630 - 693.8 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Max Transmitters per Band | 269 |
| Built-In Recorder | No |
| Control App Support | Yes, Available for Android/iOS |
| Bluetooth | 5.1 LE |
| Bluetooth Operating Distance | 120' / 36.6 m (Transmitter Sync, App Control) |
| Sample Rate/Resolution | 24-Bit |
| Latency | 1.9 ms |
| Dynamic Range | 134 dB |
| Encryption | AES 256 |
| Receiver | |
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x 1/4 Wave Rod, BNC (Rear-Mount) |
| Number of Audio Channels | 2 |

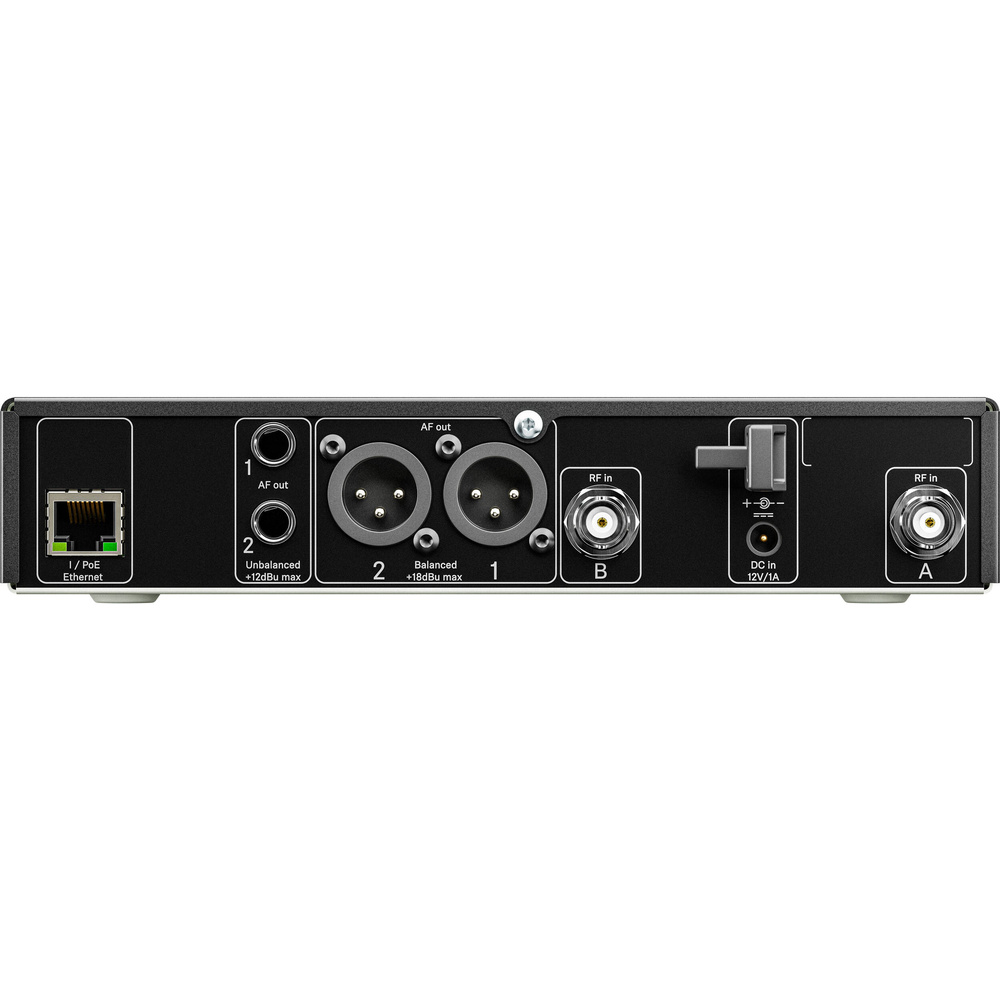

| Audio I/O | 2 x XLR 3-Pin Male Balanced Output 2 x 1/4" TS Female Unbalanced Output |
| Audio Output Level | +18 dBu (Max) +12 dBu (Max) |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Network I/O | 1 x RJ45 |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| RF Output Power | 10 mW (EIRP) |
| Power Requirements | AC/DC Power Adapter, PoE |
| AC/DC Power Adapter | 11 to 13 VDC (Included) |
| DC Input Power | 12 VDC |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 5 to 95% |
| Dimensions | 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm |
| Weight | 2.2 lb / 1 kg (without Antenna) |
| Transmitter | |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW (ERP) 10 mW (EIRP) |
| Audio I/O | None |
| Included Cable Connector | None |
| Muting | Mute Switch |
| Audio Input Level | 2 to 4.35 V |
| Auto-Level Control | No |
| Frequency Response | 20 Hz to 20 kHz -3 dB |
| Sync Method | Bluetooth |
| Antenna | 1 x Internal (Handheld) |
| Power Requirements | Battery |
| Battery Type | 1 x Sennheiser Battery Pack (Included) 2 x AA (Not Included) |
| Approx. Battery Life | 12 Hours (Sennheiser Battery Pack) 8 Hours (Alkaline) |
| Display & Indicators | 1 x Backlit LCD (Battery Status, Mute) |
| Dimensions | 2 x 10.6" / 50 x 268 mm |
| Weight | 10.7 oz / 304 g |
| Microphone | |
| Microphone Type | Handheld Capsule |
| Colour | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Maximum SPL | 154 dB SPL |
| Sensitivity | 2.1 mV/Pa |
| Transmitter 2 | |
| Transmitter Type | Bodypack |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
| Frequency Response | 20 Hz to 20 kHz |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Dimensions | 2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm |
| Weight | 4.2 oz / 120 g (without Batteries) |
| Microphone 2 | |
| Microphone Type | Lavalier |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 20 Hz to 20 kHz |
| Equivalent Noise Level | 26 dB A-Weighted |
| Maximum SPL | 142 dB SPL |
| Sensitivity | 5 mV/Pa at 1 kHz |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male (Lockable) |
| Cable Length | 5.2' / 1.6 m |
| Operating Voltage | 7.5 V |
Product details
| Length Meters | 1.6 m |
|---|---|
| Length Feet | 5.2 ft |
| System Type | Handheld System |
| Battery | Lithium-Ion Included |
In the box

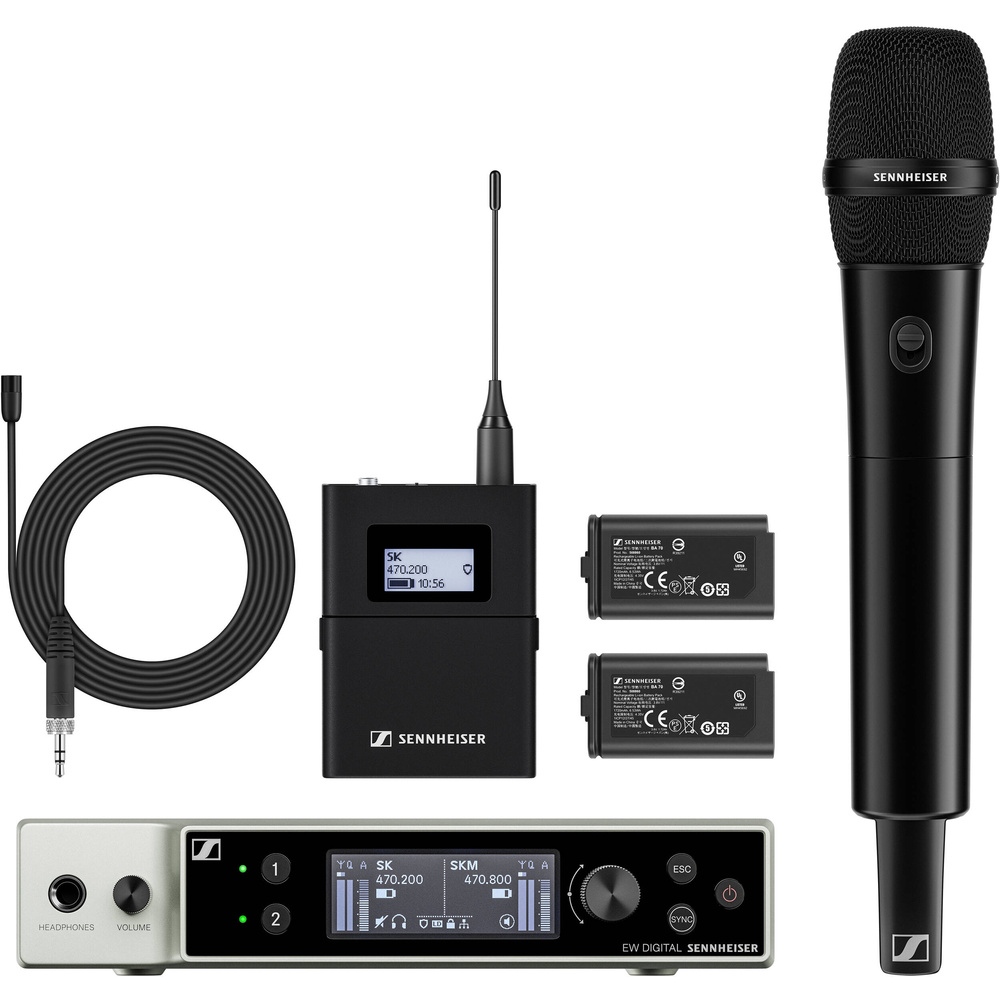

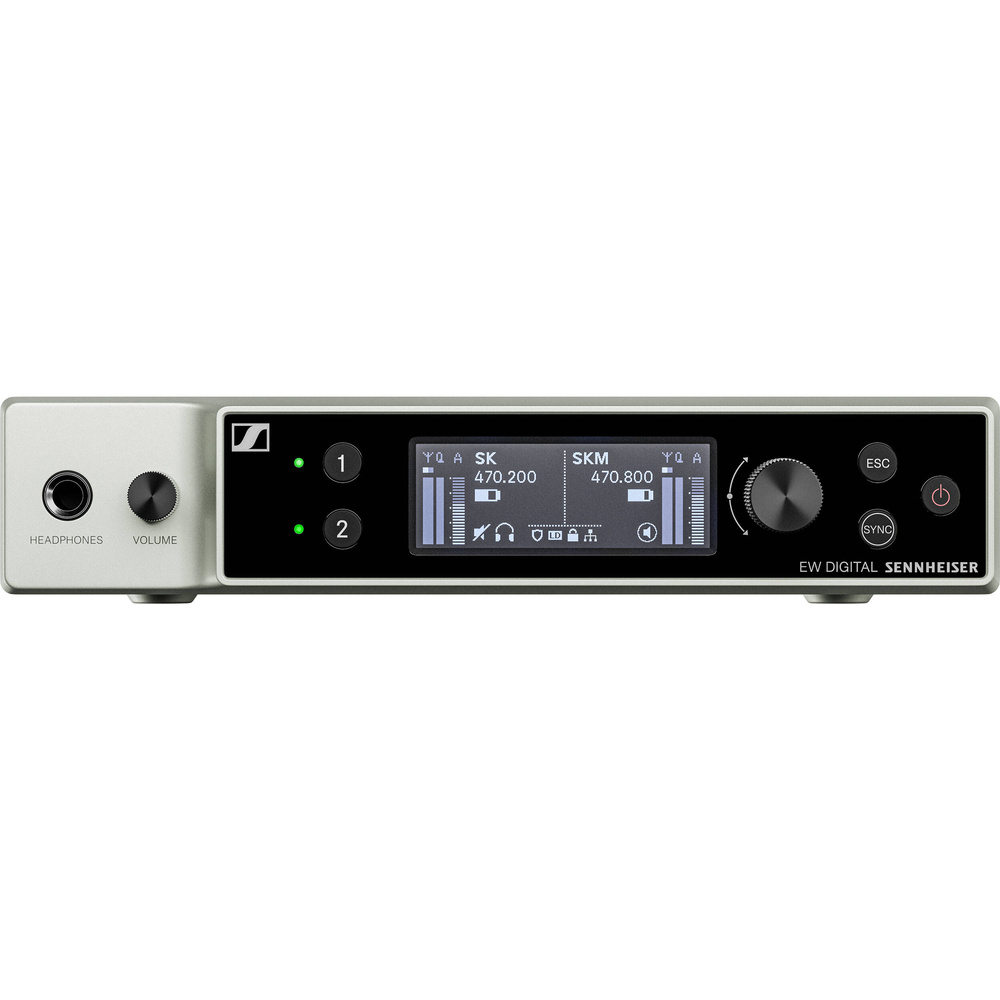

- Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver (S4-10)

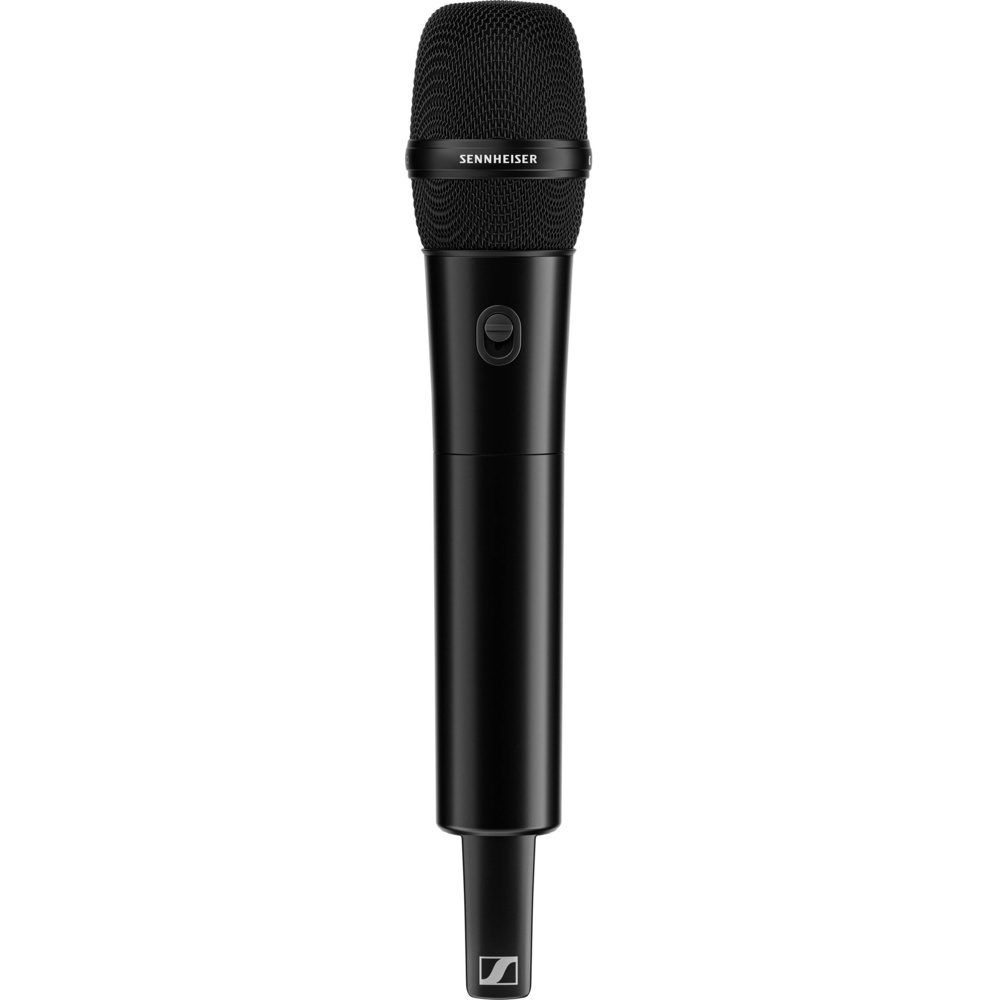

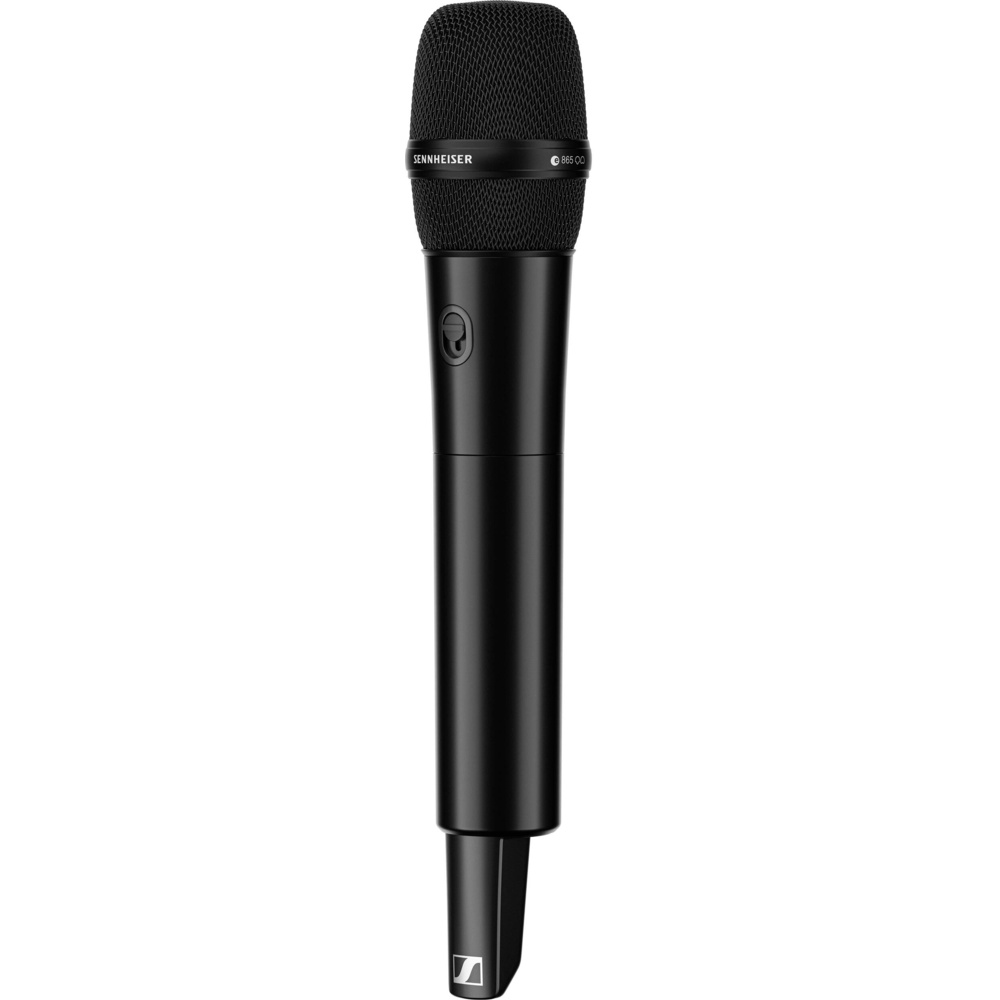

- Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with MMD 835 Capsule & Mute Switch (S4-10)
- Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones

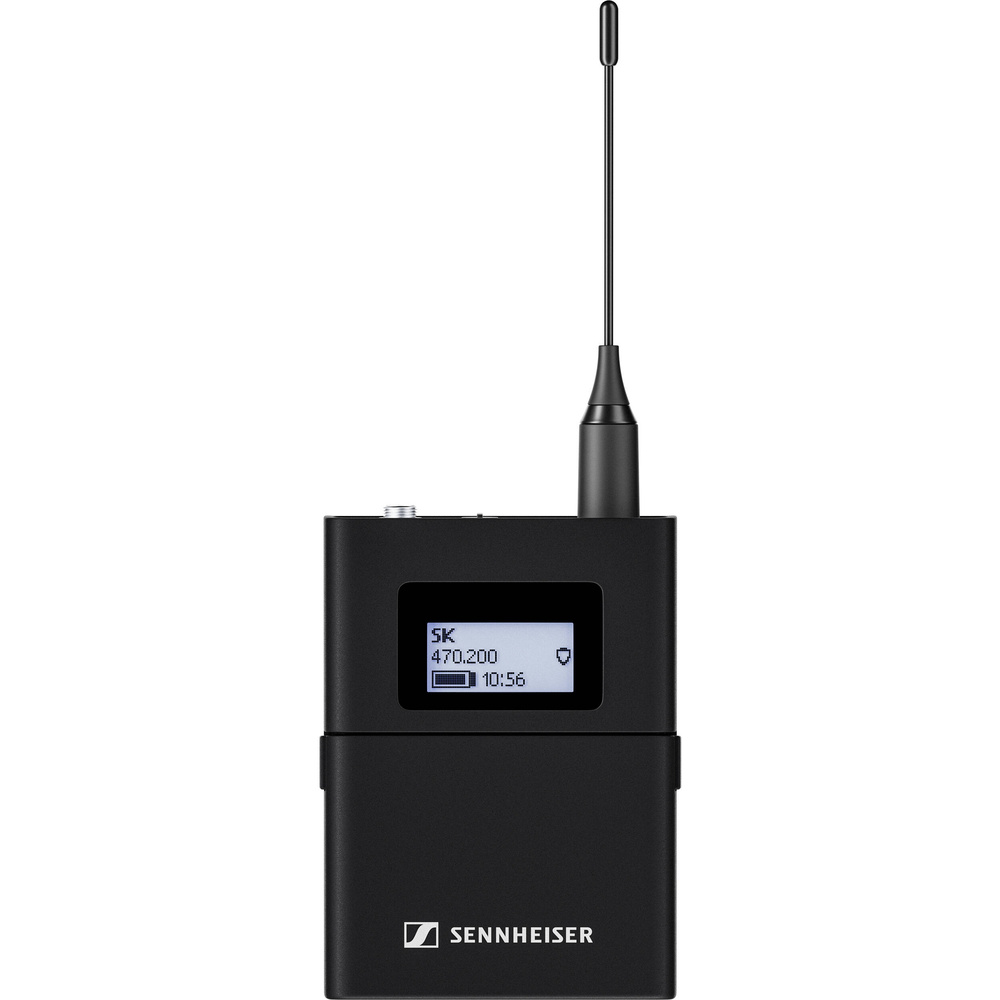

- Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector ((S4-10)
- Sennheiser MKE 2 Gold Series Subminiature Omnidirectional Lavalier Microphone with Locking 3.5mm Connector & Accessories (Black)
- Lavalier Mic Clip
- 2 x Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
- 2 x Rod Antenna
- GA 3 Rackmount Set
- 4 x Rubber Feet
- Sennheiser Universal Power Supply for EW-D EM Wireless Receiver
