Description

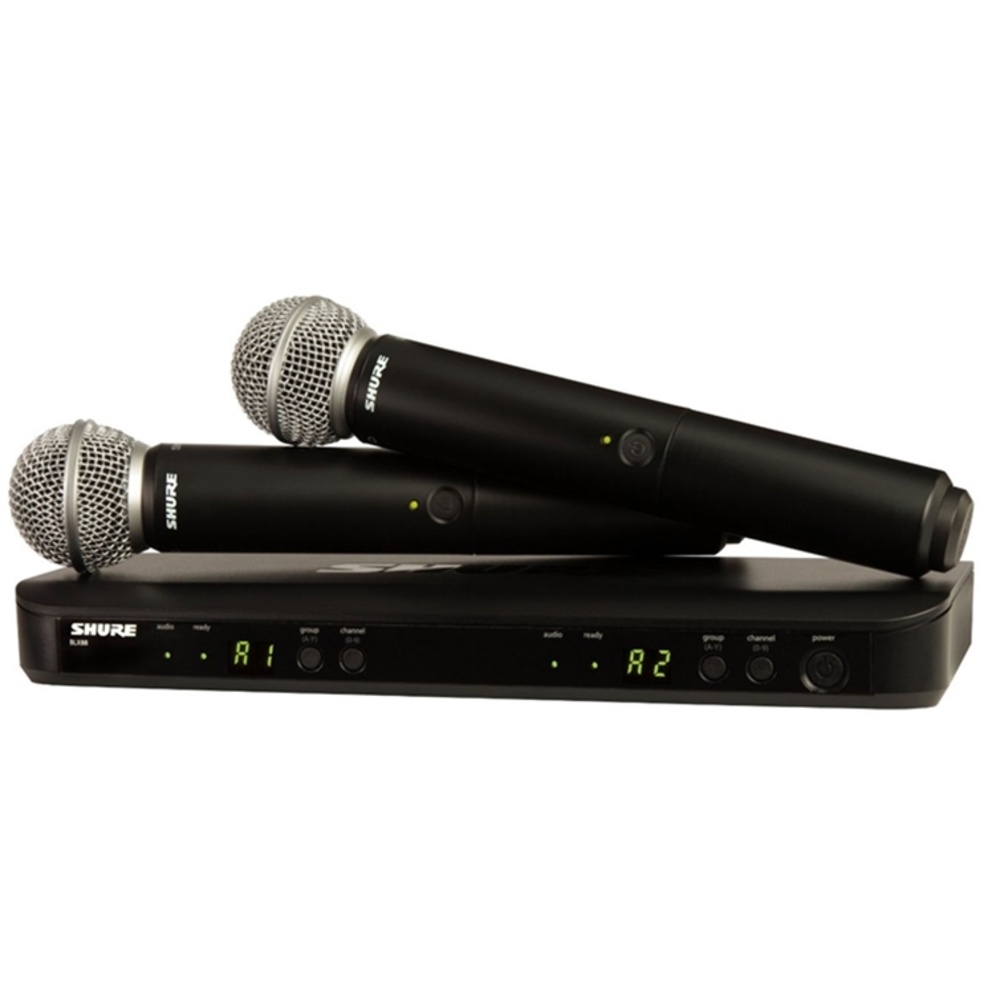

The Shure BLX288/SM58 Dual-Transmitter Handheld Wireless System with SM58 Mics (M17: 662 - 686 MHz) sits in our Wireless Systems range.
Highlights include M17 frequency band, BLX88 dual-channel wireless receiver, 2x BLX2 transmitters with SM58 mics, one-touch QuickScan frequency selection and internal antenna diversity.
Key specifications: polar pattern Cardioid; frequency response 60 Hz to 15 kHz; weight 429 g; dimensions (H x W x D) 40 x 388 x 116 mm; output 2x XLR Output 2x 1/4" (6.35 mm) Output.
The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: BLX88 Dual-Channel Wireless Receiver (M17: 662 - 686 MHz), Power supply, 2 x BLX2 Handheld Transmitter with SM58 Microphone (M17: 662 - 686 MHz), 2 x AA Batteries and microphone clip. Manufacturer model number BLX288/SM58-M17.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| BLX88 Dual-Channel Wireless Receiver (M17: 662 - 686 MHz) | |
|---|---|
| Output | 2x XLR Output 2x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 ohms 1/4": 50 ohms |
| Audio Output Level | XLR Connector: -20.5 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Moulded ABS |
| Power Requirement | 12 to 15 VDC @ 320 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 40 x 388 x 116 mm |
| Weight | 429 g |
| Transmitter | |
| Audio Input Level | 0 dB Gain: -20 dBV Maximum -10 dB Gain: -10 dBV Maximum |
| Gain Adjustment Range | 10 dB |
| RF Output | 10 mW, Typical (Varies by Region) |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| Dimensions (Ø x L) | 53 x 224 mm |
| Weight | 218 g |
| Microphone | |
| Type | Dynamic (Moving Coil) |
| Polar Pattern | Cardioid |
| Frequency Response | 60 Hz to 15 kHz |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector |
| Sensitivity | -54 dBV/Pa, (1.85 mV), 1 Pascal=94 dB SPL (@ 1 kHz) |
| Temperature Range | -29 to 57°C |
| Relative Humidity | 0 to 95% |
Product details
| Element Type | Dynamic |
|---|
In the box
- BLX88 Dual-Channel Wireless Receiver (M17: 662 - 686 MHz)
- Power Supply
- 2 x BLX2 Handheld Transmitter with SM58 Microphone (M17: 662 - 686 MHz)
- 2 x AA Batteries
- Microphone Clip
