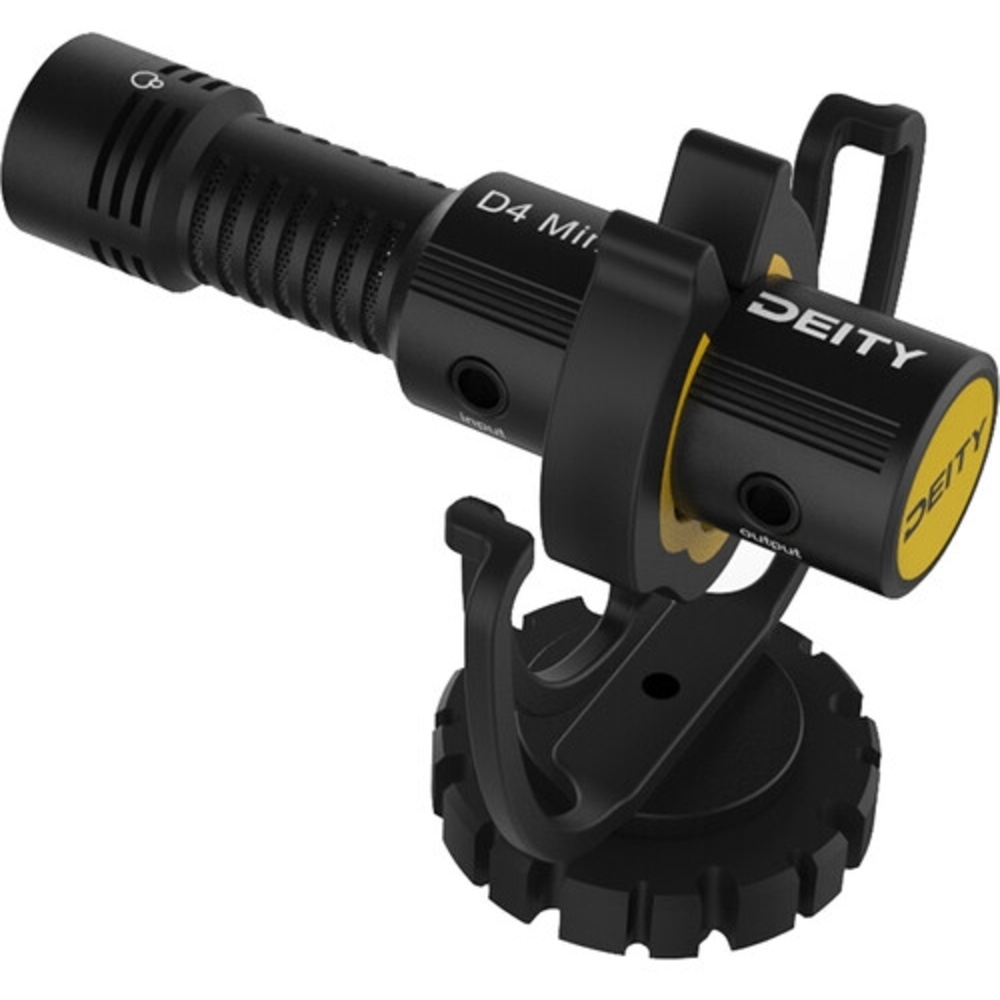

The Deity V-Mic D4 Mini is a compact camera-mount shotgun microphone for video recording. It suits vloggers, run and gun shooters, hybrid shooters and anyone who wants clearer speech on cameras or mobile devices. It is designed for speech, voice over and room ambience, and it captures mono audio with a supercardioid pickup pattern.
It uses an electret condenser capsule with a 14 mm diaphragm and solid-state circuitry. The frequency range is 20 Hz to 20 kHz, with a maximum SPL of 134 dB SPL, a sensitivity of -38 dBV/Pa and a signal-to-noise ratio of 74 dB. It runs on plug-in power from 1 to 5 V and includes an input jack for adding a secondary audio source.
In use, it mounts on a camera and connects with a 3.5 mm TRS cable to compatible cameras. It can also be used with mobile devices through the included TRRS phone cable. The box includes the microphone, shockmount, furry windshield, 3.5 mm TRS camera cable and 3.5 mm TRRS phone cable.
Specifications
| Microphone | |
|---|---|
| Primary Applications | Audio for Video |
| Form Factor | Camera-Mount / Shotgun Mic |
| Intended Sound Sources | Speech/Voice Over, Room Ambiance |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Electret Condenser |
| Diaphragm | 0.6" / 14 mm |
| Polar Pattern | Supercardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Windscreen | Windsock/Windjammer (Included) |
| Performance | |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 134 dB SPL (1 kHz, 1% THD, 1-Kilohm Load) |
| Sensitivity | -38 dBV/Pa at 1 kHz |
| Dynamic Range | 114 dB |
| Signal-to-Noise Ratio | 74 dB |
| THD | 1% |
| Connectivity | |
| Output Connectors (Analog) | 1 x 1/8" / 3.5 mm TRS Female (on Mic) |
| Input Connectors | 1 x 1/8" / 3.5 mm TRS Female (on Mic) |
| Power | |
| Bus Power | None |
| Operating Voltage | 1 to 5 V (Plug-In Power) |
| Physical | |
| Colour | Black |
| Mounting | Shockmount (Included) |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Dimensions | ø: 0.7 x L: 3.1" / ø: 1.9 x L: 7.8 cm |
| Weight | 1 oz / 28 g (Microphone) |
In the box
- Deity Microphones V-Mic D4 Mini Ultracompact Camera-Mount Shotgun Microphone
- Shockmount
- Furry Windshield
- 3.5mm TRS Camera Cable
- 3.5mm TRRS Phone Cable
