Description

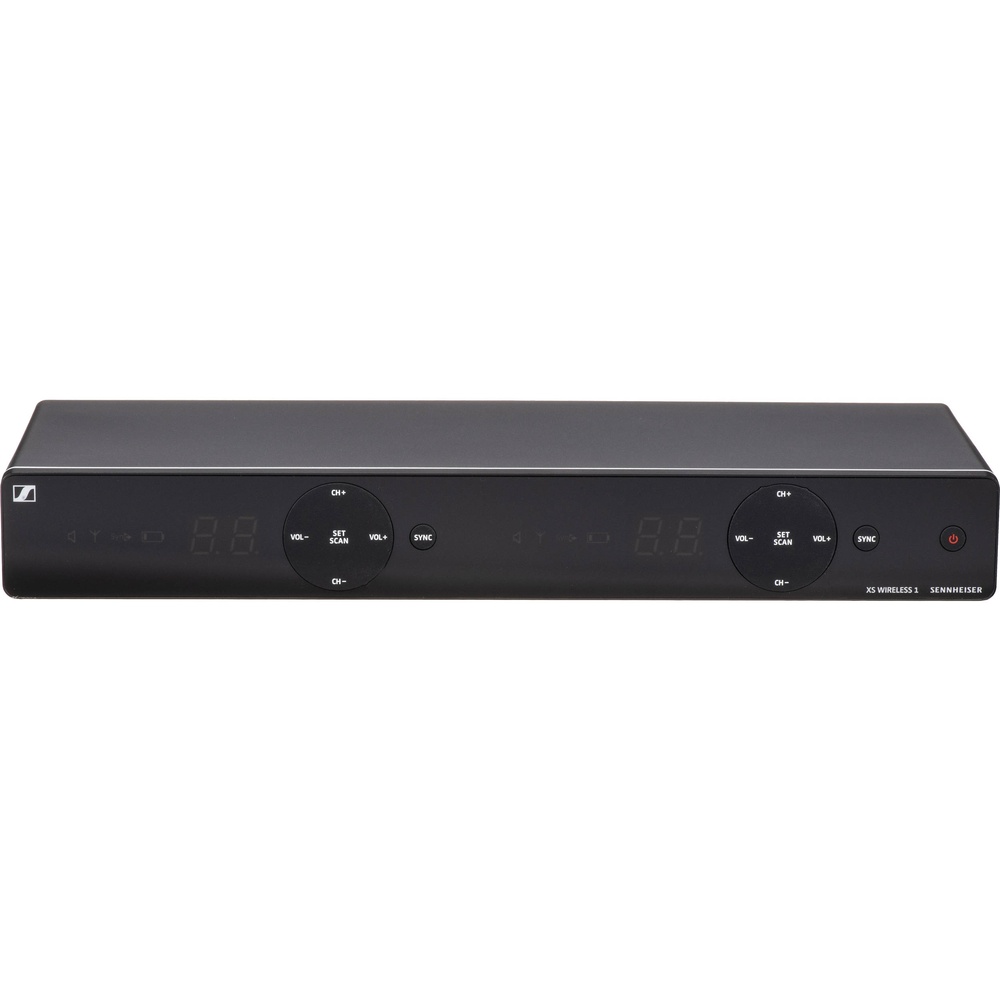

Sennheiser XSW 1-835 Dual-Vocal Set with Two 835 Handheld Microphones (A: 548 - 572 MHz): a wireless system.
Highlights include A Band (548 - 572 MHz), EM-XSW 1 dual-channel receiver, 2 x SKM 835-XSW handheld transmitters, 2 x MZQ 1 microphone clips and 4 x AA Batteries.
Key specifications: mounting options Tabletop; polar pattern Cardioid; frequency response 50 Hz to 16 kHz -3 dB; length 10.2" / 260 mm; weight 620 g.
The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: Sennheiser EM-XSW 1 dual-channel stationary receiver with internal antennas ( A: 548 - 572 MHz), 2 x Sennheiser SKM 835-XSW Handheld Transmitter with e835 Capsule (A: 548 - 572 MHz), 2 x Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500 and 4 x AA Batteries.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| EM-XSW 1 Dual-Channel Stationary Receiver | |
|---|---|
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 80 |
| Diversity | Antenna Diversity |
| RF Frequency Band | A: 548 - 572 MHz |
| RF Bandwidth | Up to 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Transmitters per Band | 10 |
| Timecode Support | No |
| Control App Support | No |
| Modulation | Wideband FM |
| Receiver Type | Tabletop |
| Mounting Options | Tabletop |
| Antenna | 2 x Internal |
| Number of Audio Channels | 2 |

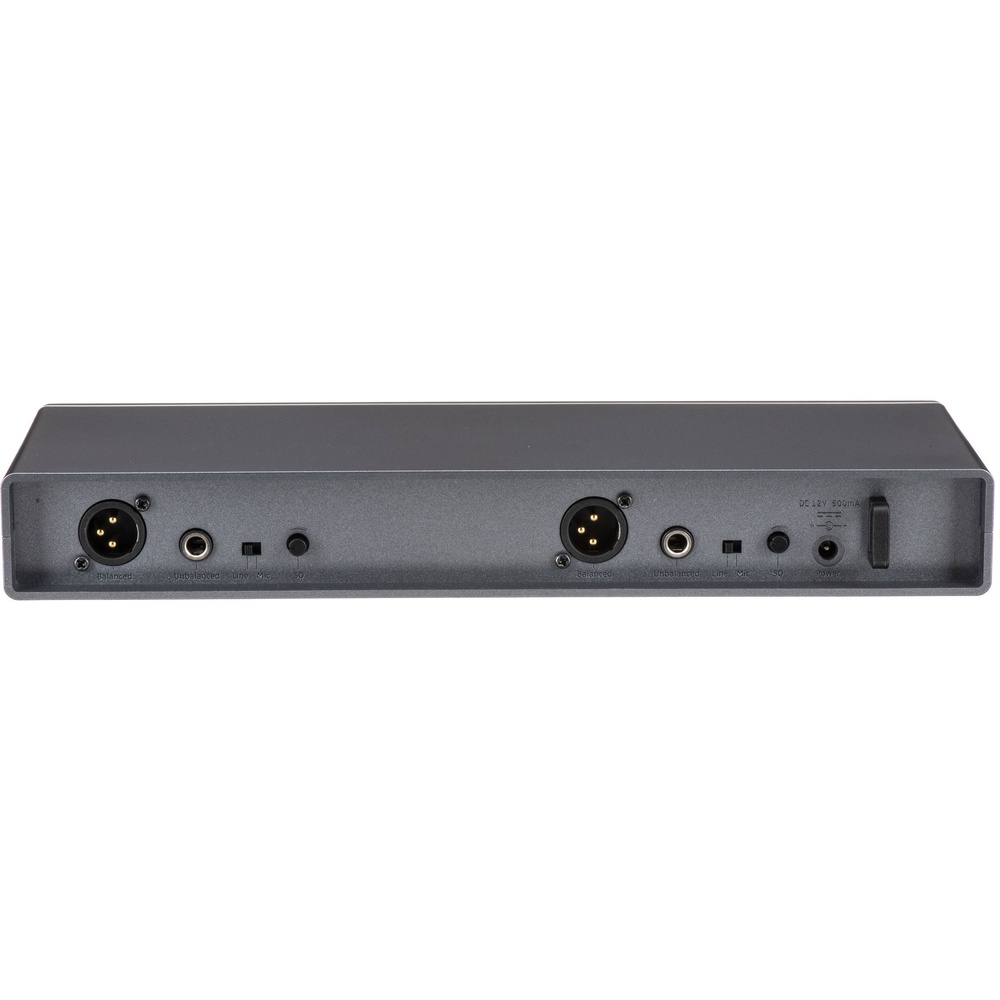

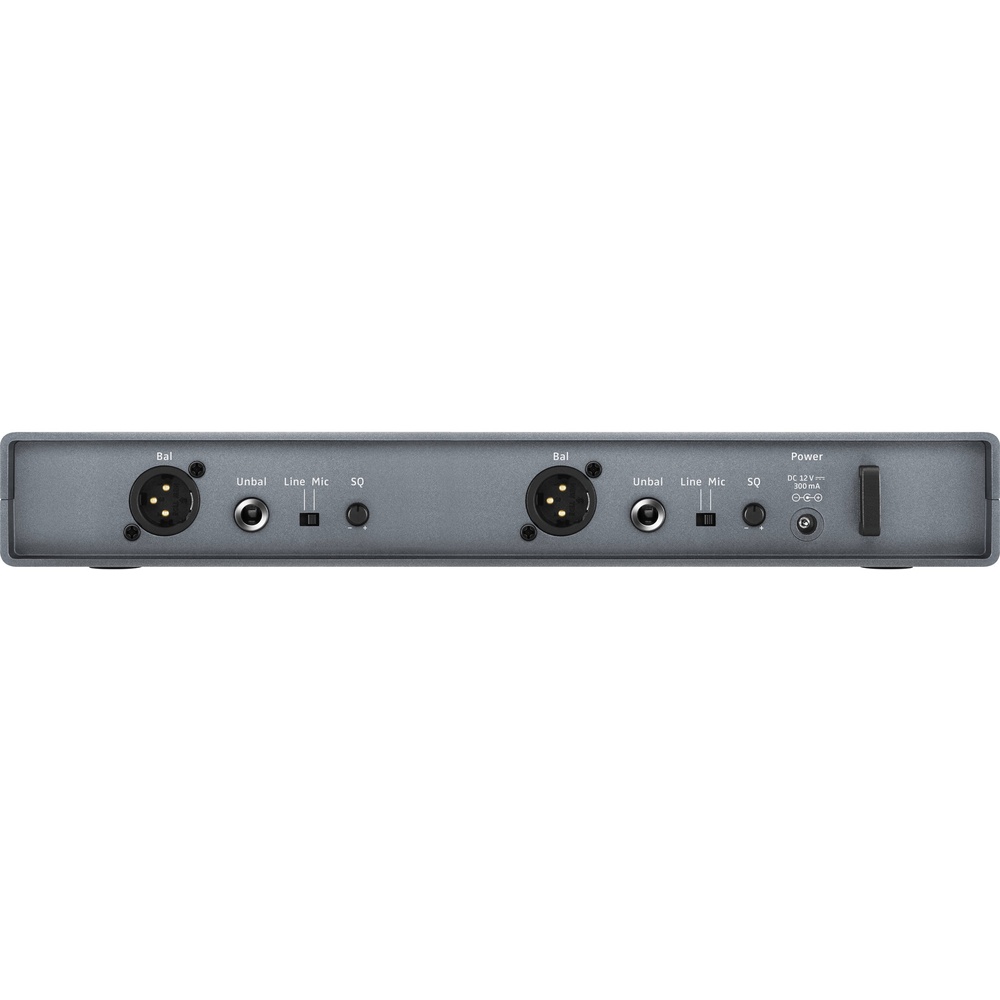

| Audio I/O | 2 x XLR 3-Pin Male Balanced Mic/Line Output 2 x 1/4" TS Balanced Mic/Line Output |
| Gain Range | 45 dB (5 dB Steps) |
| Audio Output Level | XLR Outputs: +12 dBu (Max, Balanced) 1/4" Outputs: +6 dBu (Unbalanced) |
| Frequency Response | 50 Hz to 16 kHz -3 dB |
| RF Principle | Double Superheterodyne |
| Approximate RF Sensitivity | 52 dB / 3 µV |
| Squelch | Adjustable, 3 to 28 dBμV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 2 x LCD |
| Housing | ABS |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Dimensions | 320 x 126.5 x 42 mm |
| Weight | 620 g |
| SKM 835-XSW Handheld Transmitter w/ E835 Capsule | |
| RF Channel Scanning | Manual |
| Max Operating Range | 100' / 30.5 m |
| Built-In Recorder | No |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Included Cable Connector | None |
| Pad | None |
| Muting | Mute Switch |
| Auto-Level Control | No |
| Gain Range | 0 to -30 dB (10 dB Steps) |
| Signal Processing | None |
| Frequency Response | 80 Hz to 16 kHz |
| Sync Metho | d 2.4 GHz QPSK |
| Antenna | Internal |
| Approximate RF Sensitivity | 52 dB / 3 mV |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Sync) |
| Microphone Type | Handheld Capsule |
| Colour | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Length | 10.2" / 260 mm |
| Diameter | 2.0" / 50 mm |
| Weight | 12 oz / 340 g |
In the box
- Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas ( A: 548 - 572 MHz)
- 2 x Sennheiser SKM 835-XSW Handheld Transmitter with e835 Capsule (A: 548 - 572 MHz)
- 2 x Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
- 4 x AA Batteries
