Description
The Zoom PodTrak P8 Portable Multitrack Podcast Recorder sits in our Audio Input & Output range.
Highlights include 6 x high-gain XLR mic inputs with +48V, 6 x independent headphone outputs, 9 Sound pads, 4 banks for Music/Samples, mix-minus for 2 echo-free remote callers and onboard recording & editing controls.
Key specifications: frequency response 20 Hz to 20 kHz ±1 dB (at 44.1 kHz); battery type 4 x AA; weight 3.1 lb / 1.4 kg; dimensions 11.6 x 9.8 x 2.4" / 29.5 x 24.8 x 6.1 cm; channels of I/O Analogue: 8 Inputs / 2 Outputs at 44.1 kHz.
An external recorder captures higher-quality codecs than many cameras record internally.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Form Factor | Tabletop |
|---|---|
| Channels of I/O | Analogue: 8 Inputs / 2 Outputs at 44.1 kHz |
| Max Sample Rate/Resolution | 44.1 kHz / 16-Bit |
| Number of Mic Preamps | 6 |
| Input Level Adjustment | 6 x via Touchscreen |
| Number of Headphone Mixes | 1 x Master 5 x Guest |
| Solo/Mute | Mute per Input Channel |
| Pad | None |
| Sample Pads | 9 x Assignable |
| Display and Indicators | 1 x Touchscreen (Menu Navigation, Metering, Multifunction) 8 x LEDs (Mute) |
| Connectivity | |

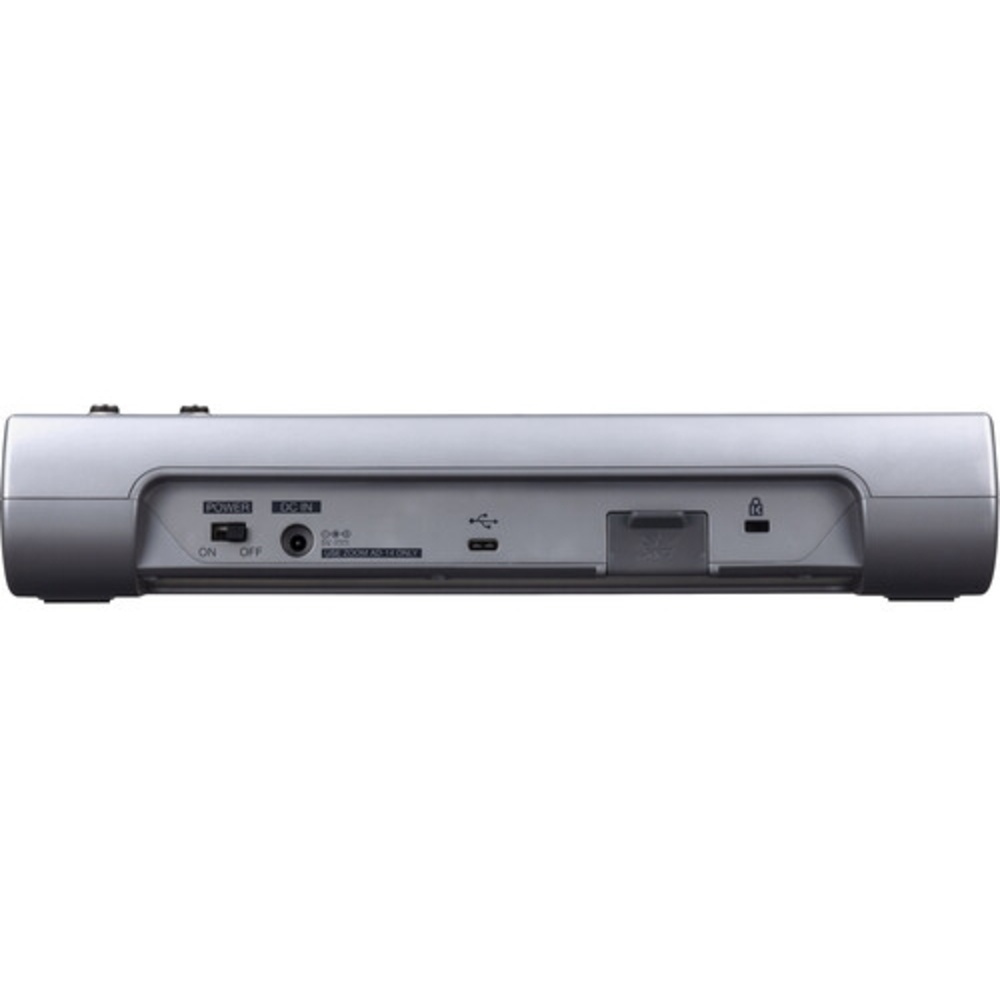

| Host Connection | 1 x USB Type-C (Class-Compliant USB 2.0) |
| Analogue I/O | 6 x XLR 3-Pin Balanced Mic Input 6 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output 2 x 1/4" TRS Balanced Monitor Output 1 x 1/8" / 3.5 mm TRRS Unbalanced Aux In/Out |
| Phantom Power | +48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital I/O | None |
| Memory Card Slot | 1 x SDXC |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz ±1 dB (at 44.1 kHz) |
| Gain/Trim Range | Mic Inputs: 0 dB to +70 dB |
| Max Input Level | XLR Mic Inputs: +5 dBu (at 0 dBFS) 1/8" / 3.5 mm Aux Inputs: +2.5 dBu |
| Max Output Level | Monitor Outputs: +5.5 dBu |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance | XLR Mic Inputs: 3 Kilohms 1/8" / 3.5 mm Aux Inputs: 3 Kilohms 1/4" Monitor Outputs: 320 Ohms 1/8" / 3.5 mm Headphone Outputs: 27 Ohms |
| EIN | -124 dBu (150-Ohm Source, +70 dB Gain) |
| Digital Audio | |
| Sample Rates | 44.1 kHz |
| Bit Depths | 16-Bit |
| Compatibility | |
| OS Compatibility | macOS Windows iOS |
| Compatible Software (Not Included) | Any Core Audio Compliant Software |
| Included Software | None |
| Required Hardware | Available USB 2.0 Port USB Cable (Not Included) |
| Power | |
| Power Requirements | AC/DC Power Adapter (Included), Battery, or USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 1 A |
| Power Consumption | 5 W |

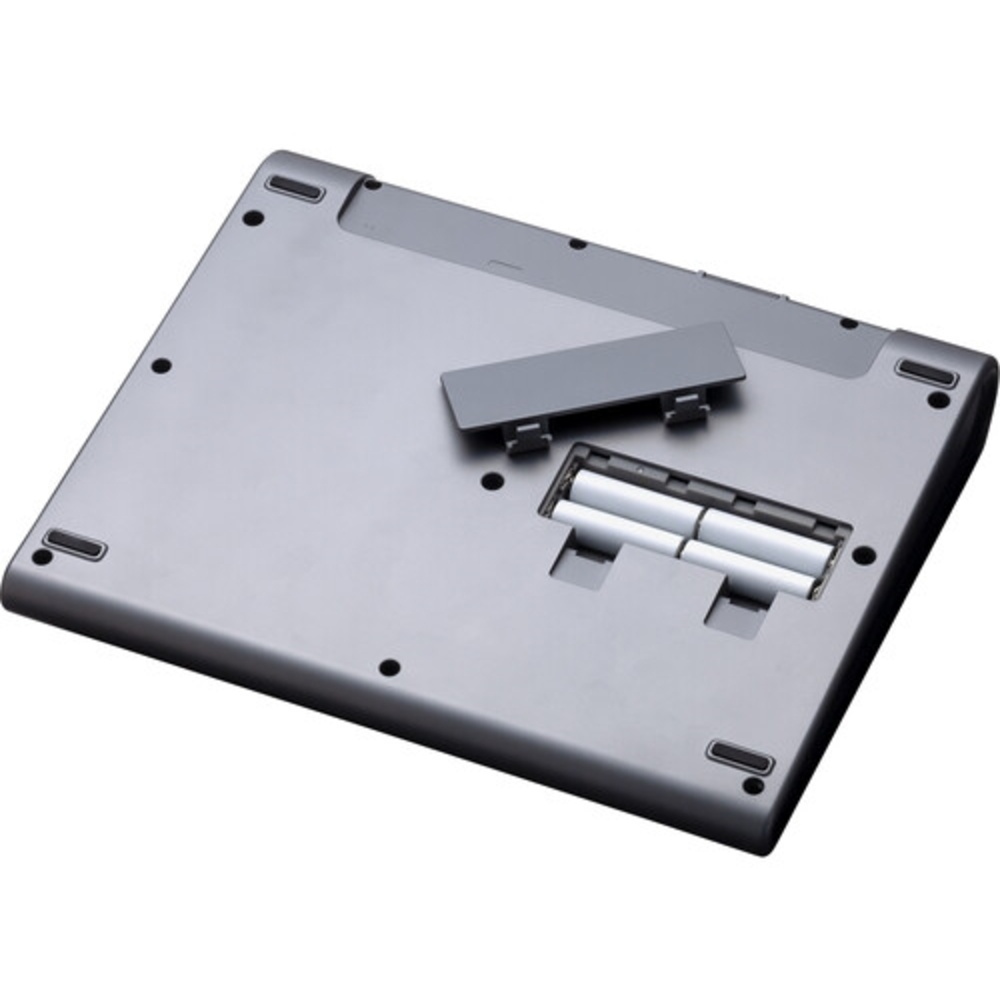

| Battery Type | 4 x AA |
| Approximate Battery Life | 2 Hours (AA Alkaline, Phantom Off, Recording, with Headphones) 3.5 Hours (AA NiMH, Phantom Off, Recording, with Headphones) 6.5 Hours (AA Lithium, Phantom Off, Recording, with Headphones) |
| Physical | |
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 11.6 x 9.8 x 2.4" / 29.5 x 24.8 x 6.1 cm |
| Weight | 3.1 lb / 1.4 kg |
In the box
- Zoom PodTrak P8 Portable Multitrack Podcast Recorder
