Description

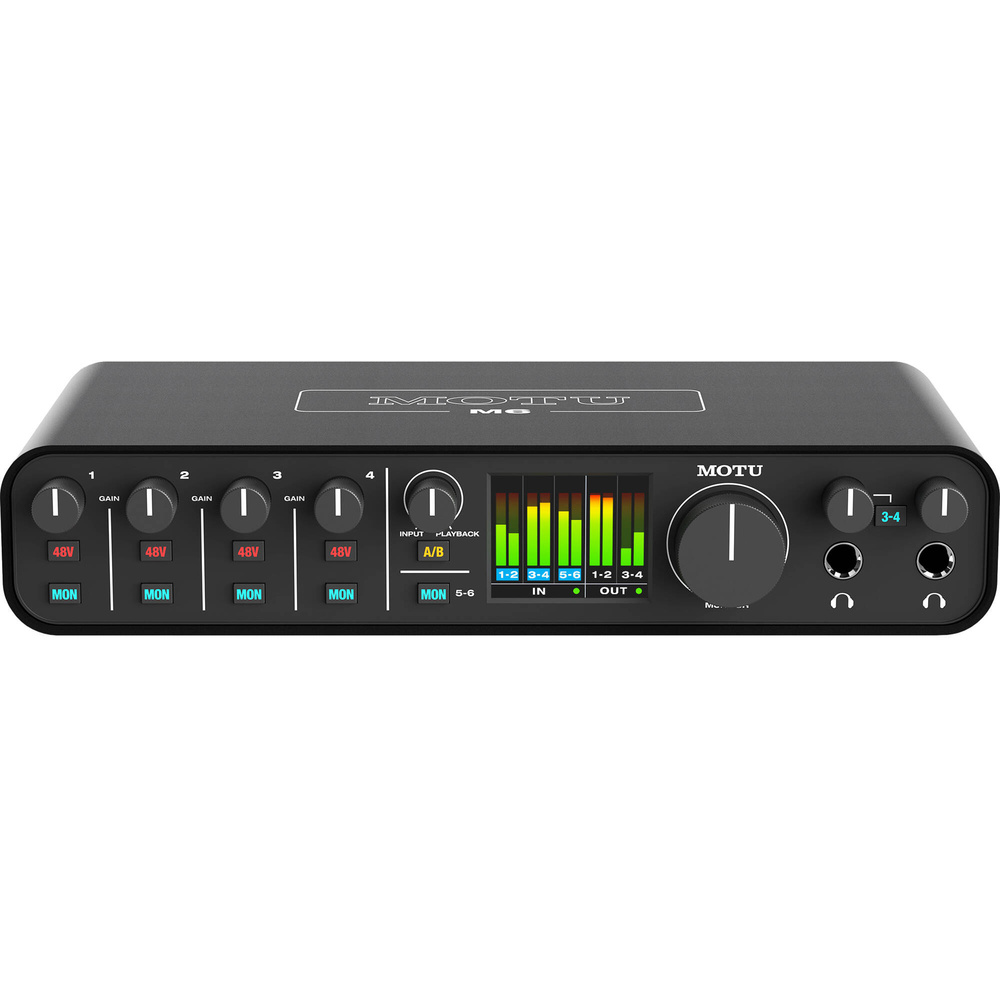

The MOTU M6 USB-C Audio/MIDI Interface sits in our Audio Input & Output range.
Highlights include musicians, podcasters, and producers, AC and bus powered / Mac, Windows, 4 mic / line / Hi-Z preamps, 2 line in, 2 headphone out, 4 line out and 24-Bit / 192 kHz Audio AD/DA conversion.
Key specifications: weight 2.2 lb / 1.0 kg; channels of I/O Analogue: 6 Inputs / 4 Outputs; form factor Desktop; display 1 x Colour LCD; maximum sampling rate 192 kHz / 24-Bit.
In the box: MOTU M6 USB-C Audio/MIDI Interface, USB-C to USB-A Cable and DC Power Adapter.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Form Factor | Desktop |
|---|---|
| Display | 1 x Colour LCD |
| Channels of I/O | Analogue: 6 Inputs / 4 Outputs |
| Built-In DSP | None |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 4 Preamps |
| Built-In Microphone | None |
| Input Level Adjustment | 4 x Knob |
| Expansion Slots | None |
| Signal Processing | |
| Pad | None |
| Gain/Trim Range | Mic Inputs: 0 dB to +60 dB Line/Hi-Z Inputs: 0 dB to +57 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Connectivity | |
| Analogue Audio I/O | 4 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4" TRS Balanced Line Input 2 x 1/4" TRS Unbalanced Headphone Output 4 x 1/4" TRS Balanced Line Output (DC-Coupled) |
| Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
| Performance | |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz +0/-0.1 dB Line, Hi-Z Inputs: 20 Hz to 20 kHz ±0.15 dB Line Inputs: 20 Hz to 20 kHz ±0.07 dB Line Outputs: 20 Hz to 20 kHz +0/-0.1 dB |
| Maximum Input Level | Mic Inputs: +10 dBu (Max Level In) Line Inputs: +16 dBu (Max Level In) |
| Maximum Output Level | Line Outputs: +18 dBu (Balanced) Line Outputs: +16 dBu (Unbalanced) Headphone Outputs: +12.5 dBu |
| Impedance | Mic Inputs: 2.65 Kilohms Line Inputs: 2 Megohms Hi-Z Inputs: 1 Megohm Line Outputs: 100 Ohms |
| Dynamic Range | Mic Inputs: 115 dBA Line Inputs: 114 dBA Line/Monitor Outputs: 120 dBA Headphone Outputs: 115 dBA |
| THD+N | Mic Inputs: -97 dB Line Inputs: < -100 dB / < 0.001% (@ 14 dBu) Line/Monitor Outputs: < -110 dB / < 0.00032% (@ -1 dBFS, Unweighted, 1 kHz) Headphone Outputs: < -110 dB |
| EIN | Mic Inputs: -129 dBu A-Weighted (@ Max Gain, 150 Ohms) |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Latency | Zero-Latency Direct Monitoring2.5 ms at 96 kHz (Dependant on Buffer Size, Input to Output) |
| Sync Sources | Internal |
| Audio Storage & Playback | |
| Memory Card Slot | None |
| Compatibility | |
| OS Compatibility | macOS 10.11 or Later (64-Bit Only) macOS 10.13 or Later (64-Bit Only) Windows 10 or Later (64-Bit Only) *As of October, 2022: Cheque with manufacturer for the most up-to-date compatibility |
| Included Software | Ableton Live Lite Digital Performer Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | None |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) |
| Processor Requirement | Mac: 1 GHz Intel Core i3 (64-Bit) PC: 1 GHz Intel Pentium |
| RAM Requirements | 2 GB, 4 GB Recommended |
| Storage Requirements | 500 GB |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Internet Connection | Required for Software/Driver Download |
| Power | |
| Power Requirements | AC/DC Power Adapter (Included) |
| Physical | |
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 9.21 x 4.75 x 1.8" / 23.39 x 12.06 x 4.6 cm (Chassis Only) |
| Weight | 2.2 lb / 1.0 kg |
In the box
- MOTU M6 USB-C Audio/MIDI Interface
- USB-C to USB-A Cable
- DC Power Adapter
