Description
The M-Audio M-Track Solo is a compact 2-channel USB audio interface for recording vocals, guitar, bass, keyboards and other line sources on a Mac or PC. It suits home recording setups, podcasting and simple music production where you need one microphone input, one instrument input and a straightforward way to get sound into a computer.

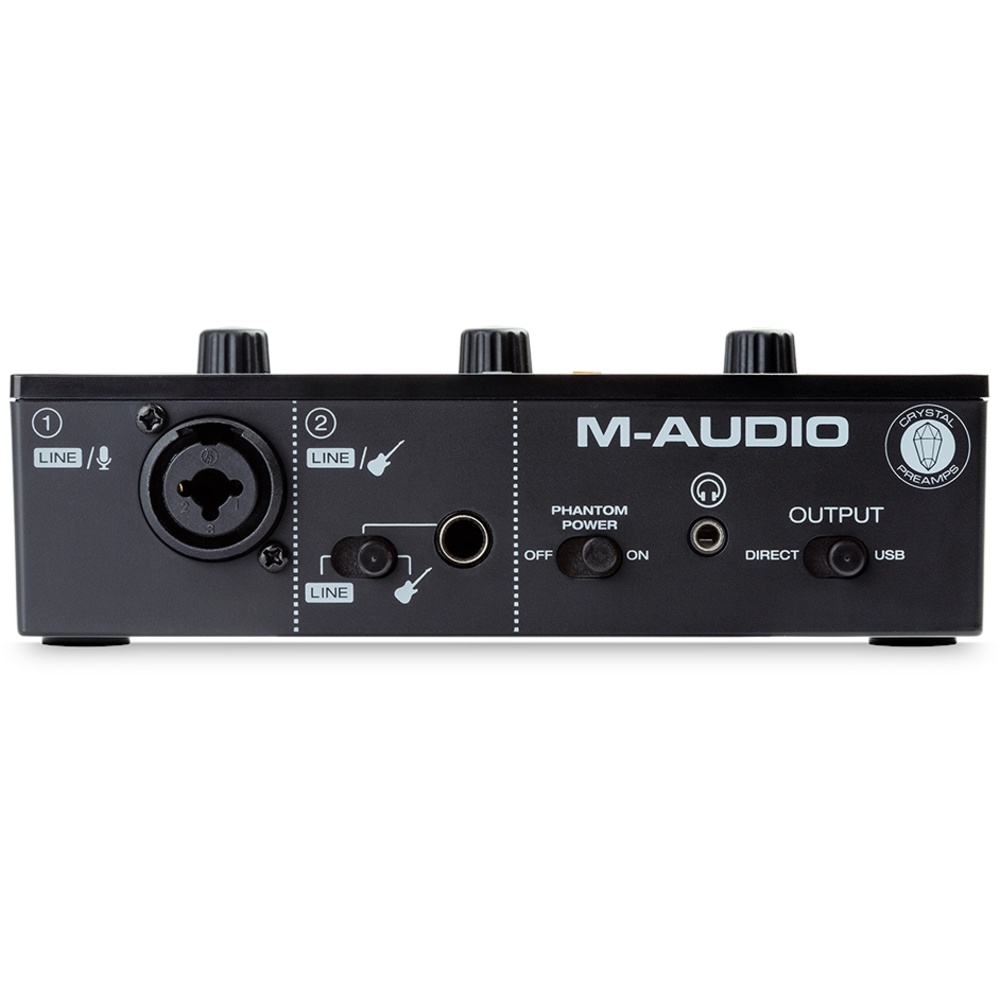

It offers a combo input with a Crystal preamp, +48V phantom power, a dedicated instrument input and a stereo line input. Audio performance is rated at 20 Hz to 20 kHz frequency response, 109 dB signal-to-noise ratio, 0.003% THD+N, and a preamp EIN of -128 dBu. The mic gain range is 0 dB to +54 dB, the line and instrument gain range is -10 dB to +44 dB, the input impedance is 1 MΩ, and the headphone output delivers 60 mW per channel into 32 Ω.
In use, it connects to a computer by USB and can be paired with a microphone, an electric guitar or bass, or a keyboard or other stereo line source. The box includes the M-Track Solo, a USB-B-to-USB-A cable, software download cards and a user guide.
Specifications
| Mic Input (balanced XLR) | |
|---|---|
| Frequency Response | 20 Hz - 20 kHz (+0.1 dB) |
| Signal-to-Noise Ratio | 109 dB (A-weighted) |
| THD+N | 0.003% (min. gain, 0 dBu out, A-weighted) |
| Preamp EIN | -128 dBu (max. gain, 40 Ω source, A-weighted) |
| Gain Range | Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB |
| Line Input (balanced 1/4" [6.35 mm] TRS) | |
| Sensitivity | -43 dBu |
| THD | 0.002% (min. gain, 0 dBu out, A-weighted) |
| Gain Range | Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
| Instrument Input (unbalanced 1/4" [6.35 mm] TS) | |
| THD+N | 0.005% (min. gain, 0 dBu out, A-weighted) |
| Input Impedance | 1 MΩ |
| RCA Outputs | |
| THD+N | 0.002% ( 0 dBu output, A-weighted) |
| Max Output Level | +4 dBu |
| Headphone Output (1/4” [6.35 mm] TRS) | |
| Power | 60 mW/Ch, 32 Ω |
| Frequency Response | 20 Hz - 20 kHz (+0.5 dB) |
| THD+N | 0.02% (A-weighted) |
| Signal-to-Noise Ratio} | 100 dB (A-weighted) |
In the box
- M-Track Solo
- USB-B-to-USB-A Cable
- Software Download Cards
- User Guide
