Description

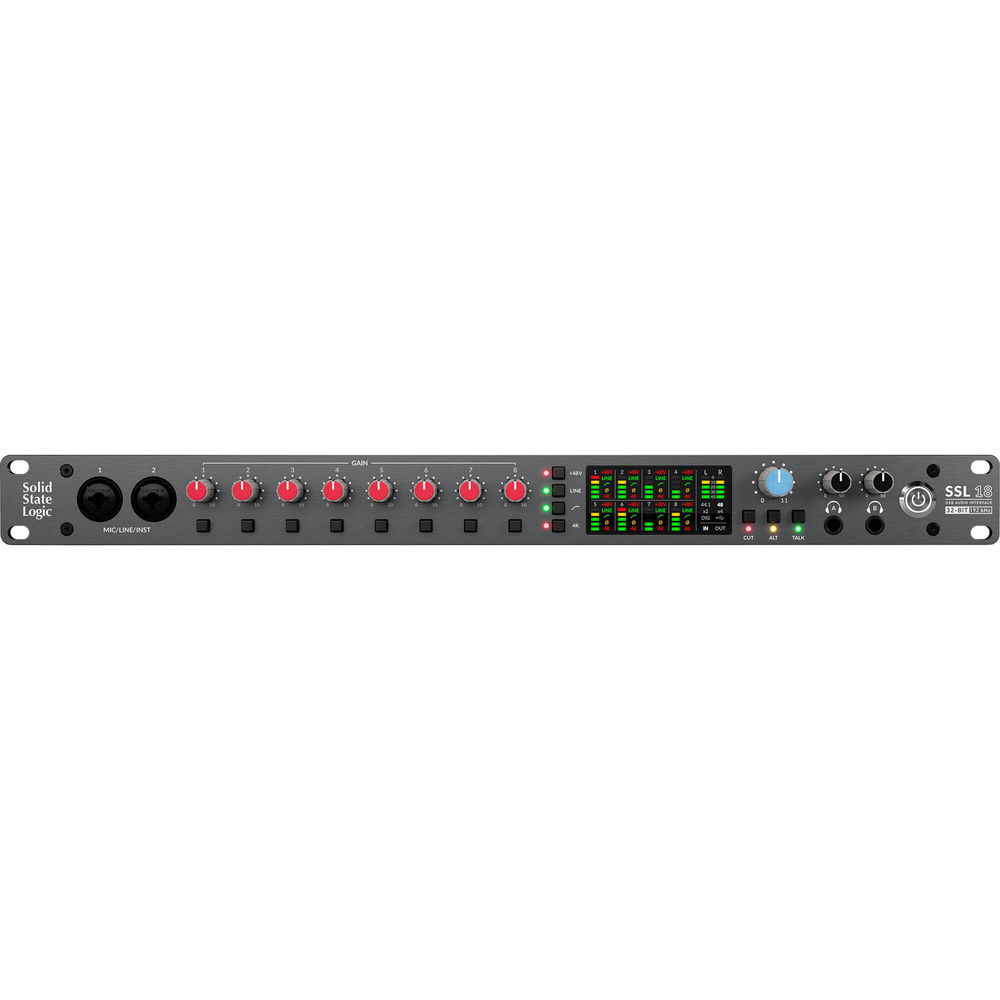

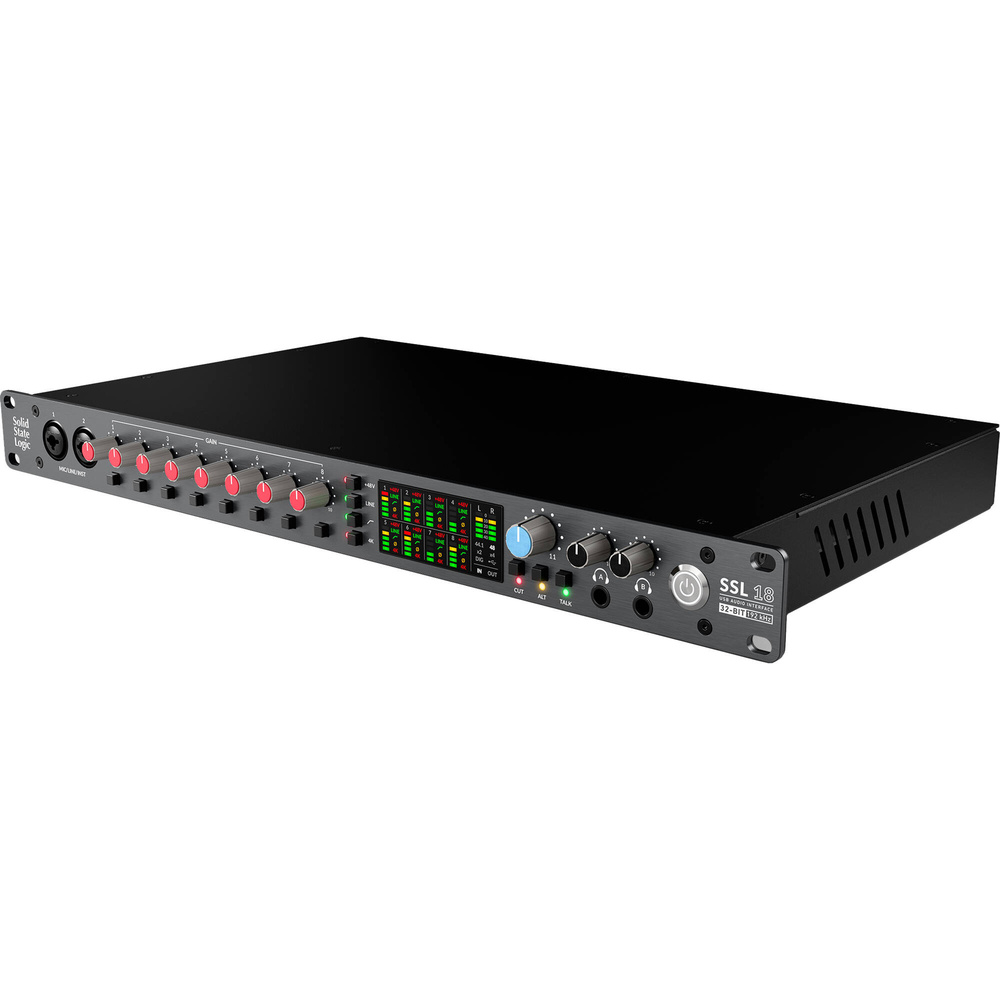

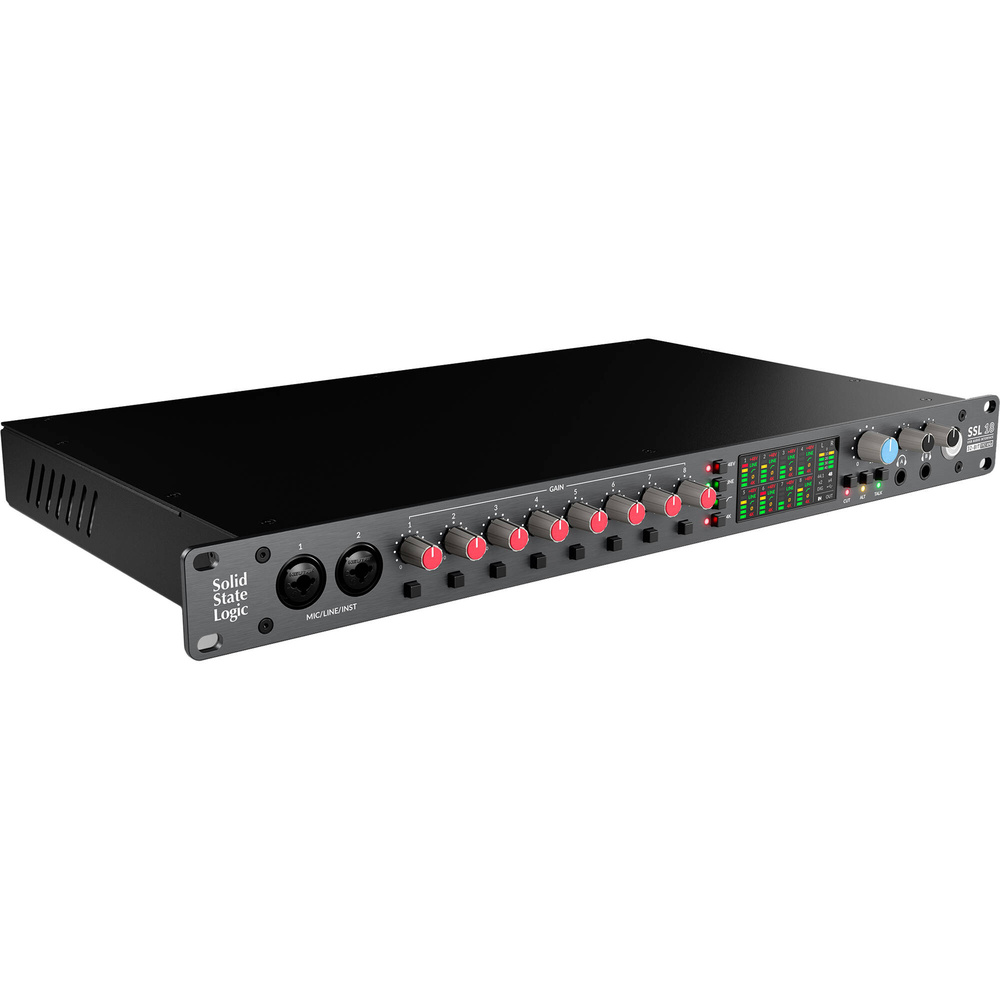

The Solid State Logic SSL 18 USB-C Audio/MIDI Interface sits in our Audio Input & Output range.
Highlights include studio recording and mixing, AC powered, Mac/Windows, 8 Mic/Line in, 2 Hi-Z in, 2 Send/Return, 2 headphone out, 10 line out and 32-Bit/192 kHz AD/DA Conversion.
Key specifications: weight 8.2 lb / 3.7 kg; channels of I/O 28 Inputs / 28 Outputs; maximum sampling rate 192 kHz / 32-Bit; number of microphone inputs 8; input level adjustment Knob.
In the box: Solid State Logic SSL 18 USB-C Audio/MIDI interface, USB-C to USB-C Cable, USB-C to USB-A Adapter and Power cord.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Channels of I/O | 28 Inputs / 28 Outputs |
|---|---|
| Built-In DSP | No |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 8 |
| Built-In Microphone | No |
| Input Level Adjustment | Knob |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Mic Inputs: 67 dB Line Inputs: 26 dB Hi-Z Inputs: 67 dB Mic Inputs: 30 dB to 50 dB (Talback Input) |
| High-Pass Filter | 75 Hz, 18 dB/Octave |
| Solo/Mute | Solo per Input Channel Mute per Master |
| Connectivity | |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input (Front Panel) 7x Combo XLR-1/4" TRS Balanced Mic/Line Input |
| Phantom Power | 48 V |
| Digital Audio I/O | 2x TOSLINK Optical ADAT / S/PDIF Input 2x TOSLINK Optical ADAT / S/PDIF Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection | 1x USB-C |
| Host Connection Protocol | Not Specified by Manufacturer |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Output |
| Network I/O | No |
| MIDI I/O | 1x 1/8" / 3.5 mm TRS Input 1x 1/8" / 3.5 mm TRS Output |
| Expansion Slots | No |
| Wireless | No |
| Performance | |
| Frequency Response | Mic, Hi-Z Inputs: 20 Hz to 20 kHz ±0.06 dB XLR Mic Inputs: 20 Hz to 20 kHz ±0.04 dB (Talkback Mic) 1/4" Mic Inputs: 20 Hz to 20 kHz ±0.03 dB Line Inputs: 20 Hz to 20 kHz ±0.05 dB Line Outputs: 20 Hz to 20 kHz ±0.05 dB Headphone Outputs: 20 Hz to 20 kHz ±0.07 dB Analogue Inputs: 20 Hz to 20 Hz ±0.05 dB (Insert Return Path) Analogue Outputs: 20 Hz to 20 Hz ±0.05 dB (Insert Send Path) |
| Maximum Input Level | XLR Mic Inputs: -10 dBu (Talkback Mic) 1/4" Mic Inputs: 24.5 dBu (Talkback Mic) Line Inputs: 24.1 dBu Hi-Z Inputs: 15 dBu Insert Inputs: 24 dBu (Insert Return Path) |
| Maximum Output Level | Line Outputs: 24.1 dBu Headphone Outputs: 18 dBu |
| Impedance | Mic Inputs: 1.2 Kilohms Line Inputs: 15 Kilohms Line Outputs: 150 Ohms Hi-Z Inputs: 1 Megohm Headphone Outputs: < 1 Ohm |
| Dynamic Range | Analogue Inputs: 120 dBA (Insert Return Path) Mic/Line/Hi-Z Inputs: 120 dBA XLR Mic Inputs: 110 dBA (Talkback Mic) 1/4" Mic Inputs: 112 dBA (Talkback Mic) Headphone Outputs: 120 dBA Mic Outputs: 125 dBA |
| THD+N | Mic Inputs: -100 dB / 0.001% Line Inputs: -106 dB / 0.0005% Hi-Z Inputs: -100 dB / 0.001% XLR Mic Inputs: 0.007% (Talkback Mic) 1/4" Mic Inputs: 0.001% (Talkback Mic) Line Inputs: -104 dB / 0.0006% Analogue Outputs: 0.0007% (Insert Send Path) Analogue Inputs: 0.0004% (Insert Return Path) Headphone Outputs: -100 dB / 0.001% |
| EIN | 130.5 dBu A-Weighted |
| Digital Audio | |
| Sample Rates | 192 kHz |
| Bit Depths | 32-Bit |
| Sync Sources | ADAT, Internal, S/PDIF, Word Clock |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Compatibility | |
| OS Compatibility | macOS / Windows |
| Mobile Device Compatibility | No |
| Power | |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Physical | |
| Rackmount Size | 1 RU |
| Dimensions | 19 x 11.6 x 1.7" / 48.3 x 29.5 x 4.3 cm (Including Controls and Protrusions) |
| Weight | 8.2 lb / 3.7 kg |
In the box
- Solid State Logic SSL 18 USB-C Audio/MIDI Interface
- USB-C to USB-C Cable
- USB-C to USB-A Adapter
- Power Cord
