Description

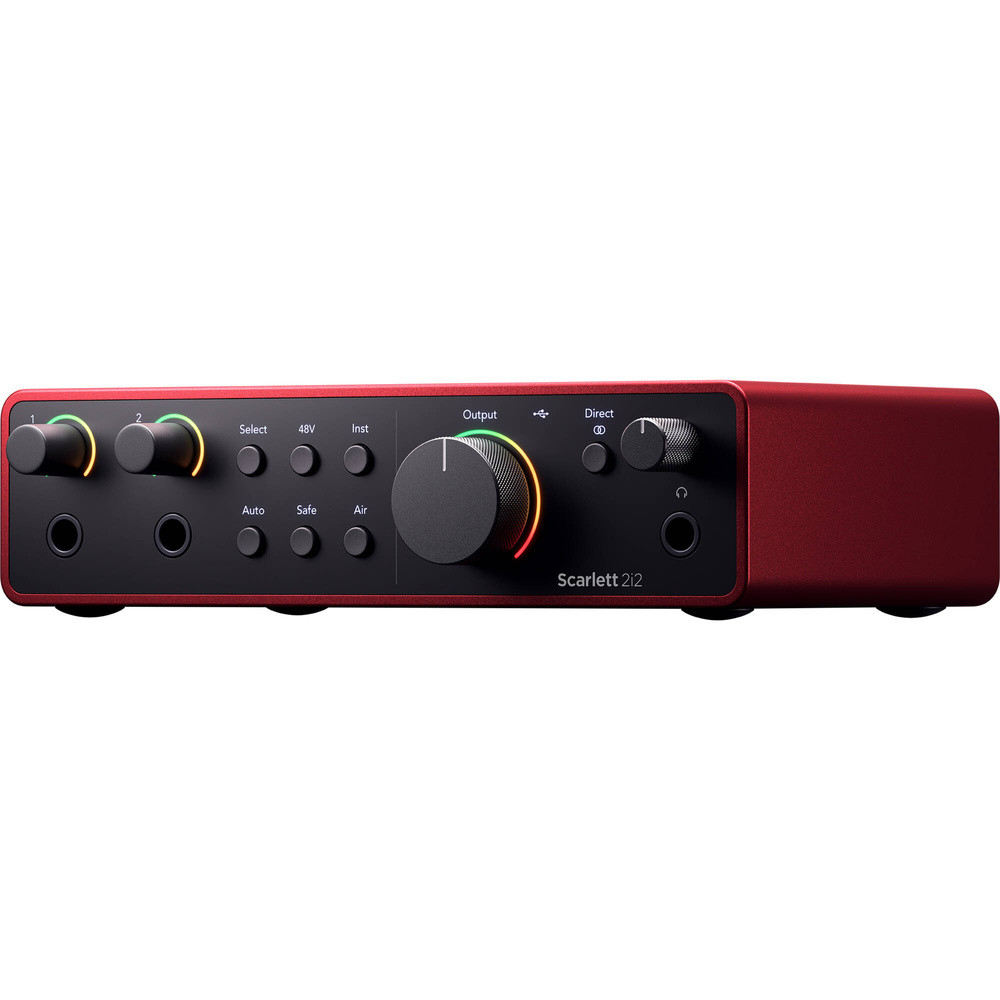

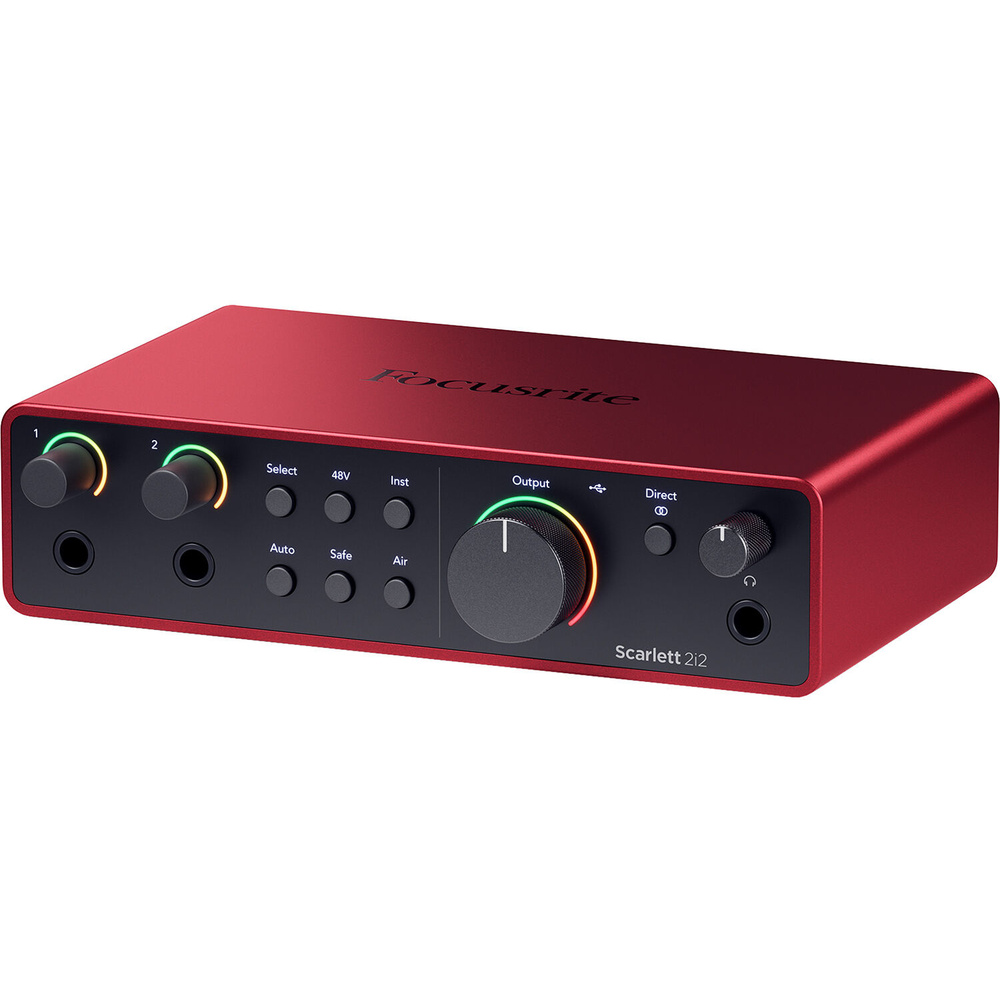

The Focusrite Scarlett 2i2 USB-C Audio Interface is a desktop 2-in, 2-out interface for singers, musicians, podcasters and streamers. It suits users who want to record microphones and instruments into a computer or compatible device with simple front-panel control.
It has two microphone preamps, two line or Hi-Z inputs, two monitor outputs and one headphone output. The interface supports 24-bit recording at up to 192 kHz, uses USB-C, and includes auto-gain and clip safe controls. Phantom power is selectable on or off, and the gain range reaches up to +69 dB for mic or line inputs.
In use, it connects to macOS, Windows or iPadOS systems and can run from USB bus power or an external AC/DC adapter, which is not included. It pairs with microphones, guitars, synths and studio monitors. The box includes the Scarlett 2i2 4th Generation interface and a USB-C to USB-A cable.
Specifications
| Key Specs | |
|---|---|
| Form Factor | Desktop |
| Channels of I/O | Analogue: 2 Inputs / 2 Outputs at 192 kHz |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Analogue Audio I/O | 2 x XLR 3-Pin Balanced Mic Input 2 x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel) 2 x 1/4" TRS Balanced Monitor Output 1 x 1/4" TRS Headphone Output (Front Panel) |
| Digital Audio I/O | None |
| Host Connection | 1 x USB-C |
| OS Compatibility | macOS Windows *As of August, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Power Requirements | AC/DC Power Adapter (Not Included), USB Bus Power |
| Display | None |
| Built-In DSP | None |
| Built-In Microphone | None |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
| Signal Processing | |
| Gain/Trim Range | Mic/Line Inputs: Up to +69 dB Hi-Z Inputs: 62 dB |
| Connectivity | |
| Phantom Power | 48 V, Selectable On/Off |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1 x USB-C (Power Input) |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless | None |
| Performance | |
| Frequency Response | XLR Mic Inputs: 20 Hz to 20 kHz ±0.06 dB 1/4" Line Inputs: 20 Hz to 20 kHz 0.05 dB 1/4" Hi-Z Inputs: 20 Hz to 20 kHz 0.15 dB |
| Maximum Input Level | XLR Mic: 16 dBu 1/4" Line: 22 dBu 1/4" Hi-Z: 12 dBu |
| Maximum Output Level | 1/4" Line: +16 dBu |
| Headphone Output Power | 1/4": 32 mW into 33 Ohms 22 mW into 300 Ohms |
| Impedance | XLR Mic Inputs: 3 Kilohms 1/4" Line Inputs: 60 Kilohms 1/4" Hi-Z Inputs: 1 Megohms 1/4" Line Outputs: 100 Ohms 1/4" Headphone Outputs: < 50 Ohm |
| Dynamic Range | XLR Mic Inputs: 116 dBA 1/4" Line Inputs: 115.2 dBA 1/4" Hi-Z Inputs: 113 dBA 1/4" Line Outputs: 120 dB 1/4" Headphone: 112 dB (at 33 Ohms) 115 dB (at 300 Ohms) Digital A/D Convertors: 120 dB Digital D/A Convertors: 130 dBA |
| THD+N | XLR Mic Inputs: -100 dB (at 8 dB Gain) 1/4" Line Inputs: -100 dB (at 8 dB Gain) 1/4" Hi-Z Inputs: -80 dB (at Minimum Gain) 1/4" Line Outputs: -109 dB 1/4" Headphone Outputs: -99 dB (at 33 Ohms) -108 dB (at 300 Ohms) Digital A/D Convertors: -110 dB Digital D/A Convertors: -115 dB |
| EIN | XLR Mic Inputs: -127 dBu A-Weighted |
| Digital Audio | |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | Internal |
| Audio Storage & Playback | |
| Memory Card Slot | None |
| Compatibility | |
| Included Software | None |
| Mobile App Compatible | Yes: iPadOS Only *As of August, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Power | |
| AC/DC Power Adapter | 5 VDC at 900 mA |
| Power Consumption | 4.5 W |
| Physical | |
| Dimensions | 7.1 x 4.6 x 1.87" / 18 x 11.7 x 4.75 cm |
| Weight | 1.3 lb / 595.0 g |
In the box
- Focusrite Scarlett 2i2 USB-C Audio Interface (4th Generation)
- USB-C to USB-A Cable
