Description

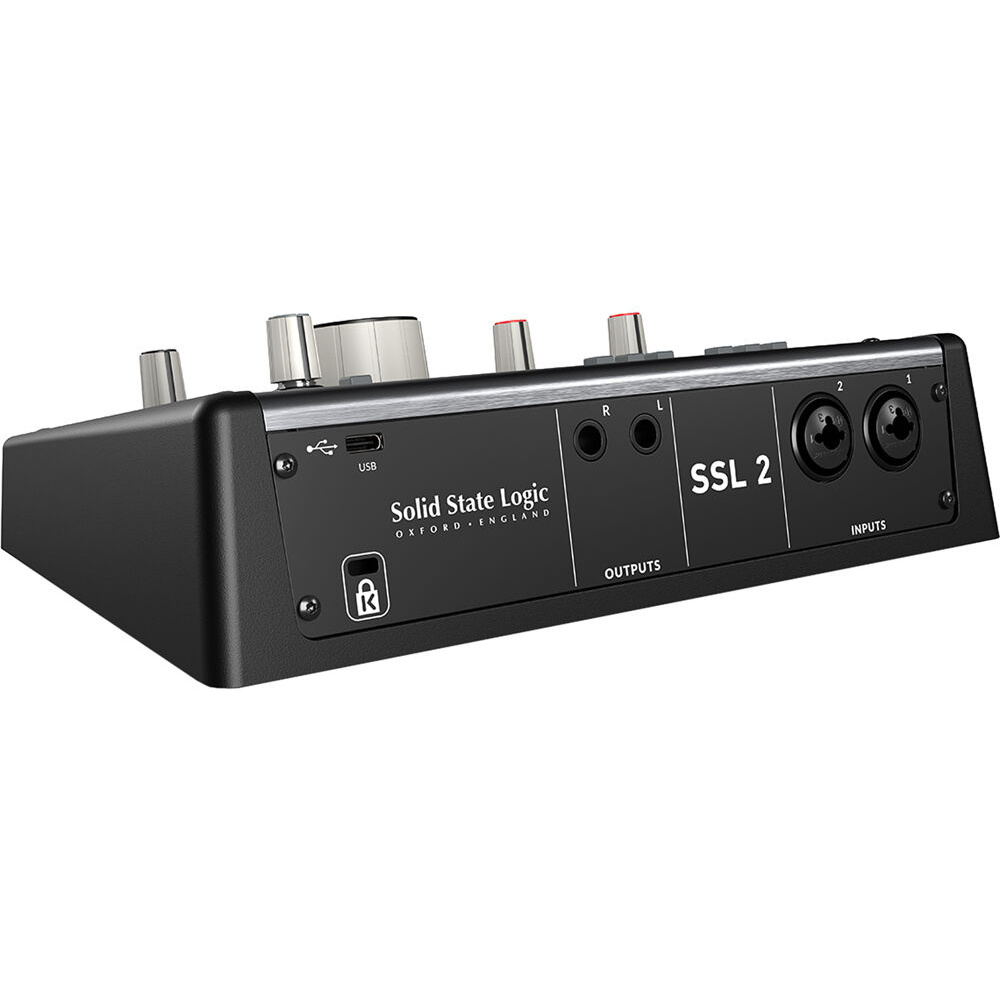

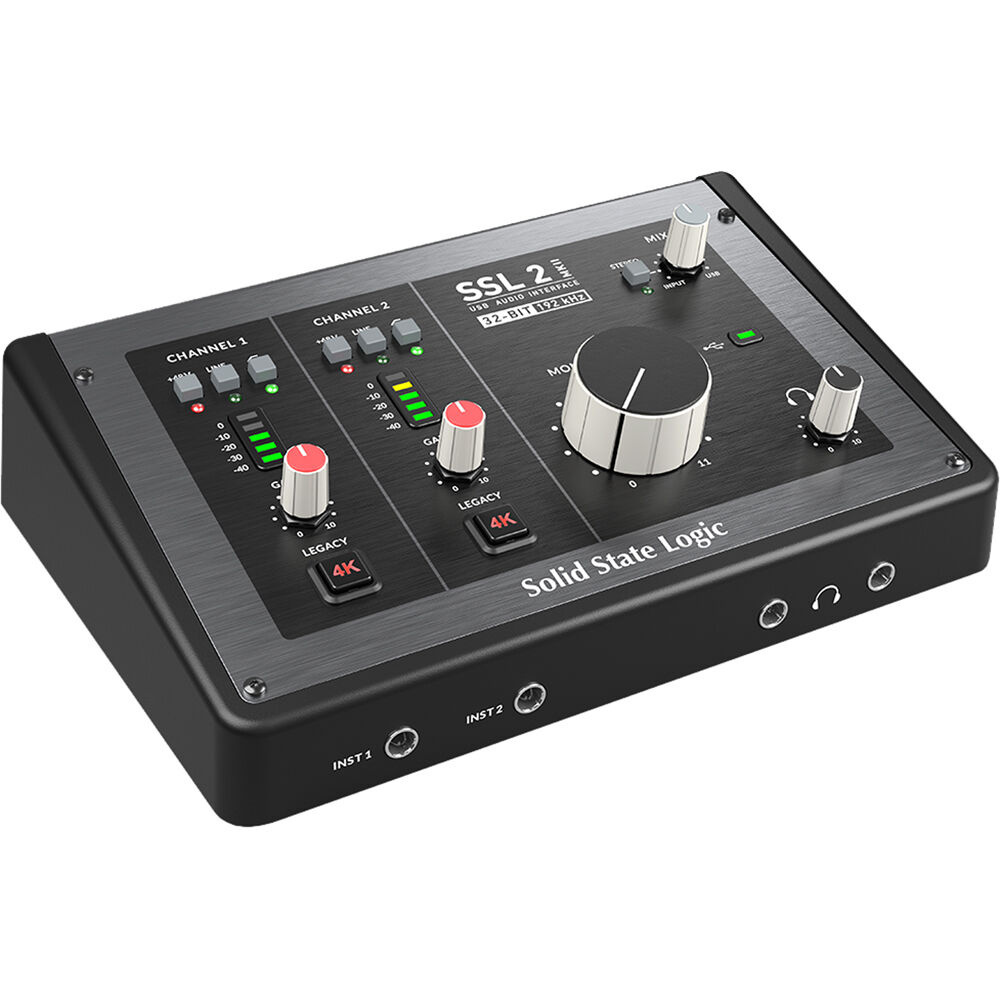

The Solid State Logic SSL 2 MKII USB-C Audio Interface sits in our Audio Input & Output range.
Highlights include producers, podcasters, musicians, bus powered, Mac/Windows, 2 XLR mic preamps, 2 1/4" line / Hi-Z in, 2 headphone out, 2 1/4" line out and 32-Bit / 192 kHz AD/DA Convertors.
Key specifications: weight 2.0 lb / 0.9 kg; dimensions 9.2 x 6.2 x 2.7" / 23.4 x 15.7 x 6.9 cm; channels of I/O Analogue: 2 Inputs / 2 Outputs at 192 kHz; maximum sampling rate 192 kHz / 32-Bit; number of microphone inputs 2.
An audio interface powers XLR microphones and converts their signal for recording on a computer. In the box: Solid State Logic SSL 2 MKII USB-C Audio interface, USB-C to USB-C Cable (3.3') and USB-C to USB-A Cable (3.3'). Manufacturer model number 729706X2.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Channels of I/O | Analogue: 2 Inputs / 2 Outputs at 192 kHz |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 2 |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 2x 1/4" TS Line/Hi-Z Input 2x 1/4" TRS Headphone Output 2x 1/4" TRS Balanced Monitor Output |
| Digital Audio I/O | No |
| Host Connection | 1x USB-C |
| Power Requirements | USB Bus Power |
| Built-In DSP | No |
| Built-In Microphone | No |
| Input Level Adjustment | 2x Knob |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Mic Inputs: Up to 64 dB |
| Solo/Mute | No |
| Connectivity | |
| Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
| Performance | |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±0.1 dB Line, Hi-Z Inputs: 20 Hz to 20 kHz ±0.05 dB Line, Headphone, Monitor Outputs: 20 Hz to 20 kHz ±0.05 dB |
| Maximum Input Level | Mic Inputs: +5.5 dBu Line Inputs: +24 dBu Hi-Z Inputs: +15 dBu |
| Maximum Output Level | 1/4" Line Outputs: +14.5 dBu Headphone Outputs: +13 dBu |
| Impedance | Mic Inputs: 1.2 Kilohms Line Inputs: 10 Kilohms RCA Line Outputs: < 1 Ohm Hi-Z Inputs: 1 Megohm Headphone Outputs: 10 Ohms Monitor Outputs: 1 Ohm |
| Dynamic Range | 1/4" Hi-Z: 116 dB Line Inputs: 117 dB Mic Inputs: 116.5 dB Headphone Outputs: 119.5 dB Line Outputs: 120 dB |
| THD+N | Mic/Line/Hi-Z Inputs: < 0.005% (at -1 dBFS) Monitor Outputs: < 0.002% (at -1 dBFS) RCA Line Outputs: < 0.0025% (at -1 dBFS) Headphone Outputs: < 0.002% (at -1 dBFS) |
| EIN | Mic Inputs: -130.5 dBu A-Weighted (150-Ohm Source) |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | Up to 32-Bit |
| Latency | < 1 ms at 48 kHz (Input to Output) |
| Sync Sources | Internal |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Compatibility | |
| OS Compatibility | macOS / Windows |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Physical | |
| Dimensions | 9.2 x 6.2 x 2.7" / 23.4 x 15.7 x 6.9 cm |
| Weight | 2.0 lb / 0.9 kg |
In the box
- Solid State Logic SSL 2 MKII USB-C Audio Interface
- USB-C to USB-C Cable (3.3')
- USB-C to USB-A Cable (3.3')
