Description

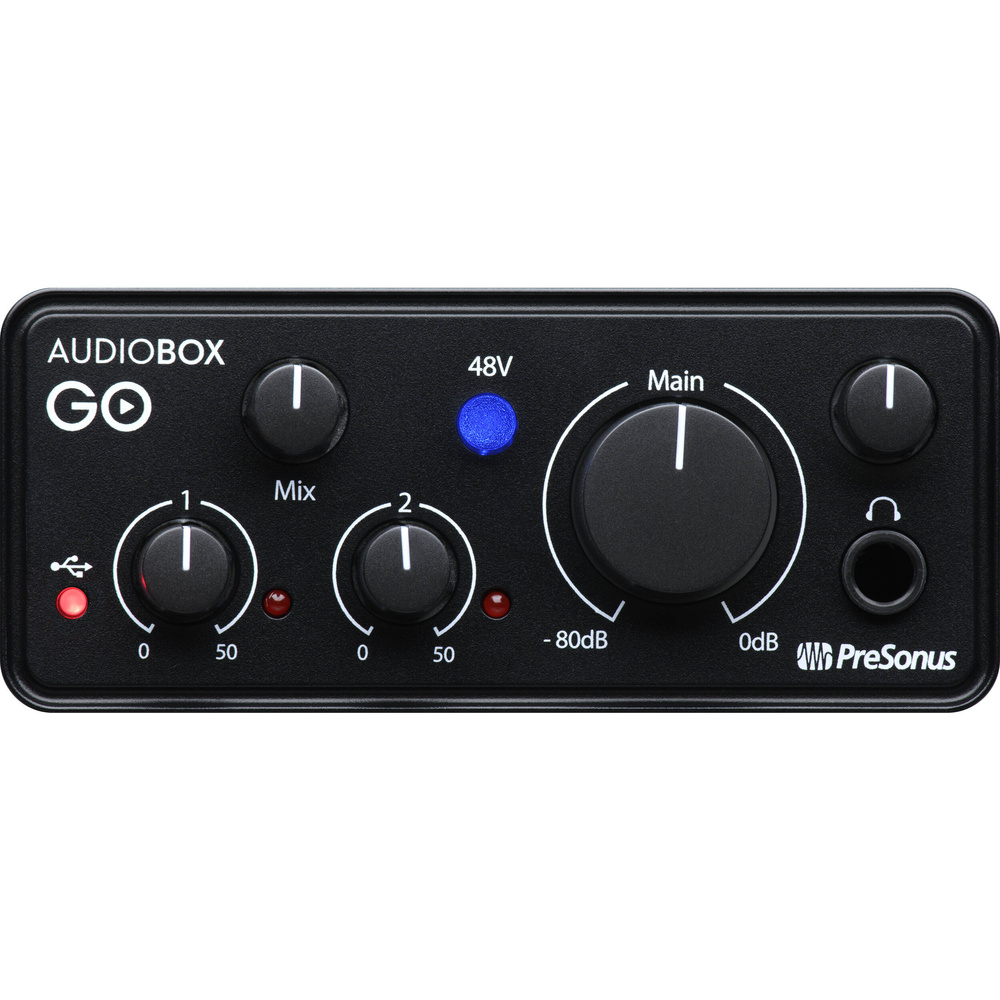

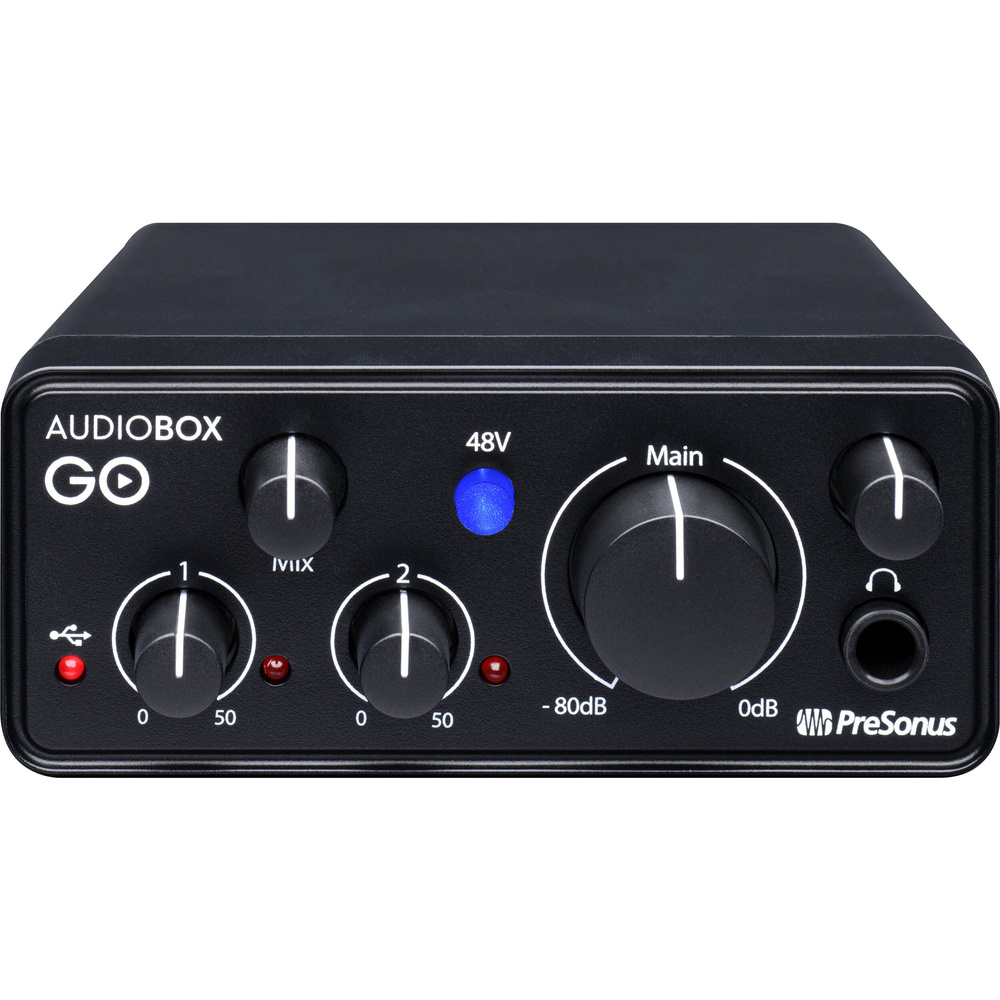

The PreSonus AudioBox GO is a compact 2 in 2 out USB audio interface for singers, musicians and podcasters who need a simple recording setup. It suits mobile use and small home studios, with one mic preamp, a Hi-Z input and direct connection to a computer or compatible device over USB-C.
It records and plays back at up to 24-bit / 96 kHz, with 44.1, 48, 88.2 and 96 kHz sample rates. It includes selectable 48 V phantom power, two gain knobs, a headphone output and two monitor outputs. The interface uses bus power and provides Class-A mic preamp, line and instrument input options.
In practice, it works as a small interface for vocal recording, instrument recording and podcast capture. It pairs with a microphone, guitar or bass through the mic and Hi-Z inputs, then feeds monitors and headphones for listening back. The box includes the AudioBox GO interface, a USB-C to USB-A cable and four rubber pads.
Specifications
| Form Factor | Mobile |
|---|---|
| Display | None |
| Channels of I/O | 2 Inputs / 2 Outputs |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Number of Mic Preamps | 1 |
| Input Level Adjustment | 2 x Knob |
| Signal Processing | |
| Gain/Trim Range | Mic/Hi-Z Inputs: 0 to +50 dB Line Inputs: -20 to +30 dB |
| Connectivity | |

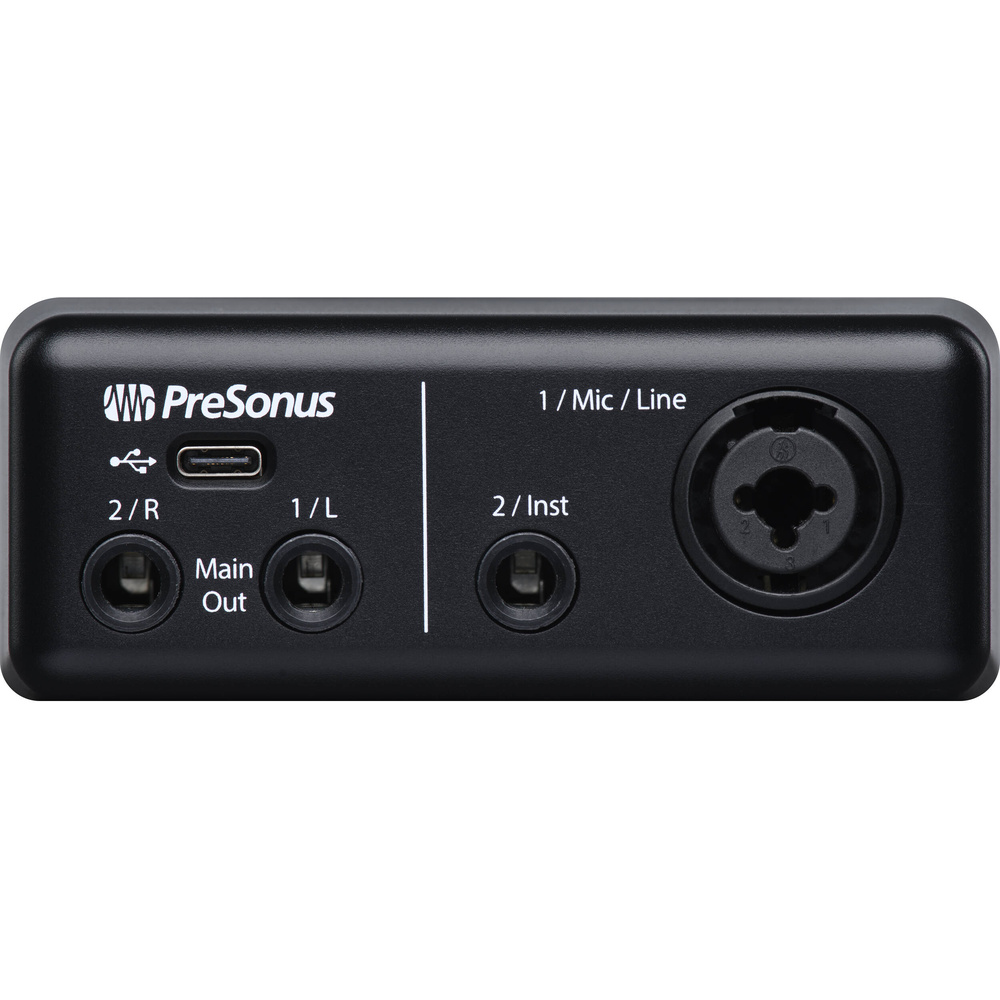

| Analogue Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 1 x 1/4" TS Unbalanced Hi-Z Input 2 x 1/4" TRS Balanced Monitor Output 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | 48 V ± 2 V, Selectable On/Off |
| Host Connection / USB | 1 x USB Type-C (Class-Compliant USB 2.0) |
| Performance | |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±3 dB Line Outputs: 20 Hz to 20 kHz ±0.2 dB Headphone Outputs: 20 Hz to 20 kHz ±0.5 dB |
| Max Input Level | Mic Inputs: +10 dBu (1 kHz, 0.5% THD) Line Inputs: +19 dB Hi-Z Inputs: +13 dB |
| Headphone Output Power | 30 mW per Channel into 60 Ohms |
| Impedance | Mic Inputs: 1.4 Kilohms Line/Hi-Z Inputs: 750 Kilohms Line Outputs: 51 Ohms |
| Dynamic Range | A/D Convertors: 90 dB (A-Weighted, 48 kHz Sample Rate) D/A Convertors: 102 dB (A-Weighted, 48 kHz Sample Rate) |
| SNR | Headphone Outputs: 90 dB (A-Weighted, 1 kHz, Max Gain) |
| THD+N | Mic Inputs: < 0.004% (Unweighted, 1 kHz, Unity Gain, at +4 dBu) Line Outputs: < 0.007% (A-Weighted, 1 kHz) Headphone Outputs: < 0.08% (A-Weighted, 1 kHz, Max Gain) |
| Digital Audio | |
| dBFS Reference Level | +10 dBu = 0 dBFS |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Latency | Zero-Latency Direct Monitoring |
| Sync Sources | Internal |
| Compatibility | |
| OS Compatibility | macOS 10.13 or Later Windows 10 or Later (64-Bit Only) Chrome OS iPadOS iOS Android |
| Included Software | Studio One Prime |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | Delay: Native Instruments REPLIKA Dynamics: Brainworx bx_opto Equalisation: Mäag Audio EQ2 Guitar & Bass: Brainworx bx_rockrack Harmonic & Tape: Klanghelm SDRR2tube Reverb & Room: Lexicon MPX-i Reverb Special Processing: iZotope Neutron Elements Output Movement SPL Attacker Plus Virtual Instruments: Arturia Analogue Lab Intro Cherry Audio Surrealistic MG-1 Plus Cherry Audio Voltage Nucleus KV331 Audio Synthmaster Player UJAM Virtual Bassist ROWDY UVI Model D |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Class-Compliant (No Driver Needed) Android Class-Compliant (No Driver Needed) |
| RAM Requirements | 4 GB |
| Storage Requirements | 200 MB |
| Mobile Device Compatibility | iPad Pro iPad iPad Air iPad Mini iPhone iPod Touch Android Smartphone Android Tablet |
| Required Hardware | USB Cable (Included) Available USB Port |
| Internet Connection | Required for Registration, Software/Driver Download |
| Power | |
| Power Requirements | USB Bus Power |
| Physical | |
| Dimensions | 10.79 x 8.4 x 4.39 cm |
| Weight | 0.2 kg |
In the box
- PreSonus AudioBox GO Ultracompact 2x2 USB Type-C Audio Interface
- USB Type-C to USB Type-A Cable
- 4 x Rubber Pad
