Description

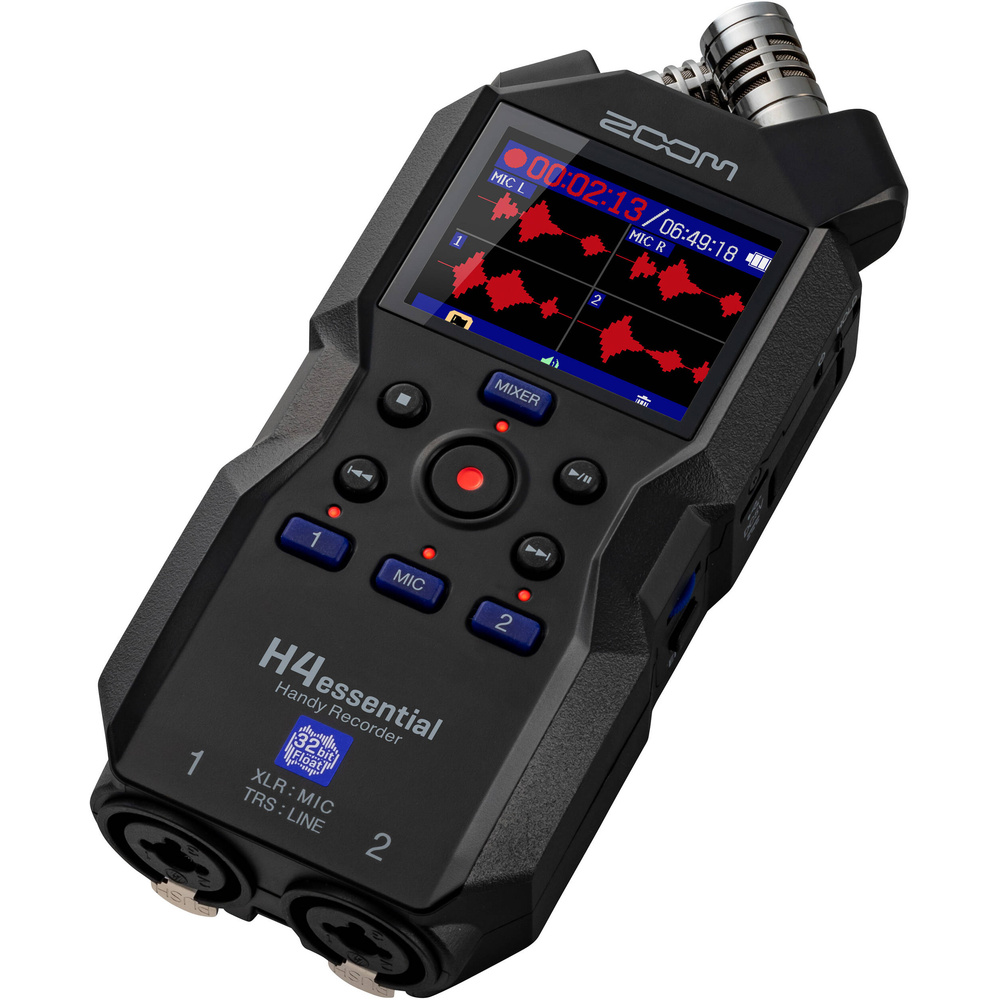

The Zoom H4essential is a handheld 4-track portable recorder for audio-for-video, podcasting, music recording, dictation and transcription. It suits users who want a compact recorder with built-in microphones and external inputs for capturing interviews, demos, voice notes and location audio.
It records up to 4 tracks at 96 kHz and 32-bit float, with 5 input channels, onboard X/Y stereo condenser microphones in a cardioid arrangement, and 2 XLR-1/4 inch TRS combo inputs. The recorder also includes an onboard mixer, waveform display, overdubbing, a 2 inch monochrome OLED screen and a 1 W mono speaker. Recording formats include BWF, iXML and WAV, and it supports microSDXC cards up to 1 TB.
In practice, it can be used on its own for quick capture or paired with microphones, instruments, mixers or camera workflows through its combo inputs and built-in mics. It does not include internal storage, so a microSD card is required. The box includes the Zoom H4essential 4-Track 32-Bit Float Portable Audio Recorder.
Specifications
| Portable Recorder | |
|---|---|
| Form Factor | Handheld Recorder |
| Primary Use Applications | Audio-for-Video, Dictation & Transcription, Music Recording, Podcasting |
| Number of Tracks | 4 |
| Number of Input Channels | 5 (3 x Mono, 1 x Stereo) |
| Maximum Sampling Rate | 96 kHz / 32-Bit Float |
| Microphone | Built-In Cardioid Condenser Stereo Pair, X/Y Configuration |
| Number of Microphone Inputs | 3 |
| Built-In Speaker | Yes, 1 W Mono |
| Display | 2" / 5.1 cm Monochrome OLED |
| Memory Card Support | microSDXC (Up to 1 TB) |
| Internal Storage | No |
| Special Features | Overdubbing |
| Recording | |
| Audio File Formats | BWF, iXML, WAV |
| Sample Rates | 44.1 / 48 / 96 kHz |
| Bit Depth | Up to 32-Bit (Floating Point) |
| Timecode Support | No |
| Included Software | No |
| Connectivity | |
| Analogue I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Line/Mic Input 1 x 1/8" / 3.5 mm TRS Female Headphone/Line Output |
| Digital I/O | No |
| Phantom Power | +48 V |
| Phantom Power Current | 10 mA (Max) |
| System Connection | 1 x USB-C (I/O, 2.0) |
| Audio Interface Capability | Stereo Only |
| Wireless | No |
| Mobile App Compatible | No |
| Performance | |
| Max Input Level | Mic Inputs: +4 dBu Line Inputs: +24 dBu |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance | Outputs: ≤15 Kilohms |
| Microphone Sensitivity | -43 dB (X/Y) |
| Microphone Max SPL | 130 dB SPL (X/Y) |
| Power | |
| Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 4 x AA |
| Approximate Battery Life | 9 Hours (AA Alkaline, Recording, Built-In Mic) 14 Hours (AA NiMH, Recording, Built-In Mic) 20 Hours (AA Lithium, Recording, Built-In Mic) |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
| Physical | |
| Included Accessories | No |
| Dimensions | 2.6 x 1.5 x 6.1" / 6.7 x 3.8 x 15.6 cm |
| Weight | 8 oz / 226 g (with Batteries) |
In the box
- Zoom H4essential 4-Track 32-Bit Float Portable Audio Recorder
