Description

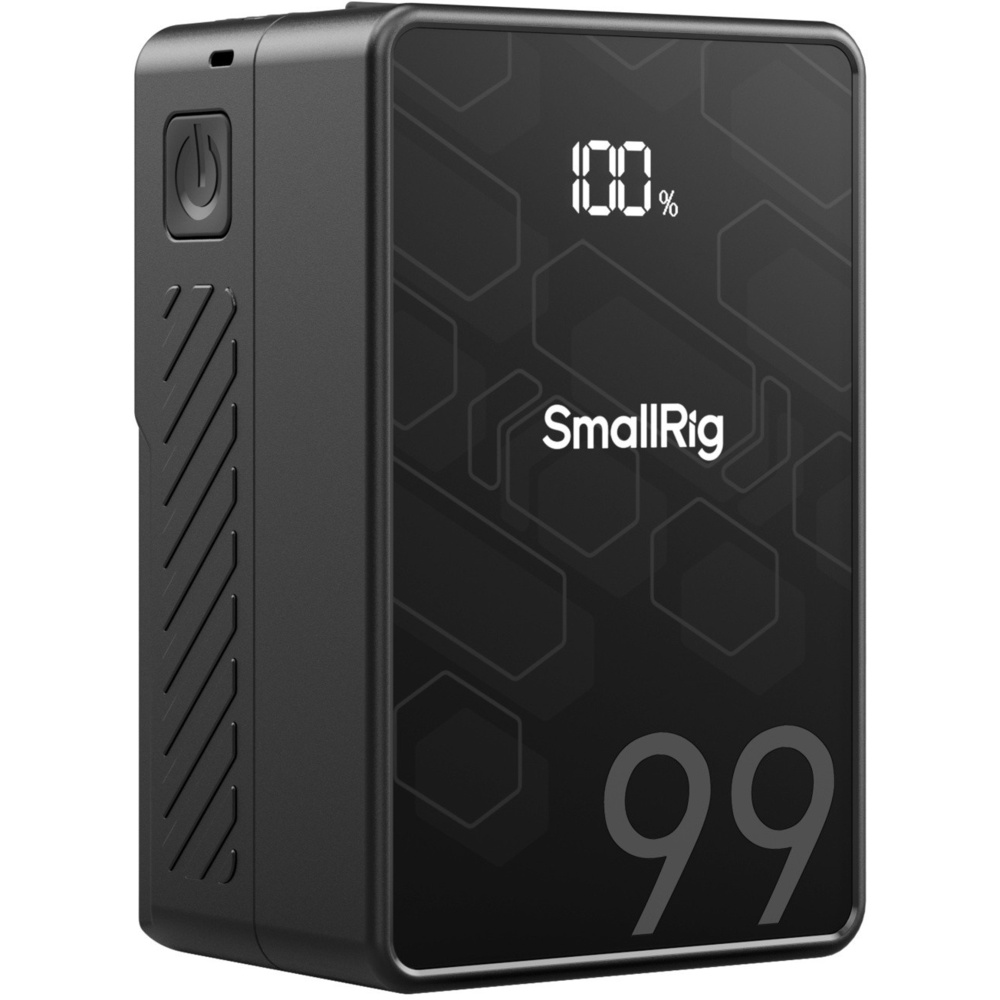

The SmallRig 4608 VB99 SE mini V Mount Battery is a compact V-mount battery for cameras and rigged video setups that need an onboard power source. It suits shooters who want a small battery with multiple output options and a built-in display for checking status during use.
It has a 14.54V 6800mAh 98.872Wh capacity and a 100W rated discharge power. USB-C supports up to 65W charging, while USB-A outputs 5V⎓3A, 9V⎓3A and 12V⎓2.5A. It also provides D-Tap and BP output up to 6.8A, BP/D-Tap up to 10A, plus 8V⎓3A and 12V⎓3A outputs. The housing uses fire-resistant PC material and includes an OLED display.

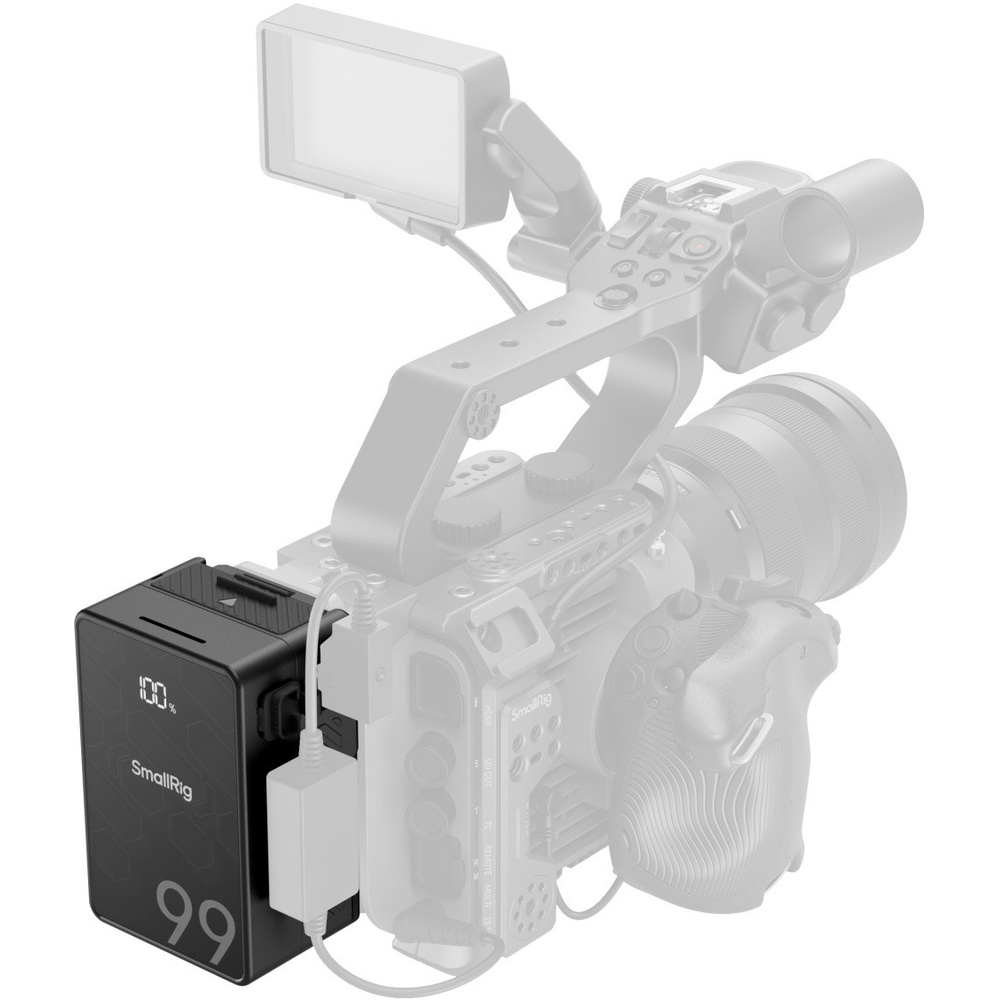

In practice, it can power compatible cameras and other production gear that use V-mount or the available output ports. It is suited to portable rigs where size and weight matter, with product dimensions of 112.0 x 72.0 x 53.8mm and a weight of 595g.
Specifications
| Product Dimensions | 112.0 x 72.0 x 53.8mm / 4.4 x 2.8 x 2.1in |
|---|---|
| Package Dimensions | 154.0 x 113.0 x 71.0mm / 6.1 x 4.4 x 2.8in |
| Product Weight | 595.0 ± 10.0g / 21.0 ± 0.4oz |
| Package Weight | 800.0 ± 10.0g / 28.2 ± 0.4oz |
| Material(s) | Fire-Resistant PC Material |
| Capacity | 14.54V 6800mAh 98.872Wh |
| Rated Discharge Power | 100W |
| Input | |
| USB-C | 65W（Max） |
| D-Tap / BP | 6.8A（Max） |
| Output | |
| USB-C | 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓3.25A（Max） |
| USB-A | 5V⎓3A﹑9V⎓3A﹑12V⎓2.5A（Max） |
| BP/D-Tap | 10A（Max） |
| 8V-OUT | 8V⎓3A（Max） |
| 12V-OUT | 12V⎓3A（Max） |
| Charging Protocols | |
| USB-C | PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A |
| USB-A | QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A |
| Cutoff Voltage | 11.2V |
| Operating Temperature | -15℃ to 60℃ |
| Charging Temperature | 0℃ to 45℃ |
| Optional Charging Method | BP port charger, 16.8V D-Tap charger, USB-C |
| Note | The weight and dimensions are measured manually on the actual product, we appreciate your understanding in case of any discrepancies. |
Product details
| Batteries / Chargers | Batteries Only |
|---|---|
| Wattage | 6800mAh |
| Battery | Lithium-Ion |
| Battery Mount / Series | V-Mount |
In the box
- VB99 SE mini V Mount Battery x 1
- User Manual x 1
- Operation Guide x 1
- Guarantee Card x 1
