Description
The SmallRig 4871 VB50 mini V Mount Battery (Orange) sits in our V-Mount range.
Highlights include BMS intelligent chip, 45W (Max) fast charging, top-class LG battery cells, fire-proof PC material and smart switch button.
Key specifications: capacity 14.54V 3400mAh 49.436Wh; battery Lithium-Ion; material(s) Fire-Resistant PC Material; product dimensions 107.0 × 72.0 × 34.0mm / 4.2 × 2.9 × 1.32in; product weight 340g ± 10g / 12.0oz ± 0.4oz.
Watt-hour rating decides runtime, and packs under 100 Wh can travel as carry-on. In the box: VB50 mini V Mount Battery x 1, SmallRig custom sticker set x 1, user manual x 1, operation guide x 1 and guarantee card x 1.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product Dimensions | 107.0 × 72.0 × 34.0mm / 4.2 × 2.9 × 1.32in |
|---|---|
| Package Dimensions | 146.0 × 113.0 × 54.0mm / 5.8 × 4.5 × 2.1in |
| Product Weight | 340g ± 10g / 12.0oz ± 0.4oz |
| Package Weight | 498g ± 10g / 17.6oz ± 0.4oz |
| Material(s) | Fire-Resistant PC Material |
| Capacity | 14.54V 3400mAh 49.436Wh |
| Rated Discharge Power | 50W |
| Input | |
| USB-C | 45W (Max) |
| D-Tap / BP | 3.4A（Max） |
| Output | |

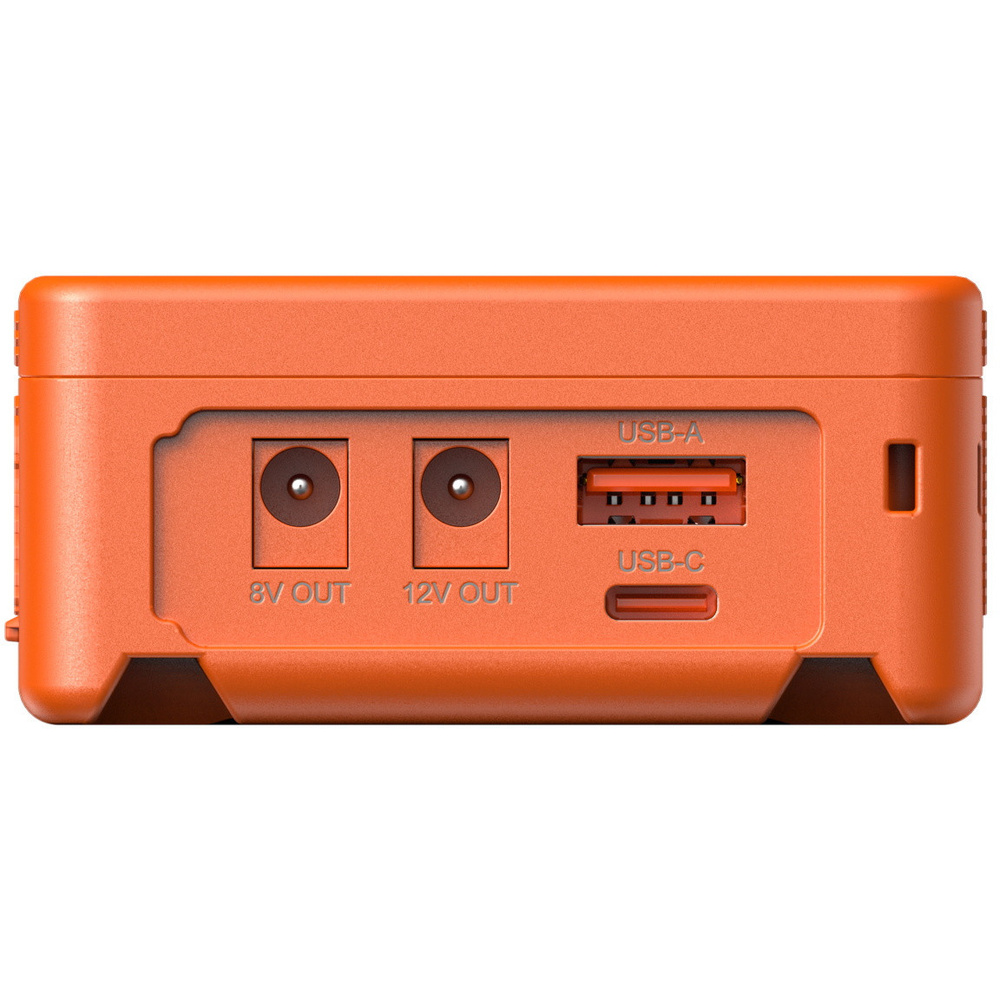

| USB-C | 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓2.25A（Max） |
| USB-A | 5V⎓3A﹑9V⎓3A﹑12V⎓2A（Max） |
| BP/D-Tap | 5A（Max） |
| 8V-OUT | 8V⎓3A（Max） |
| 12V-OUT | 12V⎓3A（Max） |
| Charging Protocols | |
| USB-C | PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A |
| USB-A | QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A |
| Cutoff Voltage | 11.2V |
| Operating Temperature | -15℃ to 60℃ / 5℉ to 140℉ |
| Charging Temperature | 0℃ to 45℃ / 32℉ to 113℉ |
| Optional Charging Method | BP port charger, 16.8V D-Tap charger, USB-C |
Product details
| Batteries / Chargers | Batteries Only |
|---|---|
| Wattage | 3400 mAh |
| Battery | Lithium-Ion |
| Battery Mount / Series | V-Mount |
In the box
- VB50 mini V Mount Battery x 1
- SmallRig Custom Sticker Set x 1
- User Manual x 1
- Operation Guide x 1
- Guarantee Card x 1
Reviews
There are no reviews yet.
