Description

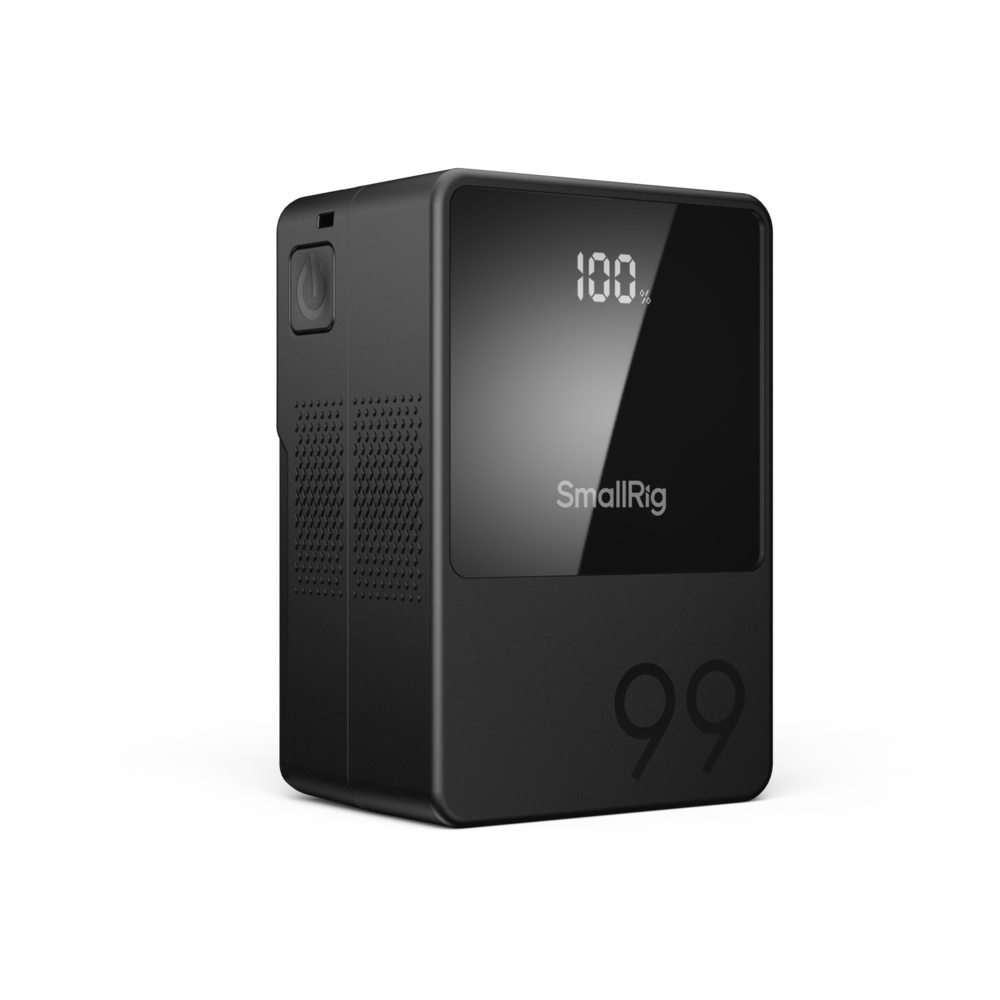

The SmallRig 3580B VB99 mini V Mount Battery is a compact V-mount power source for cameras and production accessories. It suits shooters who need a smaller battery for rigs, monitors, lights, transmitters, or other gear that can run from V-mount, USB, or DC power. Its size and weight make it easier to carry on handheld, shoulder, or compact rig setups.

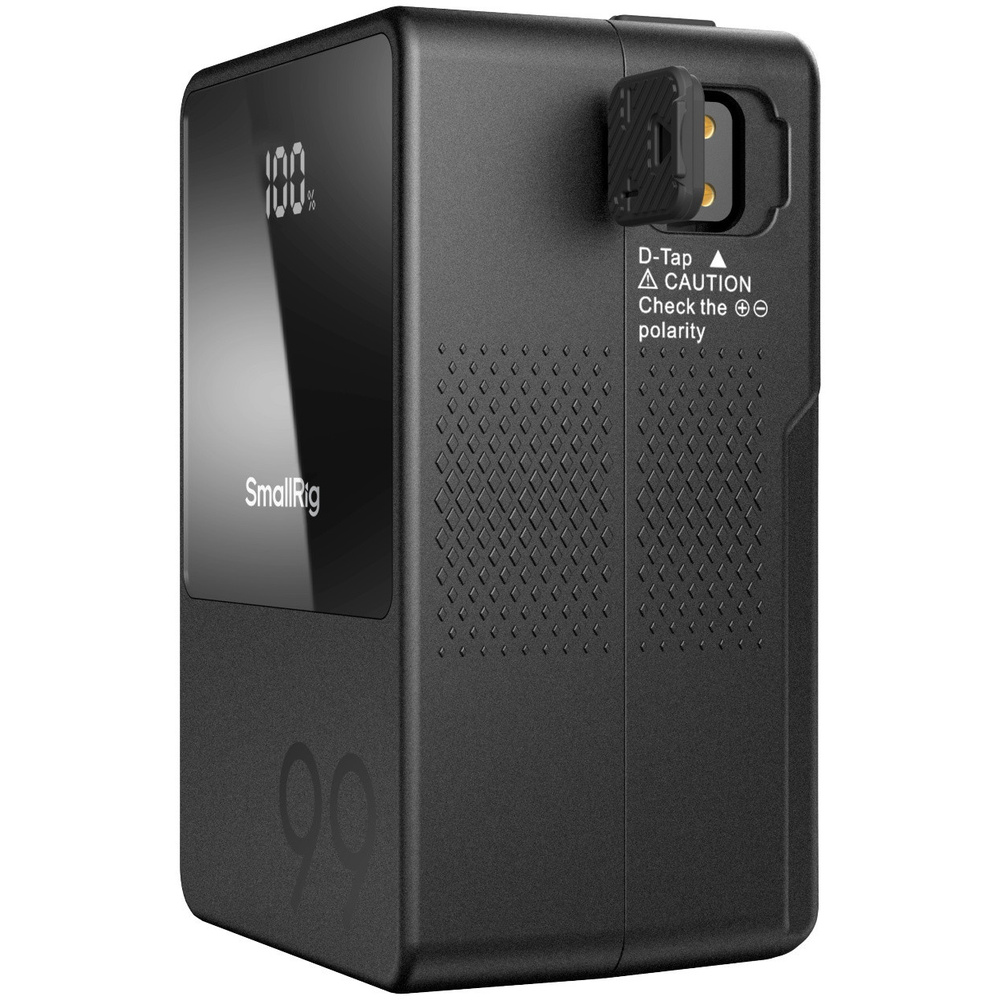

It has a 14.54V 6800mAh 98.872Wh capacity and a 100W rated discharge power. Power options include USB-C up to 100W, USB-A outputs at 5V 3A, 9V 3A, and 12V 2A, plus BP/D-Tap up to 10A, 8V-OUT at 8V 3A, and 12V-OUT at 12V 3A. The battery uses fire-resistant PC material, a BMS intelligent chip, LG battery cells, and a smart switch button.

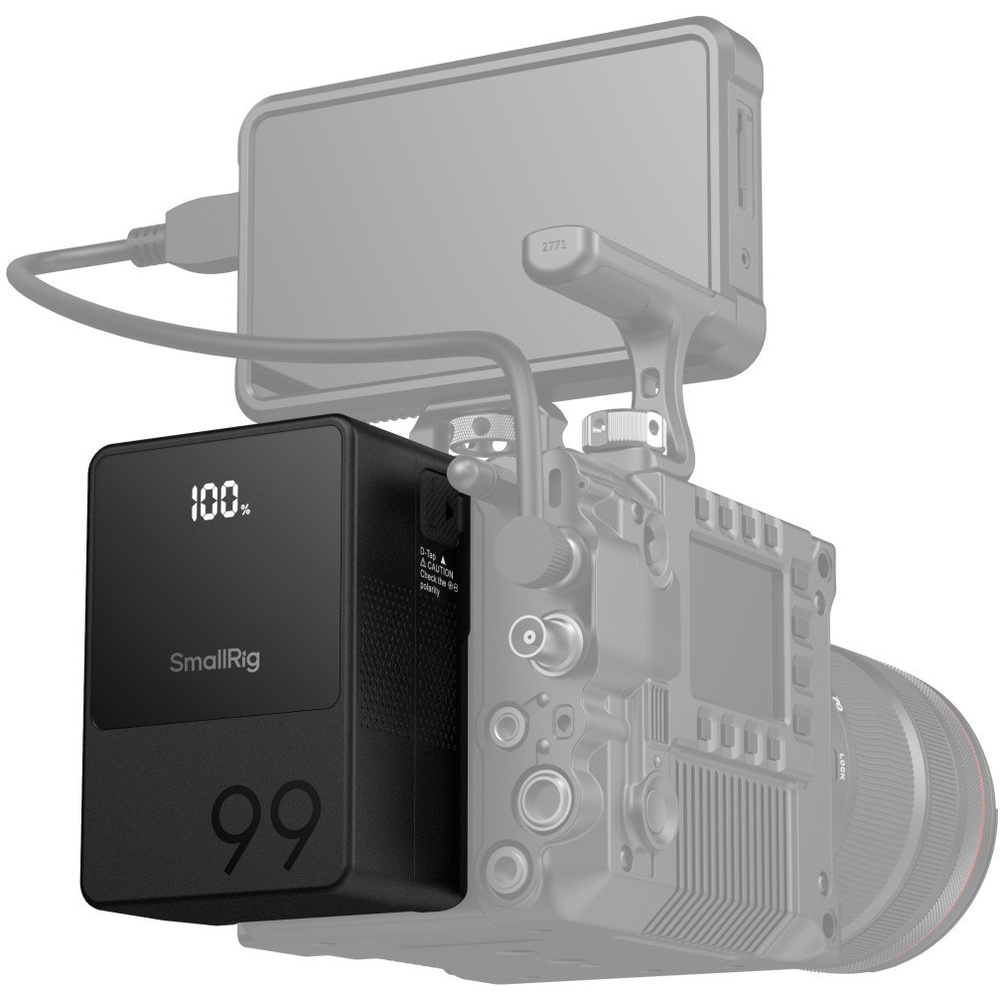

In practice, it can power compatible cameras and accessories from one battery, with charging options through a BP port charger, a 16.8V D-Tap charger, or USB-C. It is designed for V-mount gear and devices that accept USB-C, USB-A, BP, D-Tap, 8V, or 12V input.
Specifications
| Product Dimensions | 107.0 × 72.0 × 52.2mm / 4.2 × 2.8 × 2.1in |
|---|---|
| Package Dimensions | 146.0 × 113.0 × 74.0mm / 5.8 × 4.5 × 2.9in |
| Product Weight | 584.6g ± 10g / 20.6oz ± 0.4oz |
| Package Weight | 797.6g ± 10g / 28.1oz ± 0.4oz |
| Material(s) | Fire-Resistant PC Material |
| Capacity | 14.54V 6800mAh 98.872Wh |
| Rated Discharge Power | 100W |
| Input | |
| USB-C | 100W（Max） |
| D-Tap / BP | 6.84A（Max） |
| Output | |
| USB-C | 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A（Max） |
| USB-A | 5V⎓3A﹑9V⎓3A﹑12V⎓2A（Max） |
| BP/D-Tap | 10A（Max） |
| 8V-OUT | 8V⎓3A（Max） |
| 12V-OUT | 12V⎓3A（Max） |
| Charging Protocols | |
| USB-C | PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A |
| USB-A | QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A |
| Cutoff Voltage | 11.2V |
| Operating Temperature | -15℃ to 60℃ / 5℉ to 140℉ |
| Charging Temperature | 0℃ to 45℃ / 32℉ to 113℉ |
| Optional Charging Methods | BP port charger, 16.8V D-Tap charger, USB-C |
Product details
| Battery Mount / Series | V-Mount |
|---|---|
| Batteries / Chargers | Batteries Only |
| Wattage | 6800mAh |
| Battery | Lithium-Ion |
In the box
- VB99 mini V Mount Battery 3580B x 1
- SmallRig Custom Sticker Set x 1
- User Manual x 1
- Operation Guide x 1
- Guarantee Card x 1
