Description

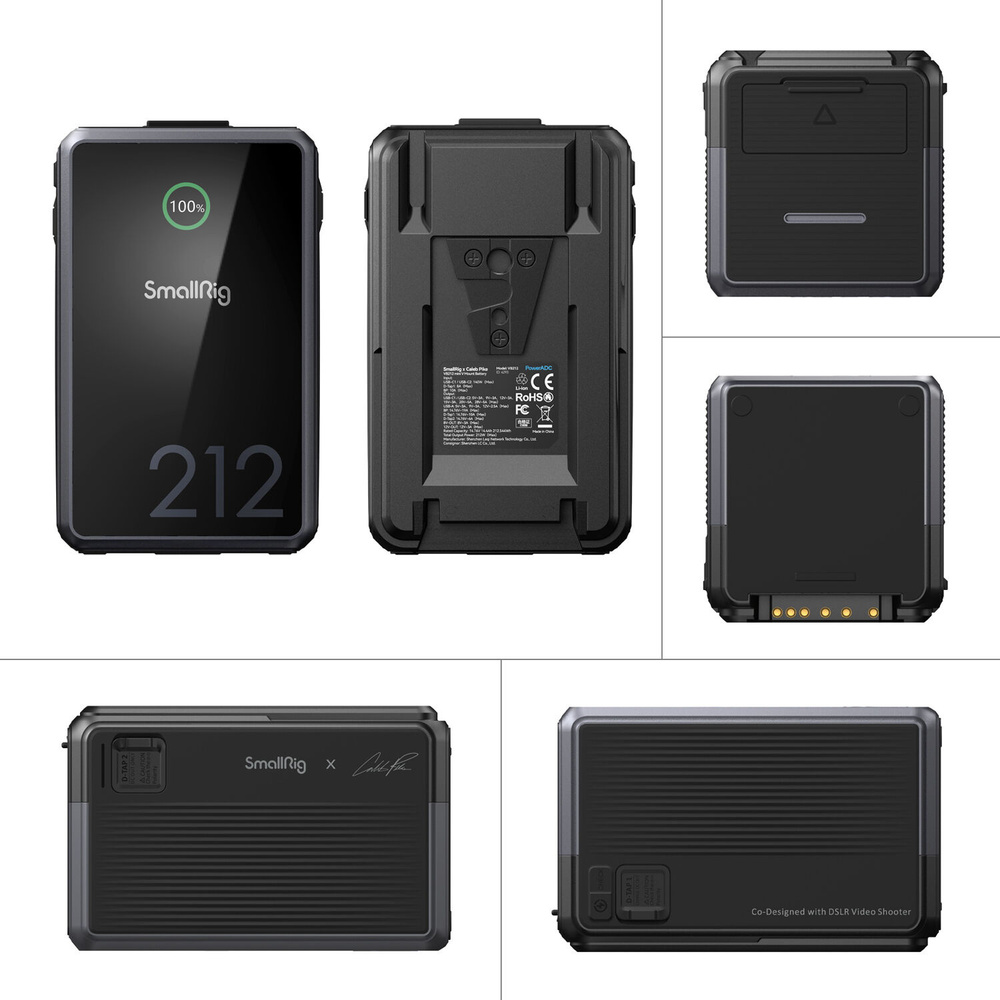

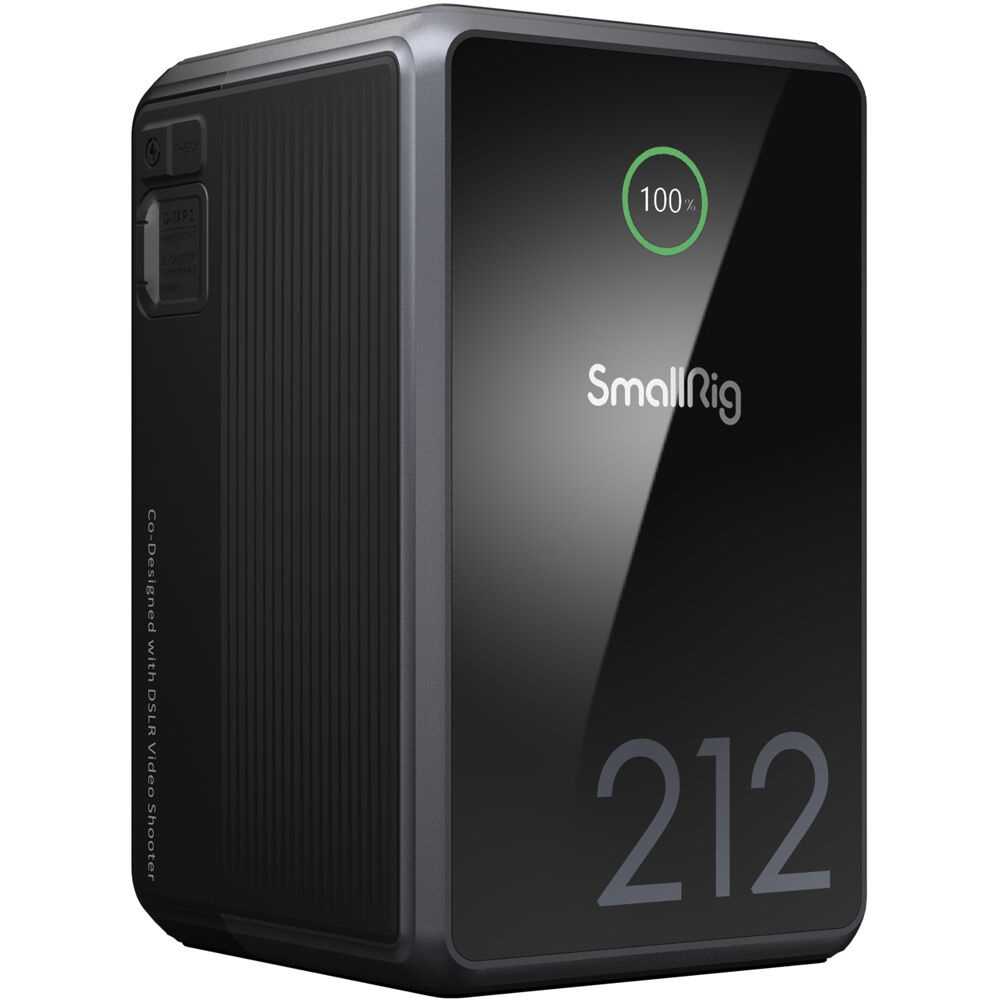

The SmallRig VB212 Mini V-Mount Battery is a compact lithium-ion power source for cameras and production accessories. It suits users who need one battery to run a rig, power add-ons and top up mobile devices. The 212Wh capacity makes it useful for handheld setups, monitors, lights and other equipment that use V-mount power.
It offers 14.76V output with 14.4Ah capacity and a 212W output rating. Power options include two USB-C ports rated to 140W max, two D-Tap outputs, a USB-A port, an 8V DC output, a 12V DC output and a BP port. It supports up to a 10A draw, with 140W input for charging and a cutoff voltage of 11.2V.

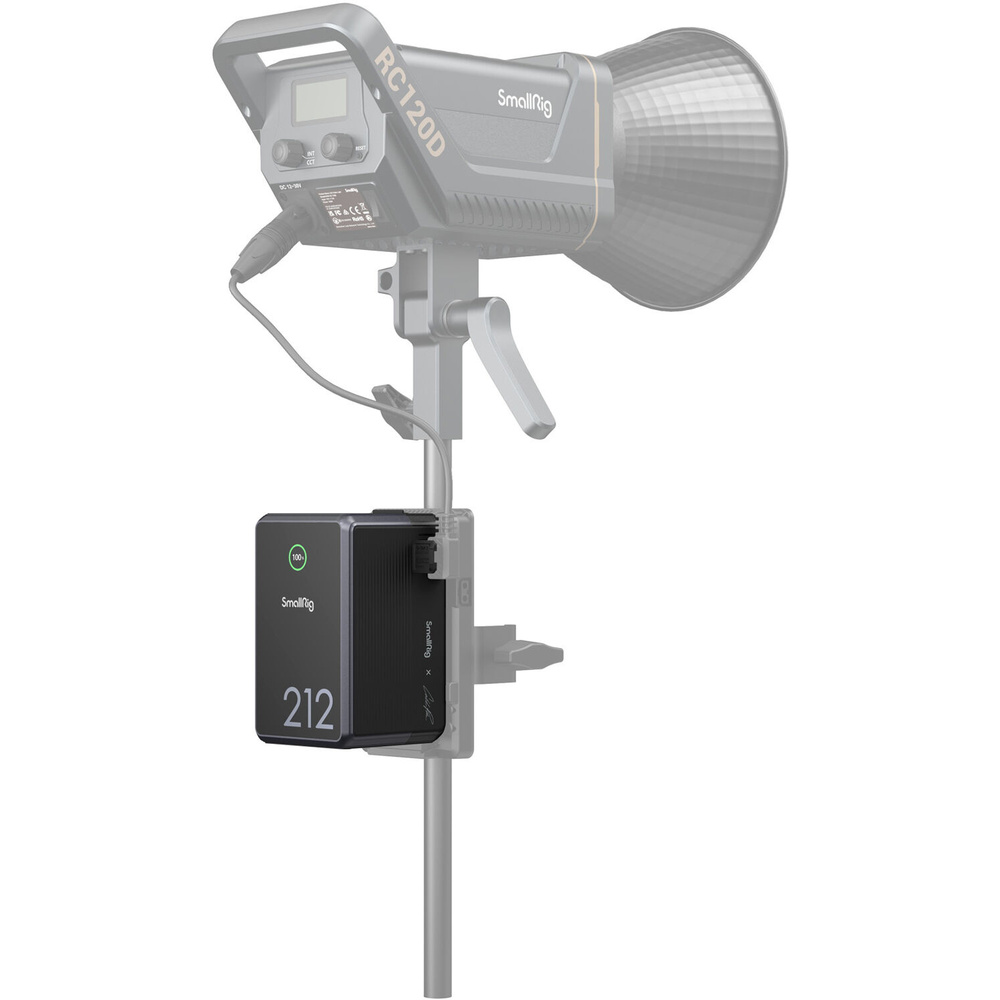

In practice, it fits universal V-mount setups and can be used with cameras, monitors, wireless accessories and other compatible gear. The battery measures 132.1 x 82.7 x 79.3mm and weighs 1345g including the charging cable. The box includes the VB212 mini V Mount Battery and a 240W USB-C charging cable.
Specifications
| Product Dimensions | 132.1 x 82.7 x 79.3mm / 5.2 x 3.3 x 3.1in |
|---|---|
| Package Dimensions | 166 x 130.5 x 99mm / 6.5 x 5.1 x 3.9in |
| Product Weight (Including Charging Cable) | 1345 ± 10.0g / 47.4 ± 0.4oz |
| Package Weight | 1643 ± 10.0g / 58 ± 0.4oz |
| Material(s) | Aluminum Alloy, Silicone, TPU, PC V0 |
| Capacity | 14.76V 14.4Ah 212.544Wh |
| Rated Power | |
| Output | 212W |
| Input | 140W |
| Input | |
| USB-C1 / USB-C2 | 140W (Max.) |
| D-Tap1 | 8A (Max.) |
| BP | 10A (Max.) |
| Output | |
| USB-C1 / USB-C2 | 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.) |
| USB-A | 5V / 3A, 9V / 3A, 12V / 2.5A (Max.) |
| BP | 14.76V / 19A (Max.) |
| D-Tap1 | 14.76V / 10A (Max.) |
| D-Tap2 | 14.76V / 6A (Max.) |
| 8V-OUT | 8V / 3A (Max.) |
| 12V-OUT | 12V / 3A (Max.) |
| Charging Protocol | |
| USB-C1 / USB-C2 | PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A |
| USB-A | QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A |
| Cutoff Voltage | 11.2V |
| Operating Temperature | -15℃～60℃ / 5°F~140°F |
| Charging Temperature | 0℃～50℃ / 32°F~122°F |
| Optional Charging Method | BP port charger, 16.8V D-Tap charger, USB-C |
Product details
| Battery Mount / Series | V-Mount |
|---|---|
| Batteries / Chargers | Batteries Only |
| Wattage | 212.54Wh |
| Compatible Camera | Universal |
| Battery | Lithium-Ion |
In the box
- VB212 mini V Mount Battery x 1
- 240W USB-C Charging Cable x 1
