Description

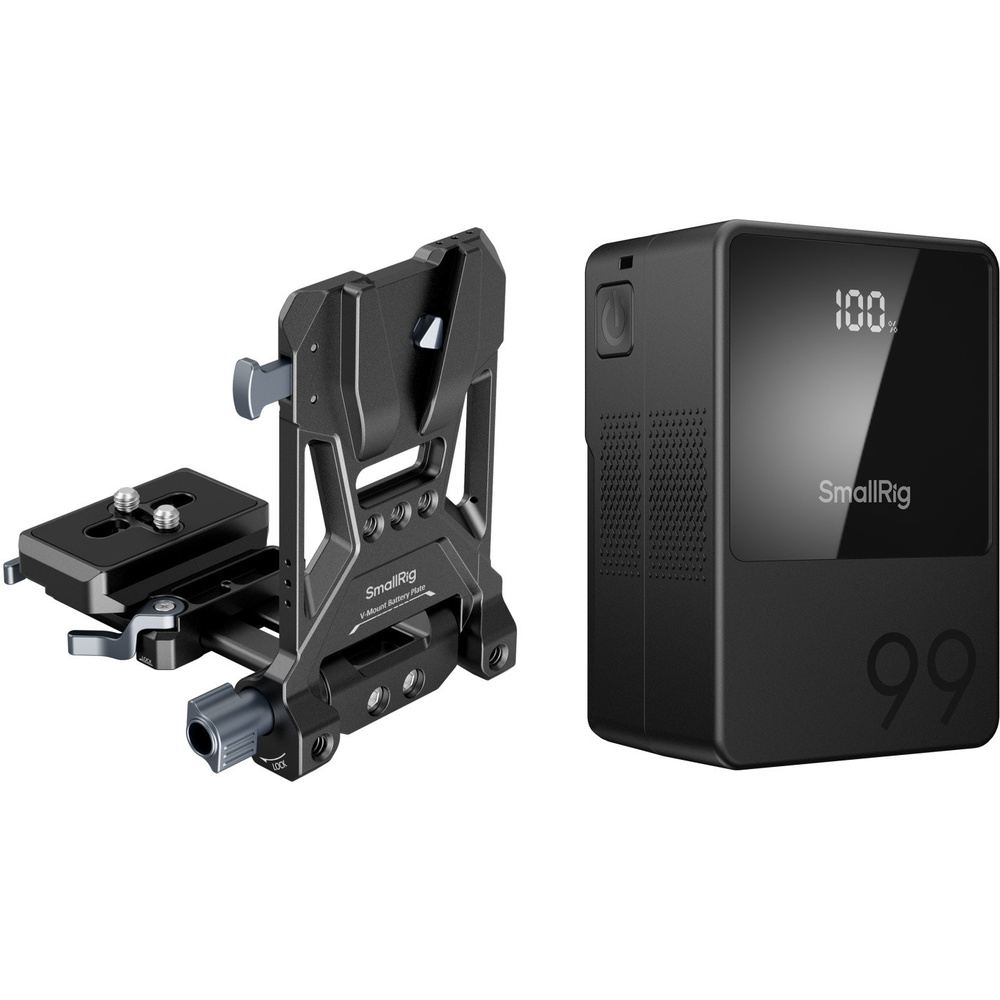

The SmallRig 5048 VB99 mini V Mount Battery (Kit) sits in our V-Mount range.
Highlights include foldable V-Mount battery mount plate, compact size for easy portability, PD3.0 100W fast charging technology and rotatable design.
Key specifications: capacity 14.54V 6800mAh 98.872Wh; battery mount / series V-Mount; material(s) Flame Retardant PC; product dimensions 145 x 114 x 84mm / 5.7 x 4.6 x 3.3in; product weight 834 ± 10.0g / 29.4 ± 0.4oz.
Watt-hour rating decides runtime, and packs under 100 Wh can travel as carry-on. In the box: VB99 mini V Mount Battery x 1, V-Mount Battery Mount Plate Kit x 1, SmallRig custom sticker set x 1, user manual x 1, operation guide x 1 and guarantee card x 1.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product Dimensions | 145 x 114 x 84mm / 5.7 x 4.6 x 3.3in |
|---|---|
| Package Dimensions | 148.5 x 125 x 104.5mm / 5.8 x 4.9 x 4.1in |
| Product Weight | 834 ± 10.0g / 29.4 ± 0.4oz |
| Package Weight | 1091 ± 10.0g / 38.5 ± 0.4oz |
| Material(s) | Flame Retardant PC |
| Capacity | 14.54V 6800mAh 98.872Wh |
| Rated Discharge Power | 100W |
| Input | |
| USB-C | 100W（Max） |
| D-Tap / BP | 6.8A (Max) |
| Output | |
| USB-C | 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A (Max) |
| USB-A | 5V⎓3A﹑9V⎓3A﹑12V⎓2A (Max) |
| BP/D-Tap | 10A (Max) |
| 8V-OUT | 8V⎓3A (Max) |
| 12V-OUT | 12V⎓3A (Max) |
| Charging Protocols | |
| USB-C | PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A |
| USB-A | QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A |
| Cut-Off Voltage | 11.2V |
| Operating Temperature | -15℃ to 60℃ / 5℉ to 140℉ |
| Charging Temperature | 0℃ to 45℃ / 32℉ to 113℉ |
| Optional Charging Methods | BP, 16.8V D-Tap, USB-C |
Product details
| Battery Mount / Series | V-Mount |
|---|---|
| Batteries / Chargers | Batteries Only |
| Wattage | 6800mAh |
| Battery | Lithium-Ion |

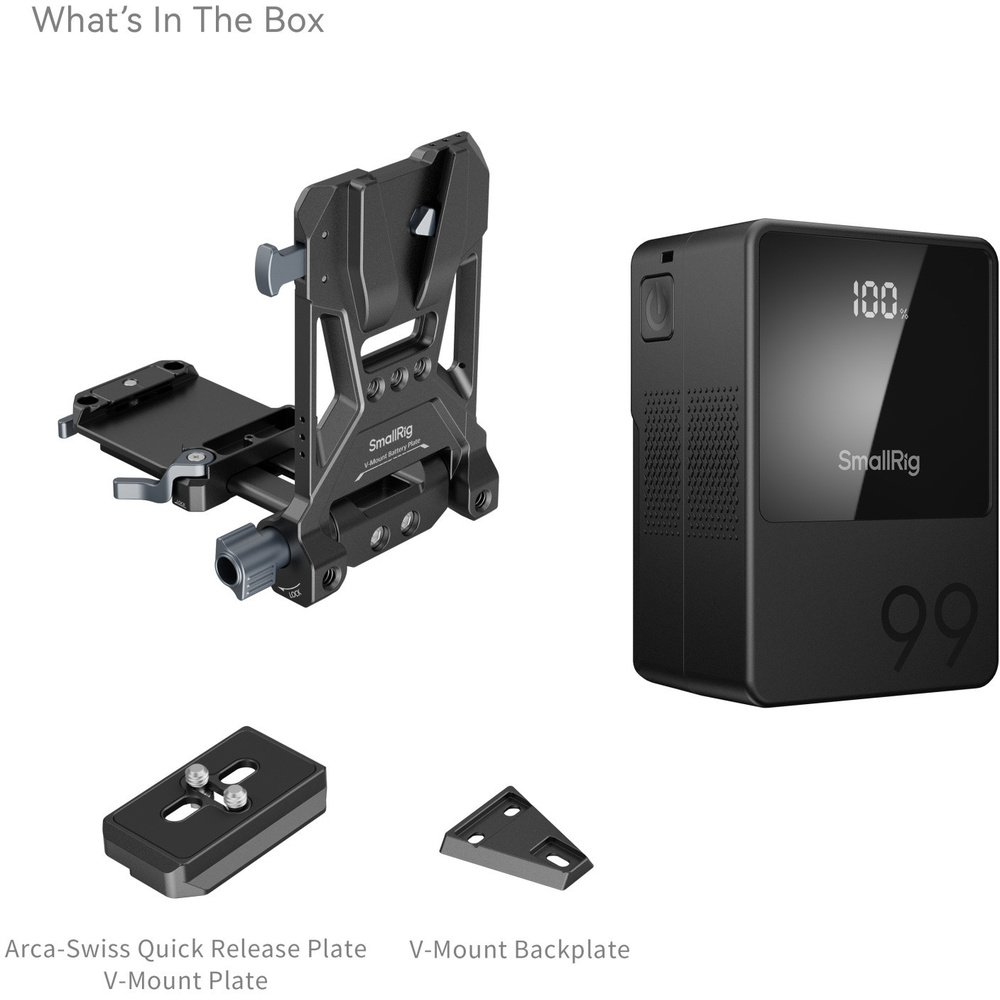

In the box
- VB99 mini V Mount Battery x 1
- V-Mount Battery Mount Plate Kit x 1
- SmallRig Custom Sticker Set x 1
- User Manual x 1
- Operation Guide x 1
- Guarantee Card x 1
