Description
The Core SWX Powerbase EDGE SNAP 49Wh Smart-Stacking Battery Pack sits in our V-Mount range. Compatible with Universal.

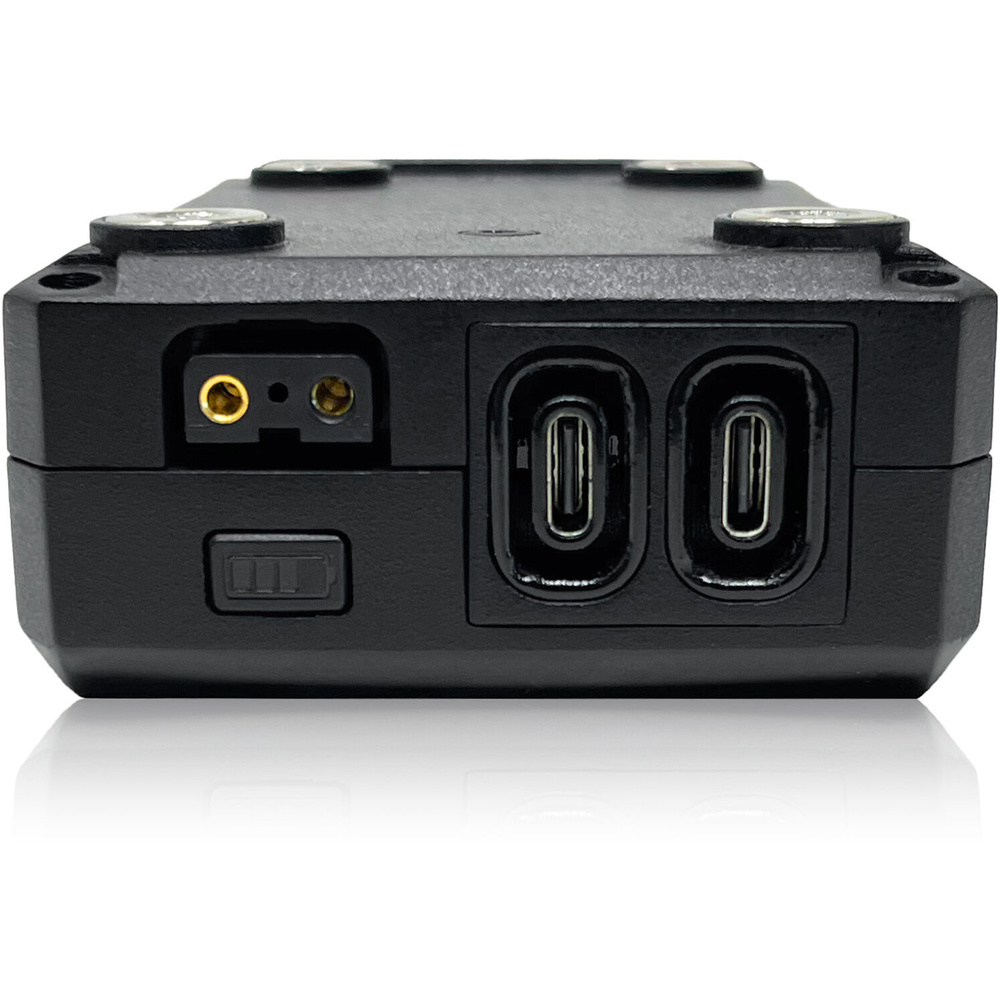

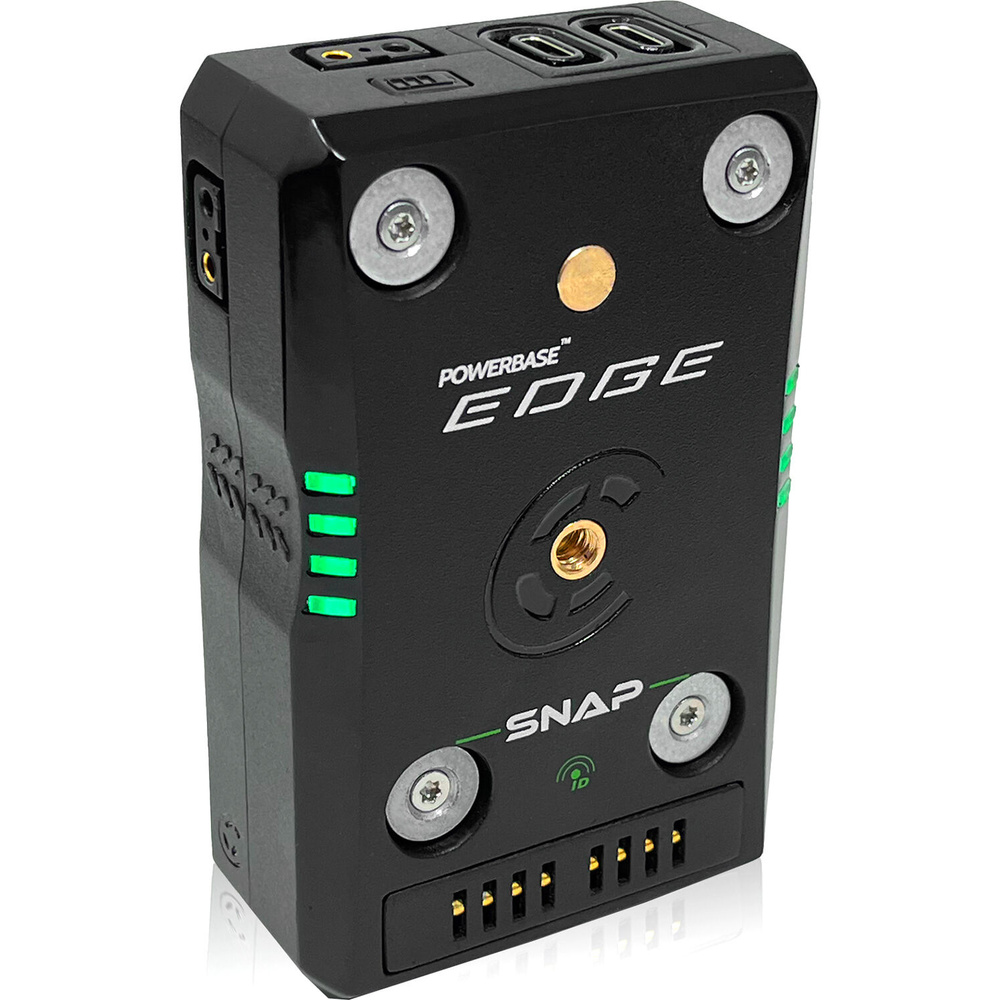

Highlights include 49Wh, 14.54V V-Mount battery pack, 6.54A draw, voltbridge iD support, USB-C PD Pro I/O and D-Tap output ports, wraparound RGB LEDs and magnetic connection to other SNAP units.
Key specifications: mount / series type V-Mount; battery capacity 3370 mAh / 49 Wh; maximum load 6.5 A; weight 13.3 oz / 376 g; dimensions (W x H x D) 4.46 x 2.83 x 1.38" / 11.33 x 7.19 x 3.51 cm.
Watt-hour rating decides runtime, and packs under 100 Wh can travel as carry-on. Manufacturer model number 52.PBE-SNAP.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Mount / Series Type | V-Mount |
|---|---|
| Chemistry | Lithium-Ion |
| Battery Capacity | 3370 mAh / 49 Wh |
| Output Voltage | 14.54 VDC |
| Maximum Load | 6.5 A |
| Accessory I/O | 2x D-Tap / P-Tap Output 12 V Unregulated 2x USB-C Input/Output 5-20 V |
| Maximum Load (Accessory I/O) | 145 W (USB-C) |
| USB Output | 5 V 8 V 9 V 12 V 15 V 20 V 24 V 28 V 36 V 48 V |
| Accessory Mounting Thread | 1x 1/4"-20 Female |
| Environmental Protection | No |
| Dimensions (W x H x D) | 4.46 x 2.83 x 1.38" / 11.33 x 7.19 x 3.51 cm |
| Weight | 13.3 oz / 376 g |
Product details
| Battery Mount / Series | V-Mount |
|---|---|
| Batteries / Chargers | Batteries Only |
| Wattage | 49 Wh |
| Compatible Camera | Universal |
In the box
- Core SWX Powerbase EDGE SNAP 49Wh Smart-Stacking Battery Pack
