Description

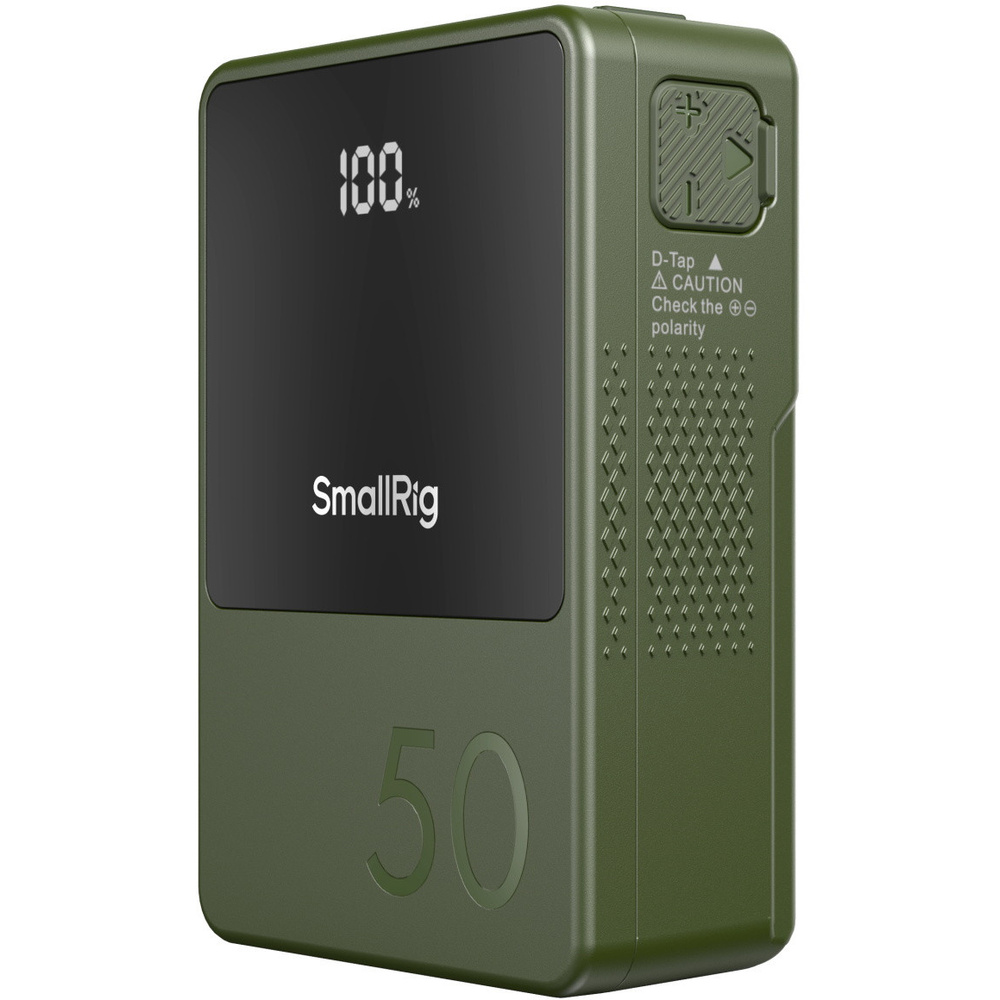

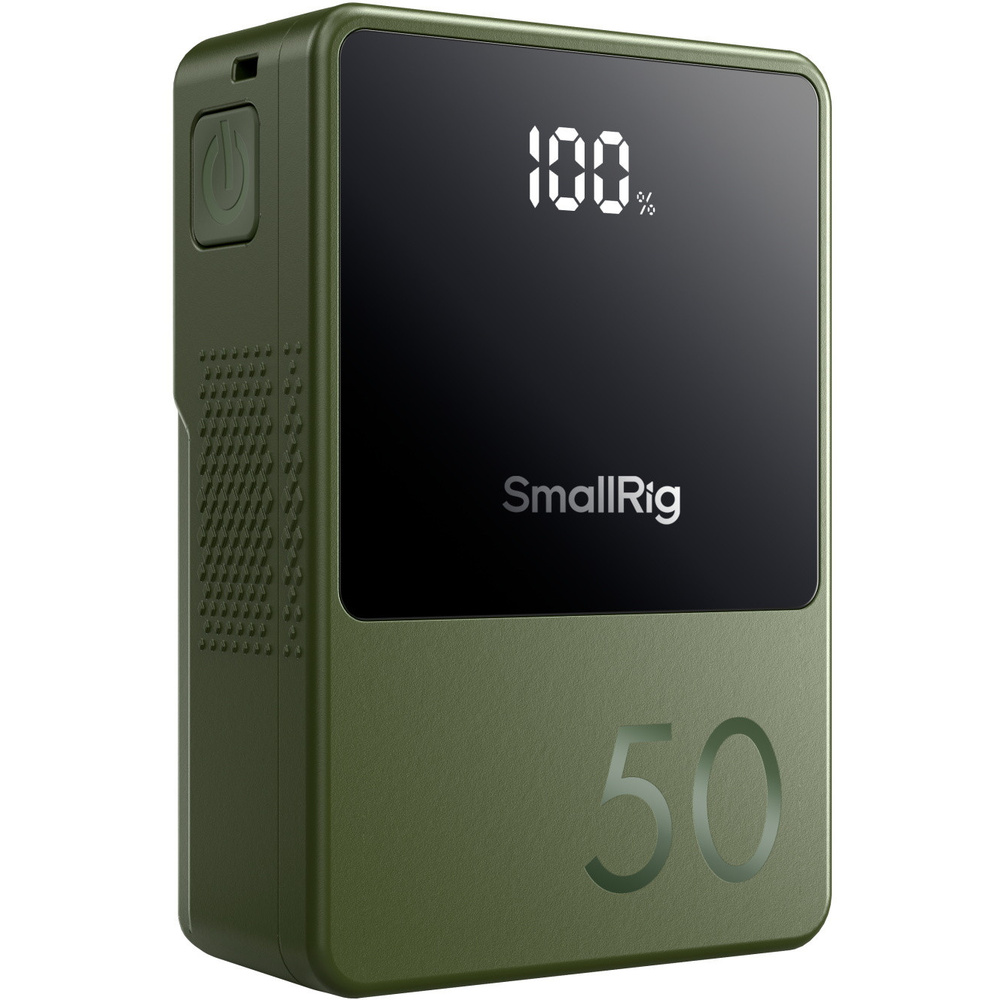

The SmallRig 4872 VB50 mini V Mount Battery is a compact V-mount power option for camera rigs, monitors, lights and other on-set gear. It suits users who want a small battery that can sit on a rig without adding much bulk, while still providing a practical power source for portable production work.
It has a 14.54V 3400mAh 49.436Wh capacity and a 50W rated discharge power. Charging can be done through the USB-C, BP port charger or 16.8V D-Tap charger, with USB-C fast charging rated at 45W max. Output options include USB-A, 8V-out, 12V-out, BP/D-Tap and D-Tap, and it uses a BMS intelligent chip, LG battery cells and fire-resistant PC material.

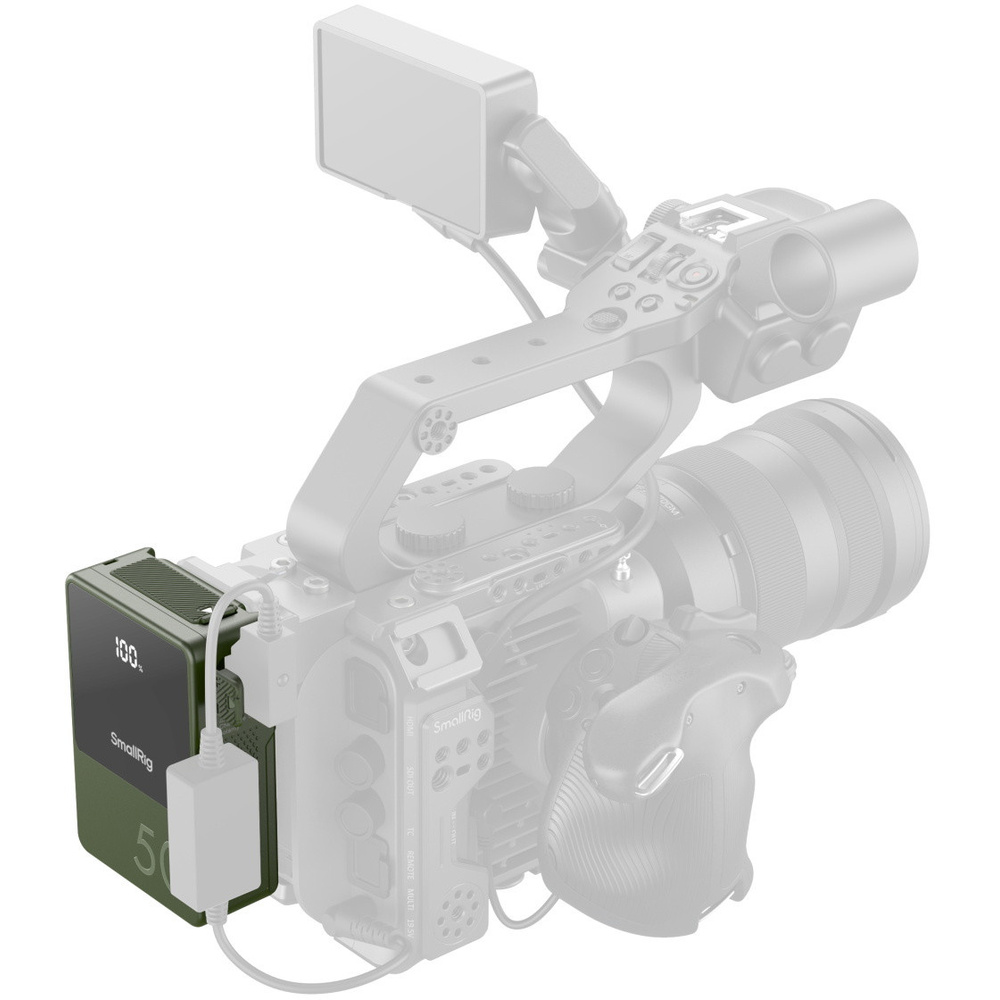

In use, it can power a range of compact production devices through its V-mount format and multiple output ports. It works with equipment that accepts V-mount or the listed output connections, but specific compatibility depends on the device.
Specifications
| Product Dimensions | 107.0 × 72.0 × 34.0mm / 4.2 × 2.9 × 1.32in |
|---|---|
| Package Dimensions | 146.0 × 113.0 × 54.0mm / 5.8 × 4.5 × 2.1in |
| Product Weight | 340.0g ± 10g / 12.0oz ± 0.4oz |
| Package Weight | 498.0g ± 10g / 17.6oz ± 0.4oz |
| Material(s) | Fire-Resistant PC Material |
| Capacity | 14.54V 3400mAh 49.436Wh |
| Rated Discharge Power | 50W |
| Input | |
| USB-C | 45W (Max) |
| D-Tap / BP | 3.4A (Max) |
| Output | |
| USB-C | 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓2.25A（Max） |
| USB-A | 5V⎓3A﹑9V⎓3A﹑12V⎓2A（Max） |
| BP/D-Tap | 5A（Max） |
| 8V-OUT | 8V⎓3A（Max） |
| 12V-OUT | 12V⎓3A（Max） |
| Charging Protocols | |
| USB-C | PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A |
| USB-A | QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A |
| Cutoff Voltage | 11.2V |
| Operating Temperature | -15℃ to 60℃ / 5℉ to 140℉ |
| Charging Temperature | 0℃ to 45℃ / 32℉ to 113℉ |
| Optional Charging Method | BP port charger, 16.8V D-Tap charger, USB-C |
Product details
| Batteries / Chargers | Batteries Only |
|---|---|
| Wattage | 3400 mAh |
| Battery | Lithium-Ion |
| Battery Mount / Series | V-Mount |
In the box
- VB50 mini V Mount Battery x 1
- SmallRig Custom Sticker Set x 1
- User Manual x 1
- Operation Guide x 1
- Guarantee Card x 1
