Description

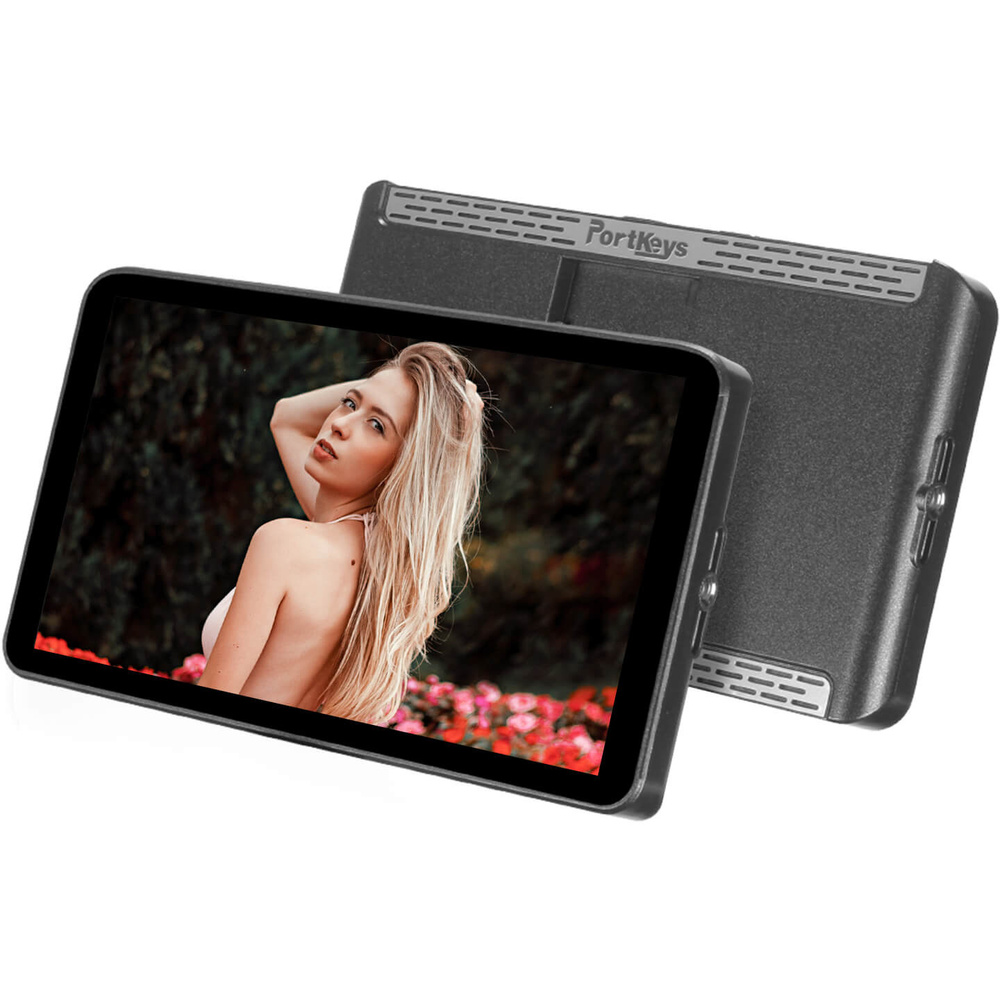

The PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black) sits in our Monitors range.
Highlights include 7" HDMI 1920 x 1080 Touchscreen, Sony/BMD wireless Camera control, up to DCI 4K24 video input support, 1000 cd/m² brightness, HDR preview and HDMI input & output, headphone jack.
Key specifications: mounting 2x 1/4"-20 Female; battery type 1x L-Series; weight 8.64 oz / 245.00 g; dimensions 6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm; screen size 7".
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black), Micro-USB flash drive, HDMI Cable, cleaning cloth, storage box and limited 1-Year manufacturer warranty.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | No |
| Video I/O | 1x HDMI 1.4 Input 1x HDMI 1.4 Output |
| Media/Memory Card Slot | No |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
| Battery Type | 1x L-Series |
| Power Consumption | 9 W |
| Mounting | 2x 1/4"-20 Female |
| Display | |
| Panel Type | LCD |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Maximum Brightness | 1000 nits / cd/m 2 |
| Contrast Ratio | 1000:1 |
| Colour Support | 1.07 Billion Colours (8-Bit+FRC) |
| Pixels Per Inch (ppi) | 314 ppi |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra |
| Inputs / Outputs | |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (24 VDC) Input 1x USB-A (2 A / 5 VDC) Input |
| Other I/O | 1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input] |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Mobile App Compatible | No |
| Power | |
| Input Power | 7 to 24 VDC |
| General | |
| Environmental Resistance | No |
| Material of Construction | Plastic |
| Dimensions | 6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm |
| Weight | 8.64 oz / 245.00 g |
Product details
| Screen Size | 7" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
- Micro-USB Flash Drive
- HDMI Cable
- Cleaning Cloth
- Storage Box
- Limited 1-Year Manufacturer Warranty
