Description

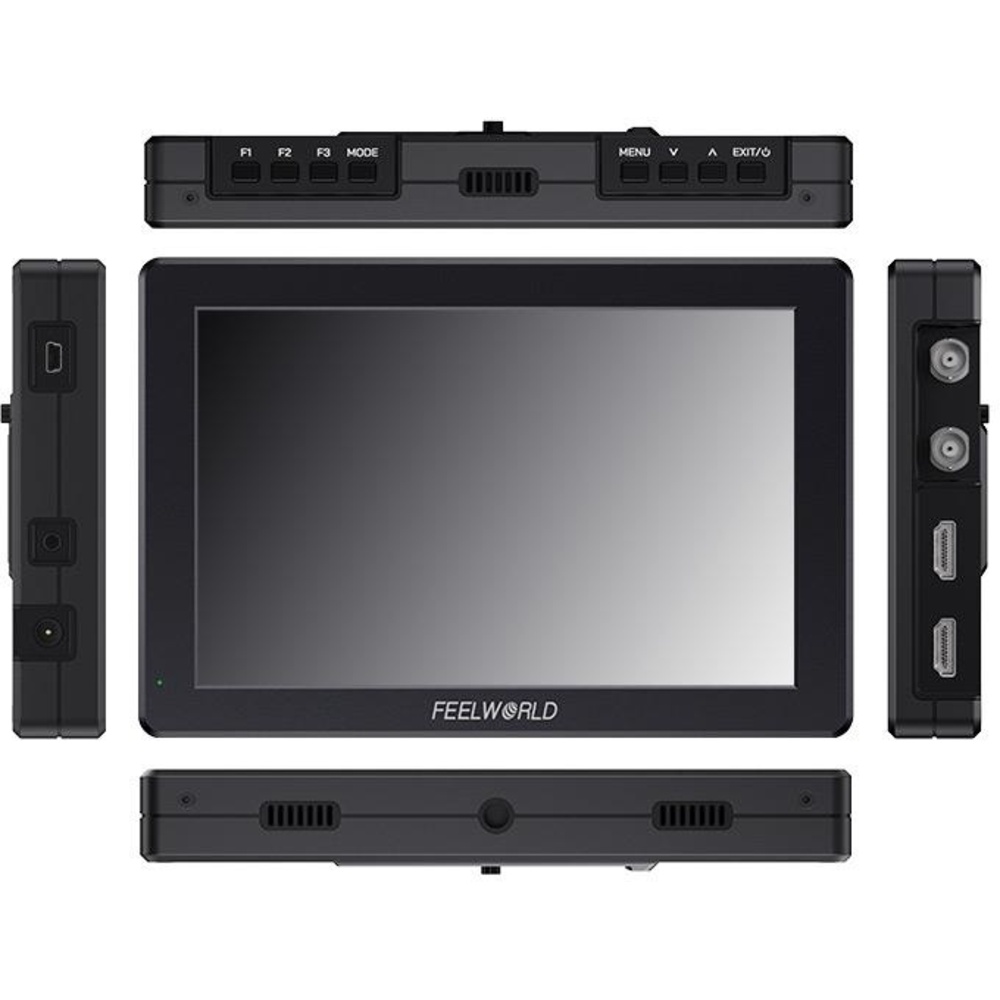

The FeelWorld T7S PRO is a 7 inch on-camera monitor for video shooters who need a clear external display for framing, focus and exposure checks. It suits cameras, rigs and field setups where a brighter screen is useful in daylight or other difficult viewing conditions.
It uses a 7.0 inch IPS-type LCD with 1920 x 1200 resolution, a 16:10 aspect ratio and 2000 nits brightness. The monitor supports HDR and 3D LUTs, and it has HDMI 2.0 input and output plus 3G-SDI input and output. The screen has a 1200:1 contrast ratio, a 160 degree horizontal and vertical viewing angle, a mono speaker and a 3.5 mm headphone output.
In use, it connects to a camera or video source over HDMI or SDI and can sit on a camera shoe mount or rig with the included shoe adapter mount. It is powered through a barrel input and includes an L-Series battery plate for NP-F style batteries. The box also includes a mini-USB cable, HDMI cable and sun hood.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 2000 nits / cd/m 2 |
| Contrast Ratio | 1200:1 |
| HDR Support | Yes |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Marker Colour, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x Mini-USB (Firmware/LUT Upload) Input |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Gamma Curve | ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log |
| Power | |
| Input Power | 7 to 24 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 18 W (Maximum) |
| Mounting | |
| Tripod/Accessory Mounting | Bottom 1x Anti-Twist 1/4"-20 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Storage Conditions | -22 to 149°F / -30 to 65°C |
| Material of Construction | Aluminium |
| Dimensions | 7.2 x 4.8 x 0.9" / 182.8 x 122.8 x 24 mm |
| Weight | 13.1 oz / 370.00 g |
Product details
| Screen Size | 7" |
|---|---|
| Screen Resolution | 1900 x 1200 |
In the box
- FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs
- Mini-USB Cable
- HDMI Cable
- Sun Hood
- Shoe Adapter Mount
- L-Series Battery Plate
