Description

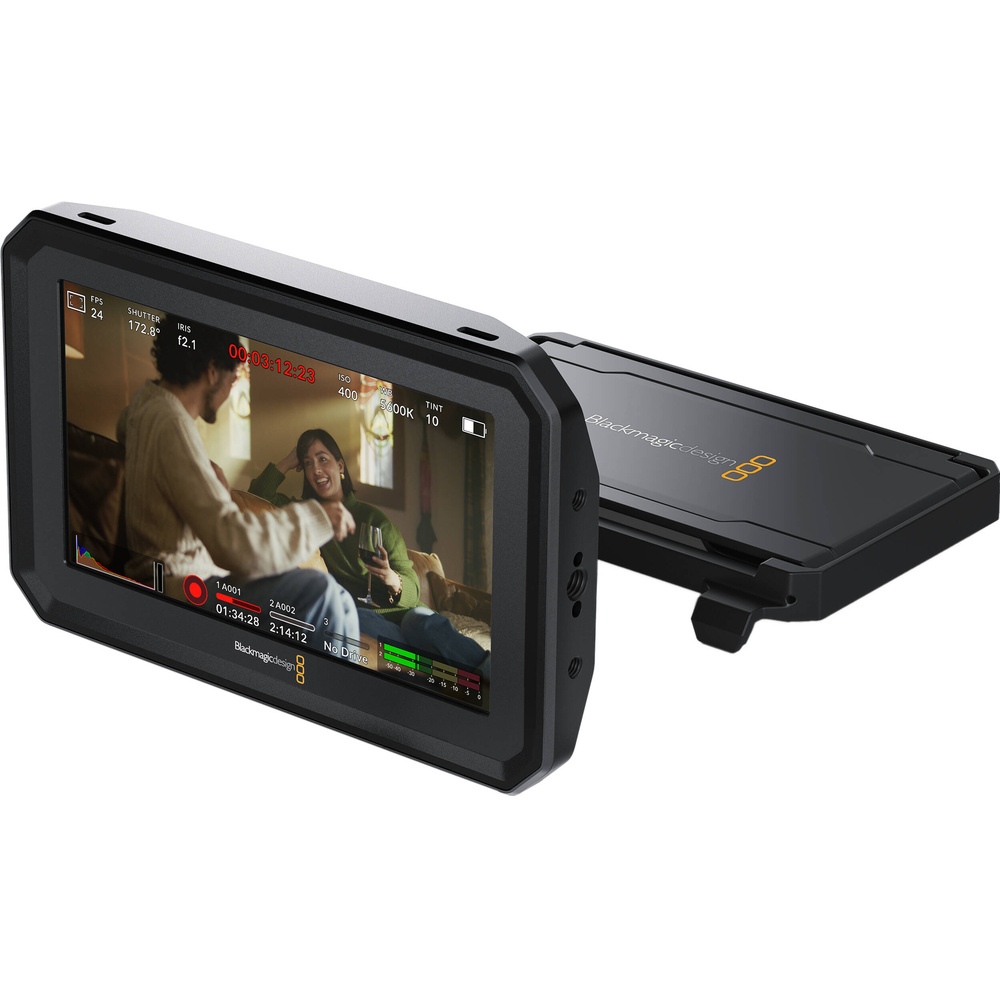

The Blackmagic PYXIS 5" HDR Touchscreen Monitor is a compact on-camera display for users who want a brighter, larger view of their camera setup and direct camera control. It suits Blackmagic PYXIS and URSA Cine builds where the main screen is hard to see or access.
It has a 5 inch LCD capacitive touchscreen with a Full HD 1920 x 1080 resolution and 1500 nits brightness. It supports frame rates up to 60fps, includes a rear facing LED tally light, and uses an accelerometer to rotate the image when mounted upside down. Connection is through USB Type-C.
In use, it connects with a single USB-C cable for video, power and camera control. It is designed to work with Blackmagic PYXIS and URSA Cine cameras, and the box includes the Blackmagic PYXIS Monitor, clip on sunshade, welcome wallet with QR code for software download, and a Blackmagic Design sticker.
Specifications
| Display Size | 5 inch |
|---|---|
| Display Resolution | Full 1920 x 1080 |
| Display Type | LCD capacitive touchscreen |
| Display Brightness | 1500 nits |
| Frame Rates | Up to 60fps |
| Tally | Rear facing LED tally light |
| Accelerometer | Automatically rotates image when monitor mounted upside down |
| Mounting Points | 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern 2 x M4 bottom mounting points 1 x 1/4-20 side mounting point with ARRI locating pin pattern 2 x M4 side mounting points |
| Compatible Cameras | Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
Product details
| Screen Size | 5" |
|---|---|
| Connection | USB Type-C |
| Screen Resolution | 1920 x 1080 |
In the box
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
