Description

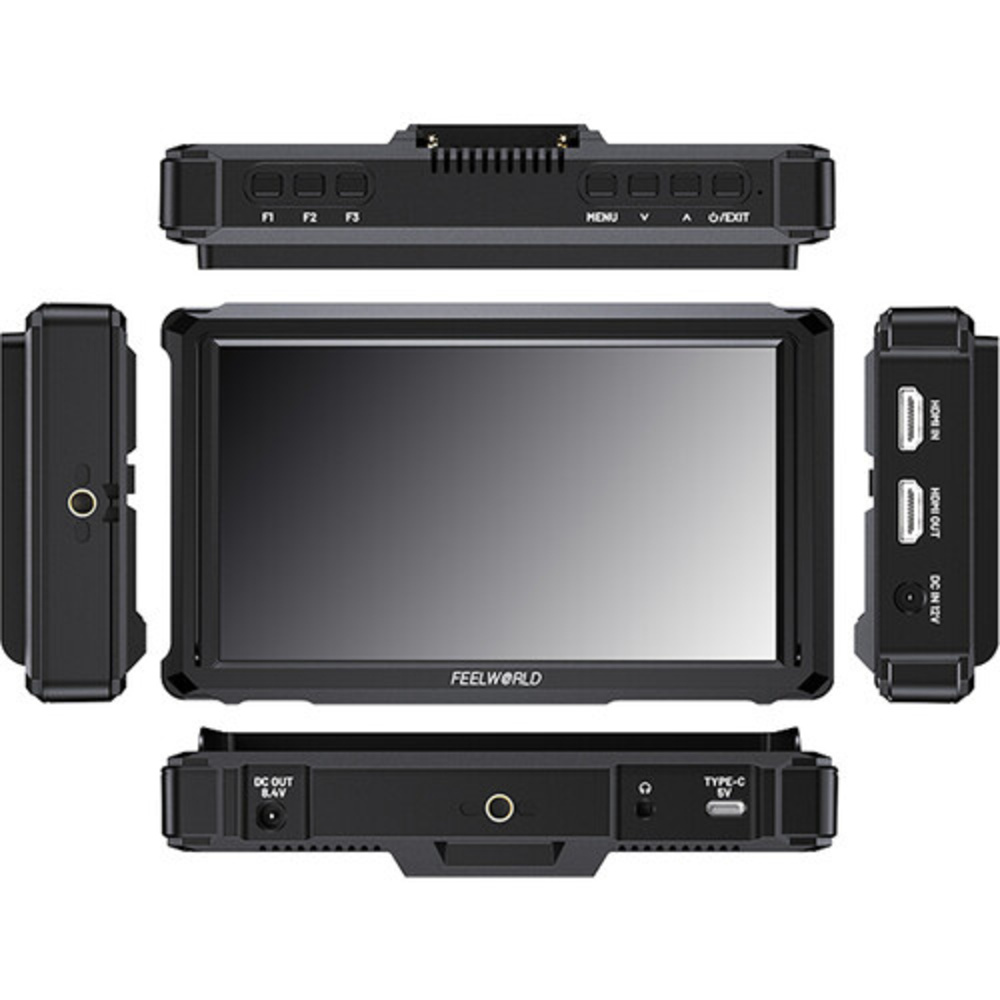

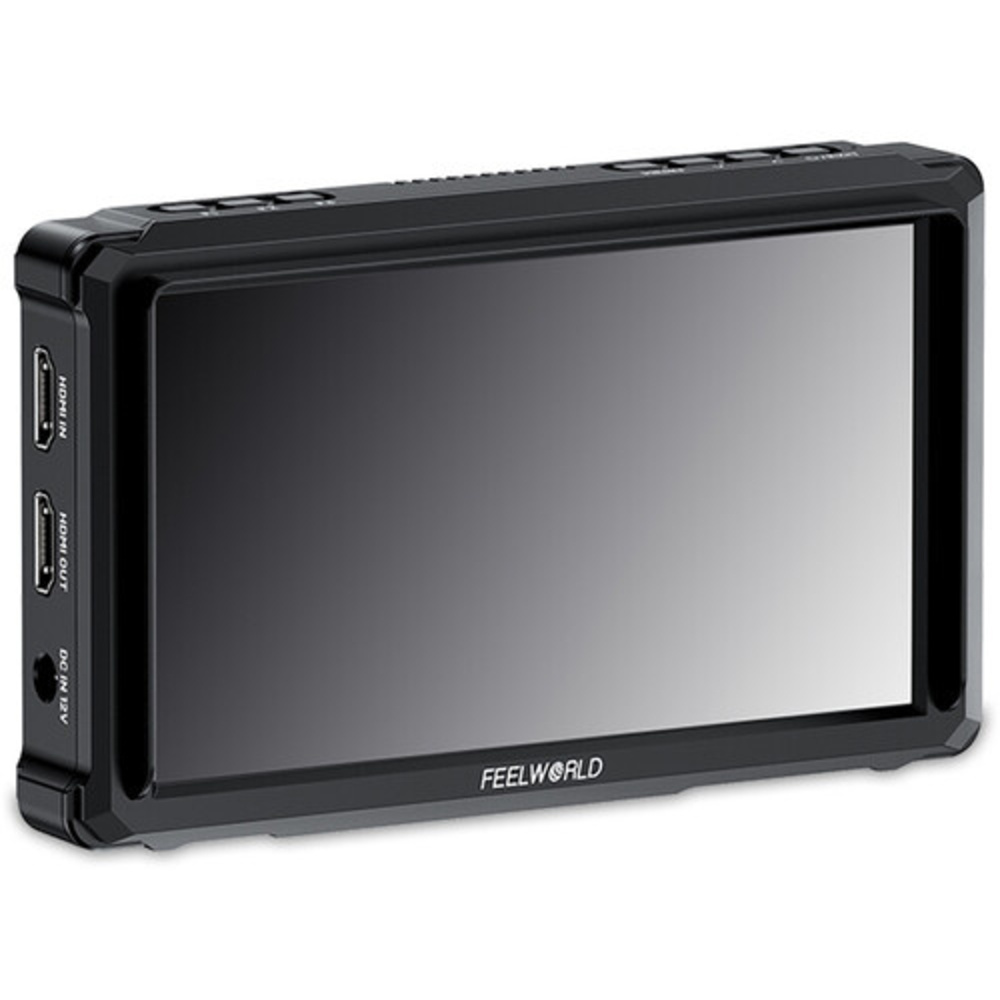

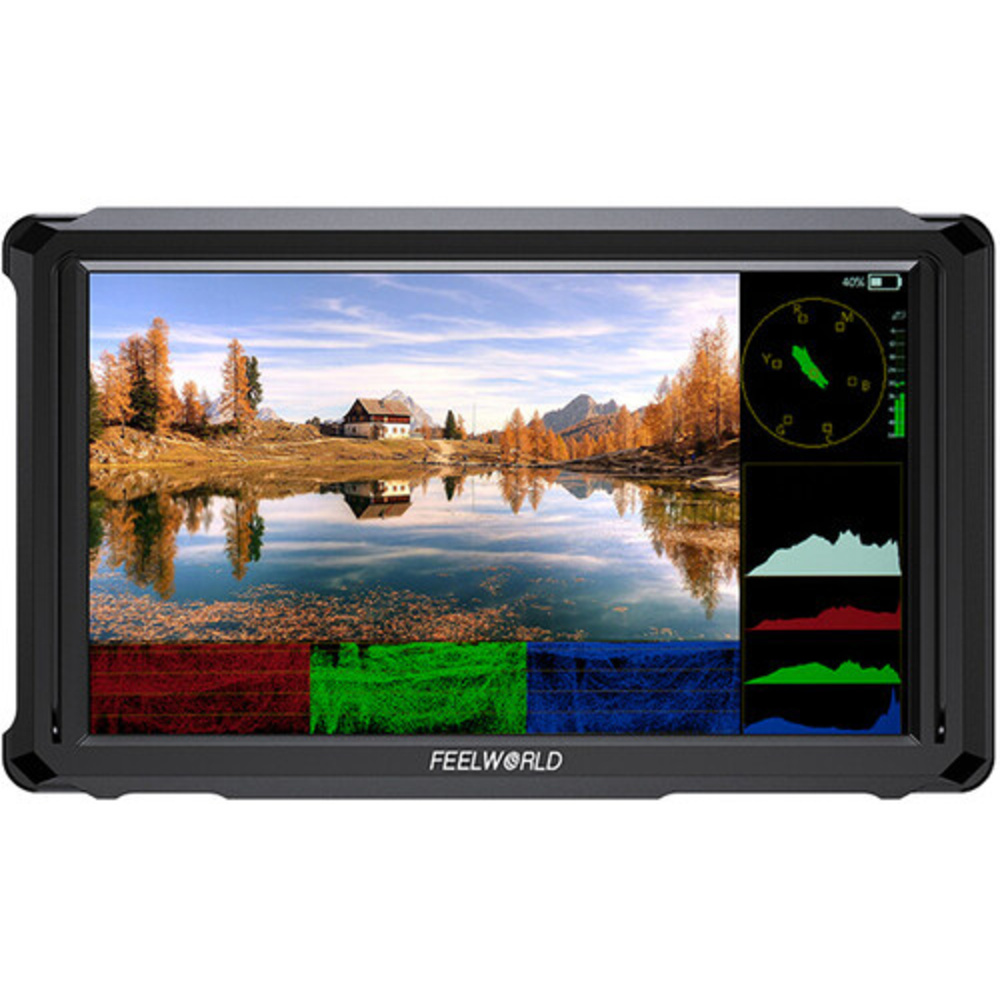

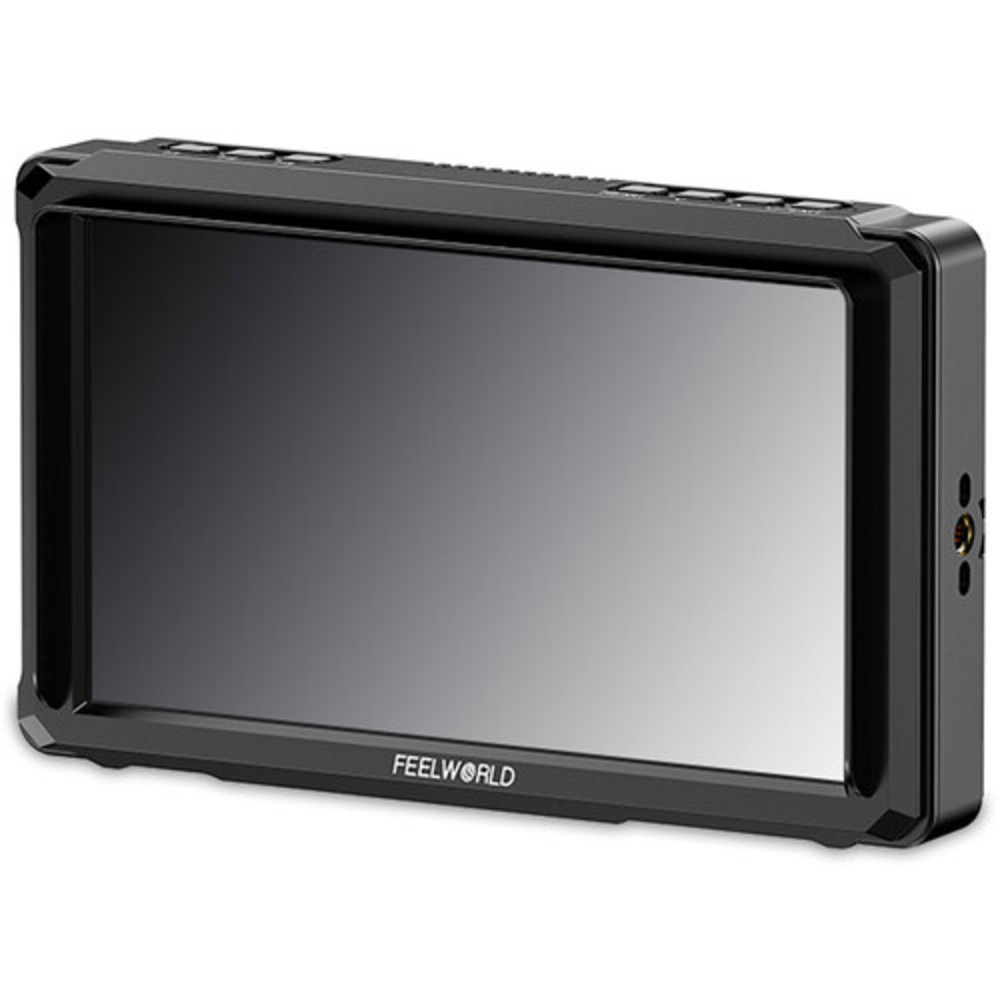

The FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor sits in our Monitors range.
Highlights include touchscreen 1920 x 1080 display, up to DCI 4K HDMI input; HDMI output, custom 3D LUT import via SD card slot, high 1200 cd/m² brightness and USB-C L-Series/LP-E6 Power input.
Key specifications: battery 1x L-Series Mount on Fixed Plate; weight 7.2 oz / 204.00 g; dimensions 6.3 x 3.8 x 1.3" / 161 x 96 x 33.3 mm; screen size 6"; panel type IPS-Type LCD.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor, HDMI Cable, Micro-HDMI cable, sun hood, shoe mount and hex wrench and 2 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 6.0" / 15.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 1200 nits / cd/m 2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Image Rotate, Marker Colour, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 2.0 Input 1x Mini-HDMI 2.0 Output |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x USB-C (5 VDC) Input 1x Barrel (12 VDC) Input 1x Barrel (8.4 VDC) Output |
| Other I/O | No |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480p 480i 576p 576i |
| Gamma Curve | ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log |
| Power | |
| Input Power | 7 to 24 VDC |

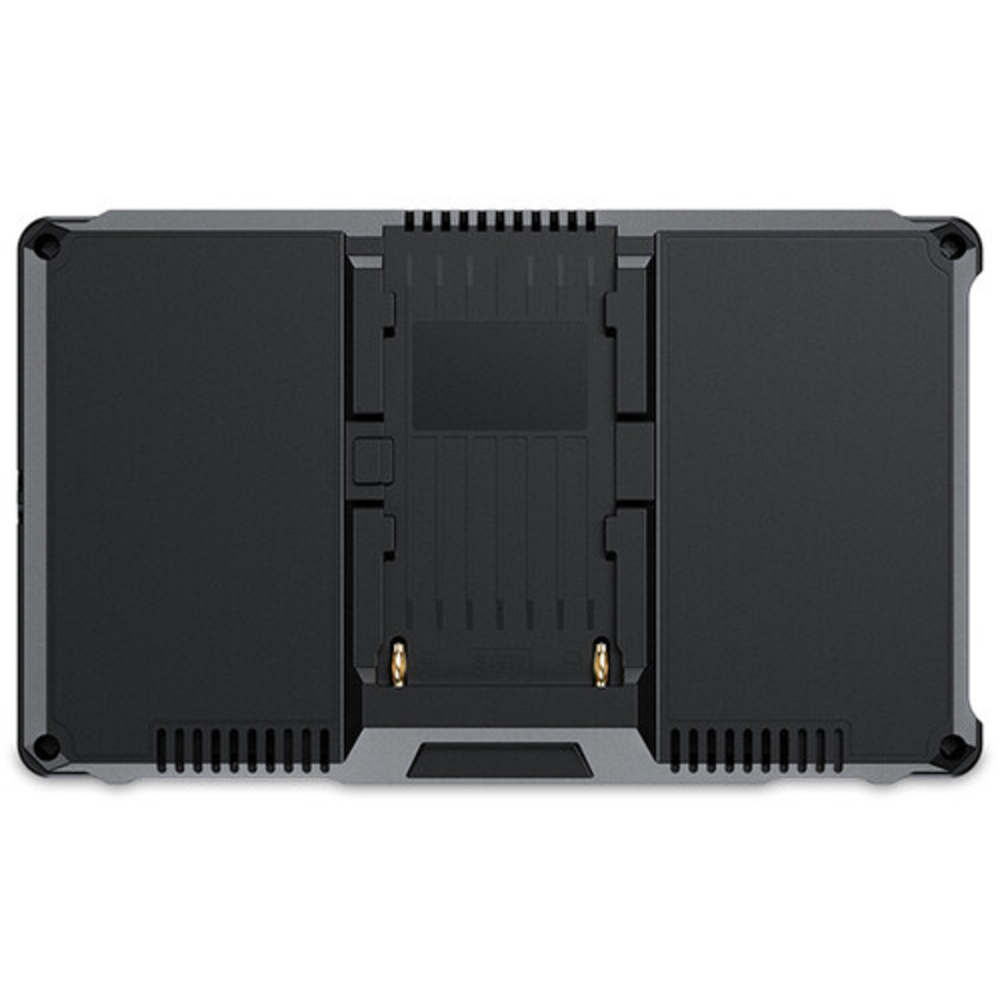

| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 11 W (Maximum) |
| Mounting | |
| Tripod/Accessory Mounting | Bottom/Left 1x Anti-Twist 1/4"-20 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Dimensions | 6.3 x 3.8 x 1.3" / 161 x 96 x 33.3 mm |
| Weight | 7.2 oz / 204.00 g |
Product details
| Screen Size | 6" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor
- HDMI Cable
- Micro-HDMI Cable
- Sun Hood
- Shoe Mount
- Hex Wrench
- USB-A to USB-C Adapter
- Cable Tie
