Description

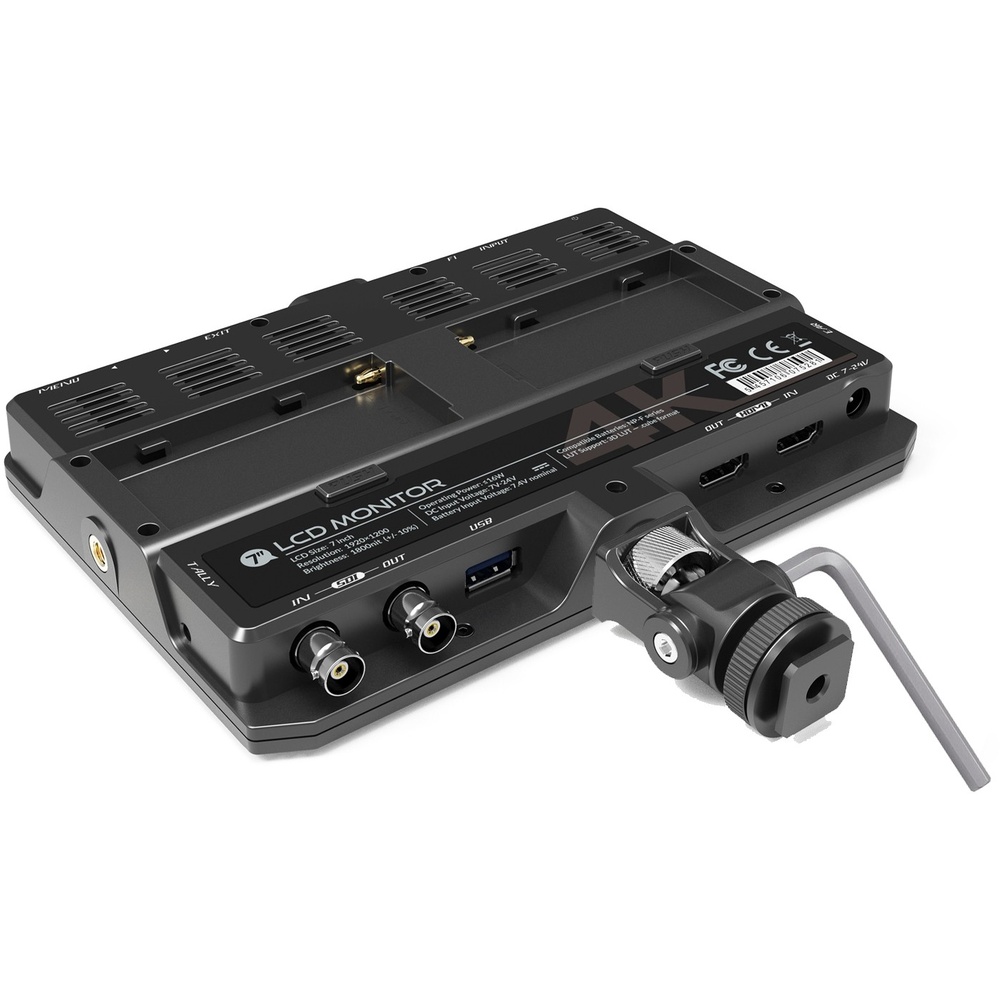

The Lilliput H7S 7" 4K Ultra Brightness On-Camera Monitor sits in our Monitors range.
Highlights include 1920 x 1200 native, 2840 x 2160 maximum, 1800 cd/m² brightness, HDR support, 1200:1 contrast ratio, 16:10 aspect and HDMI/3G-SDI Inputs/Outputs, tally input.
Key specifications: brightness 1800cd/m²(+/- 10% @ center); weight 535g; screen size 7"; resolution 1920 x 1200; size 7”.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Size | 7” |
| Resolution | 1920 x 1200 |
| Brightness | 1800cd/m²(+/- 10% @ center) |
| Aspect ratio | 16:10 |
| Contrast | 1200:1 |
| Viewing Angle | 160°/160°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60，2160p 24/25/30 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤15W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~60℃ |
| Other | |
| Dimension(LWD) | 225×155×23mm |
| Weight | 535g |
Product details
| Screen Size | 7" |
|---|---|
| Screen Resolution | 1920 x 1200 |
In the box
- Lilliput H7S 7" 4K Ultra Brightness On-Camera Monitor
