Description
The Lilliput FA1210/C/T 12.1" Class XGA Touchscreen IPS LCD Monitor sits in our Monitors range.
Highlights include 10-Point capacitive touchscreen display, XGA (1024 x 768) native resolution, 800 cd/m² Brightness, 900:1 contrast ratio and HDMI, VGA, 1/8" A/V Inputs.
Key specifications: brightness 800 cd/m²; weight 2.80 lb / 1.27 kg; dimensions 8.8 x 11.2 x 1.3" / 224.1 x 284.4 x 33.4 mm; screen size (Diagonal) 12.1"; resolution 1024 x 768.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Lilliput FA1210/C/T 12.1" class XGA touchscreen IPS LCD Monitor, HDMI Cable, VGA Cable, 1/8" to Composite A/V Cable, USB Cable and driver disc and 1 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Screen Size (Diagonal) | 12.1" |
| Resolution | 1024 x 768 |
| Supported Display Resolutions | Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colours) |
| Brightness | 800 cd/m² |
| Viewing Angle (H x V) | 170 x 170° |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 900:1 |
| Response Time | 25 ms |
| Backlighting Technology | Edge LED |
| Connectivity | |
| Primary Connectivity Location | Display |

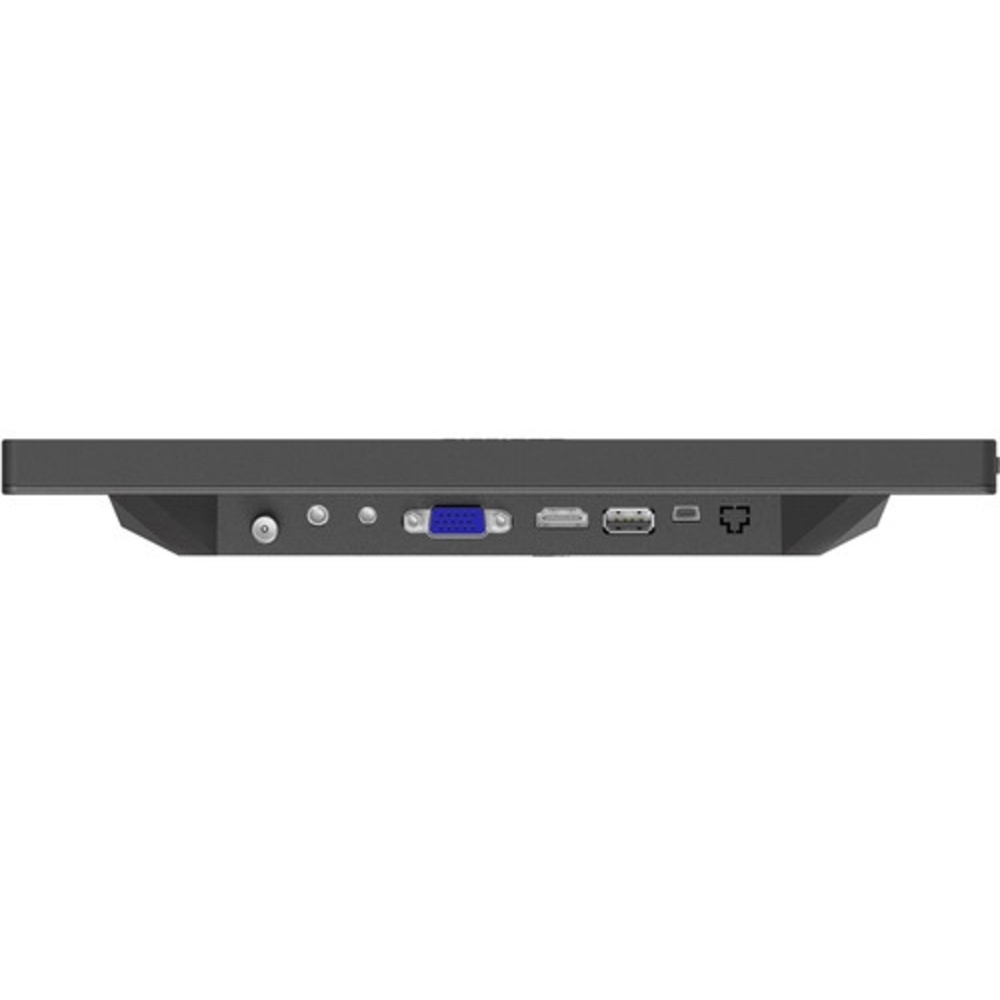

| Input Ports | 1 x HDMI 1.4 - Audio, Video (Bottom) 1 x 15-Pin VGA - Video (Bottom) 1 x 1/8" / 3.5 mm - Audio, Video (Bottom) |
| Output Ports | 1 x 1/8" / 3.5 mm - Headphone (Bottom) |
| USB Ports | 1 x USB (Version Unspecified) Type-A - Touchscreen Control (Bottom) 1 x USB (Version Unspecified) Mini-B - Service (Bottom) |
| Surface | |
| Touchscreen Technology | Capacitive |
| Multi-Touch Points | 10 |
| Audio | |
| Built-In Speakers | Yes, 2 |
| Speaker Configuration | 2-Channel |
| Electrical | |
| Power Consumption | Operational: 13.0 W |
| DC Input Power | 12 to 24 VDC |
| Environmental | |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Physical | |
| Wall Mounting | 75 x 75mm |
| Dimensions | 8.8 x 11.2 x 1.3" / 224.1 x 284.4 x 33.4 mm |
| Weight | 2.80 lb / 1.27 kg |
Product details
| Screen Size | 12.1" |
|---|---|
| Screen Resolution | 1024 x 768 |
In the box
- Lilliput FA1210/C/T 12.1" Class XGA Touchscreen IPS LCD Monitor
- HDMI Cable
- VGA Cable
- 1/8" to Composite A/V Cable
- USB Cable
- Driver Disc
- 12 VDC Adapter
