Description
The Feelworld F6 Plus is a 5.5 inch on-camera monitor for shooters who want a compact external display for framing, focus and exposure checks. It suits DSLR and mirrorless setups, as well as small video rigs where a lightweight monitor is easier to place than the camera screen.

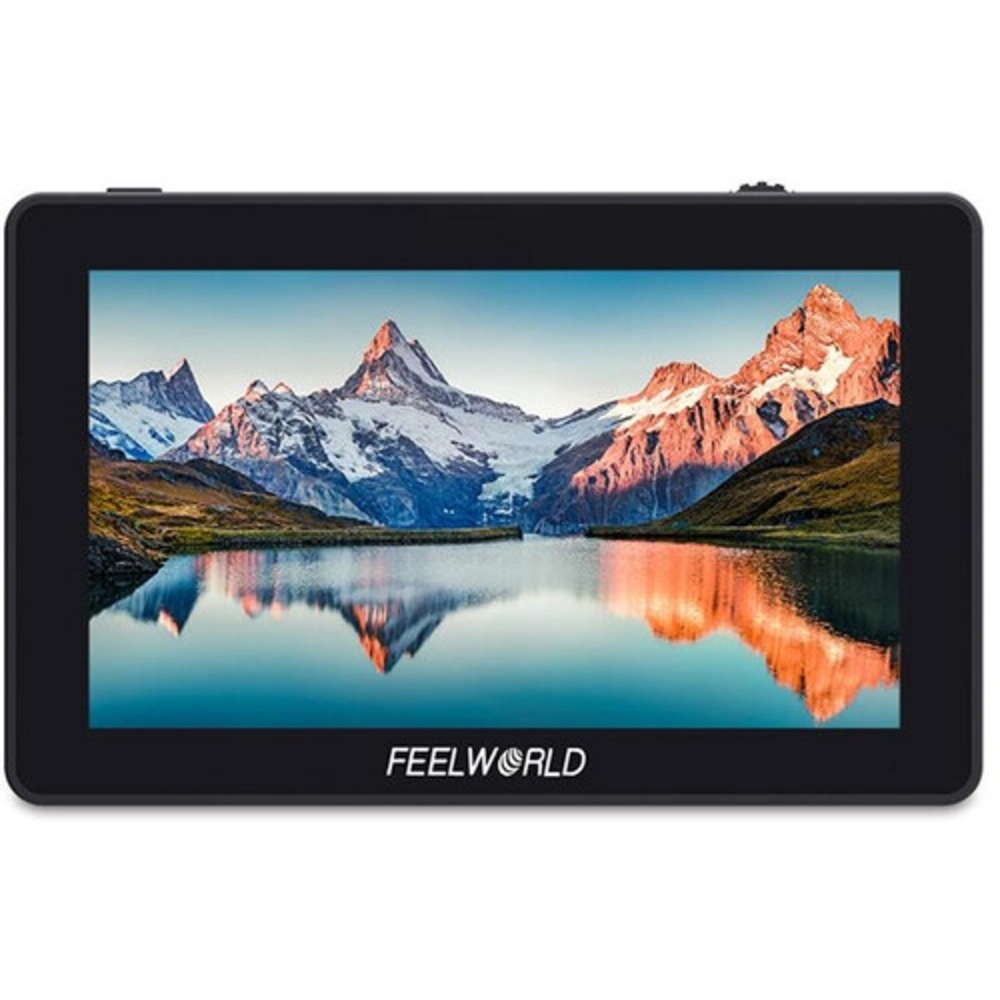

It has an IPS-type LCD with 1920 x 1080 resolution, a 16:9 aspect ratio and 500 cd/m2 brightness. Viewing angles are 160° horizontal and 160° vertical, and the touchscreen interface makes menu control quicker. It also supports HDMI input and output, LUTs via SD card, HDR tools, vectorscope and histogram.

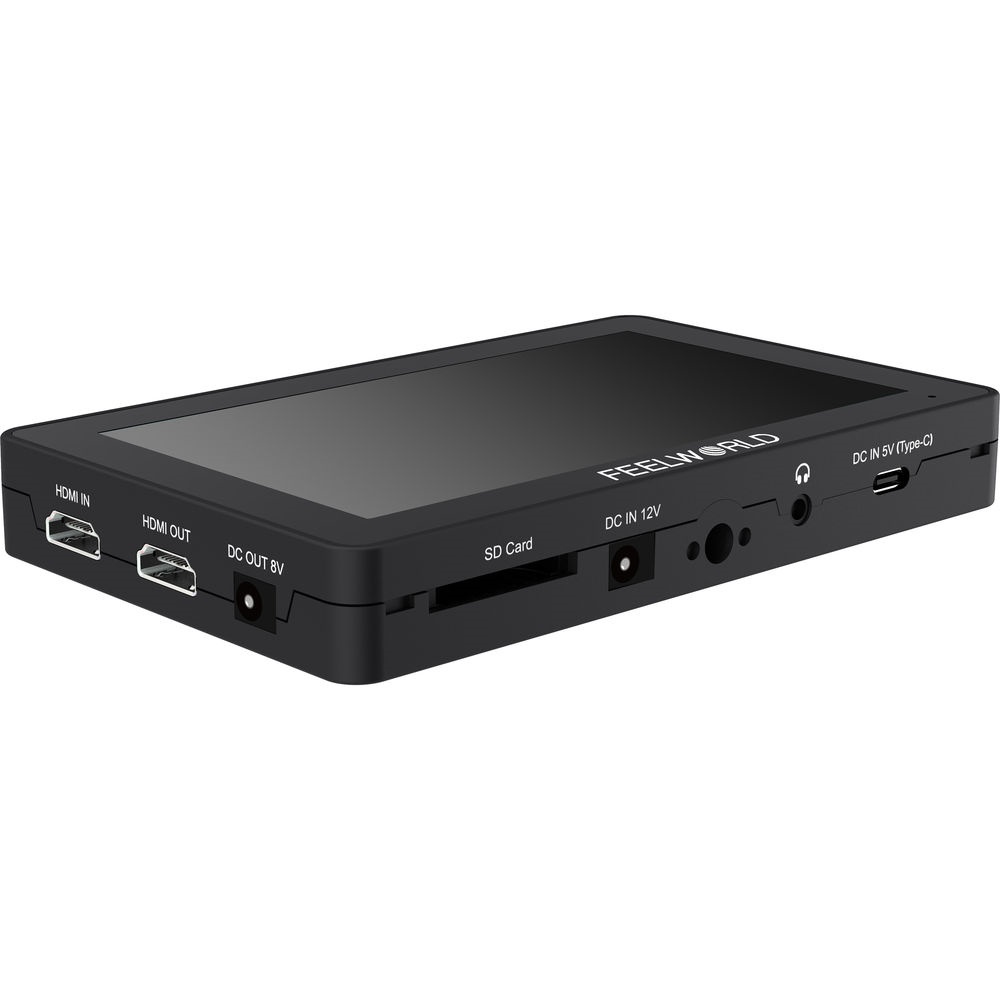

In use, it can sit on a camera cage, rig or hot shoe style setup with the tilt arm, while HDMI output can feed another monitor or device. It powers from DC, USB-C or an LP-E6 or L-Series battery. The box includes the monitor, tilt arm, sunshade and a micro HDMI cable.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.0639 x 0.0213 mm |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 400 ppi |
| I/O | |
| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x Barrel (12 VDC) Input 1 x Barrel (8 VDC) Output 1 x USB Type-C (5 VDC) Input |
| Wi-Fi | None |
| Format Support | |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Power | |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6, L-Series |
| Power Consumption | 9 W |
| Mounting | |
| Mounting | 3 x 1/4"-20 Female |
| Environmental | |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
Product details
| Display Size | 5.5 inches |
|---|
In the box
- Feelworld F6 Plus 5.5" 4K HDMI On-Camera Monitor
- Tilt Arm
- Sunshade
- Micro HDMI Cable
