Description

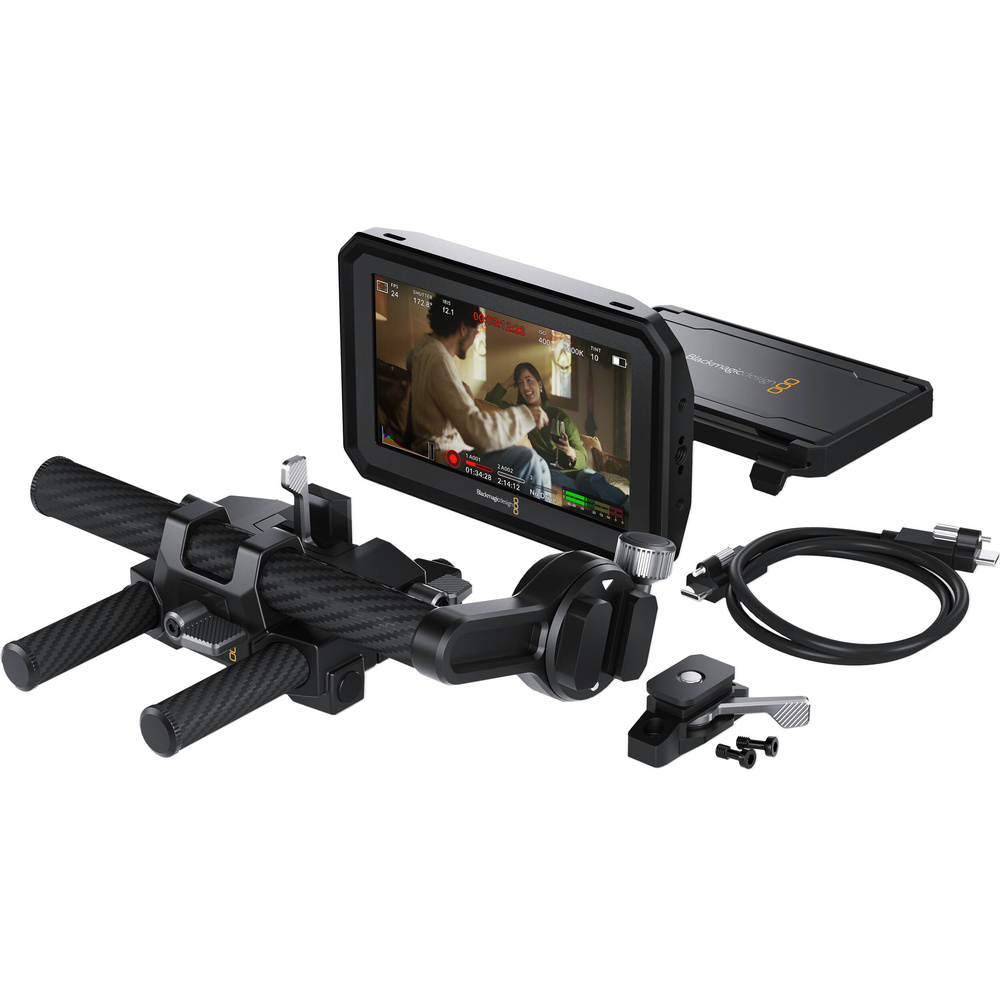

The Blackmagic PYXIS 5" HDR Touchscreen Monitor EVF Kit sits in our Monitors range.
Highlights include full camera control, 1500 nit high brightness screen, removable sunshade and single USB-C cable connection.
Key specifications: connection USB Type-C; screen size 5"; display size 5 inch; display resolution Full 1920 x 1080; display type LCD capacitive touchscreen.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Blackmagic PYXIS Monitor, Blackmagic PYXIS clip on sunshade, Blackmagic PYXIS Monitor swivel mount, Blackmagic PYXIS Monitor fixed mount and screws, Blackmagic PYXIS Monitor dovetail shoe and screws and Blackmagic URSA cine EVF bracket rod mount and 5 more items. Manufacturer model number CINEURSABB/AMKITEVF.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display Size | 5 inch |
|---|---|
| Display Resolution | Full 1920 x 1080 |
| Display Type | LCD capacitive touchscreen |
| Display Brightness | 1500 nits |
| Frame Rates | Up to 60fps |
| Tally | Rear facing LED tally light |
| Accelerometer | Automatically rotates image when monitor mounted upside down |
| Mounting Points | 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern 2 x M4 bottom mounting points 1 x 1/4-20 side mounting point with ARRI locating pin pattern 2 x M4 side mounting points |
| Compatible Cameras | Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
Product details
| Screen Size | 5" |
|---|---|
| Connection | USB Type-C |
| Screen Resolution | 1920 x 1080 |
In the box
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Blackmagic PYXIS Monitor Swivel Mount
- Blackmagic PYXIS Monitor Fixed Mount and screws
- Blackmagic PYXIS Monitor Dovetail Shoe and screws
- Blackmagic URSA Cine EVF Bracket rod mount
- Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
- 2 x short 15mm carbon fibre rods
- 1 x USB-C viewfinder cable
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
