Description
The Atomos Shinobi 7 RX HDMI/SDI HDR Monitor sits in our Monitors range.
Highlights include 7" 1920 x 1080 touchscreen HDR display, Wi-Fi Camera control, focus, streaming, HD 3G-SDI & 4K60 HDMI 2.0 input & output, 2200 cd/m² Brightness and dual L-Series battery slots, USB-C PD in.
Key specifications: frequency range 5 GHz; battery 2x L-Series Mount on Fixed Plate; weight 1.3 lb / 580.00 g; dimensions 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm; screen size 7".
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Atomos shinobi 7 RX HDMI/SDI HDR Monitor, 2 x Antenna, antenna tip set (Back, white, yellow, green, red), 2 x Antenna Cap and USB-C 2.0 Cable (3.3'). Manufacturer model number ATOMSHBRX1.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m 2 |
| Colour Support | 1.07 Billion Colours (10-Bit) |
| HDR Support | Yes: Advanced HDR |
| Colour Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Antenna I/O | 2x RP-SMA |
| Video I/O | 1x HDMI 2.0 Input 1x BNC (3G-SDI) Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 8-Channel SDI: 12-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Line Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (16.8 VDC) Input |
| Other I/O | 1x 2.5 mm (LANC) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input [Shared with Power, Camera Control] 2x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only] |
| Wireless | |
| Wireless Range | 984.3' / 300 m |
| Frequency Range | 5 GHz |
| Latency | 60 ms |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:2:2) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Video Signal Conversion | HDMI to SDI 1080p SDI to HDMI 1080p |
| Audio Format | 8-Channel 24-Bit |
| Power | |
| Input Power | 6.2 to 16.8 VDC |

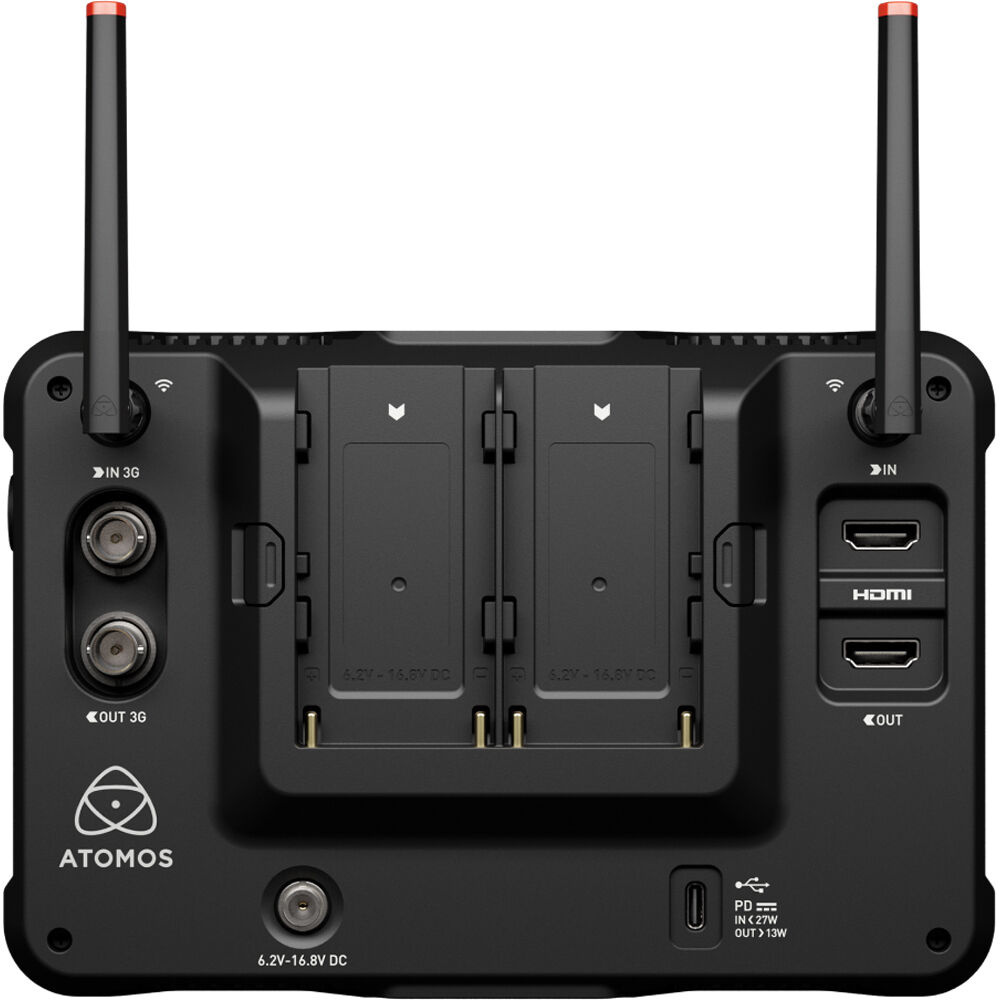

| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 13 W (Maximum) |
| Mounting | |
| Tripod/Accessory Mounting | Top 1x 1/4"-20 Female Bottom 1x 1/4"-20 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Plastic |
| Dimensions | 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm |
| Weight | 1.3 lb / 580.00 g |
Product details
| Screen Size | 7" |
|---|---|
| Screen Resolution | 1920 x 1200 |
In the box
- Atomos Shinobi 7 RX HDMI/SDI HDR Monitor
- 2 x Antenna
- Antenna Tip Set (Back, White, Yellow, Green, Red)
- 2 x Antenna Cap
- USB-C 2.0 Cable (3.3')
