Description
The Accsoon CineView M7 Pro is a 7-inch on-camera monitor for operators who want monitoring, recording and wireless video in one unit. It suits camera setups that need a bright display, touch control and SDI or HDMI connections for field, studio or run-and-gun use.

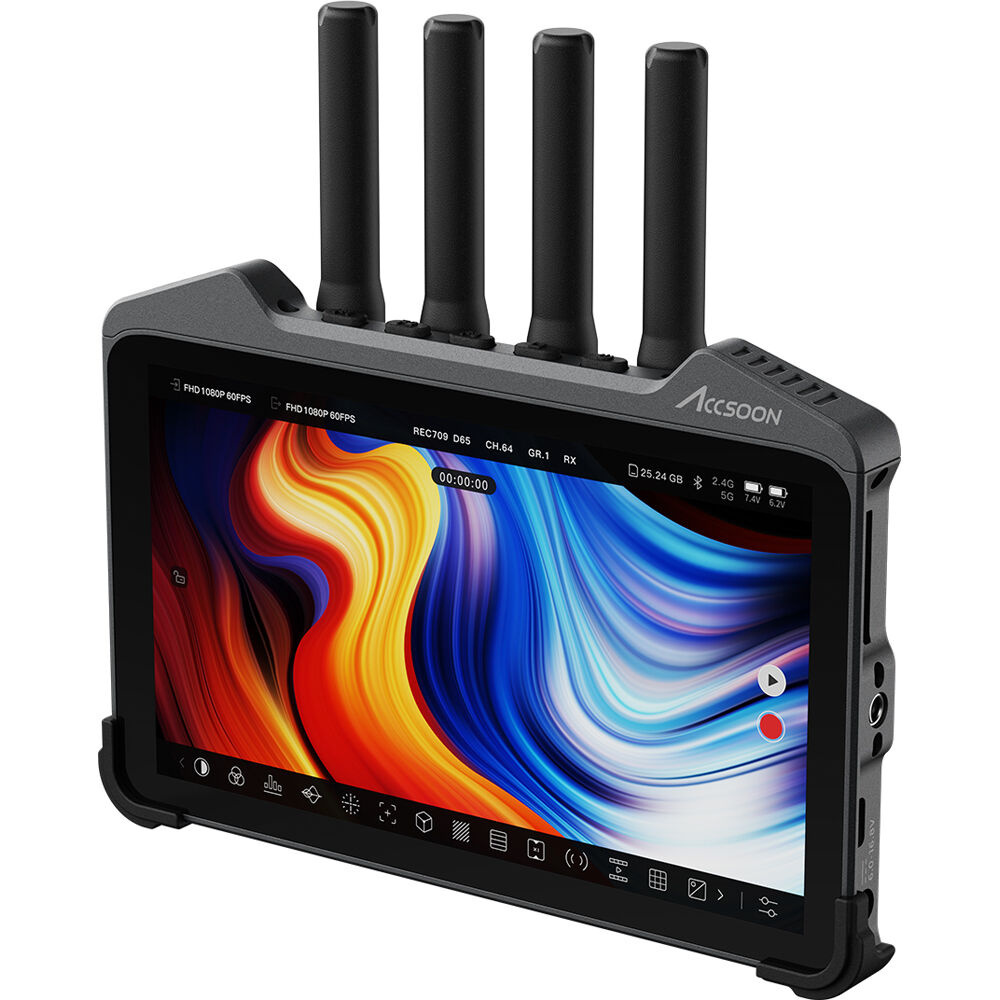

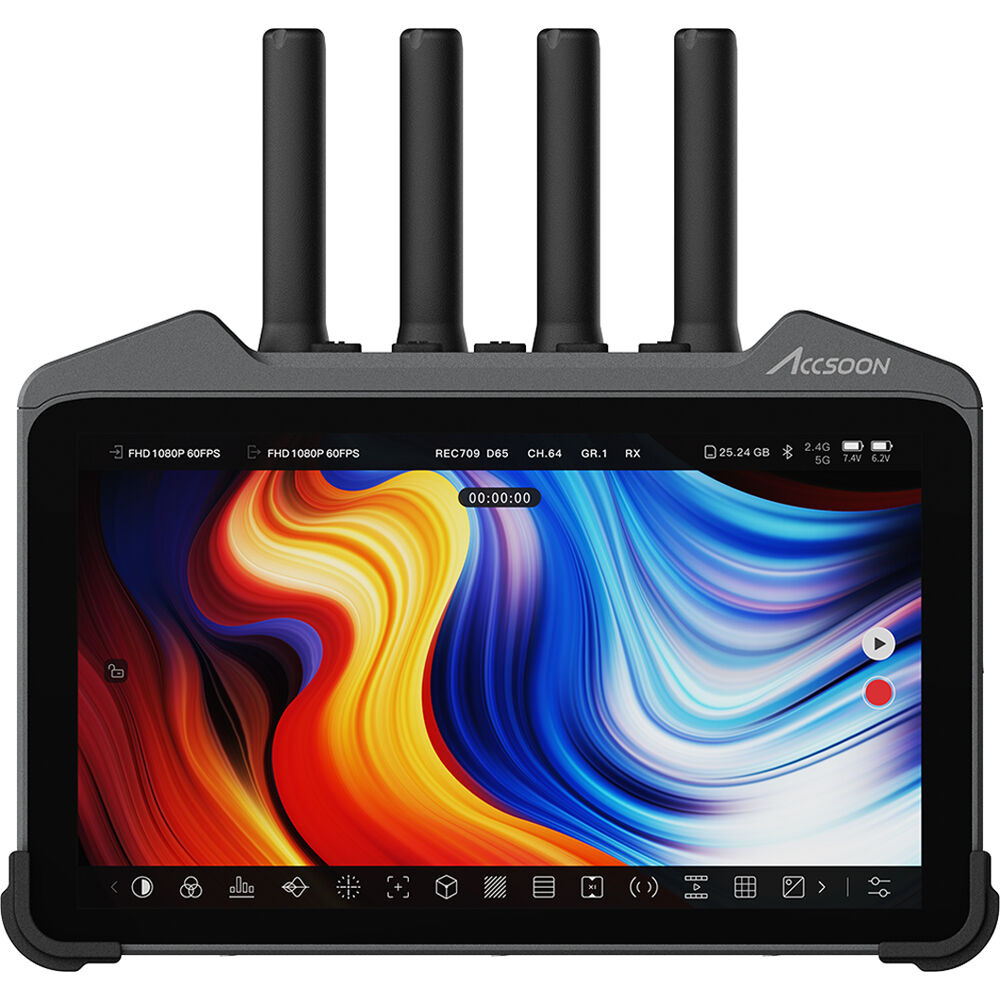

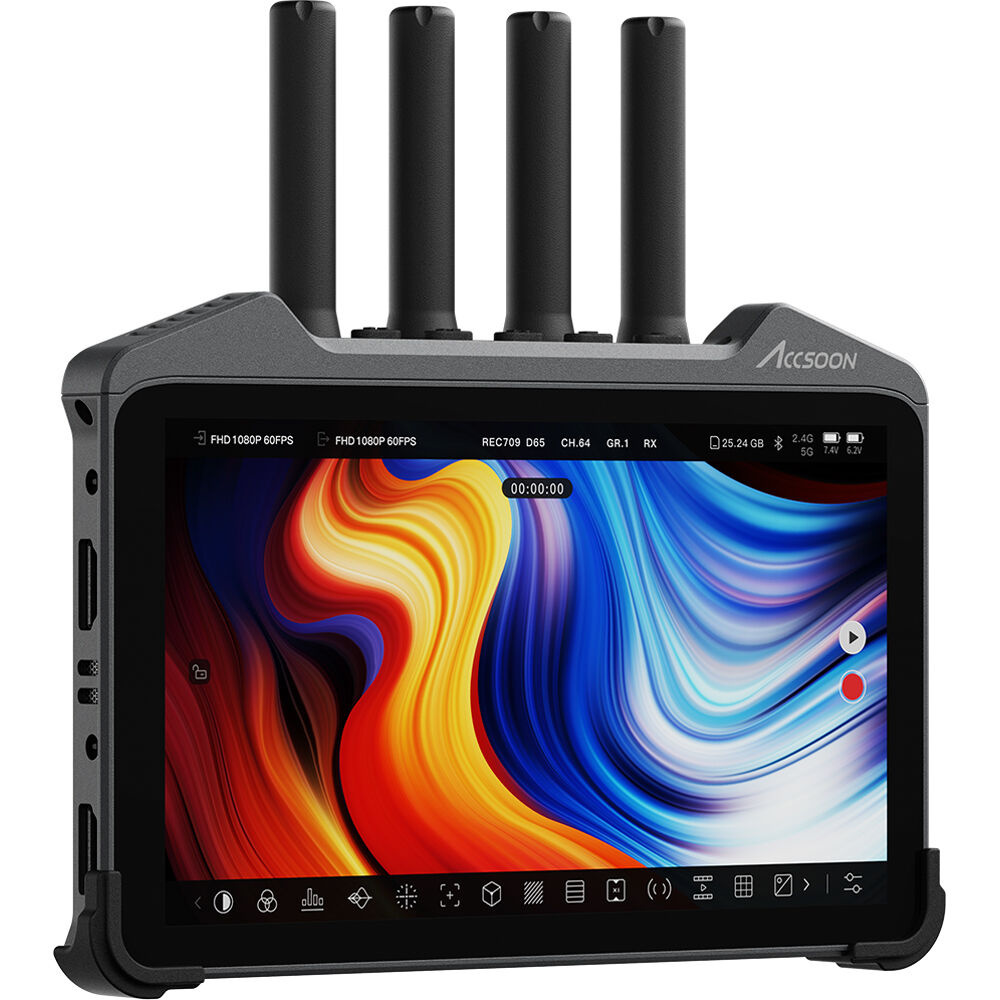

It has a 7.0-inch LCD touchscreen with 1920 x 1080 native resolution, 1000 nits brightness and 176° viewing angles. It supports HDR, LUTs, Rec. 709 colour and image tools including false colour, focus peaking, histogram, waveform, vectorscope and zebra. Video I/O includes 3G-SDI input and output plus HDMI 2.0 input and output, with up to DCI 4K60 on HDMI and cross conversion between SDI and HDMI.
In practice, it can sit on a camera, feed another monitor or recorder, and work with SDI or HDMI sources that match its supported formats. The monitor includes four antennas and supports wireless transmission and reception, plus a 3.5 mm mic input and headphone output. It also has USB-C power input and output, and a barrel power input.
Specifications
| Display | |
|---|---|
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 176° Vertical: 176° |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m 2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes |
| Colour Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | False Colour, Focus Assist, Focus Peaking, Histogram, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |

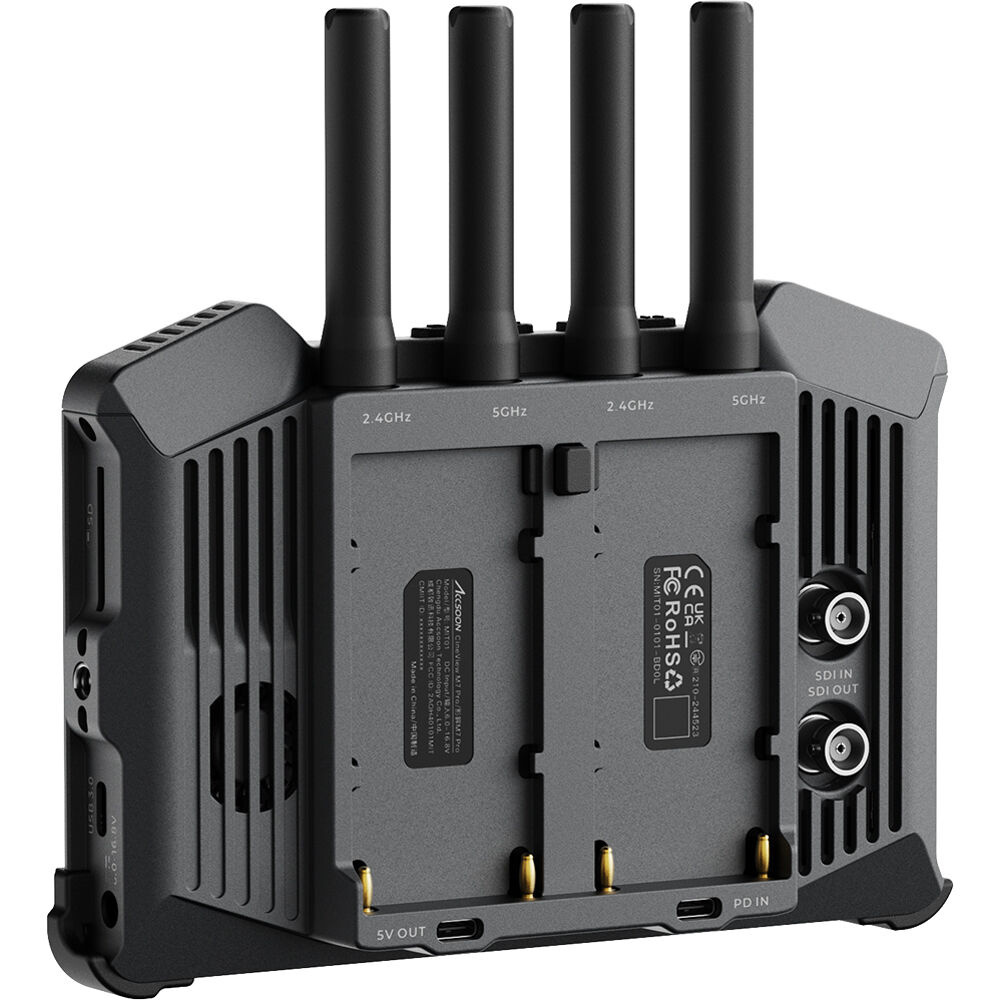

| Antenna I/O | 4x RP-SMA Female |

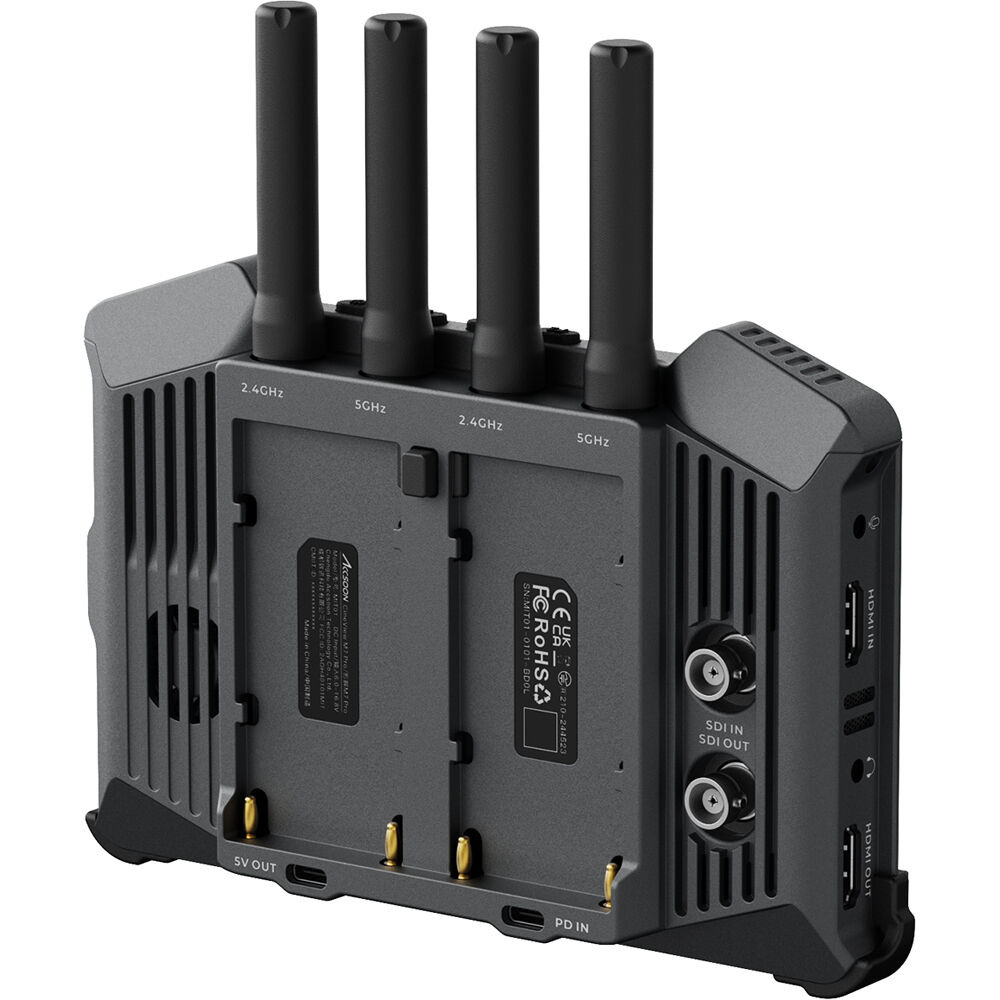

| Video I/O | 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Mic Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel 2.1 mm (16.8 VDC) Input 1x USB-C (3 A / 9 VDC) Input 1x USB-C (2 A / 5 VDC) Output |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [Record/LUT/Firmware] |
| Wireless | |
| Wireless Range | 1148.3' / 350 m (Line-of-Sight) |
| Latency | 60 ms |
| Wi-Fi | Unspecified Version; Dual-Band (2.4 & 5 GHz) |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: Accsoon SEE Functionality: Access Stored Files, Remote Control, View Live Feed |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 |
| Video Signal Conversion | SDI to HDMI |
| Audio Format | 2-Channel 16-Bit 48 kHz |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Recording | |
| Pulldown Conversion | No |
| Camera Trigger | No |
| Pre-Roll Record | No |
| Encoding Formats | Up to 4096 x 2160 H.264 Up to 4096 x 2160 H.265 |
| Maximum Audio Tracks | 2 |
| Power | |
| Input Power | 6 to 16.8 VDC 9 to 15 VDC at 3 A |

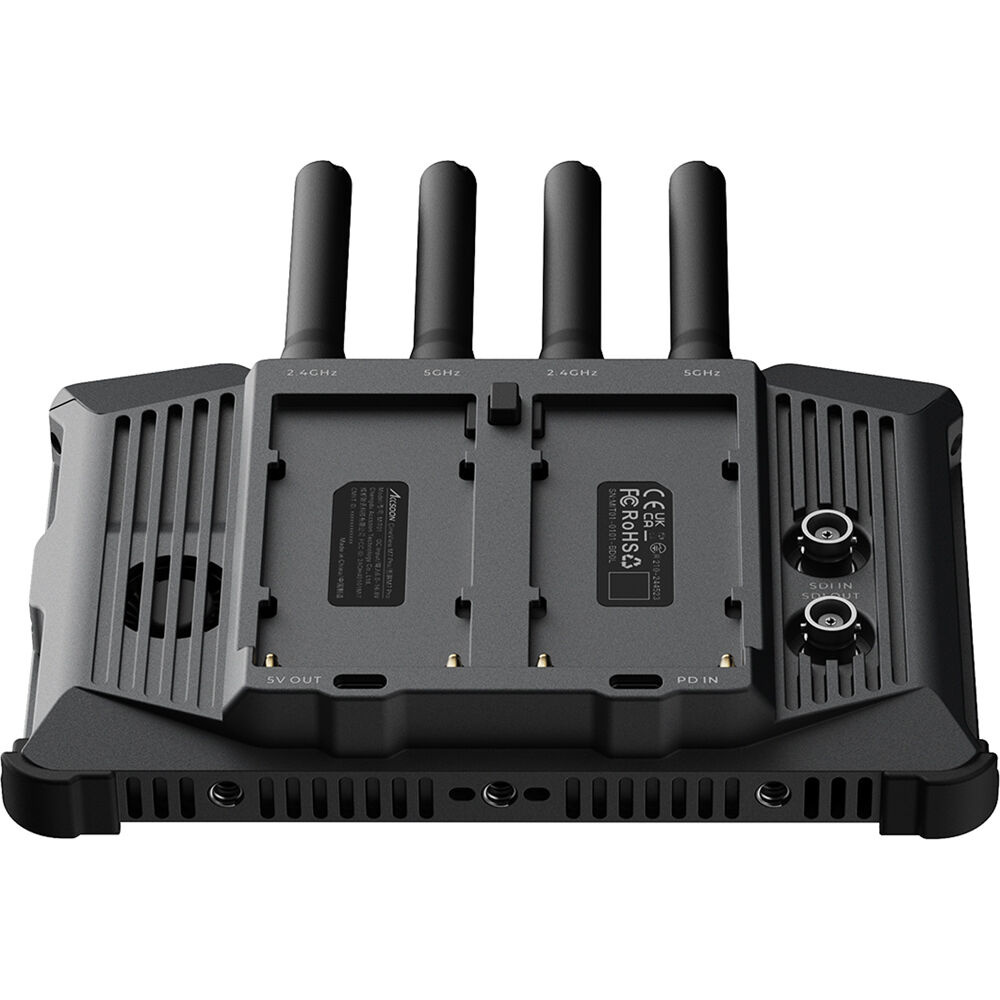

| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 12 W (Typical) 28 W (Maximum) |
| Mounting | |

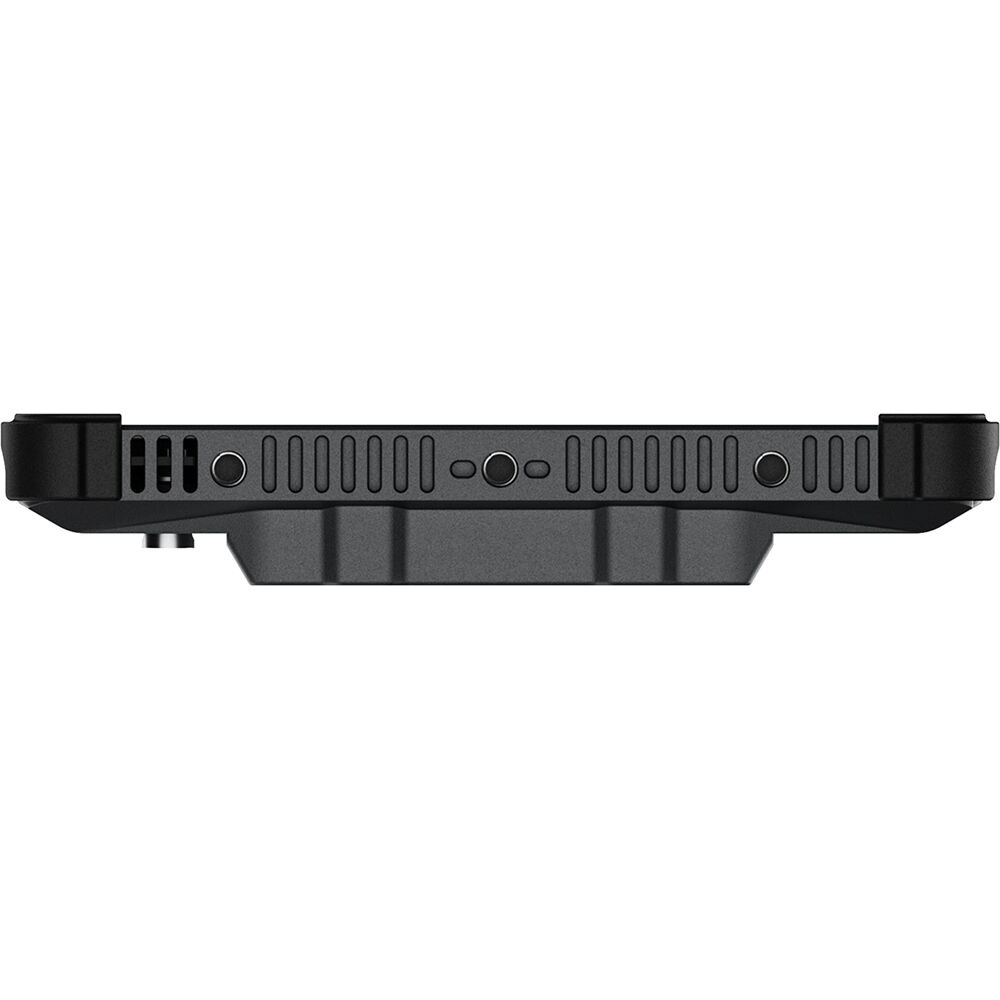

| Tripod/Accessory Mounting | 2x 1/4"-20 Female |
| General | |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Material of Construction | Aluminium |
| Dimensions | 7.2 x 4.8 x 1.2" / 182.2 x 120.7 x 31.5 mm |
| Weight | 1.1 lb / 494.3 g, Excluding Antenna |
Product details
| Screen Size | 7" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- Accsoon CineView M7 Pro 7" 4K60 Recording Monitor with Wireless Transmitter/Receiver
- 4 x Antenna
