Description

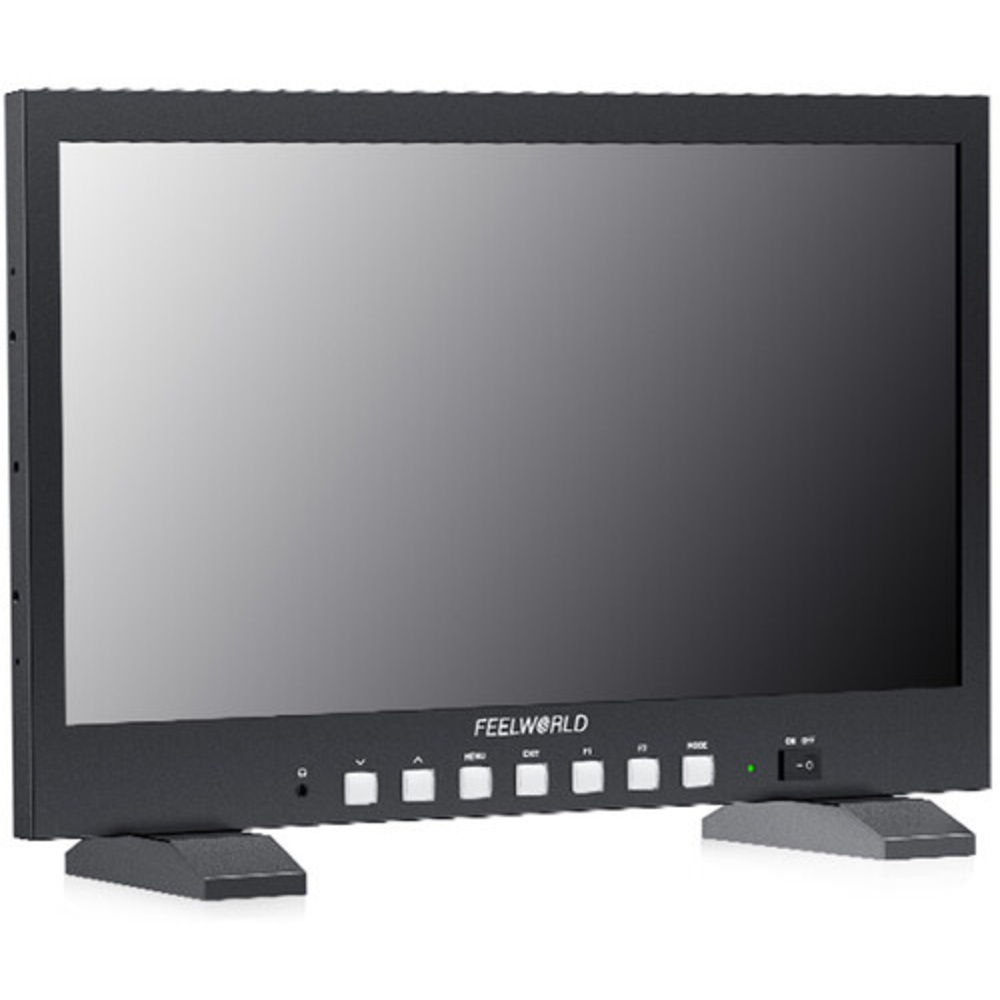

The FeelWorld FVM215-1000 21.5" High-Bright Broadcast Monitor sits in our Monitors range.
Highlights include 21.5" 1920 x 1080 IPS LCD, up to DCI/UHD 4K60 input, high 1000 cd/m² brightness, HDMI & 3G-SDI Inputs/Outputs and V-Mount battery plate.
Key specifications: battery 1x V-Mount on Fixed Plate; weight 9.44 lb / 4.28 kg; dimensions 20.1 x 13.6 x 0.9" / 511.6 x 345 x 21.8 mm; screen size 21.5"; panel type IPS-Type LCD.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: FeelWorld FVM215-1000 21.5" High-Bright broadcast Monitor, Power adapter, V-Mount Battery Plate, Micro-HDMI cable, HDMI Cable and SDI Cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 21.5" / 54.6 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 1000 nits / cd/m 2 |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 Million Colours (8-Bit) |
| HDR Support | No |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 2x HDMI 2.0 Input 2x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Stereo |
| Power I/O | 1x XLR 4-Pin Input 1x Barrel (5 A / 12 VDC) Input |
| Other I/O | 1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Gamma Curve | ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log |
| Power | |
| Input Power | 12 to 24 VDC |
| Battery | 1x V-Mount on Fixed Plate |
| Power Consumption | 52 W (Maximum) |
| Mounting | |
| VESA Mounting-Hole Pattern | 100 x 100 mm |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Dimensions | 20.1 x 13.6 x 0.9" / 511.6 x 345 x 21.8 mm |
| Weight | 9.44 lb / 4.28 kg |
Product details
| Screen Size | 21.5" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- FeelWorld FVM215-1000 21.5" High-Bright Broadcast Monitor
- Power Adapter
- V-Mount Battery Plate
- Micro-HDMI Cable
- HDMI Cable
- SDI Cable
