Description

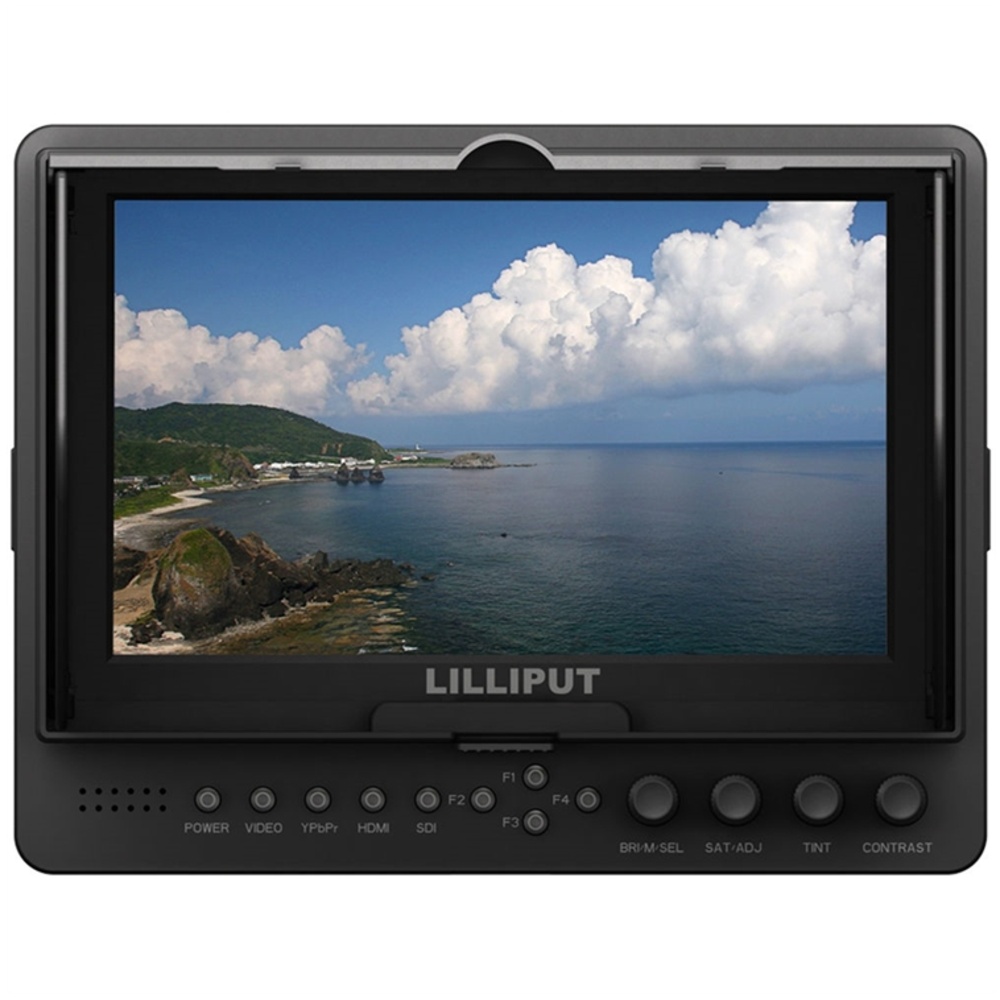

The Lilliput 665/S/P 7" On-Camera HDMI/SDI Monitor sits in our Monitors range.
Highlights include 7" 1024x600 LCD Display, SDI, HDMI, component, & composite inputs, HD and SD resolution support, 250cd/m² Brightness and 800:1 contrast ratio.
Key specifications: brightness 250 cd/m²; weight 480 g; dimensions 19.5 x 15 x 3.9 cm; screen size 7"; size 7" / 177.8 mm.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Lilliput 665/S/P 7" On-Camera HDMI/SDI Monitor, sun shade, L-Series Battery Plate, LP-E6 Battery Plate, HDMI to Mini HDMI Cable and AC Adapter and 1 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Size | 7" / 177.8 mm |
| Display Resolution | 1024 x 600 |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 160°/150° (H/V) |
| General | |

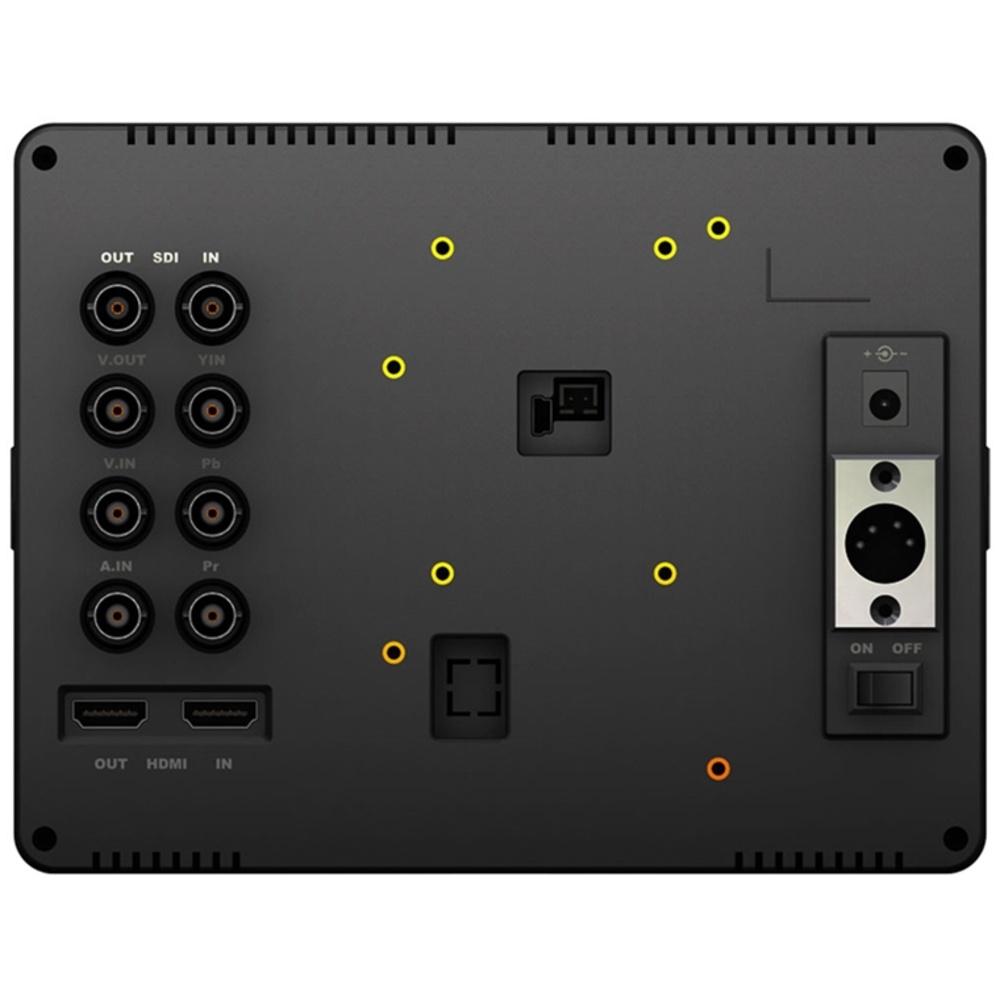

| Inputs | 1 x BNC, SDI 1 x HDMI Type A 1 x 3BNC, component video 1 x BNC, composite video 1 x BNC, audio |
| Output Connector | 1 x BNC, SDI 1 x HDMI Type A 1 x BNC, composite video |
| Power | 7-24 VDC |
| Power Consumption | 10 W maximum |
| Environmental | Operating Temperature: -20 to 60°C Storage Temperature: -30 to 70°C |
| Dimensions | 19.5 x 15 x 3.9 cm |
| Weight | 480 g |
Product details
| Display Size | 7.0 inches |
|---|---|
| Screen Resolution | 1024 x 600 |
| Screen Size | 7" |
In the box
- Lilliput 665/S/P 7" On-Camera HDMI/SDI Monitor

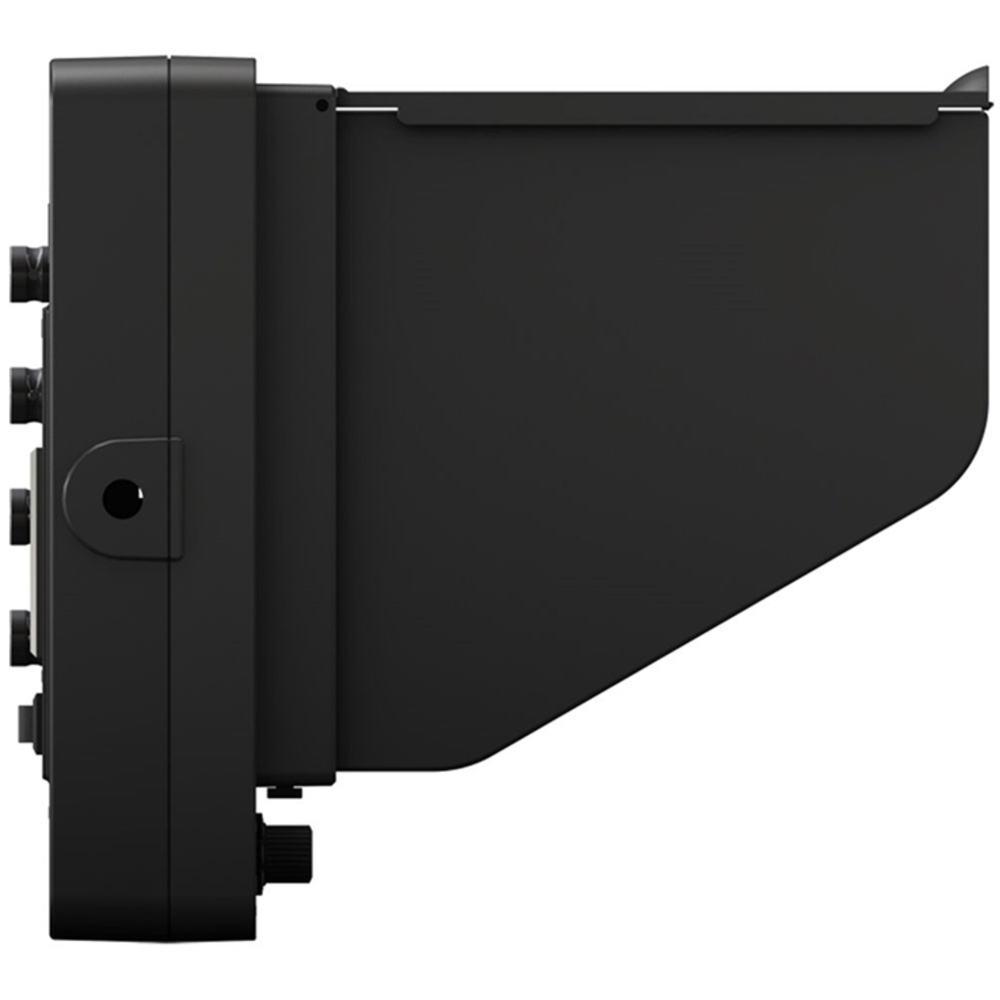

- Sun Shade
- L-Series Battery Plate
- LP-E6 Battery Plate
- HDMI to Mini HDMI Cable
- AC Adapter
- Shoe Mount
