Description
The FeelWorld LUT11S 10.1" 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI sits in our Monitors range.
Highlights include 10.1" 1920 x 1200 IPS Touchscreen LCD, HDMI & 3G-SDI I inputs & loop outputs, up to UHD 4K60 HDMI & 2K60 SDI input, 2000 cd/m² Brightness and 800:1 contrast ratio.
Key specifications: mounting 3 x 1/4"-20 Female; battery type 2 x L-Series; weight 810 g; dimensions 242 x 156 x 23 mm; screen size 10.1".
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 10.1" / 25.7 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Touchscreen | Yes |
| Maximum Brightness | 2000 cd/m 2 |
| Contrast Ratio | 800:1 |
| Dot Pitch | 0.0113 x 0.113 mm |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 224 ppi |
| Colour Gamut | 100% Rec. 2020 100% DCI-P3 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, Vectorscope, Waveform |
| Inputs / Outputs | |

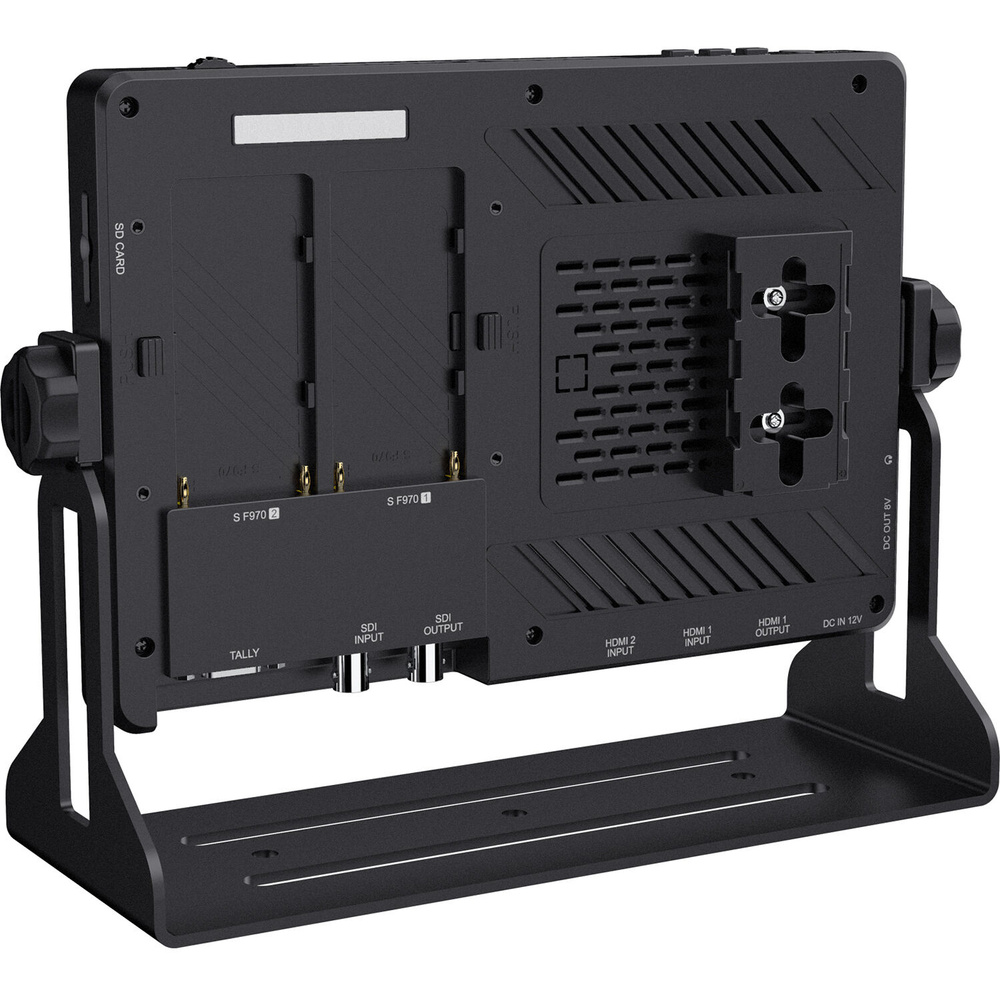

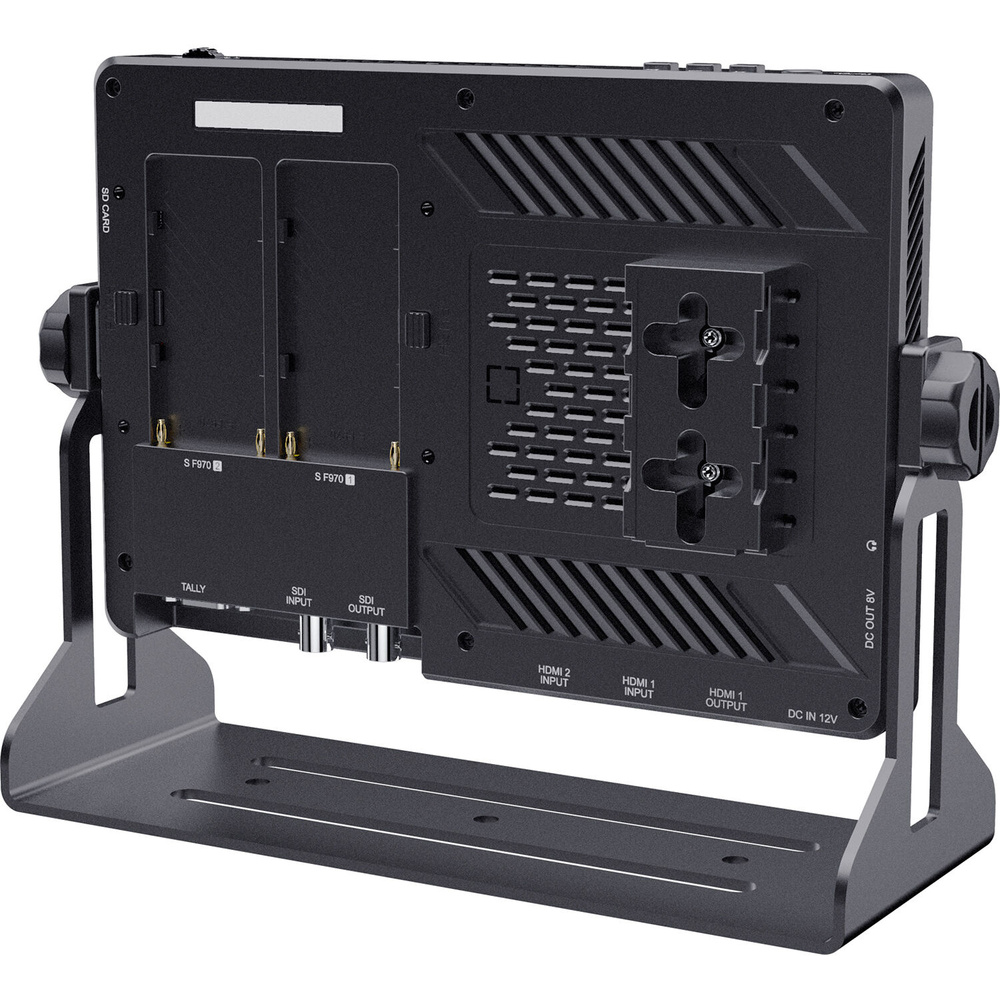

| Video I/O | 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output 2 x HDMI Input 1 x HDMI Loop Output |
| Embedded Audio | SDI HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel 2.1 mm Input 1 x Barrel 2.1 mm Output |
| Other I/O | 1 x DE-9/DB-9 (Tally) Input |
| Media/Memory Card Slot | Single Slot: SD/SDHC |
| Wi-Fi | None |
| Bluetooth | None |
| App Compatible | No |
| Format Support | |
| Video Format | SDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 576p 576i 480p 480i |
| Power | |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 2 x L-Series |
| Power Consumption | 28 W |
| Mounting | |
| Mounting | 3 x 1/4"-20 Female |
| Environmental | |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| General | |
| Dimensions | 242 x 156 x 23 mm |
| Weight | 810 g |
Product details
| Screen Size | 10.1" |
|---|---|
| Screen Resolution | 3840 x 2160 |
| Display Size | 10.1 inches |
In the box
- FeelWorld LUT11S 10.1" 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
