Description

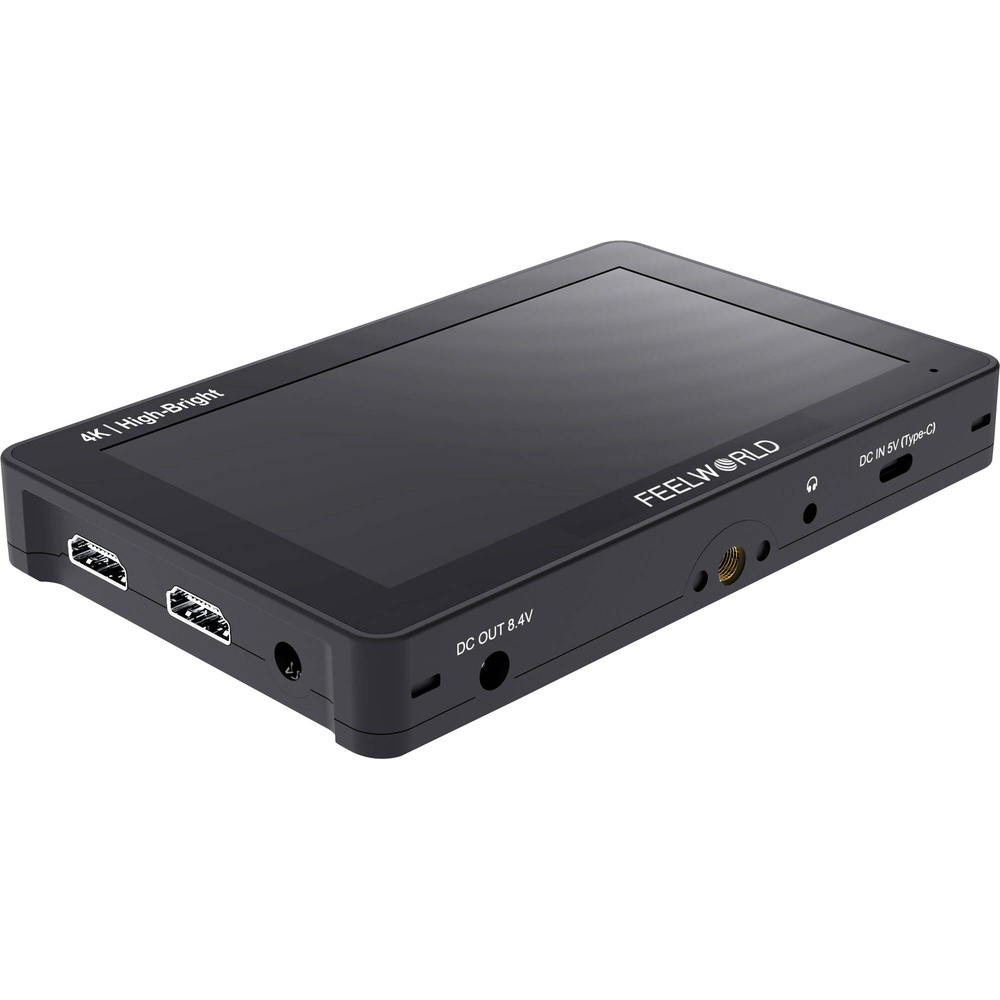

The FeelWorld F5 Pro X 5.5" 4K HDMI On-Camera Monitor sits in our Monitors range.
Highlights include 1080p60 Resolution, 1600cd/m² Brightness, HDMI input & loop output, support for up to DCI 4K video, 3D LUTs and histogram, vectorscope & more.
Key specifications: mounting 4 x 1/4"-20 Female; battery type 1 x L-Series; weight 240 g, Including Battery Plate; dimensions 148 x 93 x 24.75 mm; screen size 5.5".
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: 1× Micro HDMI Cable, 1× Sunshade, 1× Tilt Arm, 1× Disassemble Wrench, 1× LED light and 1× Manual.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | Yes |
| Maximum Brightness | 1600cd/m² |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 69.00 x 69.00 µm |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colours) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 400 ppi |
| Real-Time LUT Monitoring | None |
| Image Controls | Focus Assist, Histogram, R/G/B/Chroma Only, Waveform |
| Inputs / Outputs | |
| Video I/O | 1 x HDMI Input 1 x HDMI Output |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel 5.5 mm (12 VDC) Input 1 x USB-C (5 VDC) Input 1 x Barrel 5.5 mm (8.4 VDC) Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of June, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8-Bit) DCI 4K: 24 UHD 4K: 30/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Power | |
| DC Input Power | 12 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 9 W (Maximum) |
| Mounting | |
| Mounting | 4 x 1/4"-20 Female |
| General | |
| Dimensions | 148 x 93 x 24.75 mm |
| Weight | 240 g, Including Battery Plate |
Product details
| Screen Size | 5.5" |
|---|---|
| Display Size | 5.5 inches |
| Screen Resolution | 1920 x 1080 |
In the box
- 1× Micro HDMI Cable
- 1× Sunshade
- 1× Tilt Arm
- 1× Disassemble Wrench
- 1× LED light
- 1× Manual
