Description

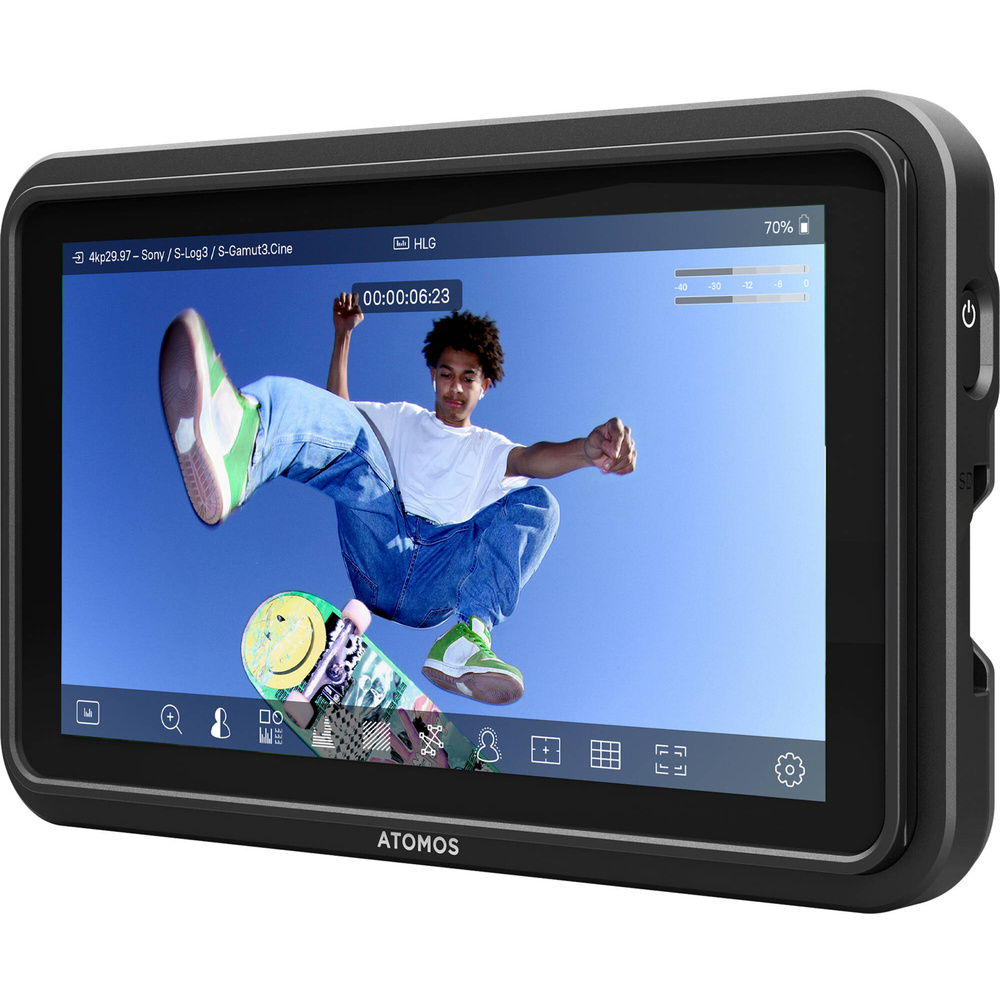

The Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor sits in our Monitors range.
Highlights include compact On-Camera 5" touchscreen Monitor, high 1500 cd/m² brightness, 4K HDR support, HDMI input, USB-C PD Power Input/Output and remote calibration LANC jack.
Key specifications: connection HDMI; battery 1x L-Series Mount on Fixed Plate; weight 7.4 oz / 210.00 g; dimensions 5.9 x 3.6 x 0.8" / 151 x 91.5 x 20.8 mm; screen size 5".

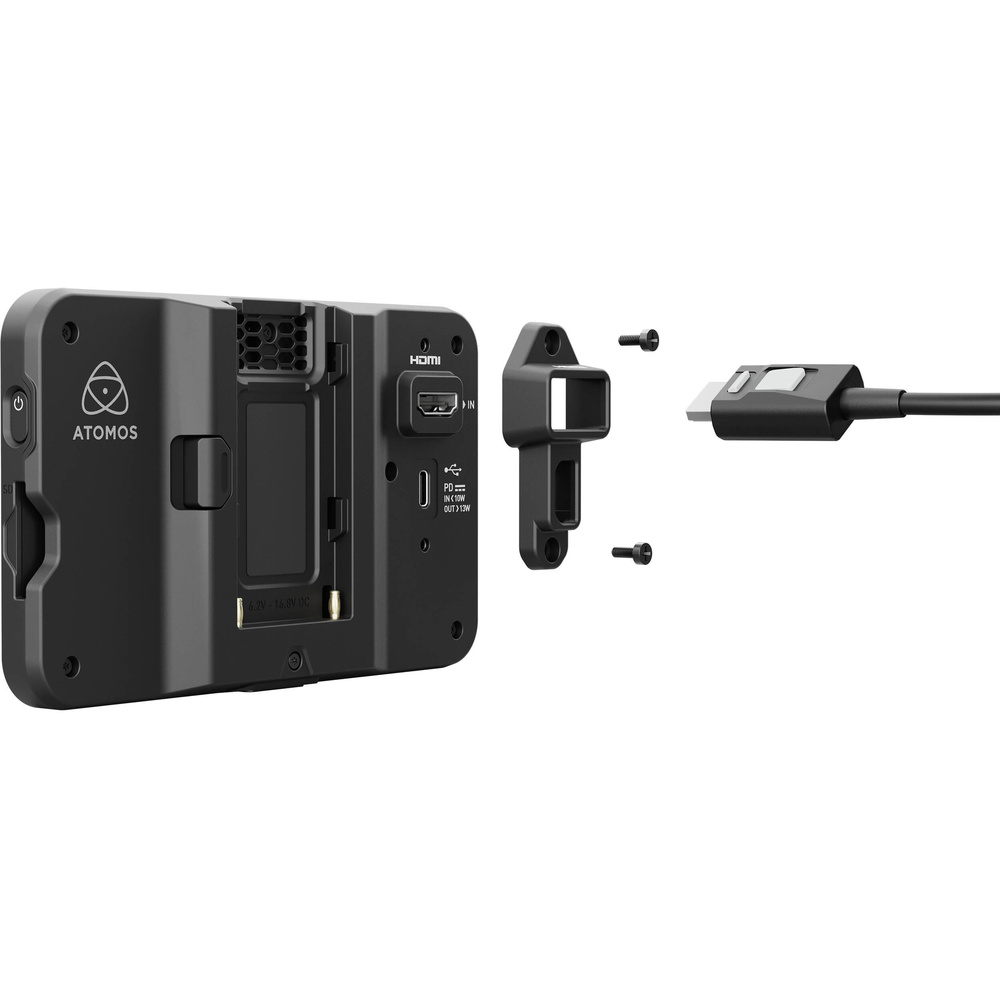

An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Atomos shinobi GO 5" touchscreen HDR Video/Photo Monitor, HDMI/USB-C Locking Cable Adapter and Monitor mount. Manufacturer model number ATOMSHB004.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m 2 |
| Colour Support | 1.07 Billion Colours (8-Bit+FRC) |
| HDR Support | Yes, Hybrid Log Gamma |
| Colour Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Blue Only, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 1.4 Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input/Output |
| Other I/O | 1x 2.5 mm (Calibration) Input/Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) [LUT/Firmware Update Only] |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:2:2) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/50 720p: 60/59.94/50 |
| Gamma Curve | Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, Sony S-Log, Sony S-Log 2, Sony S-Log 3, V-Log |
| Power | |
| Input Power | 6 to 16.8 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Mounting | |
| Tripod/Accessory Mounting | Bottom 1x 1/4"-20 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40.0°C |
| Dimensions | 5.9 x 3.6 x 0.8" / 151 x 91.5 x 20.8 mm |
| Weight | 7.4 oz / 210.00 g |
Product details
| Screen Size | 5" |
|---|---|
| Connection | HDMI |
| Screen Resolution | 1920 x 1080 |
In the box
- Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor
- HDMI/USB-C Locking Cable Adapter
- Monitor Mount
