Description

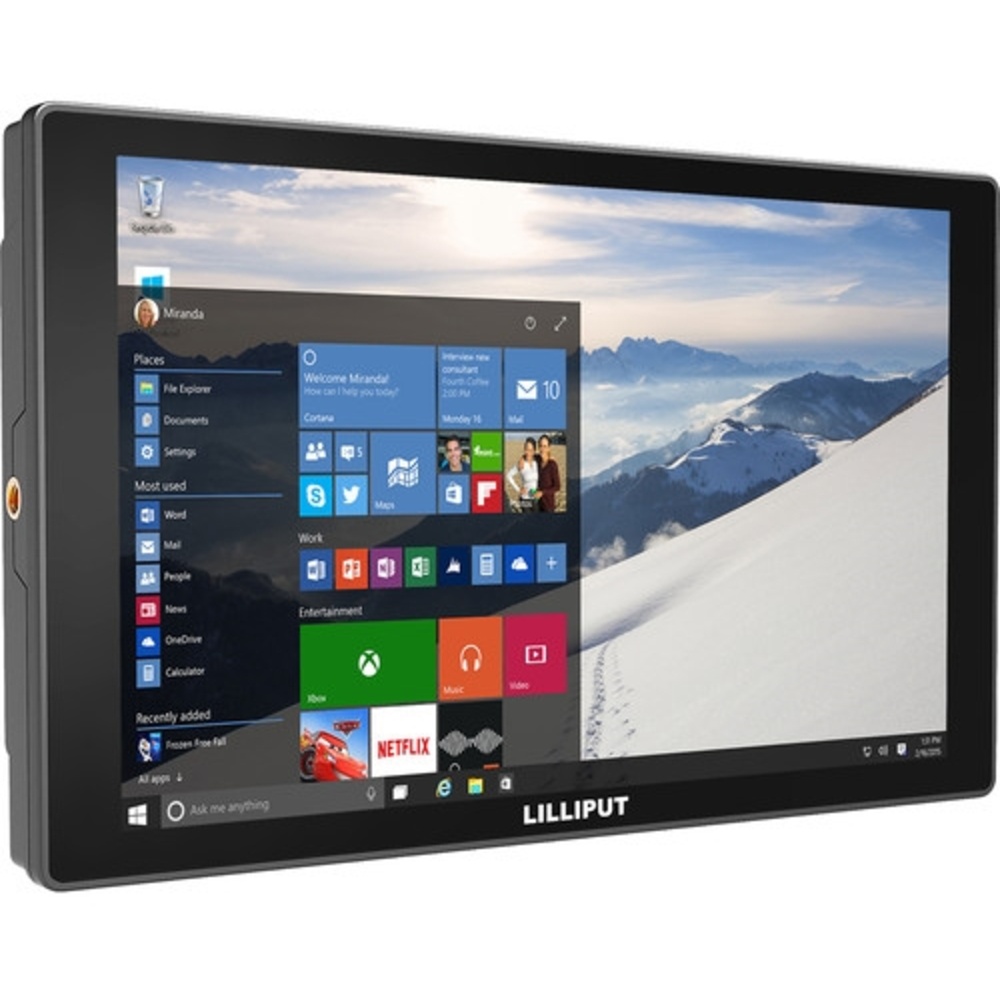

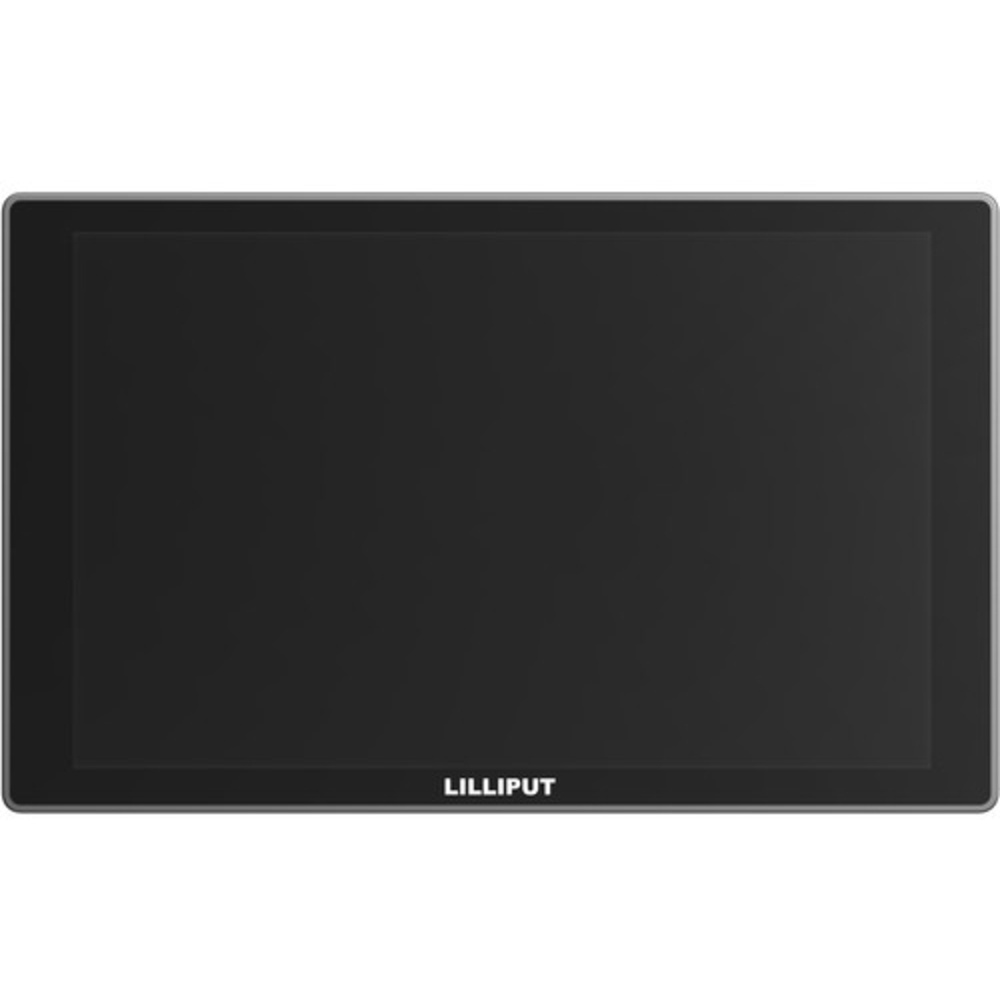

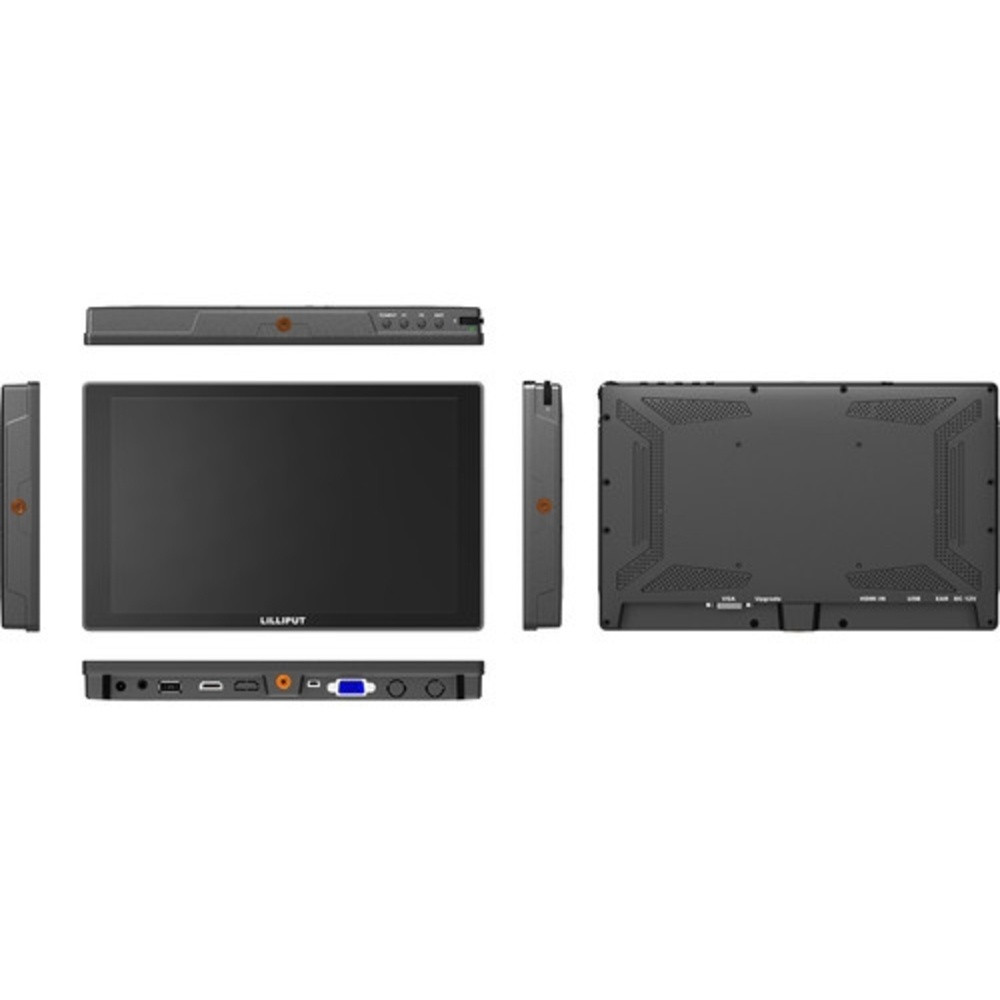

The Lilliput FA1016-NP/C 10.1" Class WUXGA IPS LCD Monitor sits in our Monitors range.
Highlights include WUXGA (1920 x 1200) native resolution, 320 cd/m² Brightness, 1000:1 contrast ratio, HDMI & VGA Inputs and 1/8" headphone output.
Key specifications: brightness 320 cd/m²; weight 1.18 lb / 535 g; dimensions 9.9 x 6.2 x 1.0" / 252.0 x 157.0 x 25.0 mm; screen size (Diagonal) 10.1"; resolution 1920 x 1200.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Screen Size (Diagonal) | 10.1" |
| Resolution | 1920 x 1200 |
| Supported Display Resolutions | Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colours) |
| Brightness | 320 cd/m² |
| Viewing Angle (H x V) | 175 x 175° |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 1000:1 |
| Connectivity | |
| Primary Connectivity Location | Display |

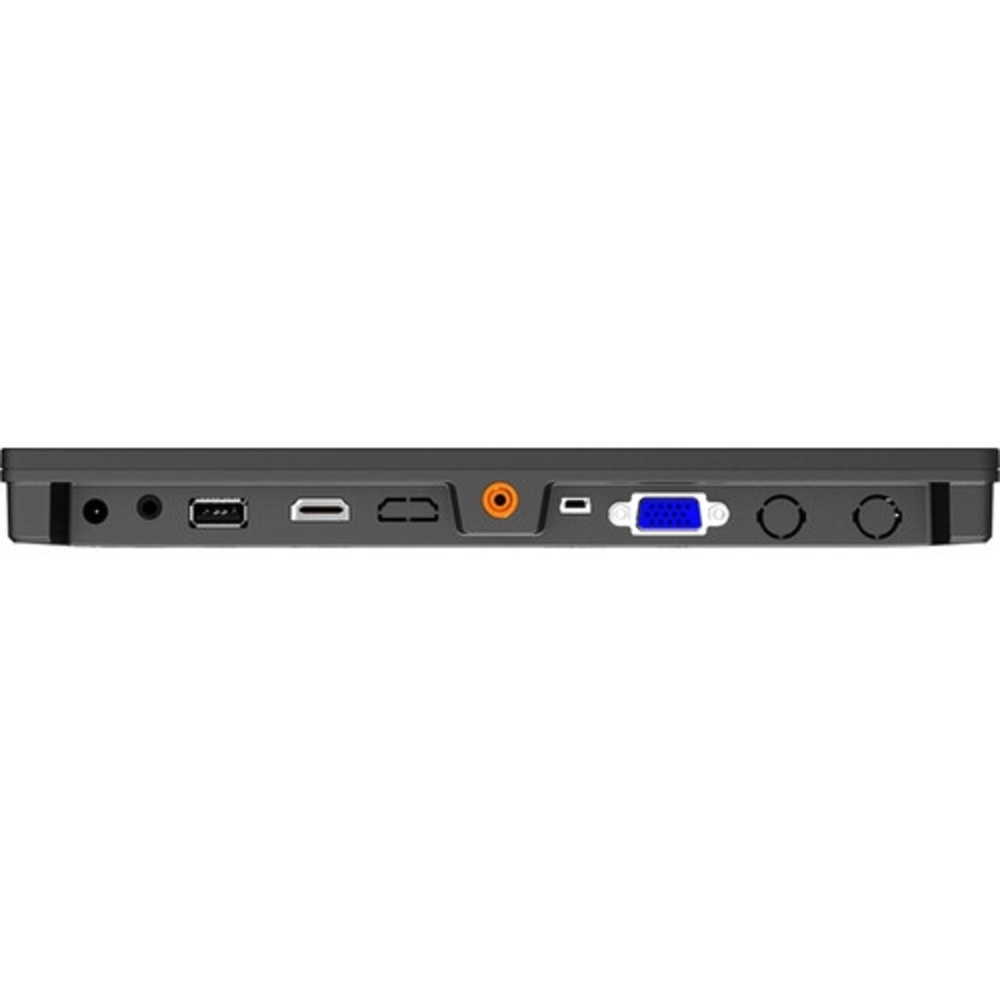

| Input Ports | 1 x HDMI - Audio, Video (Bottom) 1 x 15-Pin VGA - Video (Bottom) |
| Output Ports | 1 x 1/8" / 3.5 mm - Headphone (Bottom) |
| Ethernet Ports | None |
| Audio | |
| Built-In Speakers | Yes, 1 |
| Speaker Configuration | 1-Channel |
| Electrical | |
| Power Consumption | Operational: 10.0 W |
| DC Input Power | 7 to 24 VDC 12 VDC at 750 mA |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Physical | |
| Wall Mounting | 75 x 75mm |
| Dimensions | 9.9 x 6.2 x 1.0" / 252.0 x 157.0 x 25.0 mm |
| Weight | 1.18 lb / 535 g |
Product details
| Screen Size | 10.1" |
|---|---|
| Screen Resolution | 1900 x 1200 |
In the box
- Lilliput FA1016-NP/C 10.1" Class WUXGA IPS LCD Monitor
