Description

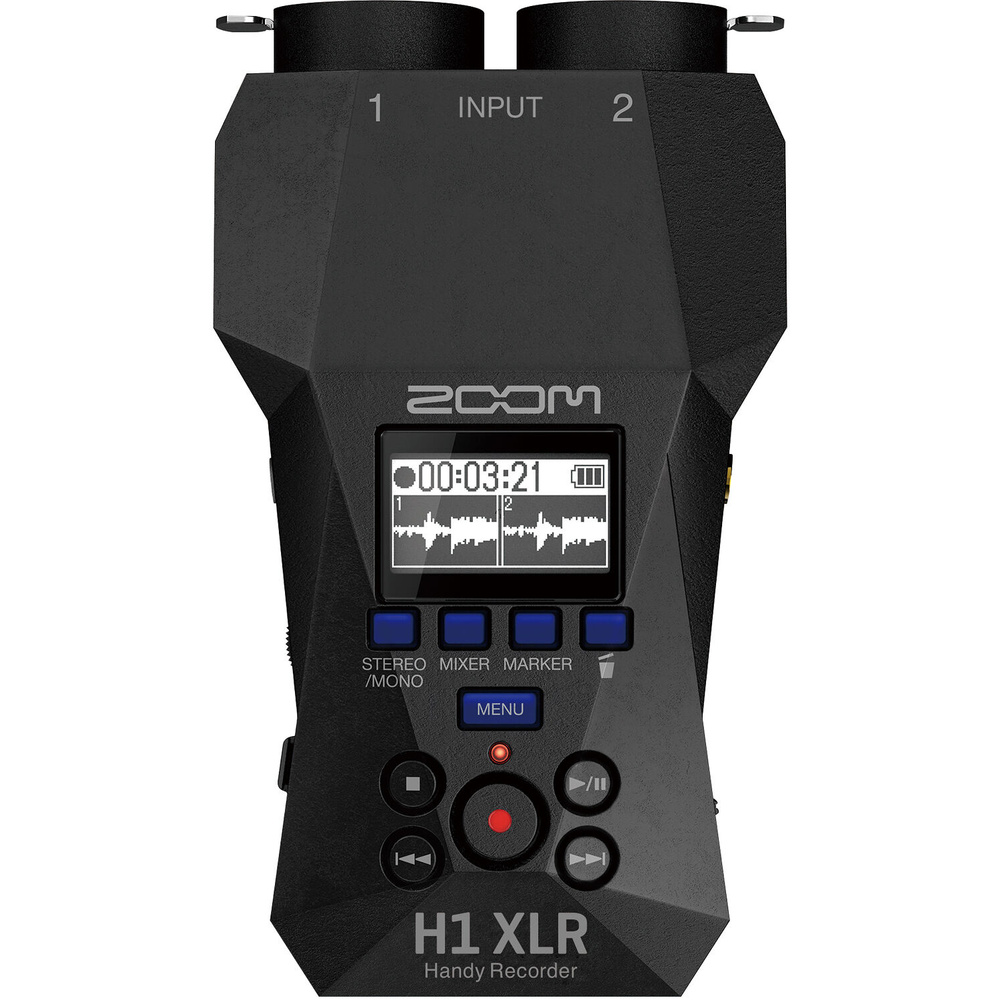

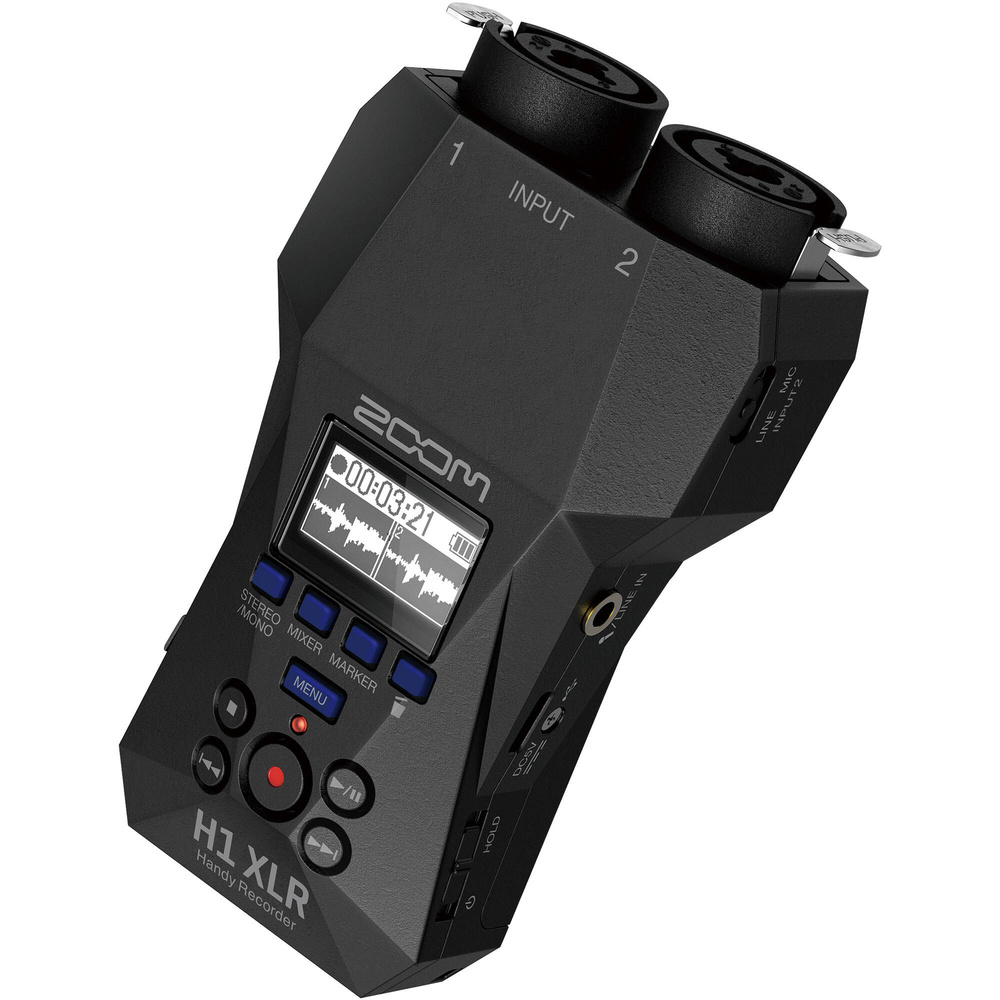

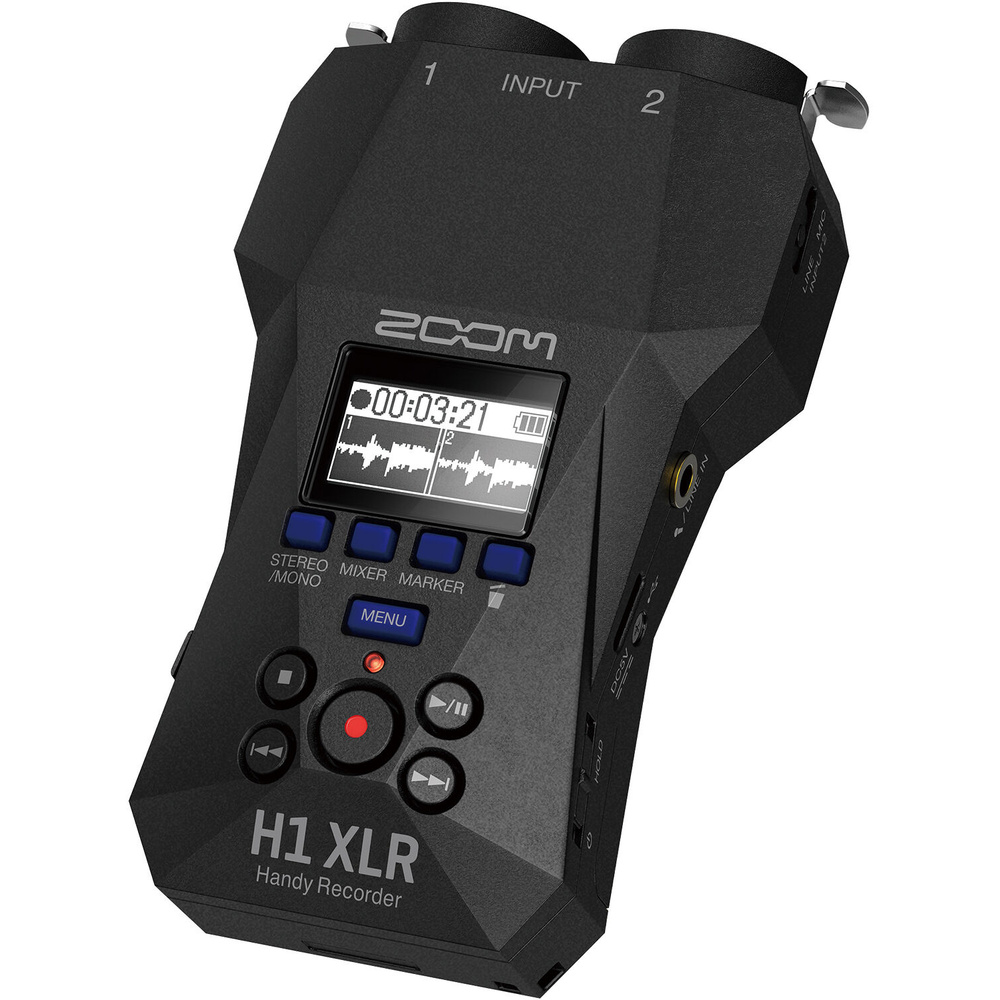

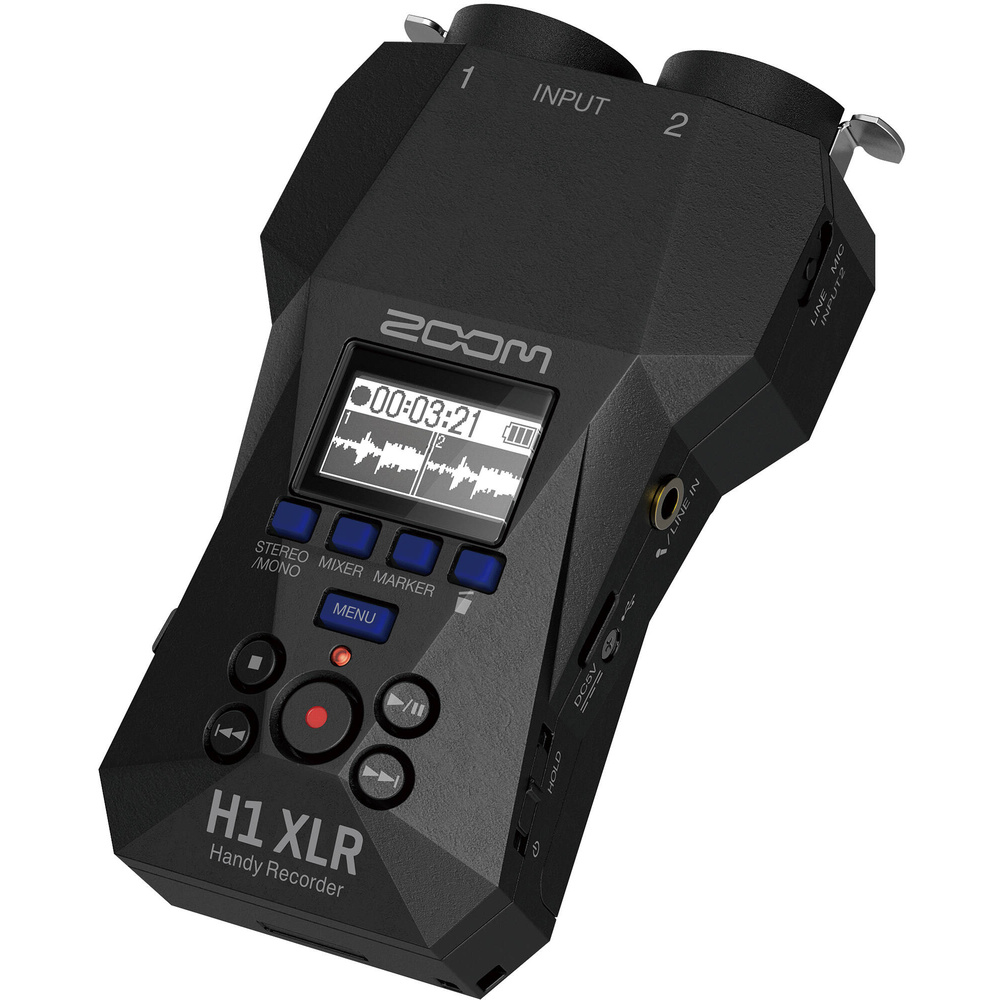

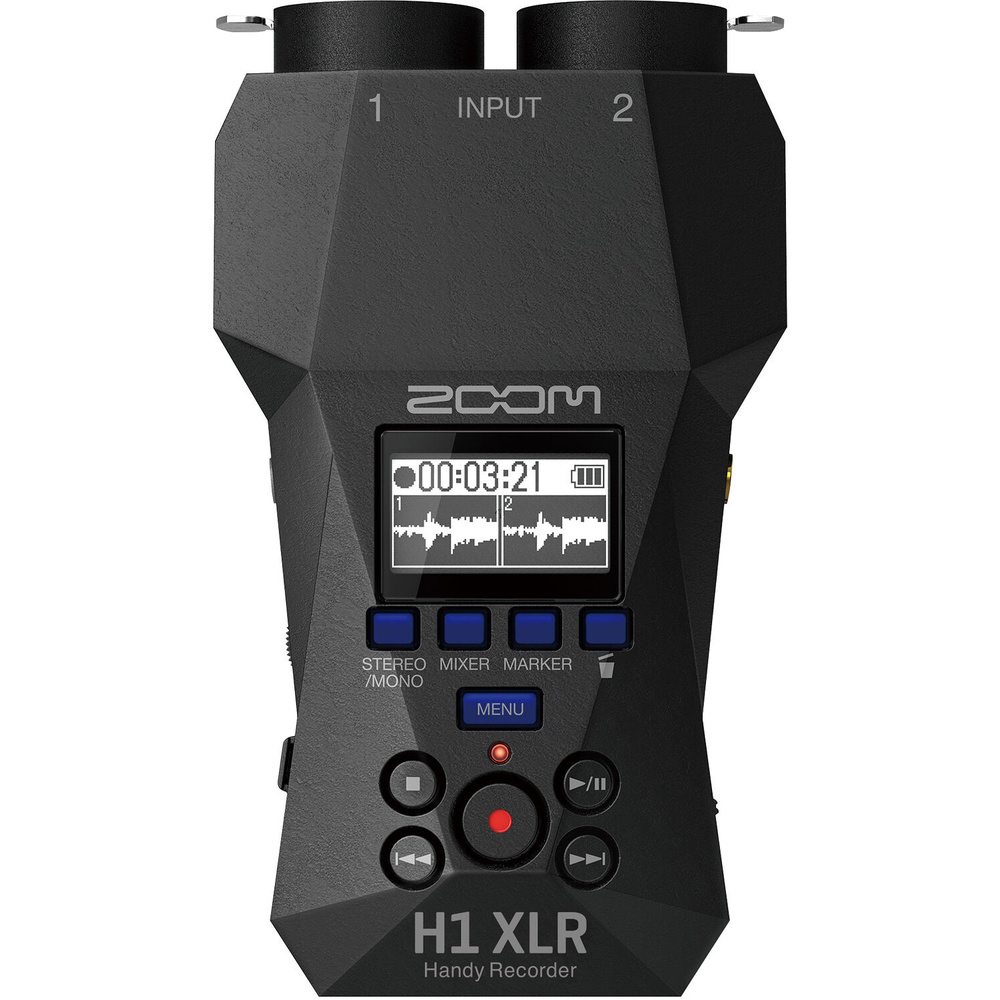

Zoom H1 XLR Portable Audio Recorder for Video: a portable digital recorder. Designed for Video.
Highlights include for content creators and Audio for video, two XLR-1/4" TRS combo inputs, ultralow noise mic preamps, clip-free 32-Bit float recording and flexible 3.5mm stereo input.
Key specifications: mounting options Shoe Mount (Bottom); form factor Field Recorder; primary use applications Audio-for-Video, Podcasting; number of tracks 2 (3 Inputs + Stereo Mix); number of input channels 3 (2 x Mono, 1 x Stereo).
An external recorder captures higher-quality codecs than many cameras record internally.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Portable Recorder | |
|---|---|
| Form Factor | Field Recorder |
| Primary Use Applications | Audio-for-Video, Podcasting |
| Number of Tracks | 2 (3 Inputs + Stereo Mix) |
| Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
| Maximum Sampling Rate | 96 kHz / 32-Bit Float |
| Microphone | No |
| Number of Microphone Inputs | 2 |
| Built-In Speaker | Yes, 250 mW |
| Display | 0.96" / 2.44 cm Monochrome OLED |
| Memory Card Support | microSDXC (4 GB 1 TB) |
| Special Features | No |
| Recording | |
| Audio File Formats | Recording: BWF, iXML, WAV |
| Sample Rates | 44.1 / 48 / 96 kHz (Record) |
| Bit Depth | 32-Bit (Floating Point) |
| Recording Time | 48 MHz/32-Bit: 10 Hrs (Stereo) |
| Connectivity | |
| Analogue I/O | 2x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input (Lockable) 1x 1/8" / 3.5 mm TRS Female Aux/Mic Input 1x 1/8" / 3.5 mm TRS Female Headphone Output |
| Digital I/O | No |
| Phantom Power | +48 V |
| Phantom Power Current | ≤ 10 mA per Channel |
| Plug-In Power | Yes, 2.5 V |
| System Connection | 1x USB-C (2.0) |
| Audio Interface Capability | Stereo Only |
| Wireless | No |
| Mobile App Compatible | No |
| Performance | |
| Max Input Level | Mic Inputs: +4 dBu Line Inputs: +24 dBu |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance | Mic Inputs: ≥3.8 Kilohms Line Inputs: ≥39 Kilohms 1/8" / 3.5 mm Inputs: ≥2 Kilohms |
| Equivalent Input Noise (EIN) | ≤-122 dBu |
| Power | |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
| Physical | |
| Included Accessories | No |
| Mounting Options | Shoe Mount (Bottom) |
In the box
- Zoom H1 XLR Portable Audio Recorder for Video
