Description
The Tilta Camera Cage Pro Kit for Blackmagic PYXIS 6K and 12K is a handheld rig kit for users who want to add protection, mounting points and power options to a PYXIS camera. It suits shooters who build a compact cinema setup around accessories, top handles and 15mm support rather than using the camera on its own.

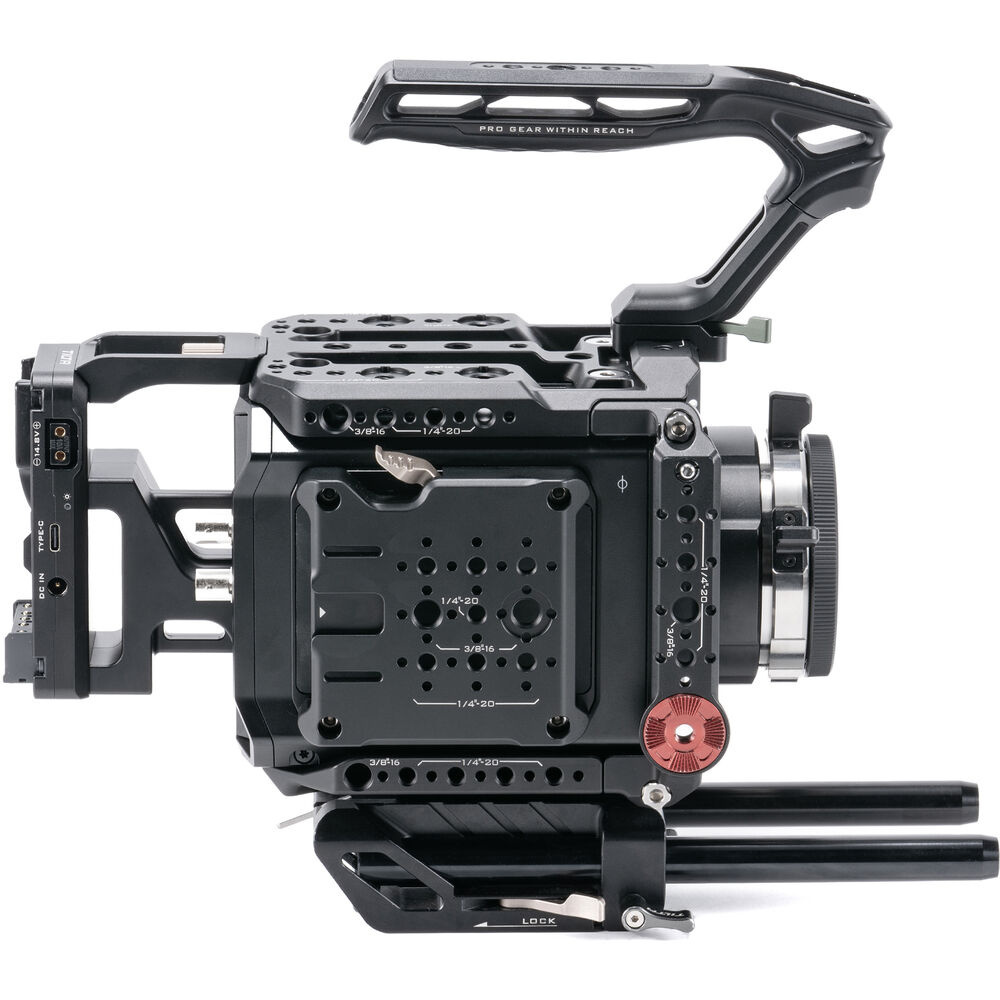

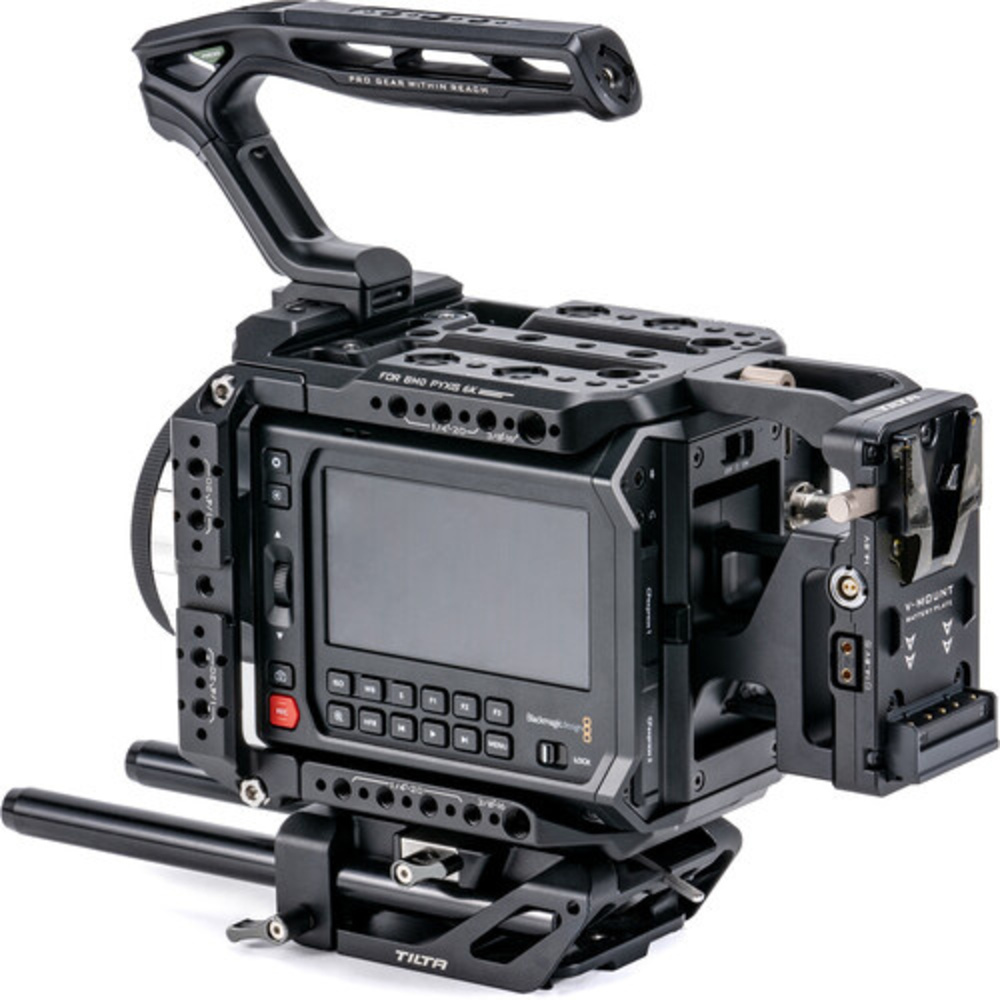

It combines a modular full cage with a 15mm LWS baseplate, a Xeno top handle with NATO clamp and two 8-inch 15mm rods. The kit includes multiple 1/4-20 and 3/8-16 female threads, ARRI anti-twist 3/8-16 mounting points, two cold shoes, one ARRI rosette with M6 female thread and three NATO rails. The V-Mount plate supports hot-swap power and provides D-Tap, USB-C, LEMO 2-pin and barrel connections.
In practice, it is built for the Blackmagic PYXIS 6K and PYXIS 12K and is listed for PYXIS 6K compatibility. The box includes the full camera cage, V-Mount battery plate, Xeno top handle, 15mm LWS baseplate and one threaded 15mm rod. The cage uses aluminium and stainless steel construction and measures 218.9 x 140 x 137 mm.
Specifications
| Mounting | |
|---|---|
| Battery Plate Type | No |
| Accessory Mounting | Multiple 1/4"-20 Female Thread Multiple 3/8"-16 Female Thread Multiple ARRI Anti-Twist 3/8"-16 Female Thread |
| Tripod Mounting | Baseplate 1/4"-20 Female Thread, 3/8"-16 Female Thread Quick Release Plate 1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501 |
| Shoe Mounting | 2x Cold Shoe |
| Rosettes | 1x ARRI Rosette w/ M6 Female Thread |
| Rail Mounting | 3x NATO Rail |
| General | |
| Support Type | Cage |
| Grip Type | No |
| Camera Compatibility | Blackmagic PYXIS 6K Cinema Box Camera Blackmagic PYXIS 12K Cinema Box Camera |
| Materials | Aluminium, Stainless Steel |
| Dimensions | 8.6 x 5.5 x 5.4" / 218.9 x 140 x 137 mm |
| Weight | Not Specified by Manufacturer |
| Key Specs | |
| Power Output | D-Tap: 14.8 VDC LEMO 2-Pin: 14.8 VDC USB-A: VDC |
| Camera Power Method | Connector |
| Plate Front / Battery Mount | V-Mount |
| Hot-Swap Support | Yes |
| Power | |
| Power Input | V-Mount: VDC |
| General | |
| Inputs/Outputs | 1x Barrel Connector 2x D-Tap 1x USB-C 1x LEMO 2-Pin |
| Dummy Battery | Sony BP-U Series |
| Plate Rear Mount | Sony BP-U Series Battery Plate |
| Number of Battery Bays | 1 |
| Material of Construction | Aluminium, Stainless Steel |
| Dimensions | 7.5 x 5.5 x 3.5" / 19.1 x 14 x 8.9 cm |
| Weight | 1 lb / 454 g |
| Key Specs | |
| Item Type | Topside Handle |
| Attachment Method | Attaches via 1x Built-In Rail Clamp |
| Accessory Mounting | Multiplex 1/4"-20 Thread Multiplex 3/8"-16 Thread |
| Shoe Mounting | 1x Built-In Cold Shoe Slot |
| Rosettes | No |
| Rail Mounting | No |
| Built-In Controls | No |
| General | |
| Materials | Aluminium, Silicone |
| Dimensions | 6.6 x 3.5 x 1" / 167.5 x 89 x 25 mm |
| Weight | 6.6 oz / 188 g |
| Support Type | Baseplate |
| Camera Compatibility | RED V-RAPTOR |
| Mounting | |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Accessory Mounting | Multiple 1/4"-20 Female Thread Multiple 3/8"-16 Female Thread |
| Tripod Mounting | 1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Rod Ports | 2x 15 mm Rod Port |
| Shoe Mounting | No |
| General | |
| Materials | Aluminium, Steel |
| Dimensions | 6.5 x 4.5 x 4" / 16.5 x 11.4 x 10.2 cm |
| Weight | 0.8 lb / 0.4 kg |
| Diameter | 15 mm |
| Length | 7.87" / 200 mm |
| Material | Aluminium |
| Thread Type | Female / Female |
| Number of Rods | 1 |
Product details
| Compatible Camera | PYXIS 6K |
|---|
In the box
- Tilta Full Camera Cage for Blackmagic PYXIS 6K/12K
- Tilta Battery Plate for Blackmagic PYXIS 6K/12K (V-Mount)
- Tilta Xeno Top Handle with NATO Clamp (Black)
- Tilta 15mm LWS Baseplate for RED V-RAPTOR Camera Cage
- Tilta Threaded 15mm Rod (Black, 8", Single)
