Description

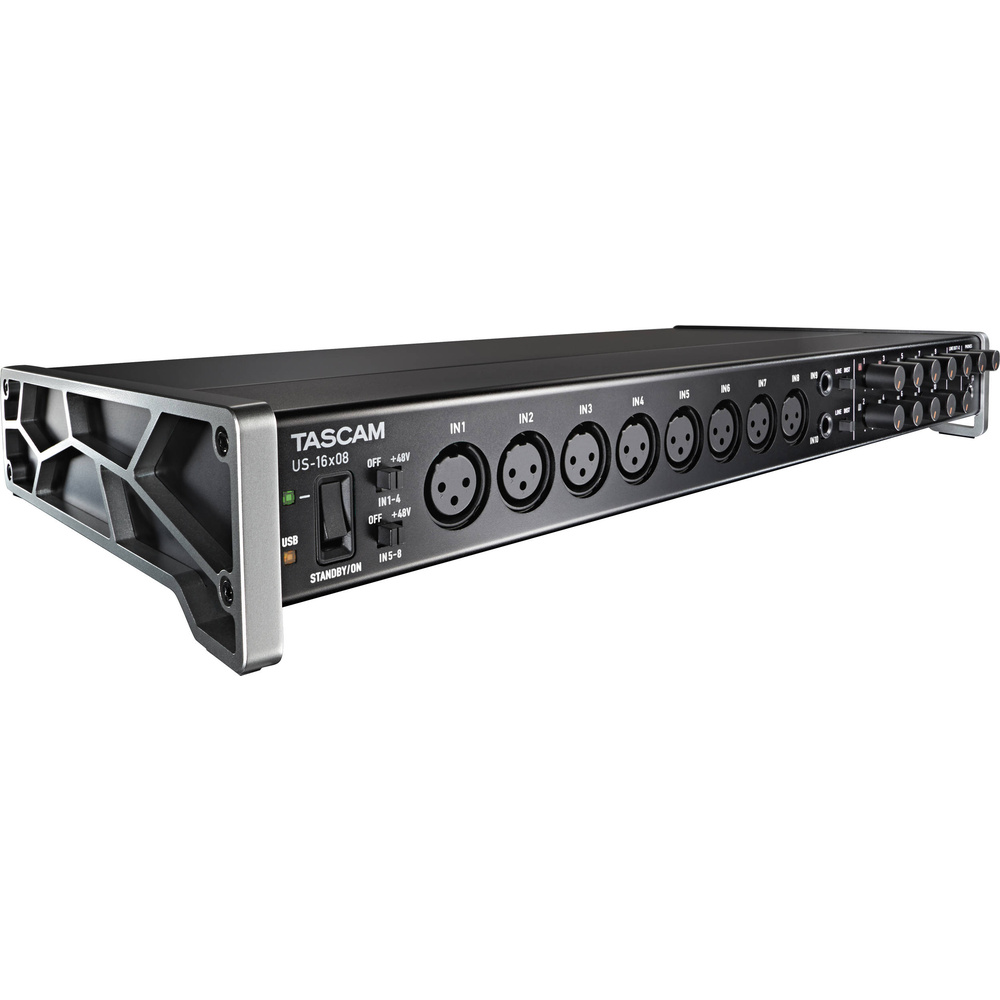

The Tascam US-16x08 is a USB audio and MIDI interface for recording setups that need multiple mic and line inputs in one unit. It suits home studios, rehearsal rooms and small live recording rigs where a computer needs several inputs and outputs, along with MIDI connection for external gear.

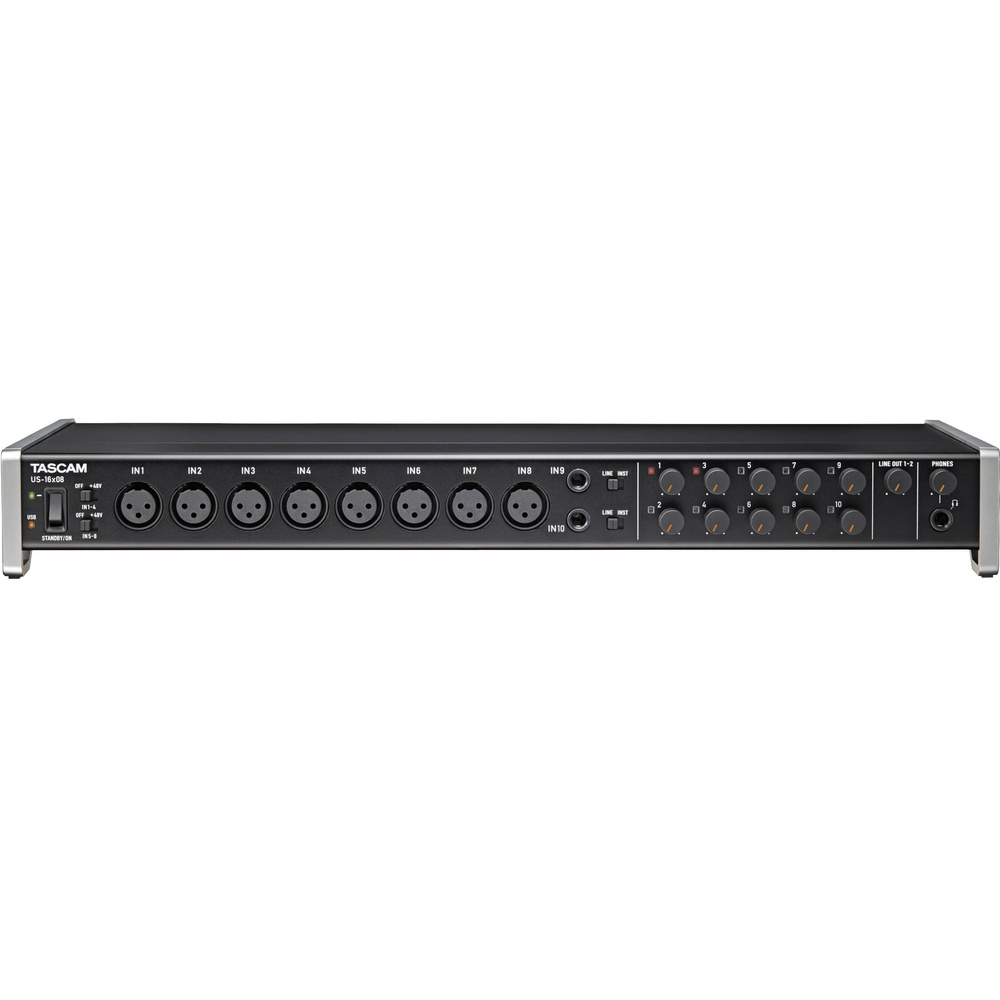

It provides 8 XLR mic inputs and 8 TRS line inputs, with 8 balanced line outputs for monitoring or routing audio. It supports 24-bit audio at 44.1, 48, 88.2 and 96 kHz, and includes Ultra-HDDA microphone preamps, a DSP monitor mixer with AEQ and compression, and 5-pin DIN MIDI I/O. The unit runs from a dedicated AC adapter and uses USB 2.0 connectivity.
In use, it connects to a computer for multitrack recording and monitoring, and can also work with iOS devices that support iOS 7. It is sized for rack mounting and comes with a rack mount adapter, USB cable and AC adapter. The interface measures 445 x 59 x 219 mm and weighs 2.8 kg.
Specifications
| Resolution | |
|---|---|
| Sampling Frequency | 44.1, 48, 88.2, 96 kHz |
| Bit Rate | 16/24-bit |
| Analogue Audio Inputs | |
| Microphone Input | Connector: XLR-3-31(1: ground, 2: hot, 3: cold ), balanced Input Impedance: 2.4 kOhms Nominal Input Level, Max Gain: -68 dBu (0.0003 Vrms) Nominal Input Level, Minimum Gain: -12 dBu (0.195 Vrms) Maximum Input Level: +8 dBu (1.947 Vrms) Gain: 56 dB |
| Instrument Input | Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), unbalanced (When set to "INST" at LINE/INST switch) Input Impedance: 1 MOhms or more Nominal Input Level, Max Gain: -41 dBu (0.0069 Vrms) Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms) Gain: 45 dB |
| Line Input | Set to -10 dBV at Level Switch: Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), balanced Input Impedance: 10 kOhms or more Nominal Input Level, Max Gain: -41 dBu (0.0069 Vrms) Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms) Gain: 45 dB Set to +4 dBu at Level Switch: Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), unbalanced Input Impedance: 10 kOhms or more Nominal Input Level: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms) |
| Analogue Audio Outputs | |
| Line Output | Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), balanced Output Impedance: 100 ohms Nominal Output Level: +4 dBu (1.228 Vrms) Maximum Output Level: +24 dBu (12.177 Vrms) |
| Headphones | Connector: 1/4" (6.3 mm) stereo phone jack Maximum Output Level: 70 mW +70 mW or more (THD+N 0.1% or less, 32 ohms loaded) |
| MIDI | |
| Connector | 5-pin DIN |
| Format | Standard MIDI format |
| USB | |
| Connector | USB B type, 4 pin |
| Format | USB 2.0 HIGH SPEED mass storage class |
| Power | |
| Power | Dedicated AC adapter |
| Power Consumption | 12 W |
| Audio | |
| Frequency Response | Line Output (Balanced): 44.1/48 kHz: 20 Hz to 20 kHz, +/-0.3 dB (JEITA) 88.2/96 kHz: 20 Hz to 40 kHz, +/-0.3 dB(JEITA) |
| THD | 0.008 % or less |
| S/N Ratio | 100 dB or more |
| Crosstalk | 100 dB or more |
| EIN | -125 dBu or less |
| System Requirements | |
| Windows | OS: Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit) Computer Compatibility: Windows compatible computer with a USB 2.0 port CPU Type/Speed: Dual core/2 GHz or faster Memory: 2 GB or more Driver: ASIO 2.0, WDM (MME) |
| Mac | OS: OS X 10.9, OS X 10.9 Compatible Computers: Apple Mac with USB 2.0 port CPU Type/Speed: Dual core/2 GHz or faster Memory: 2 GB or more Driver: Core Audio, Core MIDI |
| iOS | iOS 7 |
| General | |
| Operating Temperature | 5 to 35°C |
| Dimensions (W x H x D) | 445 x 59 x 219 mm |
| Weight | 2.8 kg |
In the box
- Tascam US-16x08 USB Audio/MIDI Interface
- Rack Mount Adapter
- USB Cable
- AC Adapter
