Description
Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 - 694 MHz): a wireless system.
Highlights include BC Band (670 - 694 MHz), for presenter and moderator applications, ME 2-2 lavalier microphone, true diversity receiver and up to 12 compatible channels.
Key specifications: pickup pattern Omnidirectional; frequency range BC: 670 - 694 MHz; frequency response 50 Hz to 16 kHz (-3 dB); weight 680 g; dimensions (W x H x D) 200 x 42 x 127 mm.
A lavalier clips to clothing close to the mouth for consistent dialogue level while the talent moves. In the box: Sennheiser XSW 2-ME2-A wireless 2 lavalier microphone system (BC: 670 - 694 MHz), EM-XSW 2 Receiver, SK-XSW Bodypack Transmitter, ME 2-II Omnidirectional Lavalier Microphone (Black), 2 x AA Batteries and NT 12-5 CW Power Supply and 3 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| System | |
|---|---|
| Modulation | Wideband FM |
| Frequency Range | BC: 670 - 694 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Temperature Range | Operation: 0 to +40°C Storage: -20 to +70°C |
| Transmitter Synchronisation | 2.4 GHz, low power OQPSK (only active during synchronisation) |
| Receiver | |
| Principle of Operation | Double superheterodyne |
| Diversity Method | True diversity |
| Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Maximum AF Output Voltage | At peak deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu At peak deviation, 1 kHz AF |
| Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps |
| Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 VDC 300 mA |
| Squelch | Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Housing Material | Rugged metal housing |
| Dimensions (W x H x D) | 200 x 42 x 127 mm |
| Weight | 680 g |
| Transmitter | |
| RF Output Power | 10 mW |
| AF Frequency Response | 50 Hz to 16 kHz (Line) 80 Hz to 16 kHz (Mic) |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Maximum at 3% THD: Mic: Typ. 1.5 V rms Line: Typ. 2.6 V rms @ -30 dB gain |
| Power Supply | 2 x AA size batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps |
| Housing Material | Rugged ABS housing |
| Dimensions (W x H x D) | 71 x 96 x 28 mm approximate |
| Weight | 95 g approximate |
| Microphone | |
| Transducer Principle | Condenser, pre-polarised |
| Sensitivity | 20 mV/Pa |
| Pickup Pattern | Omnidirectional |
| Maximum SPL | 130 dB |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
Product details
| System Type | Lavalier System |
|---|
In the box
- Sennheiser XSW 2-ME2-A Wireless 2 Lavalier Microphone System (BC: 670 - 694 MHz)

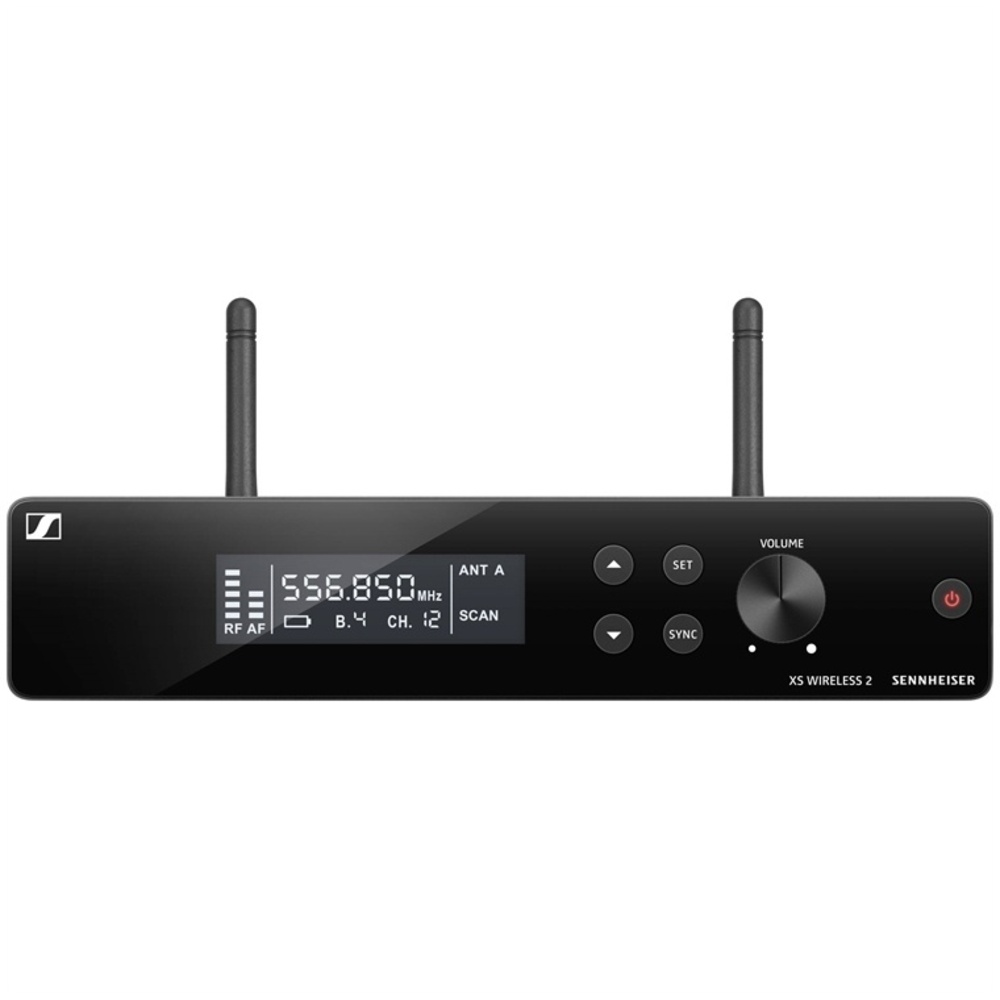

- EM-XSW 2 Receiver

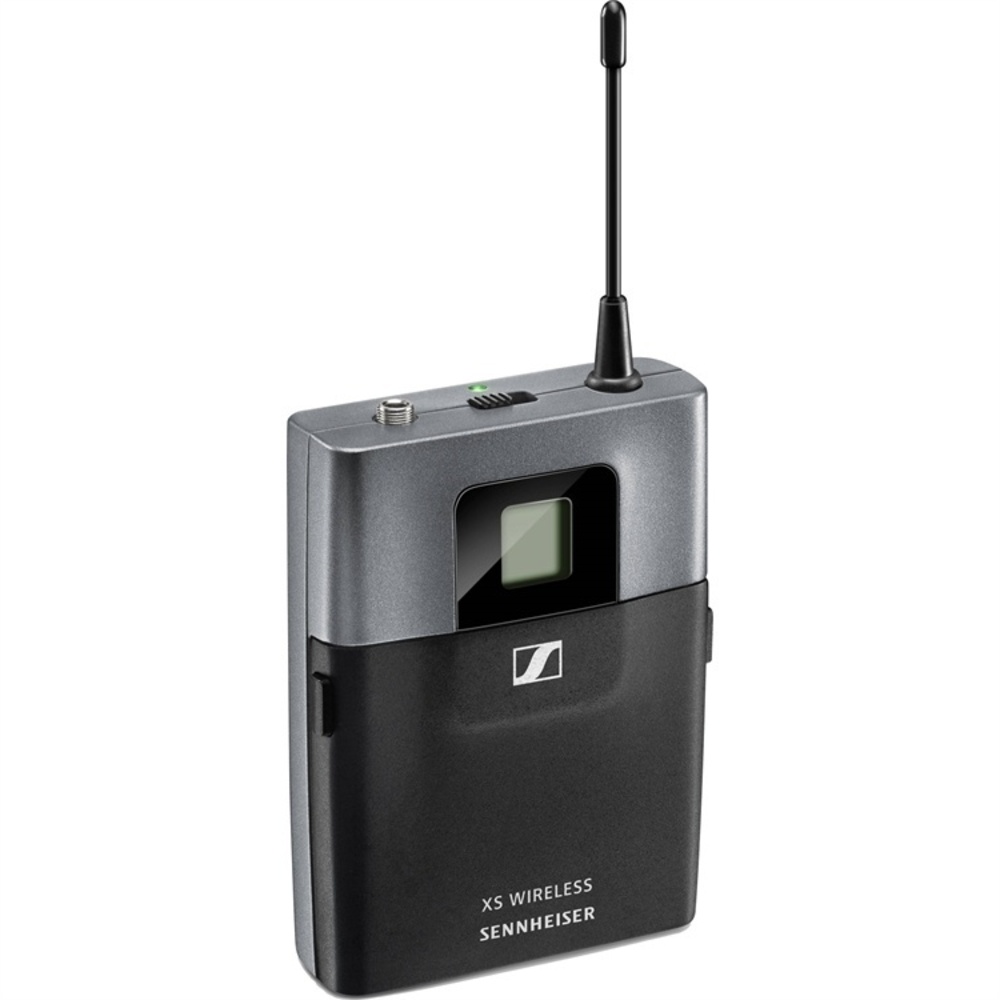

- SK-XSW Bodypack Transmitter

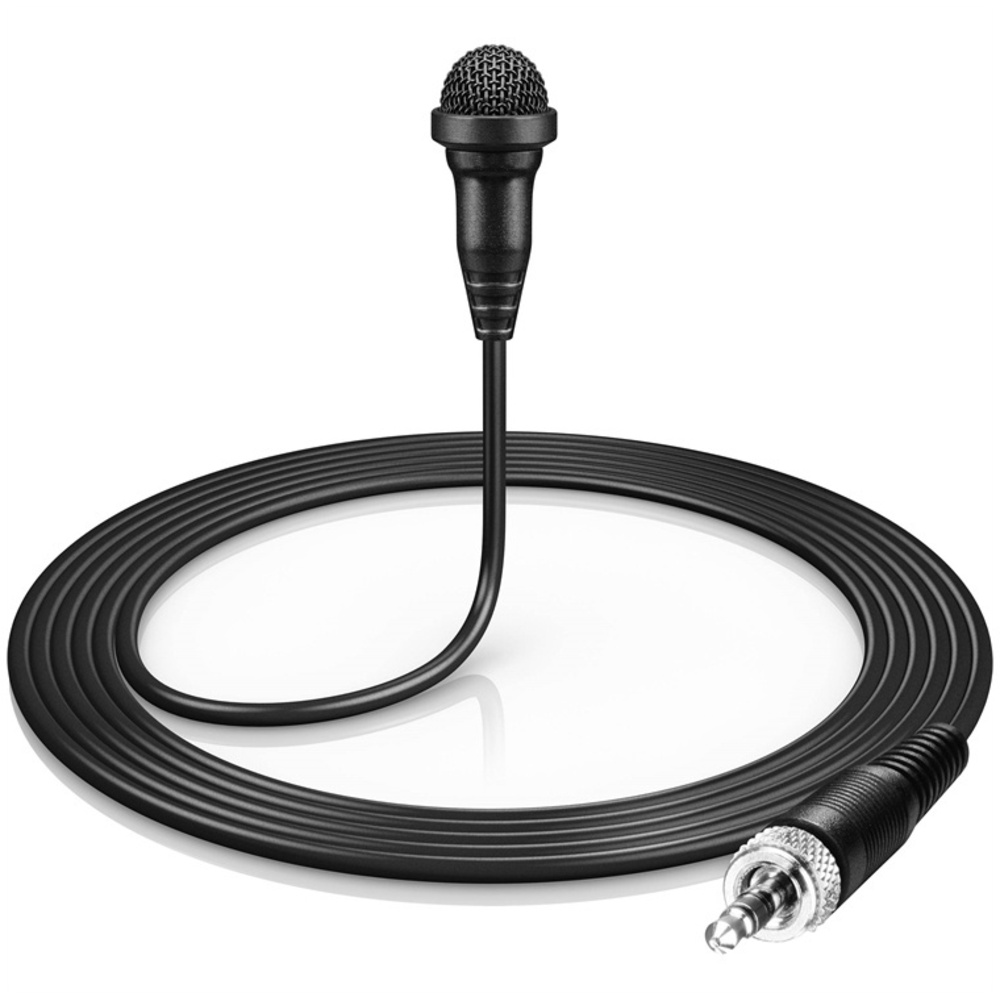

- ME 2-II Omnidirectional Lavalier Microphone (Black)
- 2 x AA Batteries
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch
- Limited 2-Year Warranty
