Description
The Sennheiser XSW 1-ME3 UHF Headmic Set (A: 548 - 572 MHz) is a wireless system.
Highlights include A Band (548 - 572 MHz), SK-XSW bodypack transmitter, EM-XSW 1 UHF Receiver, ME3-II Headmic and antenna-switching diversity reception.
Key specifications: polar pattern Cardioid; frequency range A: 548 - 572 MHz; frequency response 50 Hz to 16 kHz (-3 dB); output power 10 mW; weight 340 g.
The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: Sennheiser XSW 1-ME3 UHF headmic set (A: 548 - 572 MHz), ME 3-II Headmic with Cardioid Capsule for Wireless Systems, foam windshield, NT12-5 CW Power Supply, 2 x AA Batteries and limited 2-Year warranty.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| System | |
|---|---|
| Modulation | Wideband FM |
| Frequency Range | A: 548 - 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range | Operation: 0 to +40°C |
| Storage | -20 to 70°C |
| Transmitter Synchronisation | 2.4 GHz, Low Power OQPSK (only active during synchronisation) |

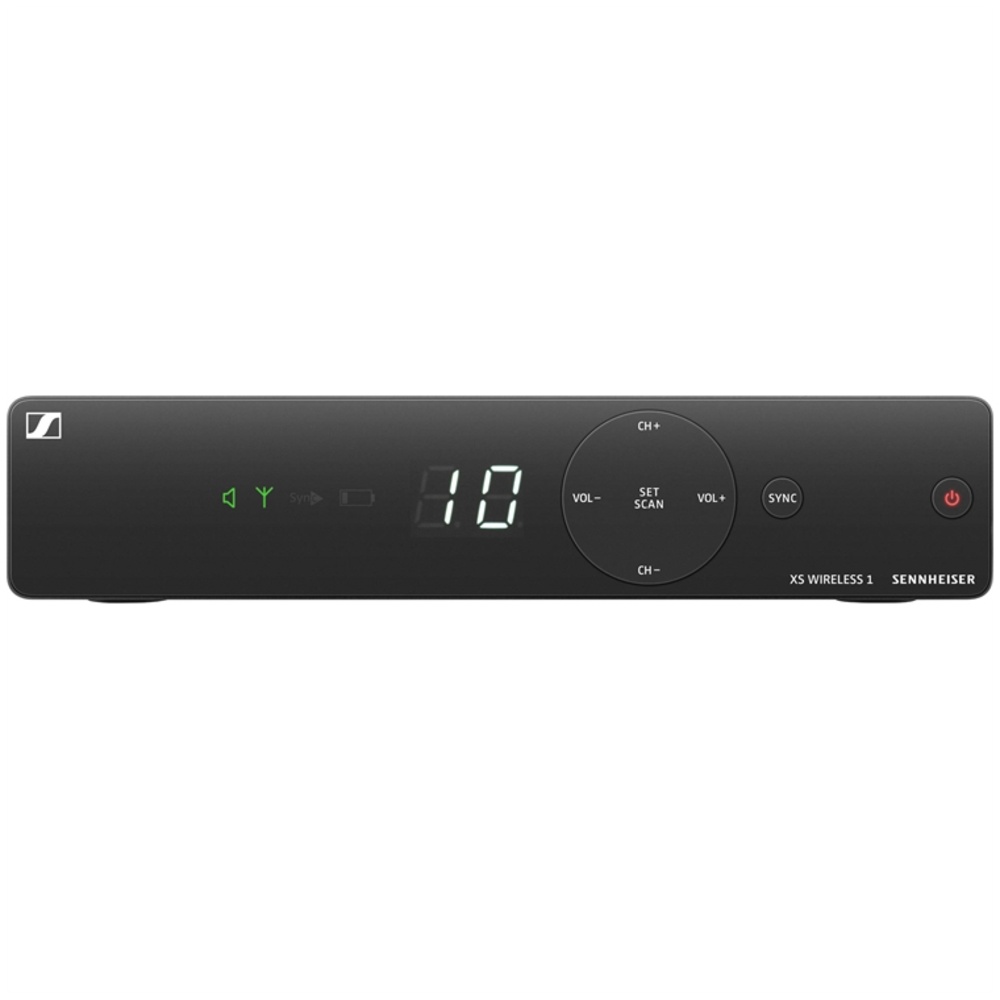

| Receiver | |
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |

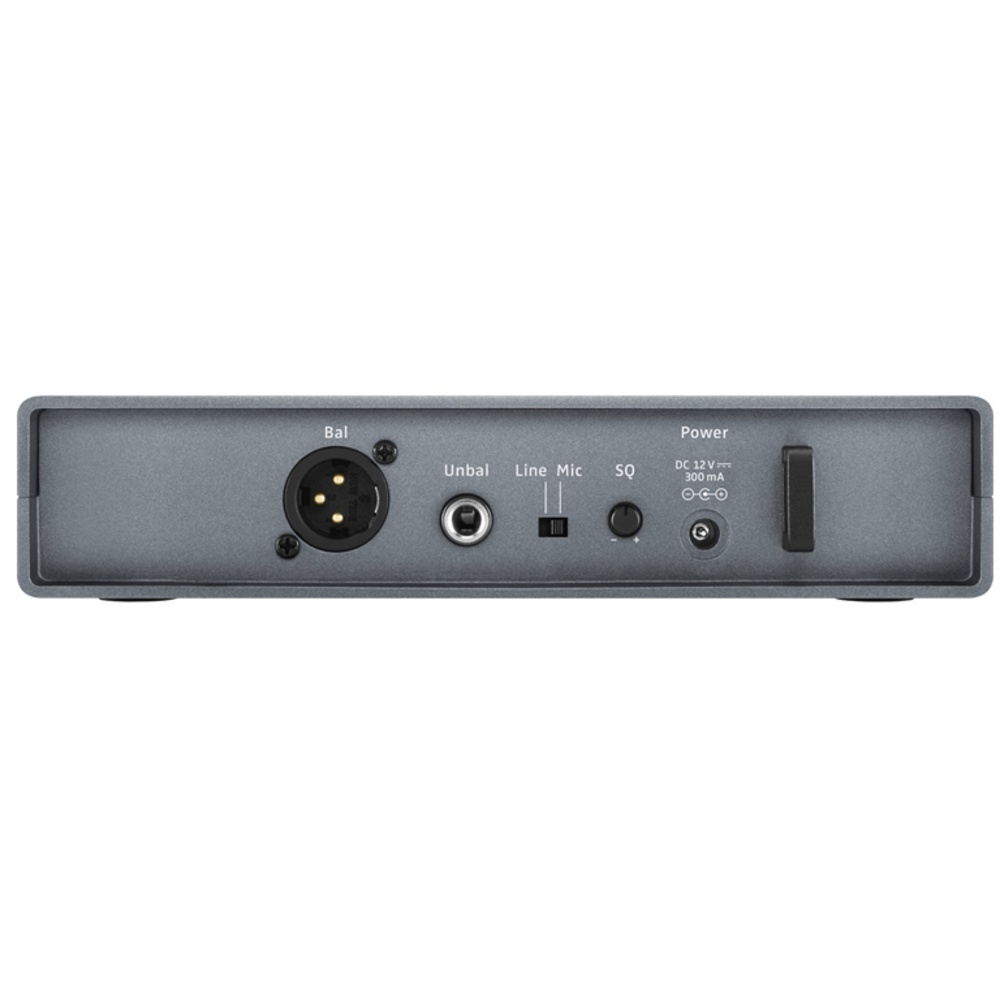

| Max Output Voltage | At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal, 300 mA |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions (W x H x D) | 200 x 42 x 127 mm |
| Weight | 340 g |

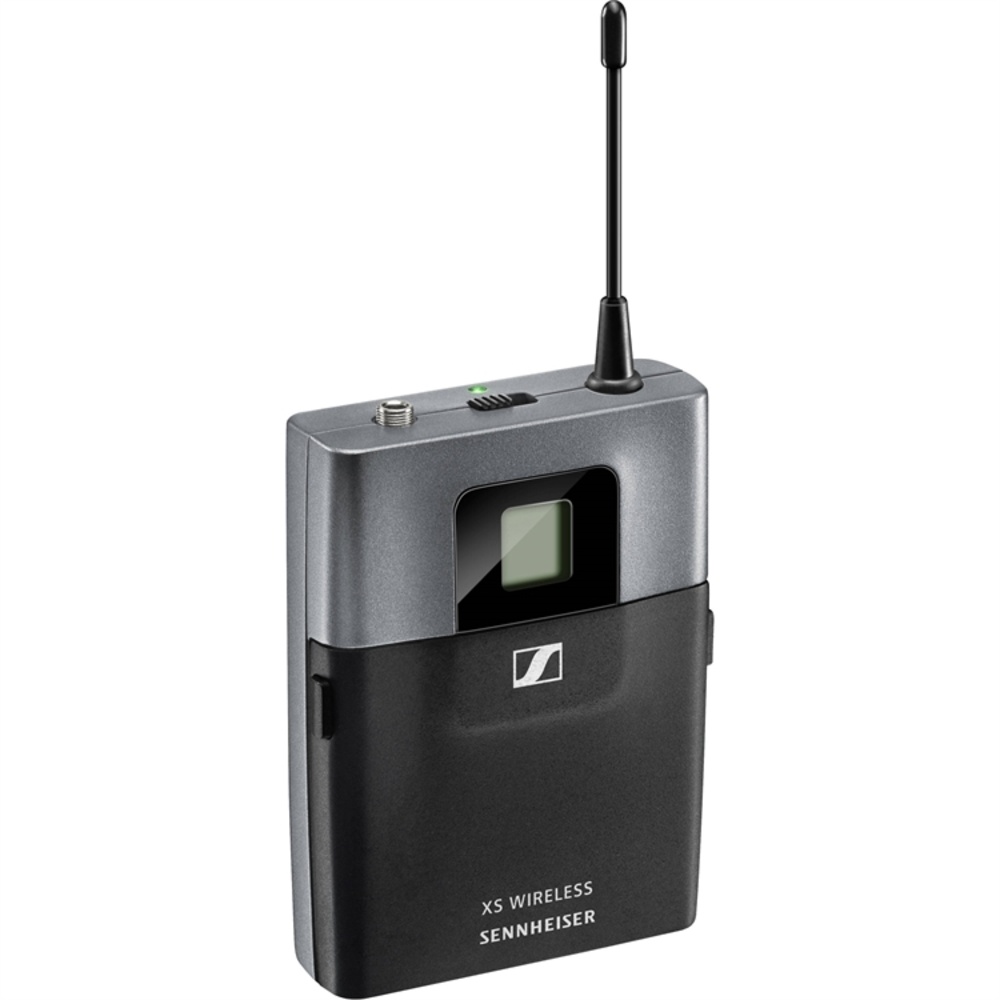

| Bodypack Transmitter | |
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions (W x H x D) | 71 x 96 x 28 mm |
| Weight | 95 g |
| Headset | |
| Microphone Type | Condenser, pre-polarised |
| Sensitivity | 1.6 mV/Pa |
| Polar Pattern | Cardioid |
| Max SPL | 150 dB |
Product details
| System Type | Headset System |
|---|
In the box
- Sennheiser XSW 1-ME3 UHF Headmic Set (A: 548 - 572 MHz)
- ME 3-II Headmic with Cardioid Capsule for Wireless Systems
- Foam Windshield
- NT12-5 CW Power Supply
- 2 x AA Batteries
- Limited 2-Year Warranty
