Description

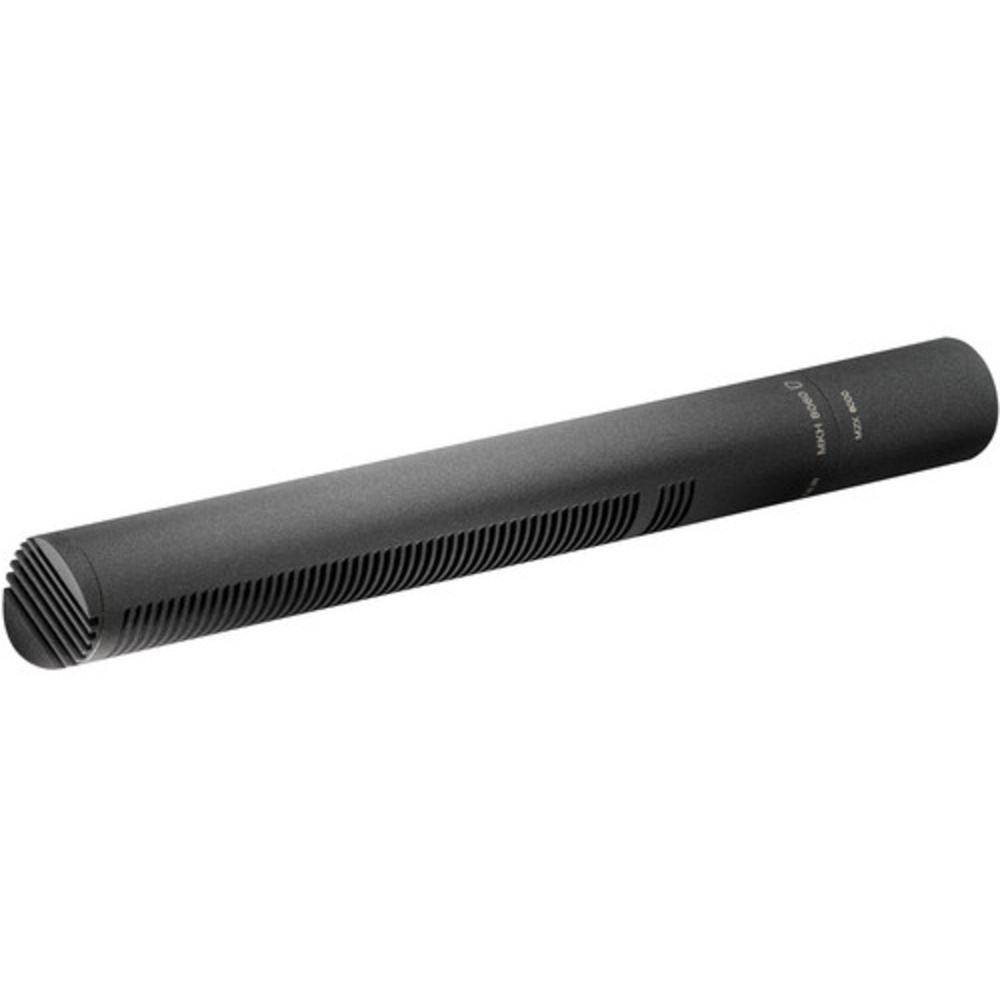

The Sennheiser MKH 8060 Short Shotgun Microphone sits in our Shotgun Microphones range.
Highlights include Supercardioid/Lobar pickup, symmetrical RF transducer, excellent transient response, reliable under tough conditions and can interface with Digital Systems.
Key specifications: polar pattern Supercardioid/Lobar; frequency response 50Hz to 25kHz; weight Microphone: 79 g With MZX 8000 Module: 111 g; transducer Symmetrical RF; sensitivity -24 dBV/Pa (63mV/Pa).
A shotgun microphone rejects sound from the sides and picks up what it points at, which suits dialogue on camera or on a boom. In the box: Sennheiser MKH 8060 short shotgun microphone, MKH 8060 Microphone Body, MZX 8000 Analogue Output Module (XLR), MZQ 8060 Microphone Clip, MZW 8060 Foam Windshield and threaded transport tube and 2 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Transducer | Symmetrical RF |
|---|---|
| Polar Pattern | Supercardioid/Lobar |
| Frequency Response | 50Hz to 25kHz |
| Sensitivity | -24 dBV/Pa (63mV/Pa) |
| Noise | EIN: 11dB (A) (DIN-IEC 651), 23dB (CCIR 268-3) |
| Maximum Sound Pressure Level (SPL) | 129dB |
| Impedance | Nominal: 25Ω Minimum Terminating: 2kΩ |
| Output Connectors | 1 x XLR (as supplied) |
| Pad | No |
| Low Frequency Roll-Off | No |
| Power Requirements | 48V, +/-4V phantom (P48, IEC 61938) 3.3mA current consumption |
| Operating Temperature | -10°C to 60°C |
| Dimensions | Diameter: 19 mm Length (Microphone): 145 mm) Length (with MZX 8000 Module): 178 mm |
| Weight | Microphone: 79 g With MZX 8000 Module: 111 g |
In the box
- Sennheiser MKH 8060 Short Shotgun Microphone
- MKH 8060 Microphone Body
- MZX 8000 Analogue Output Module (XLR)
- MZQ 8060 Microphone Clip
- MZW 8060 Foam Windshield
- Threaded Transport Tube
- Frequency Response Sheet
- One (1) Year Warranty
