Description

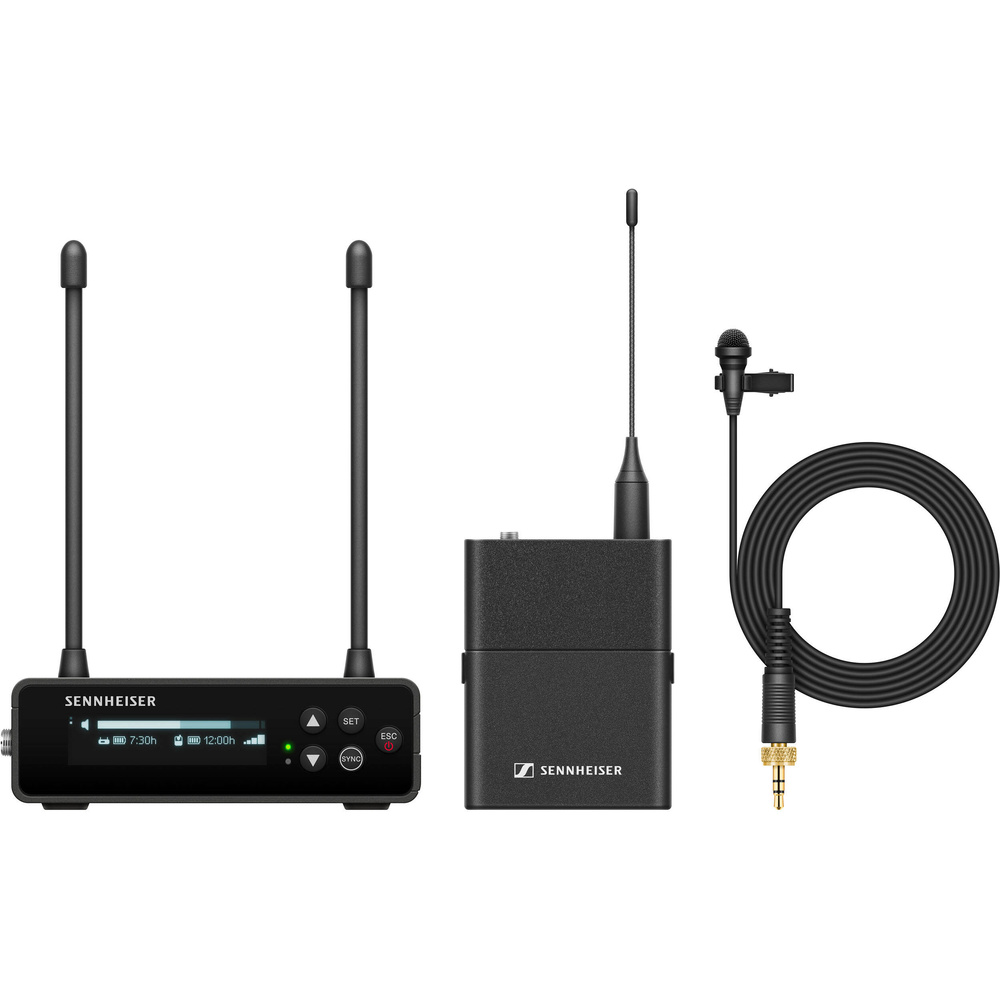

The Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 - 662 MHz) is a wireless system.
Highlights include S4-7 Band(630 - 662 MHz), creators, videographers, newsgatherers, ME 2 omnidirectional lavalier mic, lightweight bodypack transmitter and true-diversity Camera-Mount receiver.
Key specifications: polar pattern Omnidirectional; frequency range 50 Hz to 18 kHz; frequency response 20 Hz to 20 kHz ±3 dB; capacity Not Specified by Manufacturer; length meters 1.6 m.
The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: EW-DP EK digital portable single channel receiver, EW-D SK digital bodypack transmitter, ME 2 omnidirectional lavalier microphone, mounting kit (cheese plate, cold shoe, belt clip & screws), BA 70 li-ion battery & (2) AA battery and locking 3.5 mm TRS plug to 3.5 mm TRS plug cable and 2 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| System | |
|---|---|
| Wireless Technology | Digital UHF |
| Included Transmitters | 1 x Bodypack |
| Diversity | Intelligent Switching Diversity |
| RF Frequency Band | S4-7: 630 - 662 MHz |
| RF Bandwidth | 56 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Max Transmitters per Band | 58 |
| Built-In Recorder | No |
| Mobile App Compatible | Yes: Android & iOS App Name: Sennheiser Smart Assist Functionality: Adjust Settings, Remote Control, Setup *As of March, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Bluetooth | 5.1 LE |
| Bluetooth Operating Distance | 120' / 36.6 m (Transmitter Sync, App Control) |
| Sample Rate/Resolution | 24-Bit |
| Latency | 1.9 ms |
| Dynamic Range | 134 dB |
| Encryption | None |
| Receiver | |
| Receiver Type | Camera-Mount |
| Mounting Options | Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware) |
| Antenna | 2 x 1/4 Wave Rod, Fixed |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking) |
| Audio Output Level | 1/8" / 3.5 mm Output: 2 dBV (Max, Unbalanced) |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | 1 x USB-C Female (Bus Power, Charging) |
| RF Output Power | 10 mW (EIRP) |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Battery Pack (Included) |
| Approx. Battery Life | 7 Hours |
| Display & Indicators | 1 x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 5 to 95% |
| Dimensions | 3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm |
| Weight | 0.3 lb / 140 g |
| Transmitter | |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW (ERP) Up to 10 mW (EIRP) |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
| Muting | Mute Switch |
| Audio Input Level | 2 to 4.35 V RMS |
| Auto-Level Control | No |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | Bluetooth |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Battery Pack (Included, Replaceable) |
| Approx. Battery Life | 8 Hours (Alkaline) 12 Hours (Sennheiser Battery Pack) |
| Display & Indicators | 1 x LED (Mute) 1 x LED (Sync) |
| Housing | Metal |
| Dimensions | 2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas) |
| Weight | 4.2 oz / 120 g (without Batteries) |
| Microphone | |
| Microphone Type | Lavalier |
| Colour | Black |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 50 Hz to 18 kHz |
| Equivalent Noise Level | 32 dB |
| Maximum SPL | 130 dB SPL |
| Sensitivity | 17 mV/Pa at 1 kHz |
| Output Connector | 1 x 1/8" / 3.5 mm TRS Male (Lockable) |
| Cable Length | 5.2' / 1.6 m |
| Operating Voltage | 7.5 V |
| Charging Case | |
| Capacity | Not Specified by Manufacturer |
Product details
| Length Meters | 1.6 m |
|---|---|
| Length Feet | 5.2 ft |
| System Type | Lavalier System |
In the box

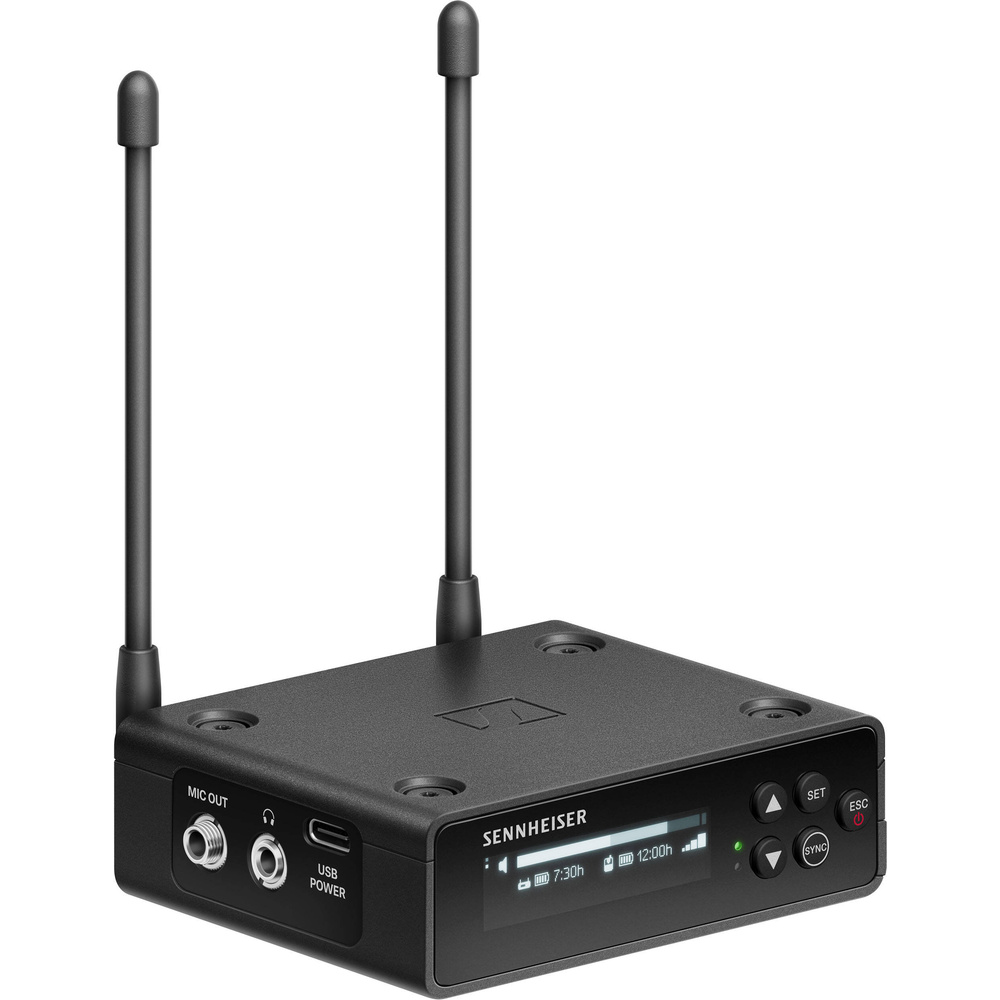

- EW-DP EK digital portable single channel receiver

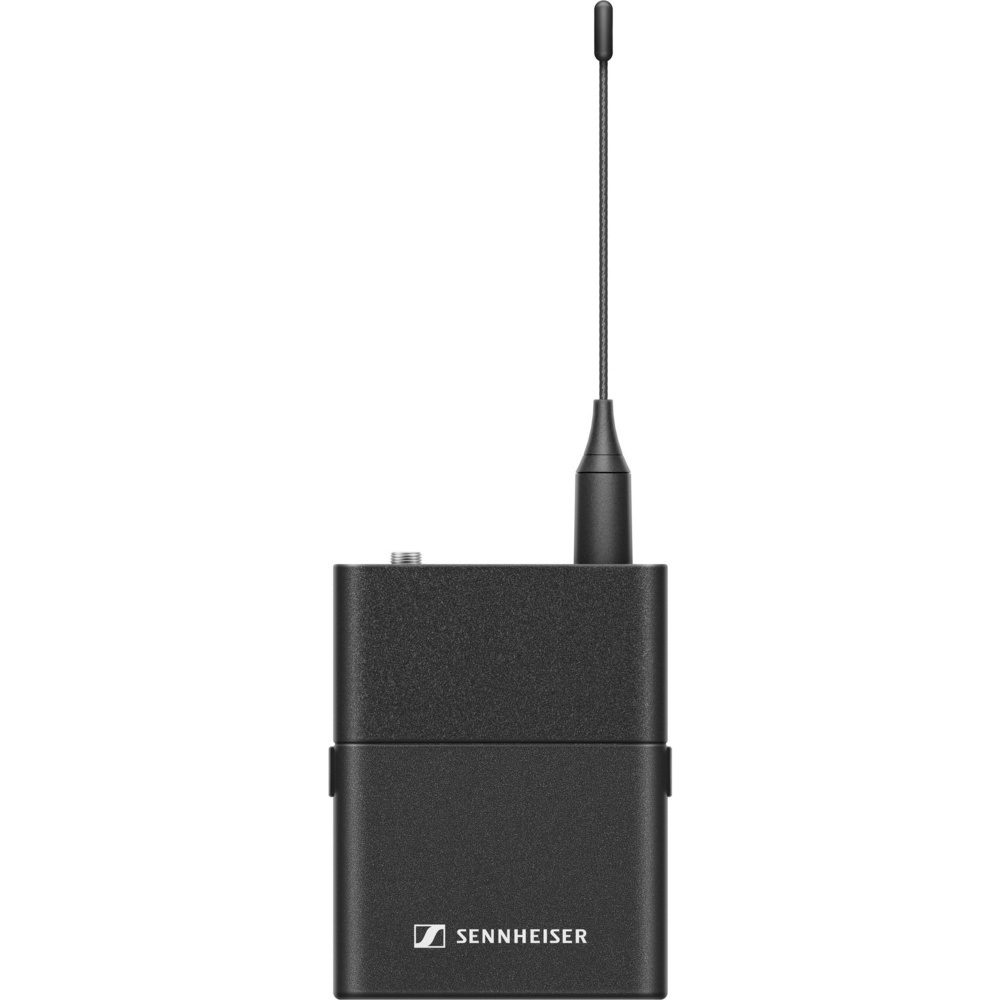

- EW-D SK digital bodypack transmitter

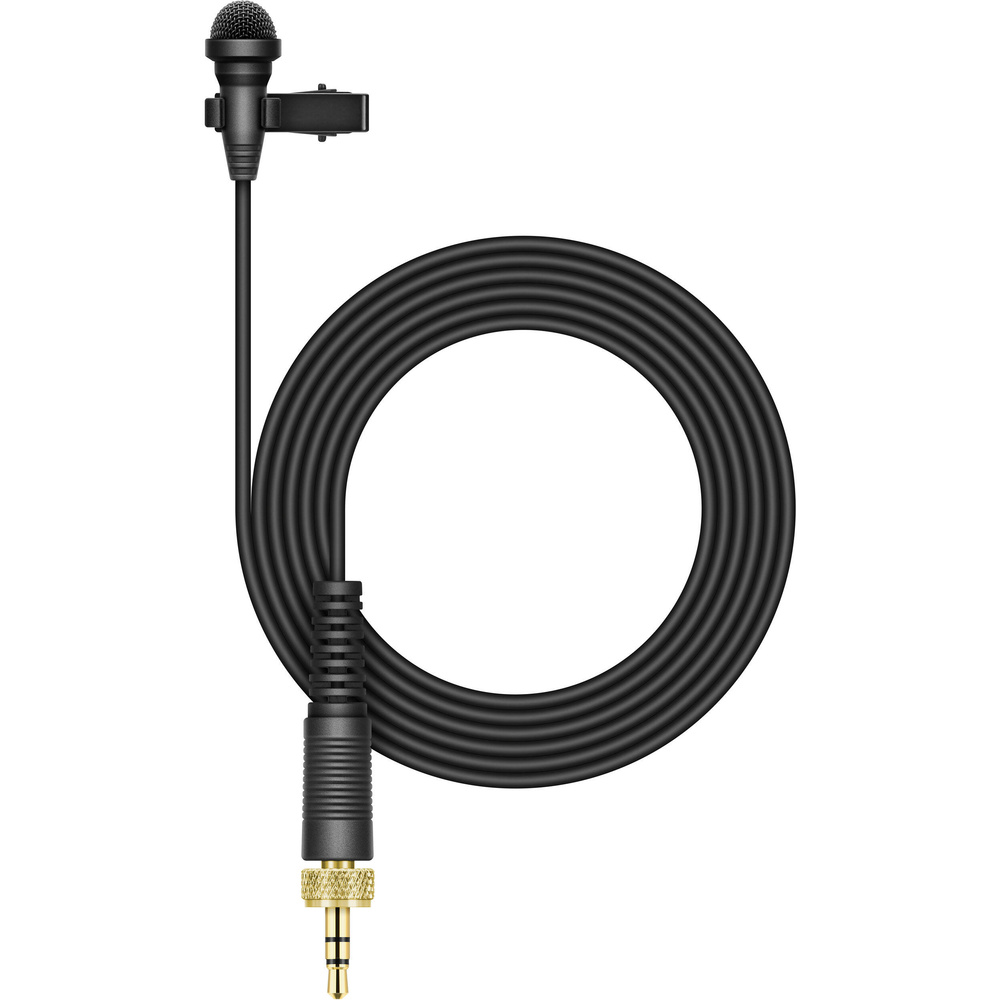

- ME 2 omnidirectional lavalier microphone

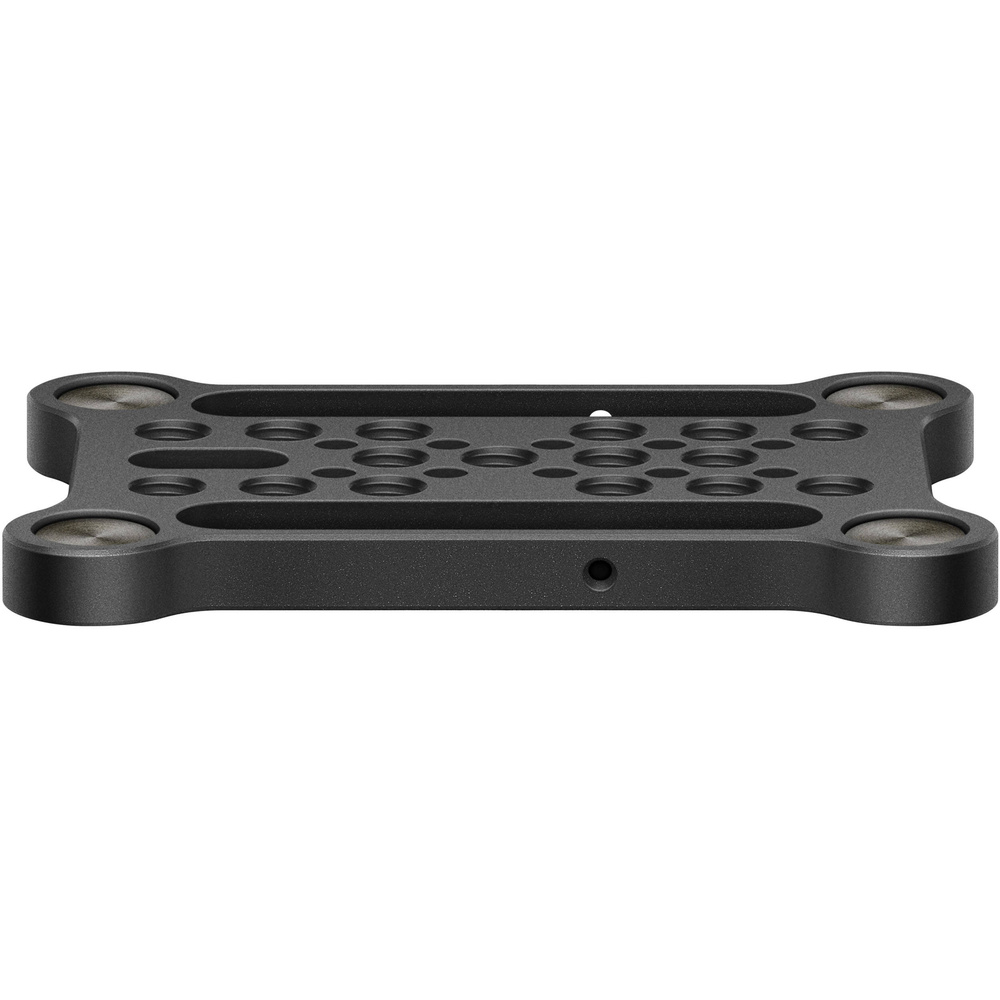

- Mounting kit (cheese plate, cold shoe, belt clip & screws)
- BA 70 li-ion battery & (2) AA battery

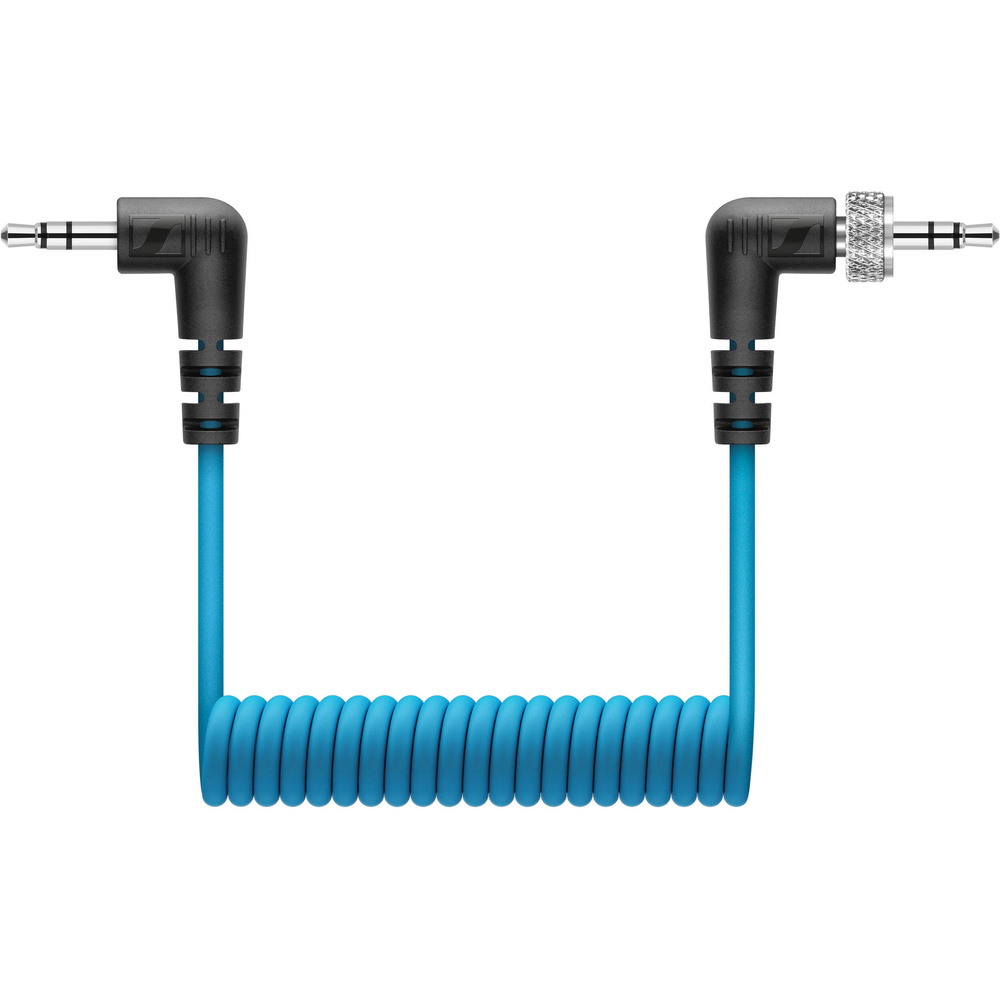

- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable
