Description
It suits creators who need a compact setup for interviews, vlogs, mobile filming and camera recording. The system includes a camera-mount receiver plus plug-in receivers for USB-C and Lightning devices, so it can move between phones and cameras with minimal setup.
It uses 2.4 GHz adaptive frequency hopping wireless transmission with GFSK 2 Mbps modulation for stable audio links. Each transmitter uses an omnidirectional mic with 20 Hz to 20 kHz frequency response, 48 kHz 24-bit audio, 70 dB signal-to-noise ratio and 116 dB SPL max sound pressure level. Transmission reaches up to 300 m line of sight, with up to 60 m non line of sight on mobile and 40 m on camera.

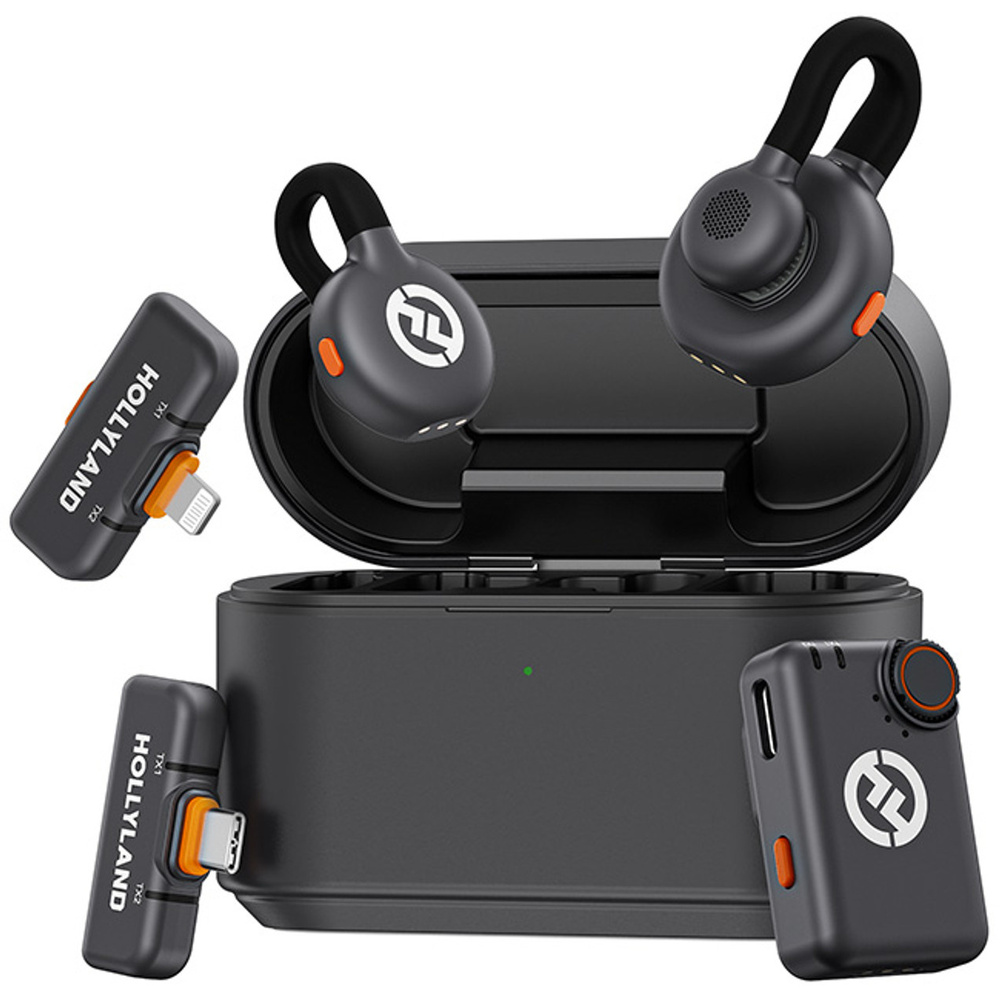

In use, the two transmitters clip onto speakers, while the included receivers connect to a camera, USB-C device or Lightning device. The charging case keeps the system together between shoots and the kit includes two furry windscreens, a 3.5mm TRS audio cable, a USB-C to Lightning audio cable and a USB-A to USB-C cable. It is suitable for iPhone, Android, camera and computer workflows where supported by the receiver connection.
Specifications
| Microphone Specifications | |
|---|---|
| Mic Sensitivity | -37 dBV ± 2dB @1 kHz, 94 dB SPL |
| Mic Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz - 20 kHz |
| Signal-to-Noise Ratio | > 70 dB |
| Max Sound Pressure Level | 116 dB SPL |
| Sample Rate and Bit Depth | 48 kHz, 24-bit |
| Wireless and Transmission Specifications | |
| Wireless Modulation Mode | GFSK 2 Mbps |
| Wireless Transmission | 2.4 GHz Adaptive Frequency Hopping (AFH) |
| Transmission Range | Mobile Version: Up to 300 m (LOS) / 60 m (NLOS) Camera Version: Up to 300 m (LOS) / 40 m (NLOS) |
| Battery Specifications | |
| Battery Voltage | TX: 3.87 V (Camera) RX: 3.87 V (Mobile Version) Combo Version Charging Case: 3.8 V |
| Battery Capacity | TX: 85 mAh (Camera Version) RX: 145 mAh (Mobile Version) Combo Version Charging Case: 1300 mAh |
| Operating Time | TX: Approx. 9 hours Camera Version RX: Approx. 8.5 hours Combo Version Charging Case: > 2.5 times charging for all TX and RX at the same time |
| Charging Time | TX: Approx. 1 hour Camera Version RX: Approx. 1 hour Mobile Version Charging Case: < 1.5 hours Combo Version Charging Case: < 1.5 hours |
| Environmental Specifications | |
| Charging Temperature | 0°C ~ 45°C |
| Operating Temperature | -10°C ~ 45°C |
Product details
| System Type | Lapel System |
|---|

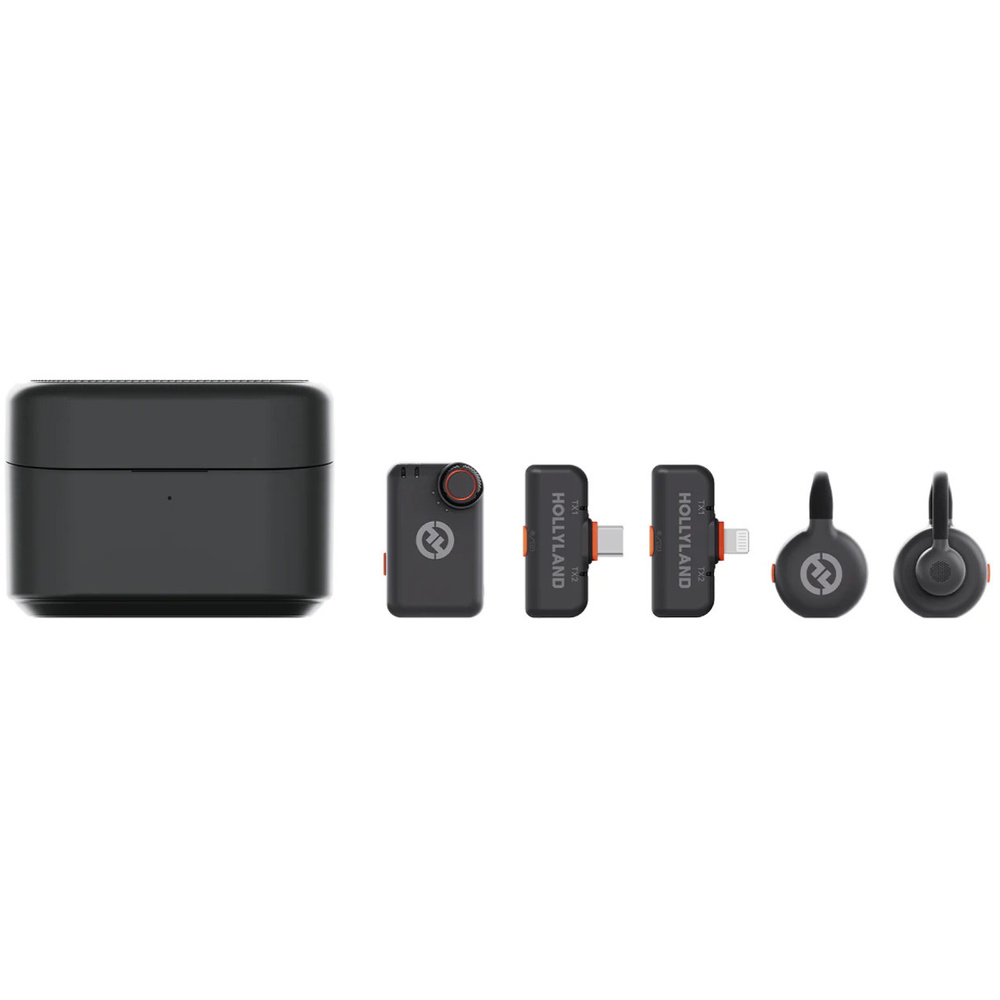

In the box
- 2 x Wireless Microphone Transmitter
- 1 x Wireless Receiver with USB-C Connector
- 1 x Wireless Receiver with Lightning Connector
- 1 x Wireless Camera-Mount Receiver
- 1 x Charging Case (Space Gray)
- 2 x Furry Windscreen
- 1 x 3.5mm TRS Audio Cable
- 1 x USB-C to Lightning Audio Cable
- 1 x USB-A to USB-C Cable
