Description

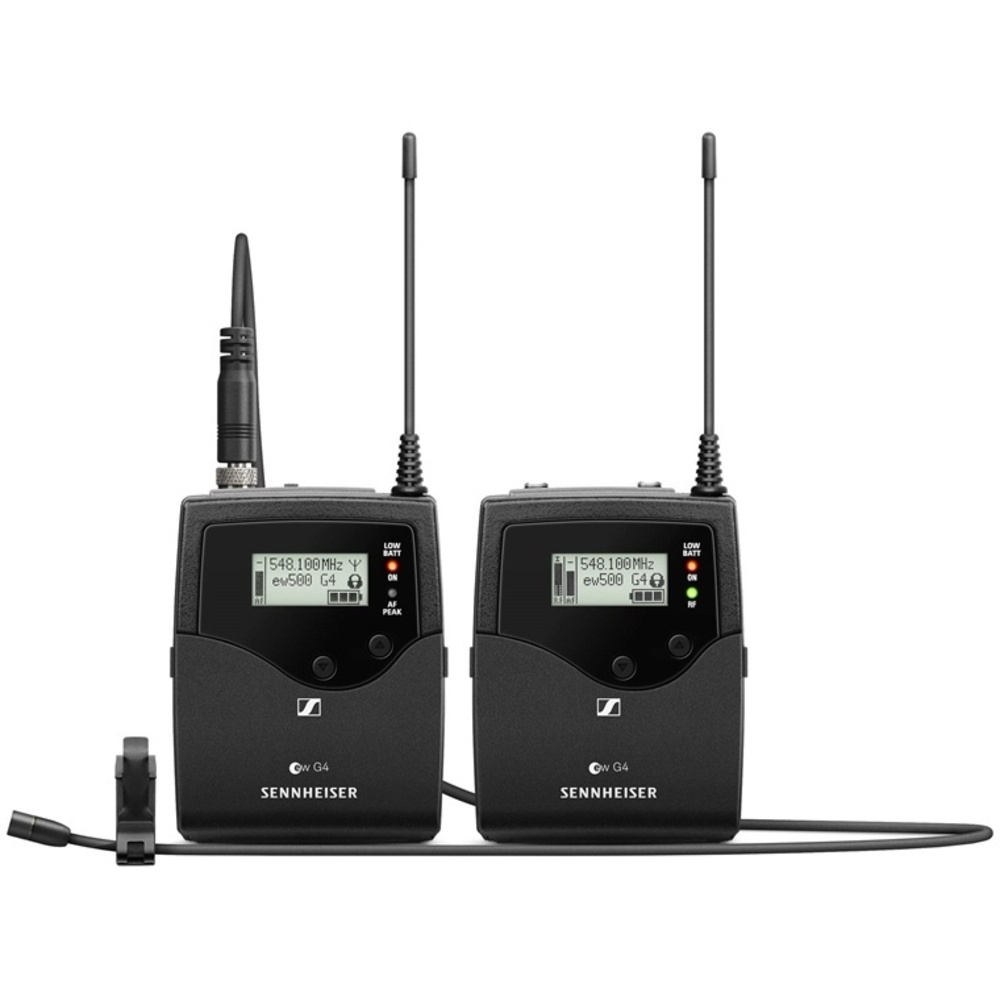

The Sennheiser EW 512P G4 Camera Wireless System with MKE-2 Gold Lavalier Mic (AS: 520 - 558 MHz) sits in our Wireless Systems range.
Highlights include AS Band (520 - 558 MHz), for film, field, and video applications, EK 500 G4 Camera receiver, SK 500 G4 bodypack transmitter and MKE 2 gold clip-on lavalier microphone.
Key specifications: polar pattern Omnidirectional; frequency response 20 Hz to 20 kHz; connector 1/8" (3.5 mm) locking; weight 160 g including batteries; dimensions (L x W x H) 82 x 64 x 24 mm.
The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: SK 500 G4 Wireless Bodypack Transmitter (AS: 520 - 558 MHz), EK 500 G4 Pro Wireless Camera-Mount Receiver (AS: 520 - 558 MHz), MKE2 Gold Series Omnidirectional Lavalier Condenser Microphone (with Accessories, Black), 4 x AA batteries, CL 1 3.5 mm jack cable and CL 500 XLR to 3.5 mm jack adapter cable and 2 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| SK 500 G4 Wireless Bodypack Transmitter AW+ | |
|---|---|
| Modulation | Wideband FM stereo |
| Frequency Band | AS: 520 - 558 MHz |
| Transmission Frequency | Maximum 3250 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Frequency Stability | ≤ ±15 ppm |
| RF Output Power | At 50 Ohms Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW |
| Pilot Tone Squelch | Can be switched off |
| Compander | Sennheiser HDX |
| AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
| Signal to Noise Ratio | Approximately ≥ 115 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum Input Voltage | Mic and Line: 3 V eff |
| Input Impedance | Microphone: 68 kOhms, unbalanced Line: 1 MOhms |
| Input Capacitance | Switchable |
| Input Sensitivity Range | 60 dB, adjustable in 3 dB steps |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | At Nominal Voltage: Typical 180 mA With Transmitter Switched Off: ≤ 25 μA |
| Operating Time | Typically 8 hours |
| Dimensions (L x W x H) | 82 x 64 x 24 mm |
| Weight | 160 g including batteries |
| EK 500 G4 Pro Wireless Camera-Mount Receiver AW+ | |
| Modulation | Wideband FM |
| Receiving Frequency | Maximum 3250 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency bank with up to 32 programmable channels |
| Principle of Operation | Adaptive diversity |
| Sensitivity | < 1.6 μV for 52 dBA eff s/n (with HDX, peak deviation) |
| Adjacent Channel Selectivity | Typically ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 65 dB |
| Blocking | ≥ 70 dB |
| Squelch | Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV |
| Signal to Noise Ratio | (1 mV, peak deviation) Line: ≥ 110 dBA Phones: Approximately 90 dB |
| Maximum AF Output Voltage | 1/8" (3.5 mm) Jack Socket: +17 dB (mono, unbalanced) (at peak deviation, 1 kHz AF) |
| Output Level Range | 42 dB, adjustable in steps of 6 dB |
| Power Supply | 2 x AA batteries, 1.5 V or BA2015 accupack |
| Current Consumption | At Nominal Voltage: Typical 140 mA With Receiver Switched Off: ≤ 25 μA |
| Weight | 130 g including batteries |
| MKE2 Gold Series Omnidirectional Lavalier Condenser Microphone (with Accessories, Black) | |
| Transducer | Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | 5 mV/Pa ± 2.5 dB (free field, no load, 1 kHz) |
| Nominal Impedance | 1 kOhm |
| Minimal Terminating Impedance | 4.7 kOhms |
| Equivalent Noise Level | A-weighted (DIN IEC 651) 26 dB CCIR-weighted (CCIR 468-3) 39 dB |
| Maximum Sound Pressure Level (SPL) | 142 dB (1 kHz) (THD = 1 %) |
| Power Supply | 18 kOhms/ 7.5 V |
| Supply Current | Approximately 250 µA |
| Connector | 1/8" (3.5 mm) locking |
| Cable Length | 5.25' (1.6 m) |
| Low Frequency Roll-Off | No |
| Microphone Diameter | 4.8 mm |
| Weight | 1 g |
Product details
| System Type | Lavalier System |
|---|
In the box
- SK 500 G4 Wireless Bodypack Transmitter (AS: 520 - 558 MHz)
- EK 500 G4 Pro Wireless Camera-Mount Receiver (AS: 520 - 558 MHz)
- MKE2 Gold Series Omnidirectional Lavalier Condenser Microphone (with Accessories, Black)
- 4 x AA batteries
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- CA 2 camera adapter
- Fur windscreen for MKE 2
