Description

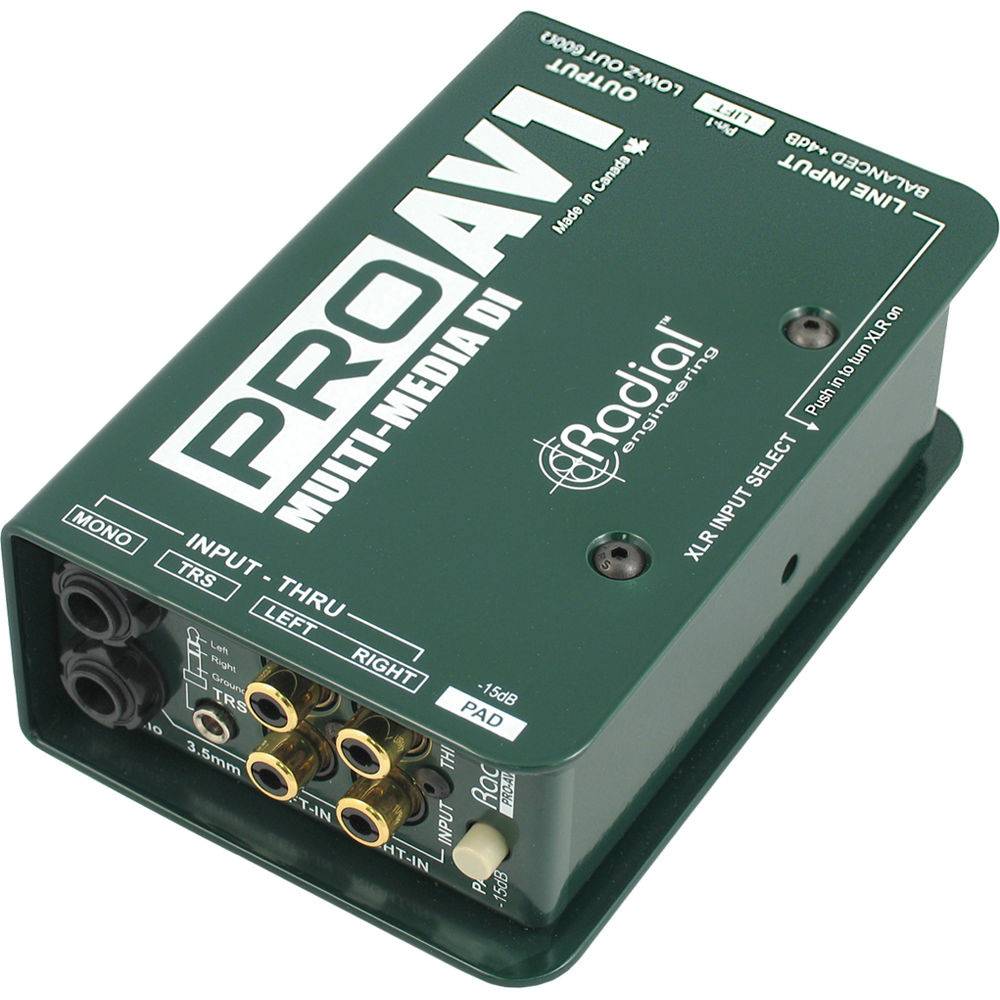

The Radial Engineering ProAV1 Passive Multimedia Direct Box is a direct injection (D.I.) box.

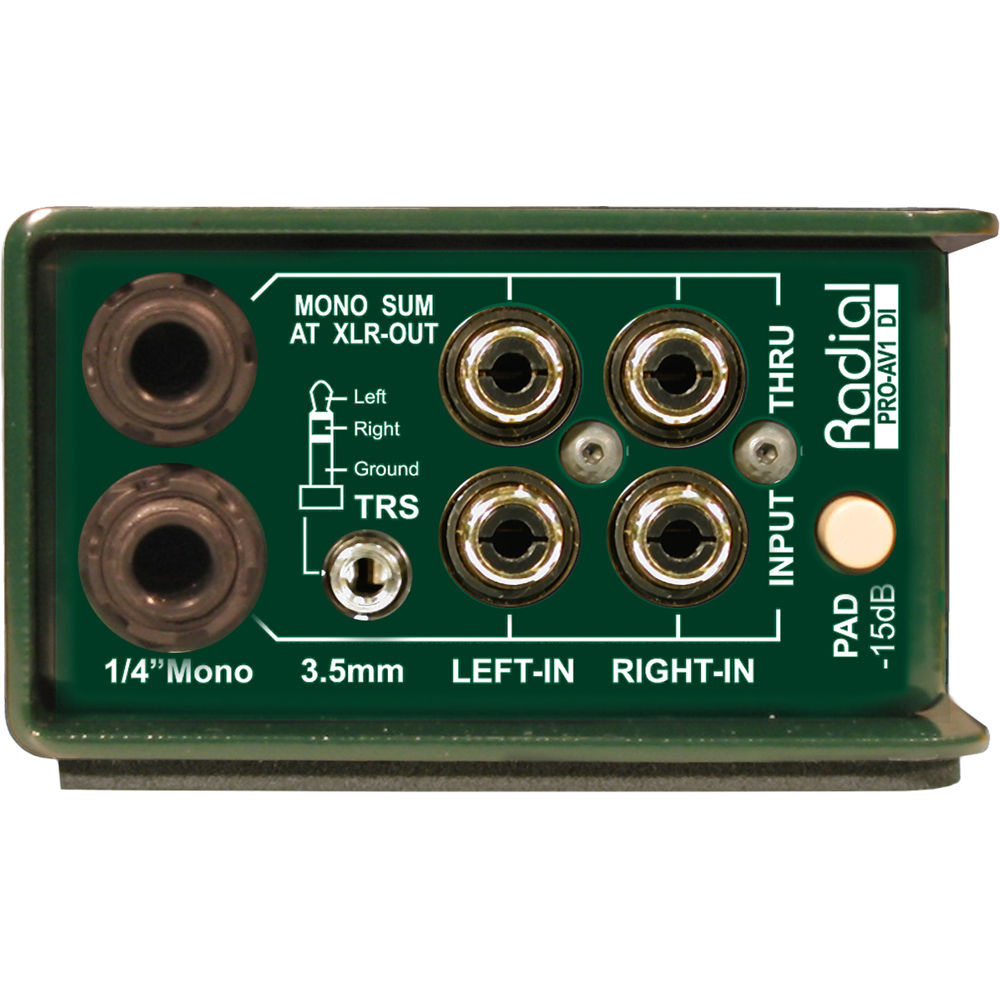

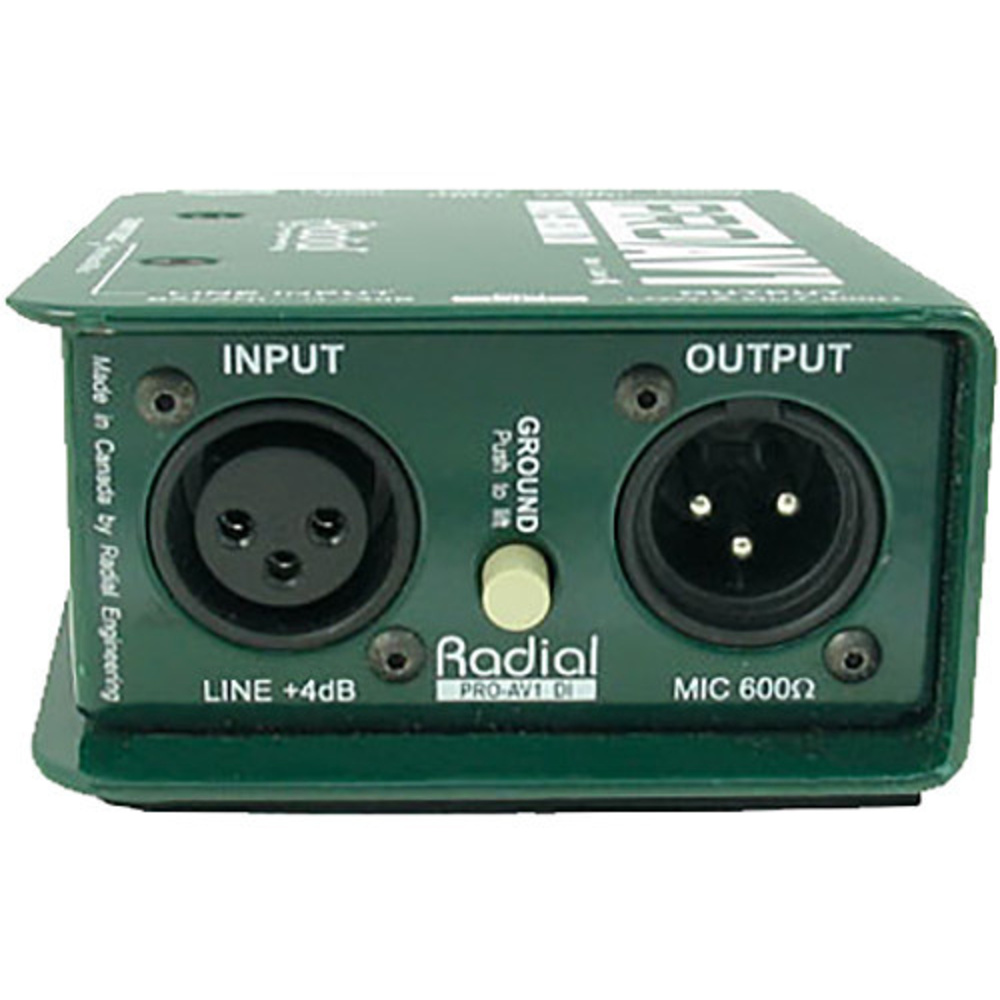

Highlights include for Multimedia applications, mono 1/4", stereo RCA, and 3.5mm inputs, mono XLR line-level input, mic-level mono sum at XLR out and -15 dB Pad.
Key specifications: frequency response 20 Hz to 18.5 kHz, ±0.2 dB; weight 730 g; dimensions 12.7 x 8.25 x 4.8 cm; output connectors 1 x XLR 1 x 1/4" TS Thru-Put 1 2RCA Thru-Put; input level +18 dB a 20 Hz (Max).
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input Connections | 1 x 1/4" TS 1 x 2RCA 1 x 1/8" / 3.5 mm TRS Mini 1 x XLR 3-Pin |
|---|---|
| Output Connectors | 1 x XLR 1 x 1/4" TS Thru-Put 1 2RCA Thru-Put |
| Input Level | +18 dB a 20 Hz (Max) |
| Input Impedance | 140 Kilohms |
| Controls | -15 dB Pad Ground Lift Switch |
| Frequency Response | 20 Hz to 18.5 kHz, ±0.2 dB |
| THD | 0.01% (20 Hz to 20 kHz at -10 dB) |
| Phase Deviation | 1° at 100 Hz, 8° at 20 Hz |
| Common Mode Rejection Ratio | +18 dB at 60 Hz |
| Power | Passive, no Power Required |
| Operating Temprature | 5 to 40°C |
| Construction Material | 14 Gauge Steel Chassis and Shell |
| Dimensions | 12.7 x 8.25 x 4.8 cm |
| Weight | 730 g |
In the box
- Radial Engineering ProAV1 Passive Multimedia Direct Box
