Description

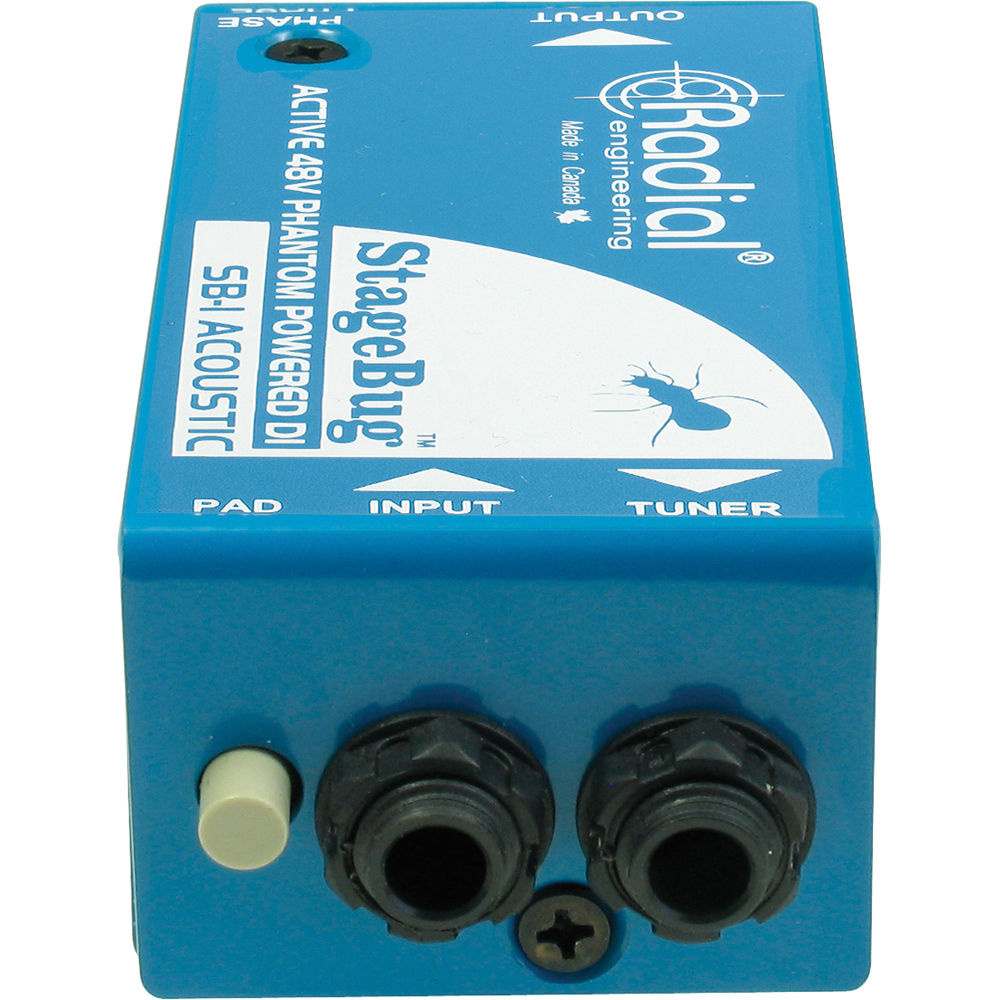

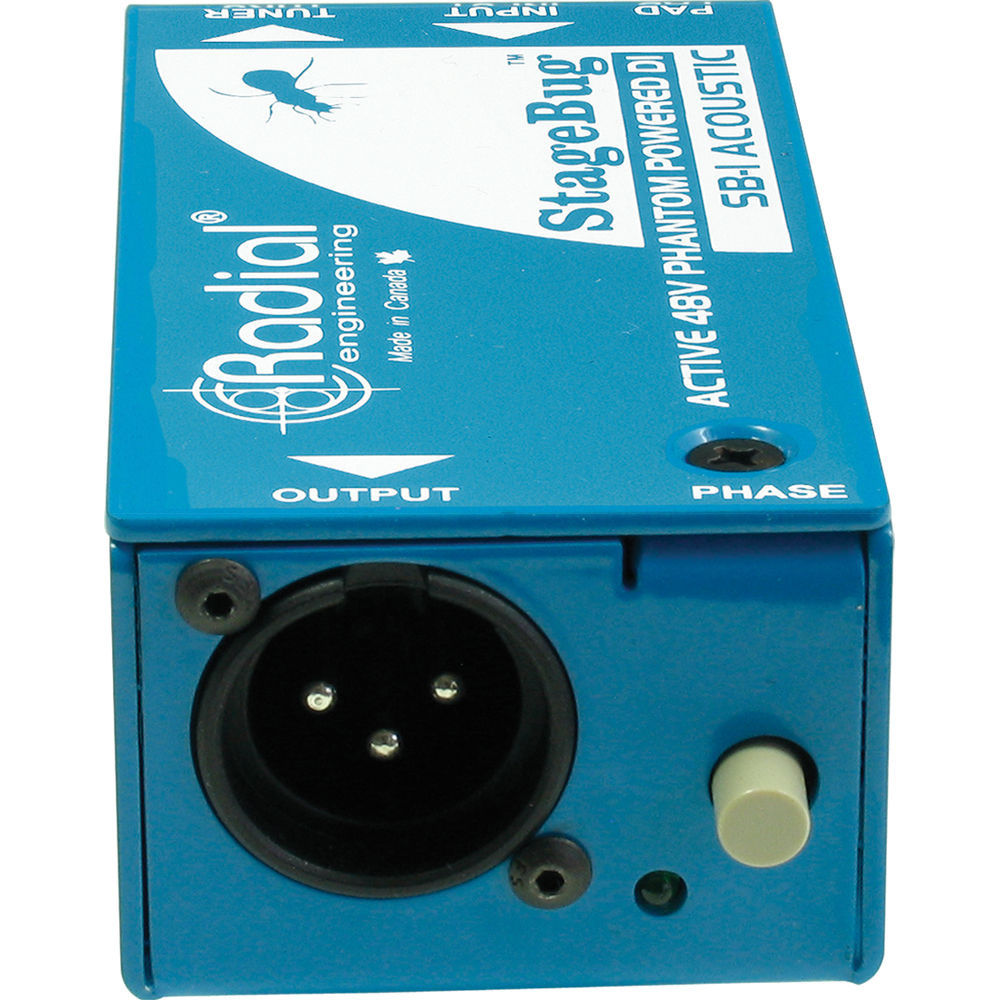

The Radial Engineering StageBug SB-1 Active Acoustic Direct Box is a direct injection (D.I.) box.
Key specifications: frequency response 20 Hz to 20 kHz; weight 0.25 kg; dimensions 11.40 x 4.70 x 3.40 cm; circuit type Active buffer with phase splitter; total harmonic distortion <0.006%.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Circuit Type | Active buffer with phase splitter |
|---|---|
| Frequency Response | 20 Hz to 20 kHz |
| Total Harmonic Distortion | <0.006% |
| Dynamic Range | >100 dB |
| Input Impedance | 800 k / 23 k |
| Maximum Input | +2 dBu / +8 dBu |
| Gain | +1.3 dBu / +4.4 dB |
| Clipping Level | Output: +3.3 dBu / +12.3 dBu |
| Output Impedance | 330 Ω |
| Equivalent Input Noise | -101 dBu |
| Noise Floor | -97 dBu |
| Intermodulation Distortion | <0.01% |
| Deviation from Linear Phase | 25 / 12° maximum |
| Switches | Pad, Phase |
| Functions | Automatic merge |
| Input Pad Switch | -12 dB |
| XLR Configuration | + = Pin 2, - = Pin 3, Ground = Pin 1 |
| Polarity Reverse | Yes, 180° |
| Construction | 16 gauge steel chassis and outer shell |
| Finish | Baked enamel |
| Power | 48 V phantom power |
| Dimensions | 11.40 x 4.70 x 3.40 cm |
| Weight | 0.25 kg |
In the box
- Radial Engineering StageBug SB-1 Active Acoustic Direct Box
