Description

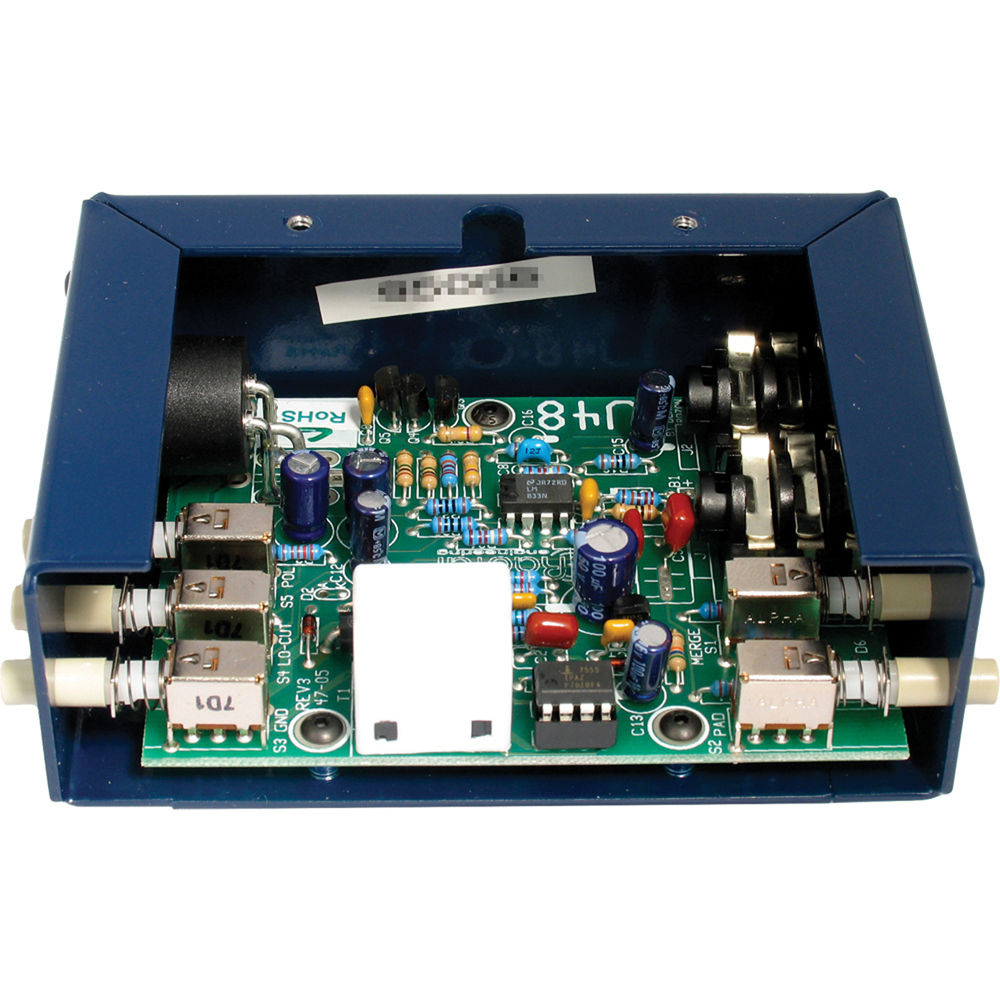

The Radial Engineering J48 Phantom Powered Active Direct Box is a direct injection (D.I.) box.
Highlights include no batteries required, merge switch sums stereo instruments and low Cut/Polarity/Pad/Ground switches.
Key specifications: frequency response 20 Hz to 20 kHz; weight 1.55 lb / 720 g; dimensions 5 x 3.3 x 2" / 127 x 84 x 48 mm; input connections 2 x 1/4" TS Phone In, Thru; output connectors 1 x 3-Pin XLR Male.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input Connections | 2 x 1/4" TS Phone In, Thru |
|---|---|
| Output Connectors | 1 x 3-Pin XLR Male |
| Impedance | Input: 220 Kilohms Output: 200 Ohms |
| THD | 0.002% at -5 dBu |
| Frequency Response | 20 Hz to 20 kHz |
| Equivalent Input Noise | -103 dBu |
| Noise | -99 dB below 0 dBu |
| Power | 48V Phantom Power |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Dimensions | 5 x 3.3 x 2" / 127 x 84 x 48 mm |
| Weight | 1.55 lb / 720 g |
In the box
- Radial Engineering J48 Phantom Powered Active Direct Box
Reviews
There are no reviews yet.
