Description

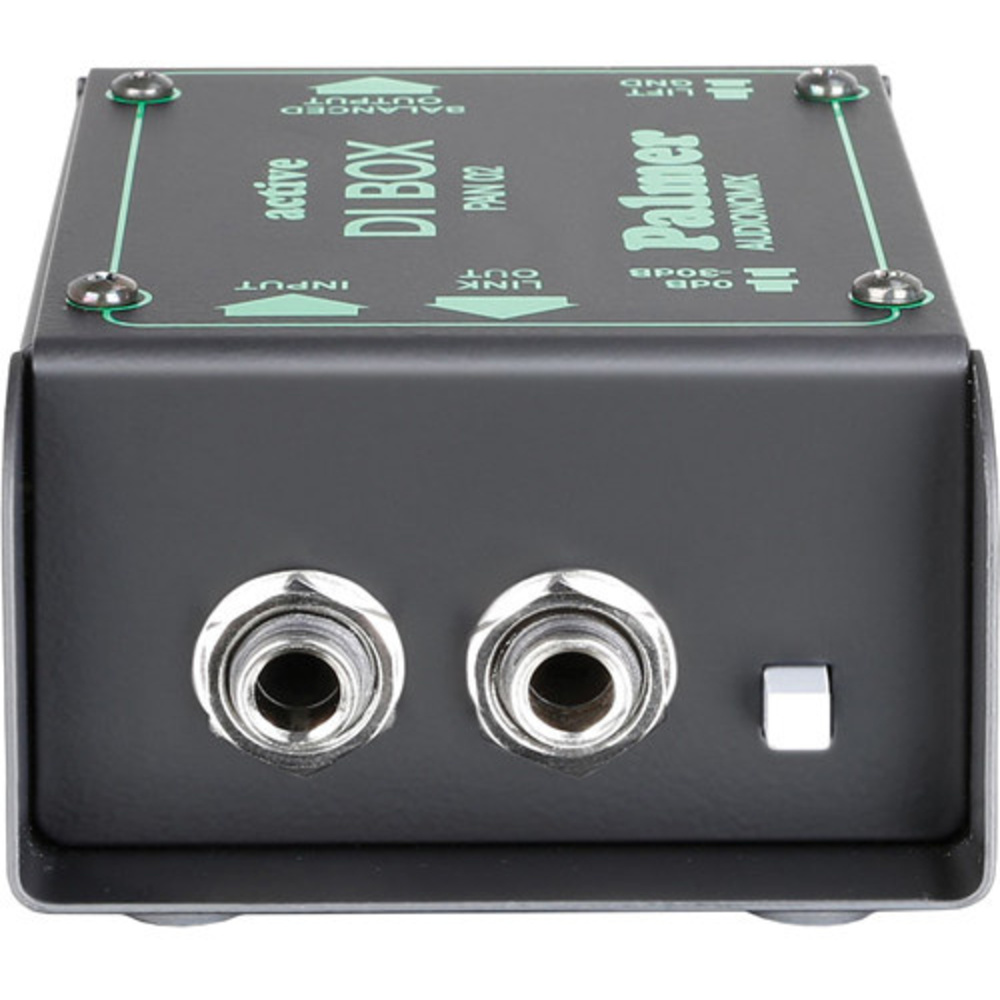

The Palmer PAN 02 Active DI Box is a direct injection (D.I.) box.
Highlights include connect keys, bass & guitar to mic input, additional unbalanced XLR input, -10, -20, or -30 dB Pad, 12 dB of Gain and transformer-balanced outputs.
Key specifications: frequency response 20 Hz to 40 kHz; weight 0.74 lb / 0.35 kg; dimensions 4.4 x 2.91 x 1.7" / 111 x 74 x 43 mm; number of channels Single-Channel; Active/Passive Active.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Item Type | Standard DI |
| Number of Channels | Single-Channel |
| Active/Passive | Active |
| Circuitry | Solid-State |
| Preamp | |
| Pad | -30 dB |
| Ground Lift | Yes |
| Polarity Reverse | No |
| AEQ & Tone Shaping | |
| Low-Cut/High-Pass Filter | No |
| Connectivity | |
| Audio I/O | 1x 1/4" TS Unbalanced Input 1x 1/4" TS Unbalanced Thru 1x XLR 3-Pin Balanced Output |
| Performance | |
| Frequency Response | 20 Hz to 40 kHz |
| Maximum Input Level | +45 dBu |
| Input Impedance | 1 Megohm |
| Output Impedance | 600 Ohms |
| Physical | |
| Dimensions | 4.4 x 2.91 x 1.7" / 111 x 74 x 43 mm |
| Weight | 0.74 lb / 0.35 kg |
In the box
- Palmer PAN 02 Active DI Box
Reviews
There are no reviews yet.
