Description

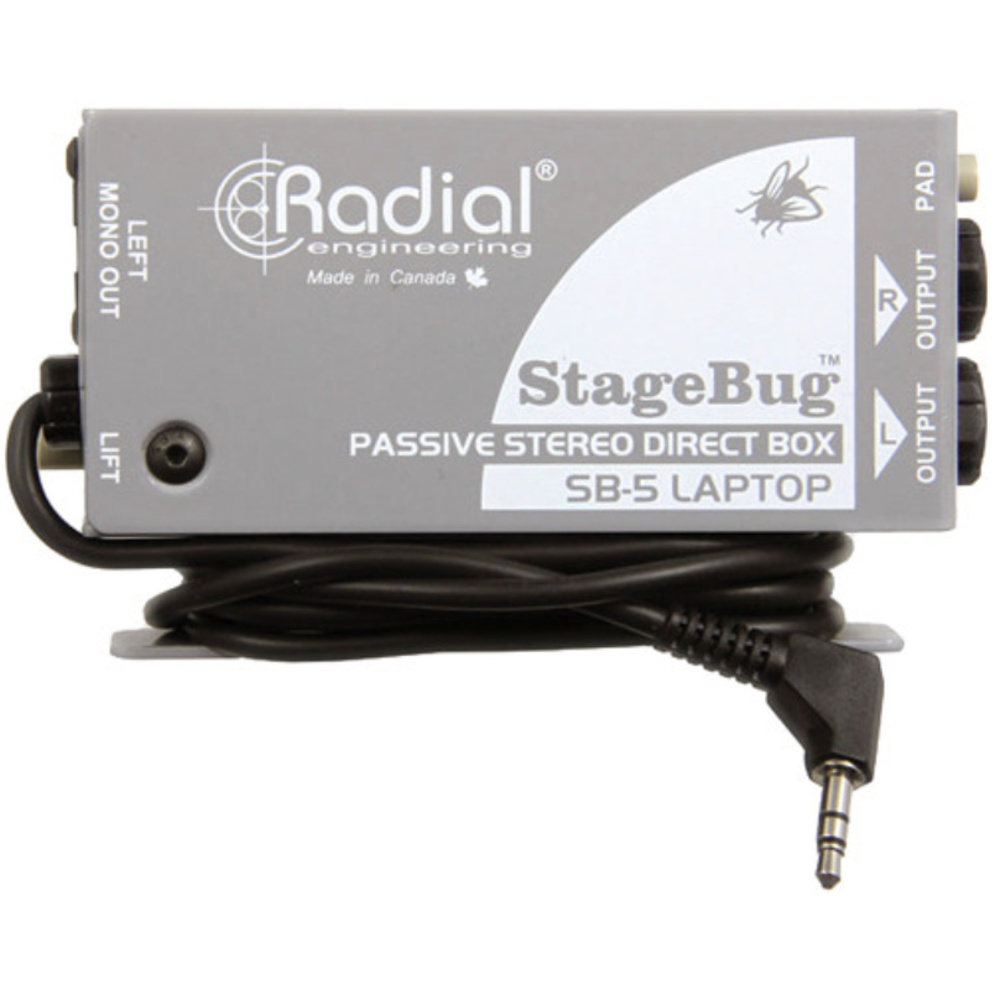

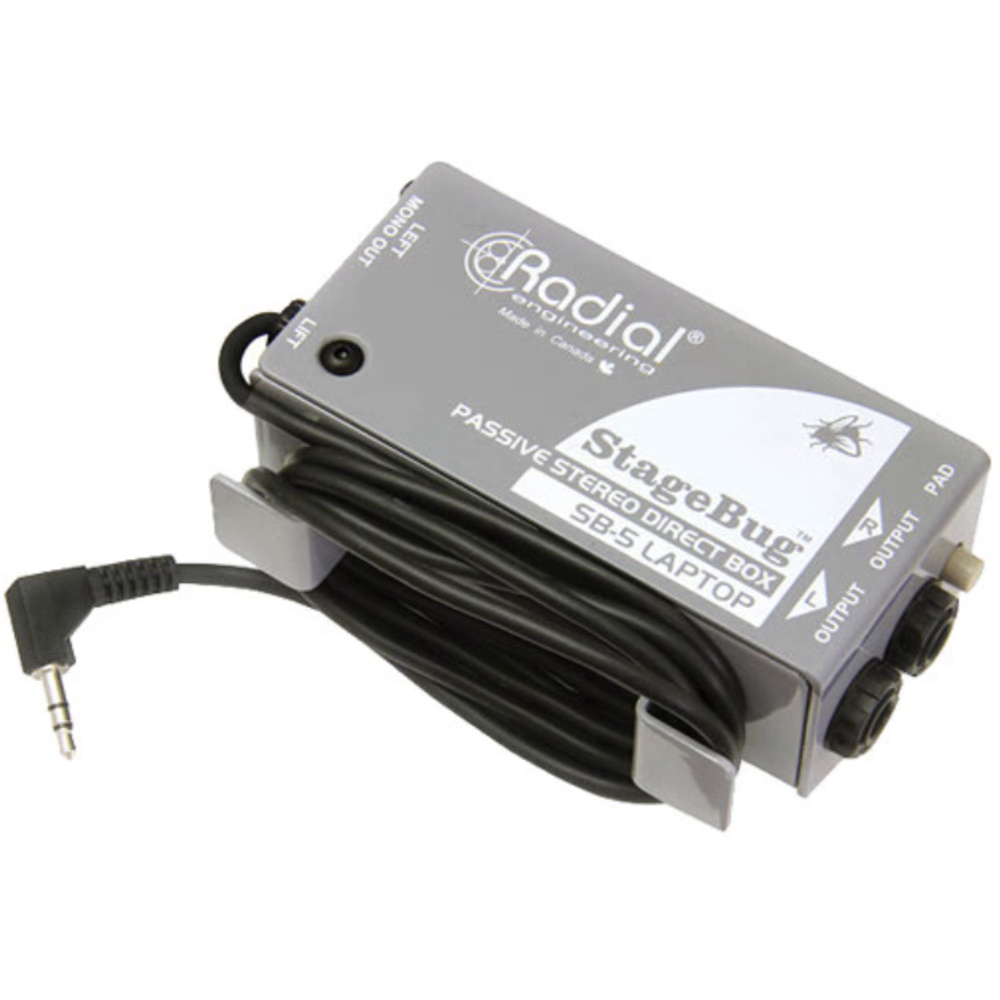

Radial Engineering StageBug SB-5 Stereo Laptop DI: a direct injection (D.I.) box.
Highlights include connects a mobile device to a PA/Mixer, 3.5mm TRS male plug on 5' attached cable, switchable -15 dB pad, custom-wound transformers and 2 x 1/4" TRS Outputs.
Key specifications: frequency response 20 Hz to 20 kHz (±1 dB); weight 250 g; dimensions 11.4 x 4.7 x 3.4 cm; circuit type Passive, Transformer-Based Design; number of channels 2.
Manufacturer model number RA-SB-5.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Circuit Type | Passive, Transformer-Based Design |
|---|---|
| Number of Channels | 2 |
| Inputs | 1 x 1/8" / 3.5 mm TRS Male Stereo Input (on Attached Cable) |
| Outputs | 2 x 1/4" TRS Female Balanced Outputs 1 x XLR 3-Pin Male Balanced Output |
| Cable Length | 1.5 m |
| Frequency Response | 20 Hz to 20 kHz (±1 dB) |
| Dynamic Range | 100 dB |
| Maximum Input | +20 dB |
| Total Harmonic Distortion | 0.01% at 1 kHz Deviation Phase: 2° at 100 Hz; 5° at 50 Hz |
| Input Impedance | 40 Kilohms (Unbalanced) |
| Output Impedance | 2.8 Kilohms (Balanced) |
| Pad | -15 dB |
| Ground Lift | Switchable |
| Power Requirements | None |
| Operating Temperature | 5 to 40°C |
| Construction | 14-Gauge Steel Chassis and Outer Shell |
| Dimensions | 11.4 x 4.7 x 3.4 cm |
| Weight | 250 g |
In the box
- Radial Engineering StageBug SB-5 Stereo Laptop DI
