Description

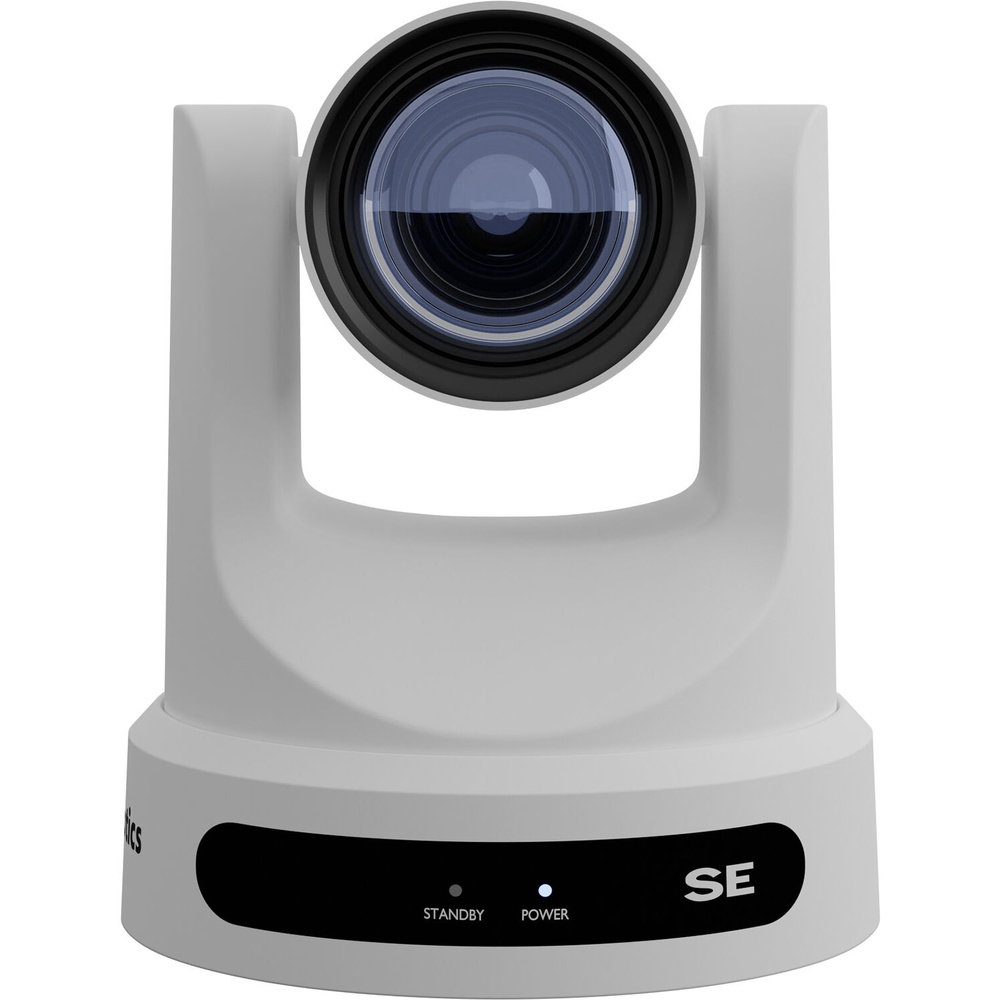

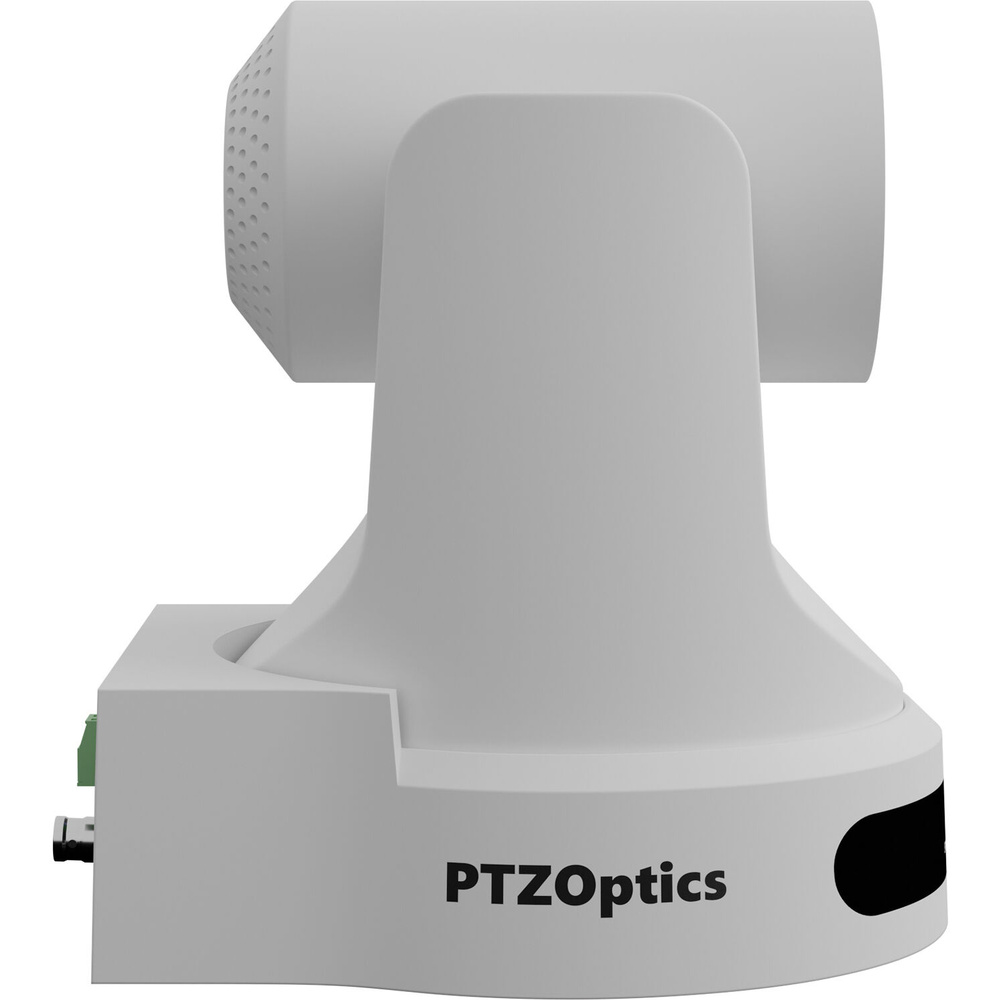

The PTZOptics Move SE is a white PTZ camera for live production, streaming and remote control in classrooms, churches, meeting rooms and small studios. It suits users who want a camera that can follow a speaker, present a fixed shot from a distance, and output to common video workflows without needing a separate camera operator.
It captures up to 1080p60 with a 1/2.8-inch CMOS sensor and 2.07 megapixels. The 12x optical zoom covers 4.1mm to 49.2mm, and up to 16x digital zoom is available. It includes HDMI, 3G-SDI, USB and IP output, NDI|HX as standard, 255 presets, auto-tracking, 3.5mm stereo audio in/out, low-light performance down to 0.5 lux, and pan and tilt movement of ±170° and +90° to -30°.
In use, it can be mounted to cover a stage, lectern or desk and controlled by remote or over IP. It works with HDMI, SDI, USB and network video setups, and pairs with recorders, switchers, streaming systems and audio gear that accept 3.5mm line input or output. The box includes the camera, 12 VDC power adapter and IR remote control.
Specifications
| Image Sensor & Lens | |
|---|---|
| Video Sensor | 1/2.8’’, CMOS, Effective Pixel: 2.07M |
| Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94 |
| Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reductions |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
| Pan/Tilt Movement | |
| Pan Movement | ±170° |
| Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 |
| Tilt Speed | 1.7° ~ 69.9° |
| Image Flip, Mirror and Freeze | Supported |
| Presets | 255 Presets |
| Preset Accuracy | 0.1° |
| Power Options | |
| Power Supply | DC 12V |
| Input Power | 2A (Max) |
| Physical Specifications | |
| Material | Aluminum, Plastic |
| Colour | White and Gray |
| Dimensions (W x D x H) | 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
| Weight | 1.445 kg |
| Working Environment | Indoor |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 60°C |
| Rear Board Connectors | |
| HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard 1x HDMI: version 1.3 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard 1x USB 3.0 Type C |
| Audio Interface | 1x 3.5mm Line level Input |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P |
| IR | 4x IR Addresses, Max distance 30ft / 9m |
| Power Jack | JEITA type (DC IN 12V) |
Product details
| Resolution | 1080P |
|---|---|
| Optical Zoom | 12x |
| PoE Capable | Yes |
| Interface | RJ45 |
In the box
- PTZOptics Move SOE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (White)
- 12 VDC Power Adapter
- IR Remote Control
- Limited 5-Year Manufacturer Warranty
